TM04C6AKJTL03+FTP

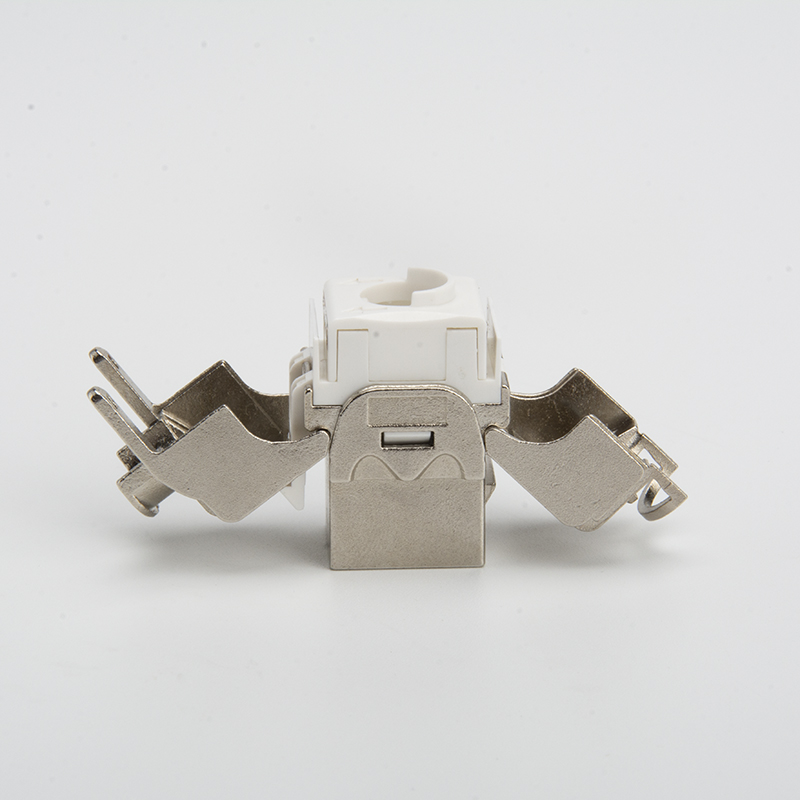

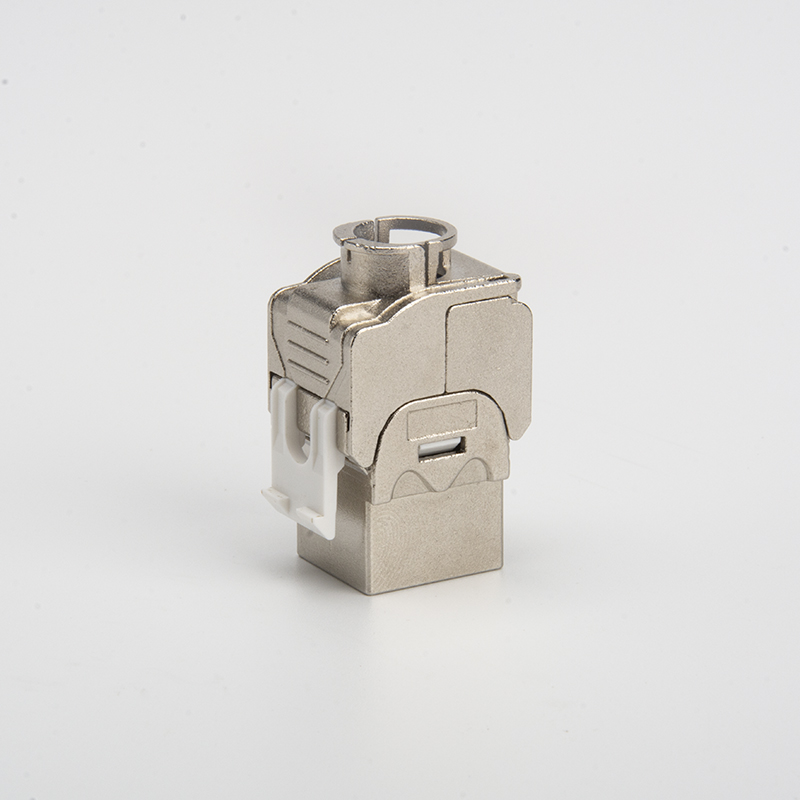

Cat.6/6a/8 FTP Tool Free Keystone Jack Up - Down crimping Mini Type

Electrical:

• Voltage rating: 125 VAC RMS;

• Current rating: 1.5 AMP;

• Contact resistance: 100 Million HMS max;

• Insulation resistance: 1000 MEGOHMS min. @ 500 VDC;

• Dielectric strength: 750 VAC RMS 60 Hz, 1 min

Mechanical:

• Housing Material: Zinc Alloy

• Insert Material: Flame Retardant PC

• PCB Material: FR-4;

• Contact Material: phosphor bronze Stamp Pin T =0.35mm;

• IDC Contact Material: phosphor bronze T =0.50mm with tin plating;

• RJ 45 Jack life: 750 times Min.

• IDC life: 200 times min.

• Wire contact compatibility: accommodates AWG 22-24;

• Retentiveness of insertion structure: 50N 60±5s.

•
  data sheet - keystone jack_ Cat6Adegree Zinc Alloy FTP keystone jack Mini toolless type _up_down.pdf
