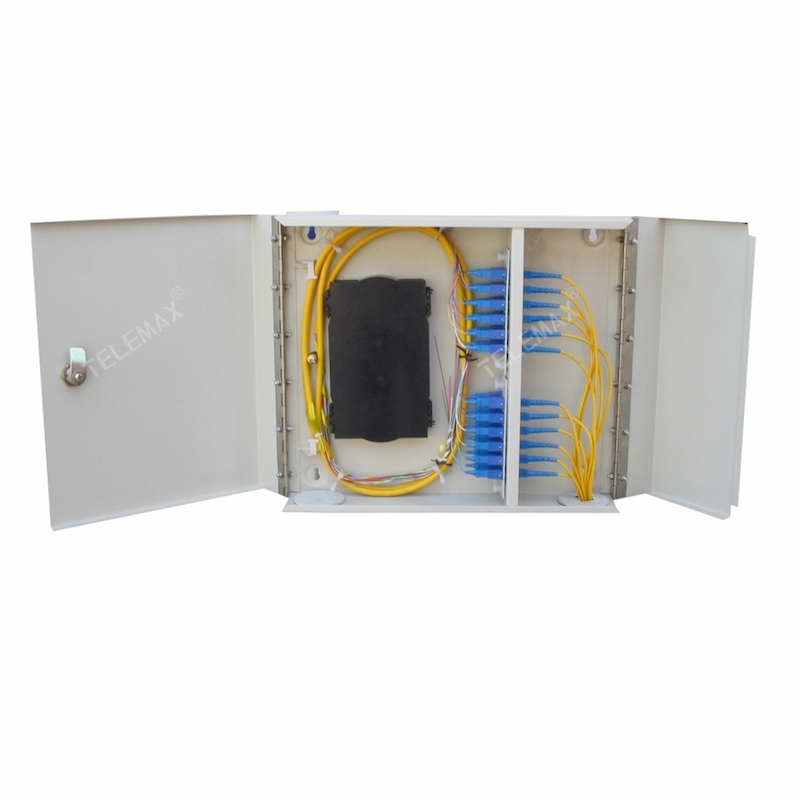

Wall Mount ODF 12/24 Port SC/LC Or FC/ST, Grey color

Part Code: TM12OFWMODF2401

TM12OFWMODF2401

Product Name: Wall Mount ODF 12/24 Port SC/LC Or FC/ST, Grey color


Description:

This wall mount ODF is available for small capacity communication system, wall mounting, the cabinet is composed of two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord, whole range protected design for fiber lay to ensure the bending radius=40mm..

Features:

1. Material: SPCC

2. For wall mounted

3. Dimension:W350XD300Xh80mm
4. Max capacity: 24 cores.

5. Outer carton dimension: 405x355x605mm(5pcs).

6. Outer carton weight: 19.5kg(5pcs)


Return to project list

Key Features

Product Details

Download

Type: Wall Mount

Connector support: LC/SC/FC/ST

Number of Ports: 12/24

Material: SPCC

TM12OFWMODF2401

Product Name: Wall Mount ODF 12/24 Port SC/LC Or FC/ST, Grey color


Description:

This wall mount ODF is available for small capacity communication system, wall mounting, the cabinet is composed of two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord, whole range protected design for fiber lay to ensure the bending radius=40mm..

Features:

1. Material: SPCC

2. For wall mounted

3. Dimension:W350XD300Xh80mm
4. Max capacity: 24 cores.

5. Outer carton dimension: 405x355x605mm(5pcs).

6. Outer carton weight: 19.5kg(5pcs)
