2F Self-Supporting Bow-Type Drop Cable

Part Code: TM06SMFTTH02B-LSZH

Part Code: TM06SMFTTH02B-LSZH

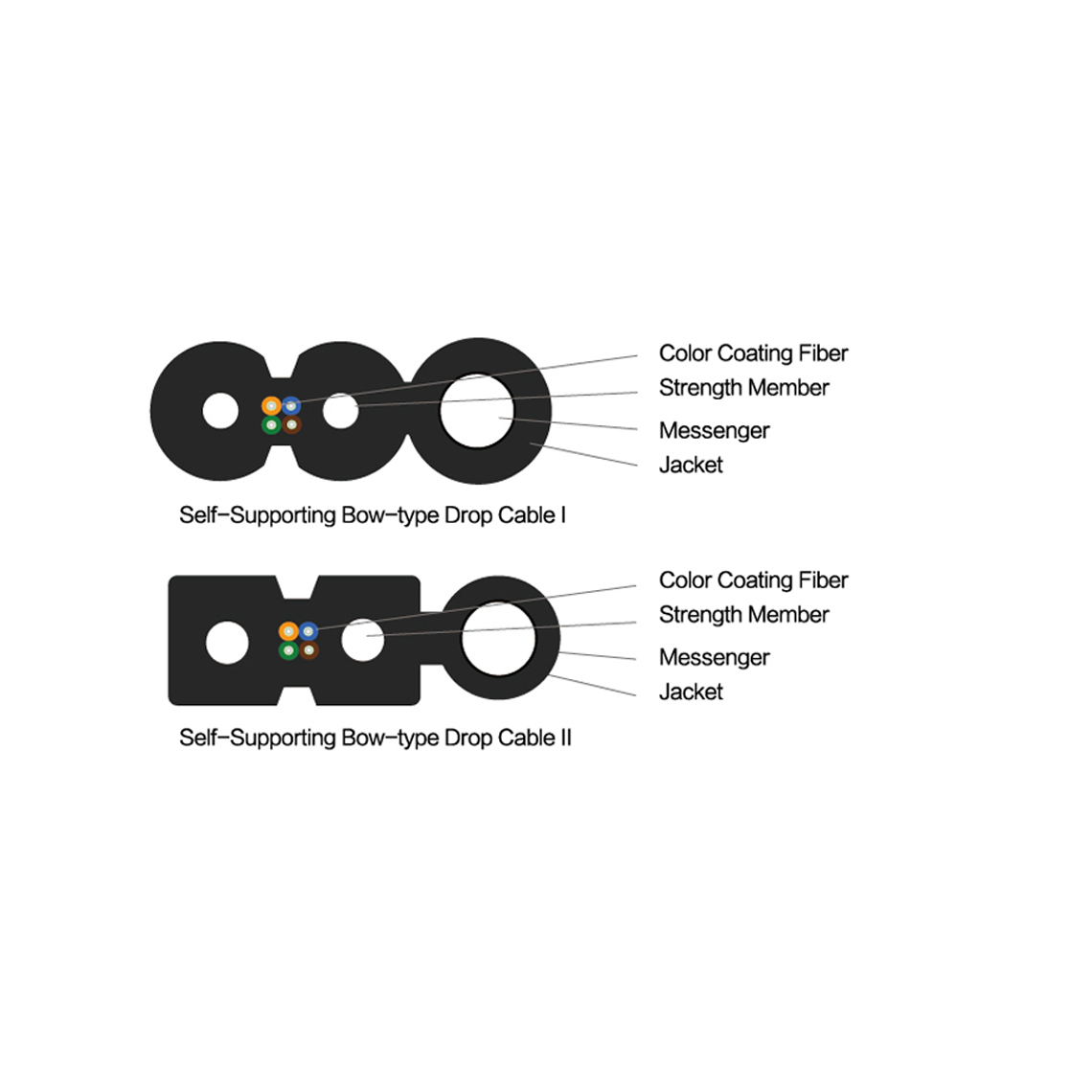

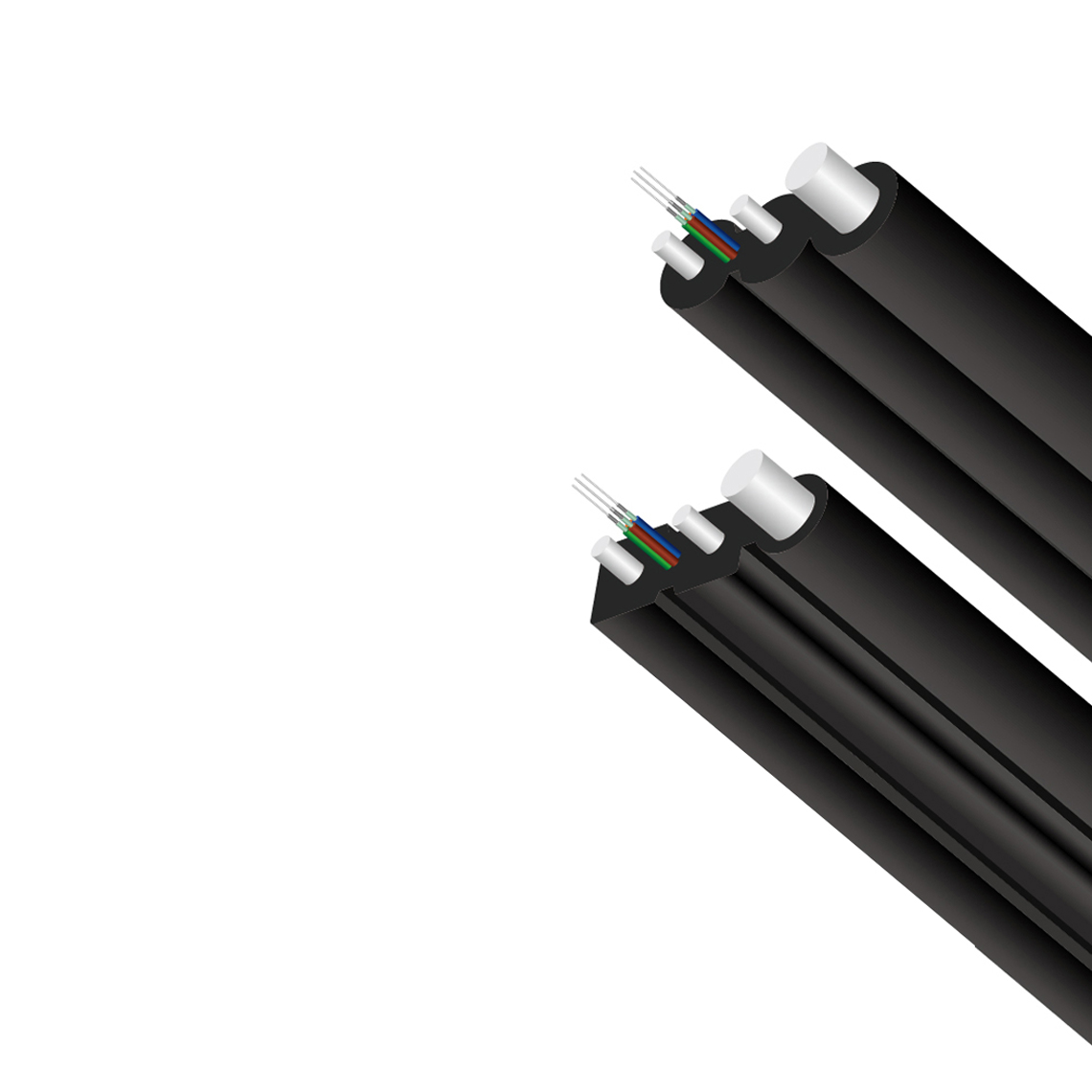

2F Self-Supporting Bow- Type Drop Cable

Fiber Count: 2

Colored Coating Fiber:

Dimension: Blue & Orange

Strength Member: Steel, 0.45mm

Self- Supporting Member: Steel

Jacket: LSZH , 5.2±0.2mm×2.0±0.1mm


Operation Temperature: -40℃ - 70℃

Installation Temperature: -20℃ - 60℃


Printing at out jacket of optical cable

White color printing words at each meter distance, standard printing content as following, also can cus- tomized printing as per customer’s requirements.

1)  Meter mark

2)  Style of optical cable and fiber account

3)  Manufacturer name

4)  Manufacturer date

5)  Package of optical cable

- Standard length is 2KM per drum, other length requirements is acceptable.

- Can be packed in wooden drum or plywood drum

Wooden drum

Label will be sticked at wooden drum, content as follow

1)  Style of optical cable and fiber account

2)  Length

3)  Gross weight KGS



Return to project list

Key Features

Product Details

Download

Type: FTTH

Number of Fiber: 2

Jacket: LSZH

Mode: SM/OM2/OM3

Part Code: TM06SMFTTH02B-LSZH

2F Self-Supporting Bow- Type Drop Cable

Fiber Count: 2

Colored Coating Fiber:

Dimension: Blue & Orange

Strength Member: Steel, 0.45mm

Self- Supporting Member: Steel

Jacket: LSZH , 5.2±0.2mm×2.0±0.1mm


Operation Temperature: -40℃ - 70℃

Installation Temperature: -20℃ - 60℃


Printing at out jacket of optical cable

White color printing words at each meter distance, standard printing content as following, also can cus- tomized printing as per customer’s requirements.

1)  Meter mark

2)  Style of optical cable and fiber account

3)  Manufacturer name

4)  Manufacturer date

5)  Package of optical cable

- Standard length is 2KM per drum, other length requirements is acceptable.

- Can be packed in wooden drum or plywood drum

Wooden drum

Label will be sticked at wooden drum, content as follow

1)  Style of optical cable and fiber account

2)  Length

3)  Gross weight KGS
