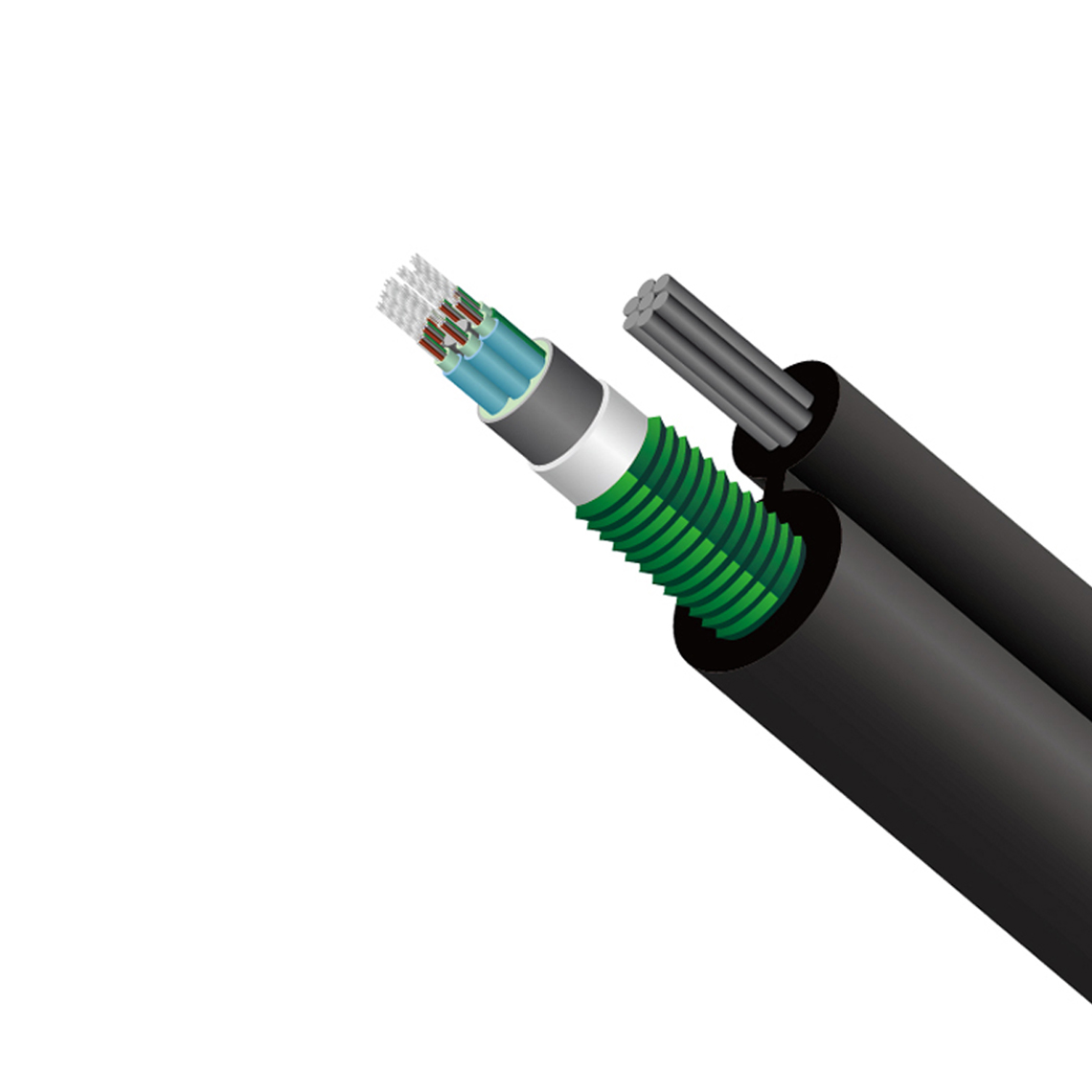

Figure 8 Outdoor Armored Fiber Cable SM/OM2/OM3/OM4 PE Jacket

Part Code: GYTC8S-24B1.3

Part Code: GYTC8S-24B1.3

Figure 8 24F Outdoor Armored Fiber Cable SM/OM2/OM3/OM4 PE Jacket

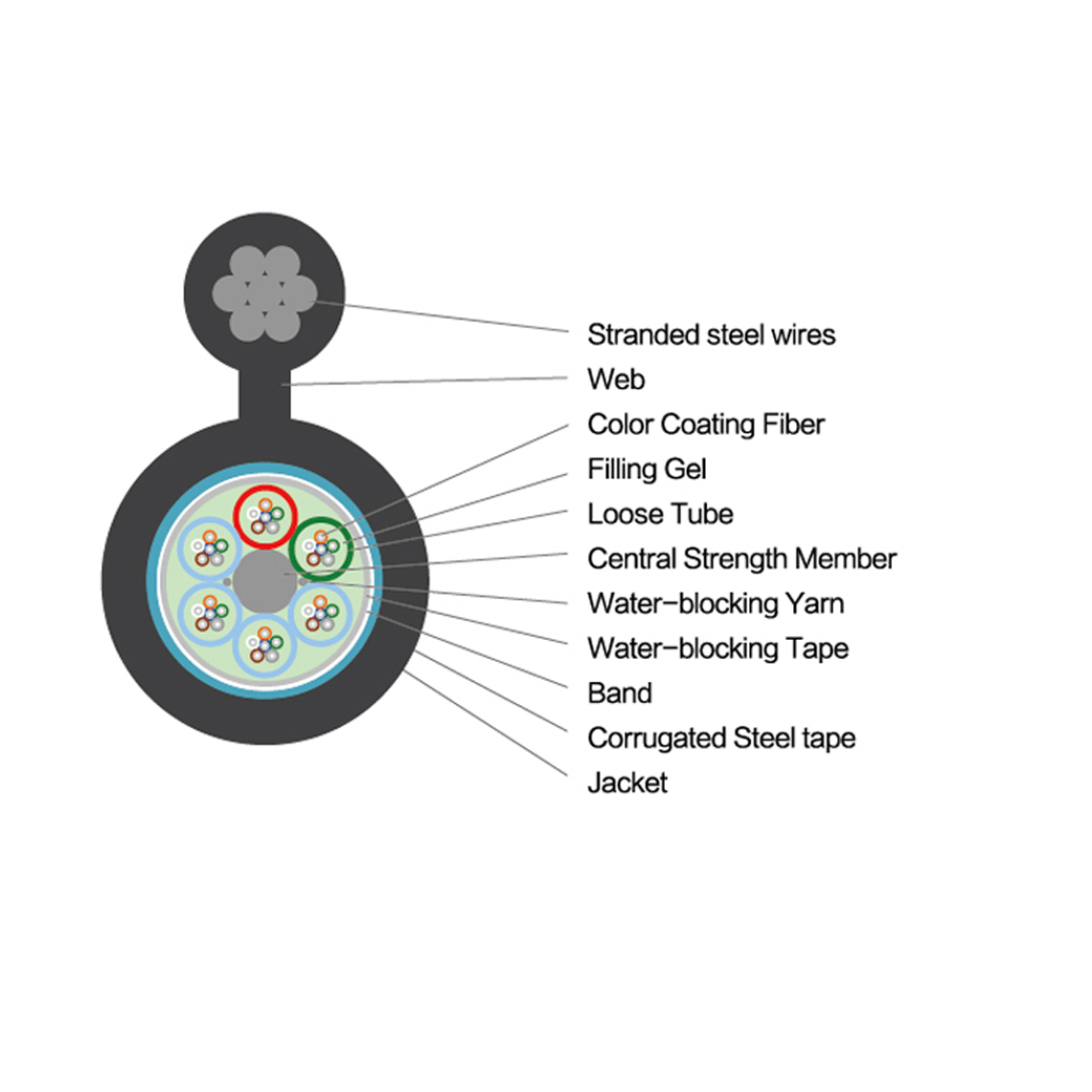

Description: Color Coating Fiber, Electric Unit, Optical Unit,  Strength Member, Jacket

Fiber: SM: G652D,G655,G657 or other single mode fiber.MM: A1a, A1b or other multi-mode fibers

Strength Member: Aramid Yarn or other high strength Yarn

Jacket: LSZH, PE

Color: Black or other color

Application:  Suitable for self-supporting aerial

Characteristic: Good mechanical and environmental performance, strong tensile performance, adapting to all kinds of bad weather, easy construction and low installation cost


Temperature: -40℃ - 70℃

Fiber: 1-72  73-96

Cable dimension: 4.7+11.5mm   5.5+12.5mm

Delivery Length: 1.0km or 2.0km/Roll

OEM and ODM


Return to project list

Key Features

Product Details

Download

Type: Figure 8

Application: aerial optical cable

Jacket: PE/LSZH

Mode: SM/OM2/OM3/OM4

Part Code: GYTC8S-24B1.3

Figure 8 24F Outdoor Armored Fiber cable SM/OM2/OM3/OM4 PE Jacket


Description: Color Coating Fiber, Electric Unit, Optical Unit,  Strength Member, Jacket

Fiber: SM: G652D,G655,G657 or other single mode fiber.MM: A1a, A1b or other multi-mode fibers

Strength Member: Aramid Yarn or other high strength Yarn

Jacket: LSZH, PE

Color: Black or other color

Application:  Suitable for self-supporting aerial

Characteristic: Good mechanical and environmental performance, strong tensile performance, adapting to all kinds of bad weather, easy construction and low installation cost


Temperature: -40℃ - 70℃

Fiber: 1-72  73-96

Cable dimension: 4.7+11.5mm   5.5+12.5mm

Delivery Length: 1.0km or 2.0km/Roll
