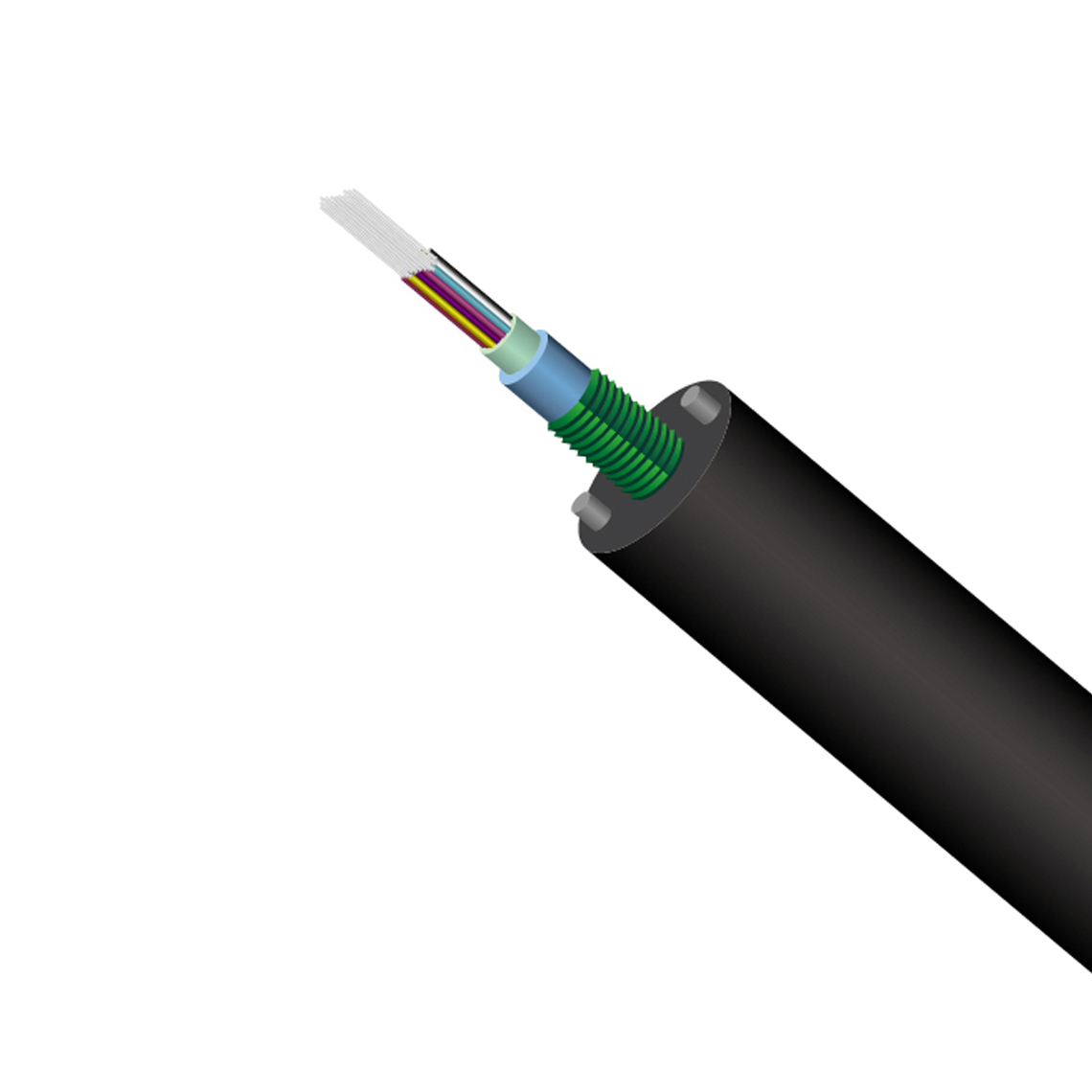

2-12F GYXTW Central-tube armored Outdoor Optical Cable PE/LSZH Jacket

Part code: TM06SMGYXTW002PE


Technical Parameters - Single mode fiber

Item

Unit

Specification

Attenuation

Db/km

1310nm≤0.4

1550nm≤0.3

Dispersion

Ps/nm.km

1285~1330nm≤3.5

1550nm≤18.0

Zero dispersion wave length

Nm

1300~1324

Zero dispersion slope

Ps/nm.km

≤0.095

Fiber cutoff wavelength

Nm

≤1260

Mode field diameter

Um

8.6±0.5

Mode field concentricity

Um

﹤﹦0.8

Cladding diameter

Um

125±1.0

Cladding non-circularity

≦1.0

Coating/cladding concentricity error

Um

≦12.5

Coating diameter

Um

245±10

Bending, dependence

attenuation

Induced 1550nm,1turns,32mm diameter,100rums,60mm diameter

≦0.5db

Proof test

Kpsi

≧100


Technical Parameters - Multi mode fiber

Item

Unit

Specifications

Attenuation

Db/km

850nm3.0

1300nm1.0

Bandwidth

MHz·km

50/125um 62.5/125um  850nm200 850nm160

1300nm200 1300nm200

Cladding diameter

Um

125±1.0

Cladding non-circularity

1.0

Coating/cladding concentricity error

Um

12.5

Coating diameter

Um

245±10

Bending, dependence attenuation

Induced 850nm, 1300nm 100turns ,75mm diameter

0.5 at 850nm \1300nm

Proof test

Kpsi

100

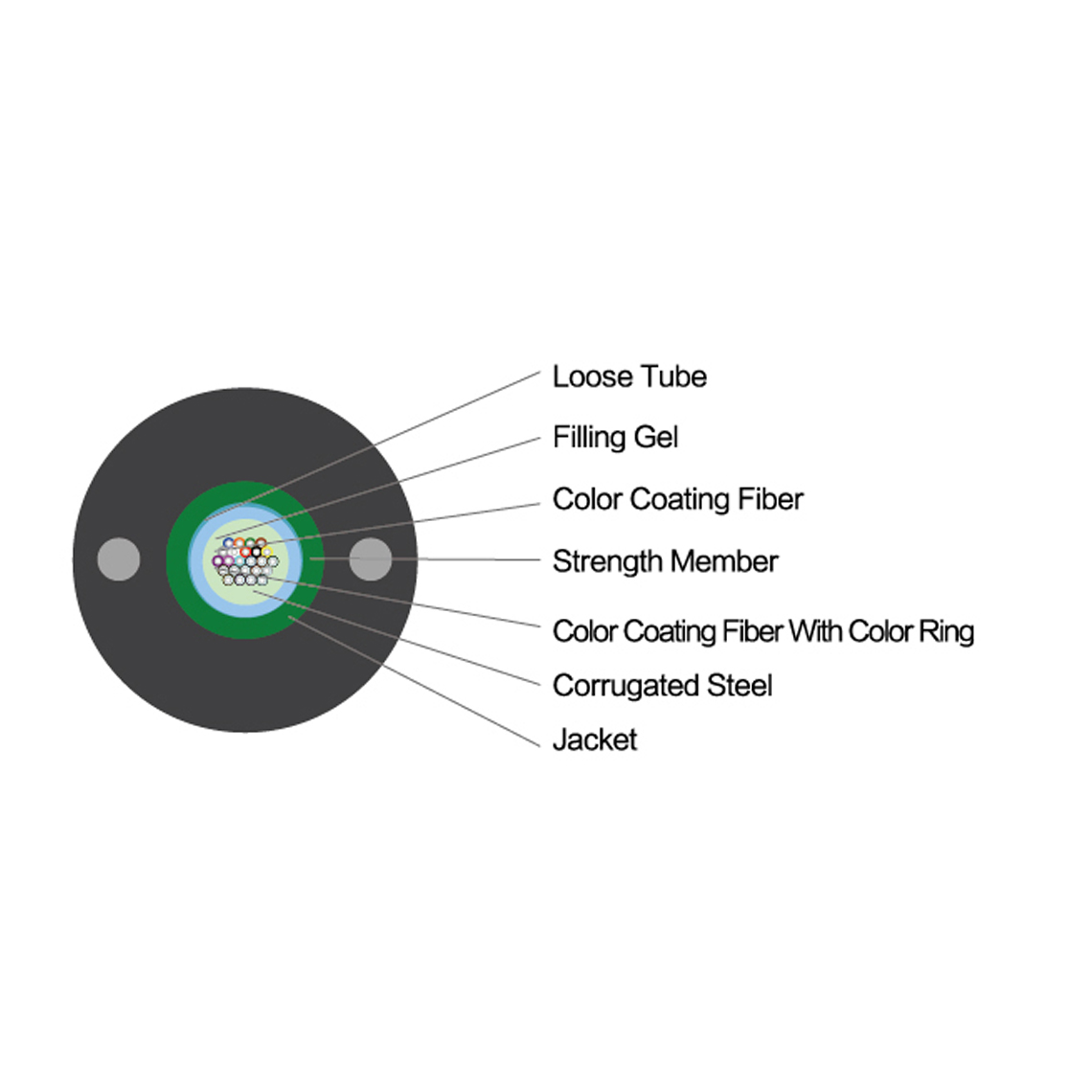

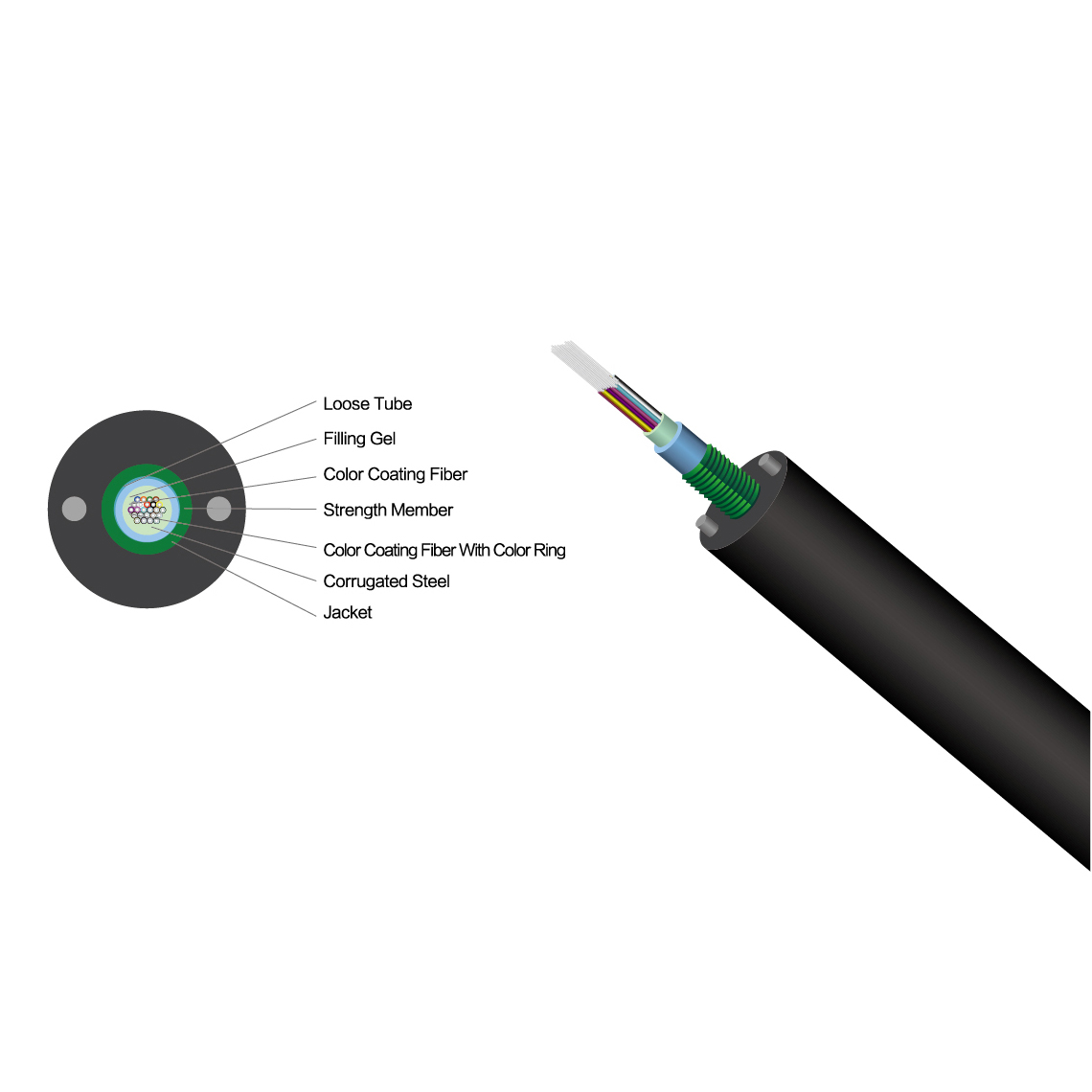

Each requirement

1)  number of fiber :2C~12C

2)  Characteristic of fiber

     -Color: 12 different colors according to the chromatogram

3)  The outer diameter of PBT loose tube

    -¢2.15±0.1mm

4)  Steel tape

5)  Steel wire

6)  Out jacket Material: PE

7)  OD:   8.0±0.3mm



Application:


Model

Fiber

OD(mm)

Tube

Nominal

Max.Tension

(N)

Max.Resistance

Crushing(N/100)

account

account

Weight(kg/km)

Short-term

Long-term

Short-term

Long-term

GYXTW

2--12

8.0±0.3

1

63

2700

900

3000

1000

1)  The true weight of optical cable may had some tolerance with the above stated value.

2)  Temperature range

    - Storage or transportation:-40~70℃

    - Operation: -40~70℃



Package and shipping mark


Printing at out jacket of optical cable


White color printing words at each meter distance, standard printing content as following, also can match the customer require for the printing content

1). Meter mark

2). Style of optical cable and fiber account

3). Manufacturer name

4). Manufacturer date

      5). Package of optical cable

           - Standard length is 1KM, other length can negotiate

           - Can be packed in wooden drum or plywood drum


Wooden drum


Label will be sticked at wooden drum, content as follow

1.     Style of optical cable and fiber account

2.     Length

3.     Gross weight KGS

4.     Total drums amount

5.     Manufacturer date

6.     The following information also will be exposed at the wooden drum

         - Rolling direction

         - Optical cable rolling tightly with the wooden drum, in order to prevent it will be broken during transportation process
