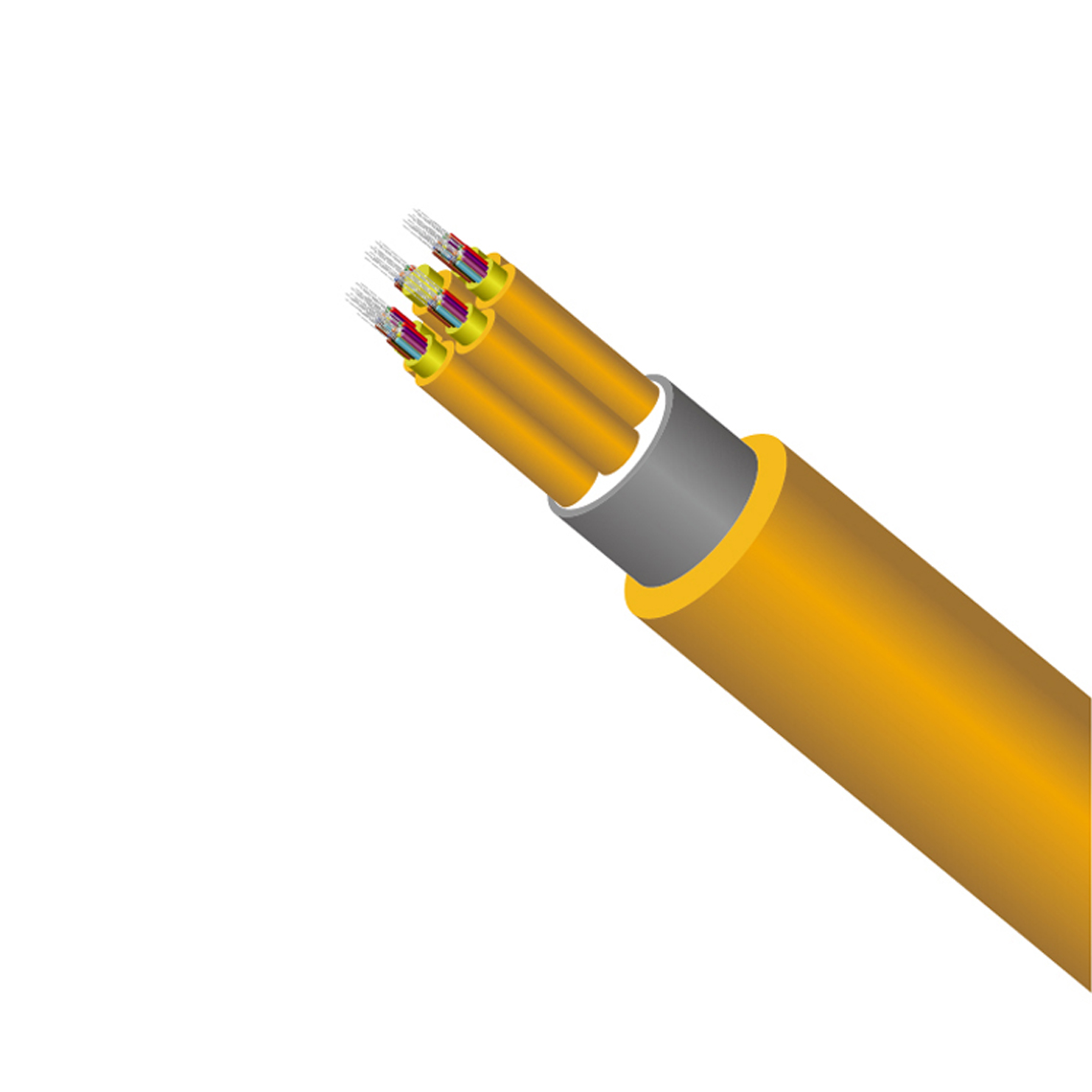

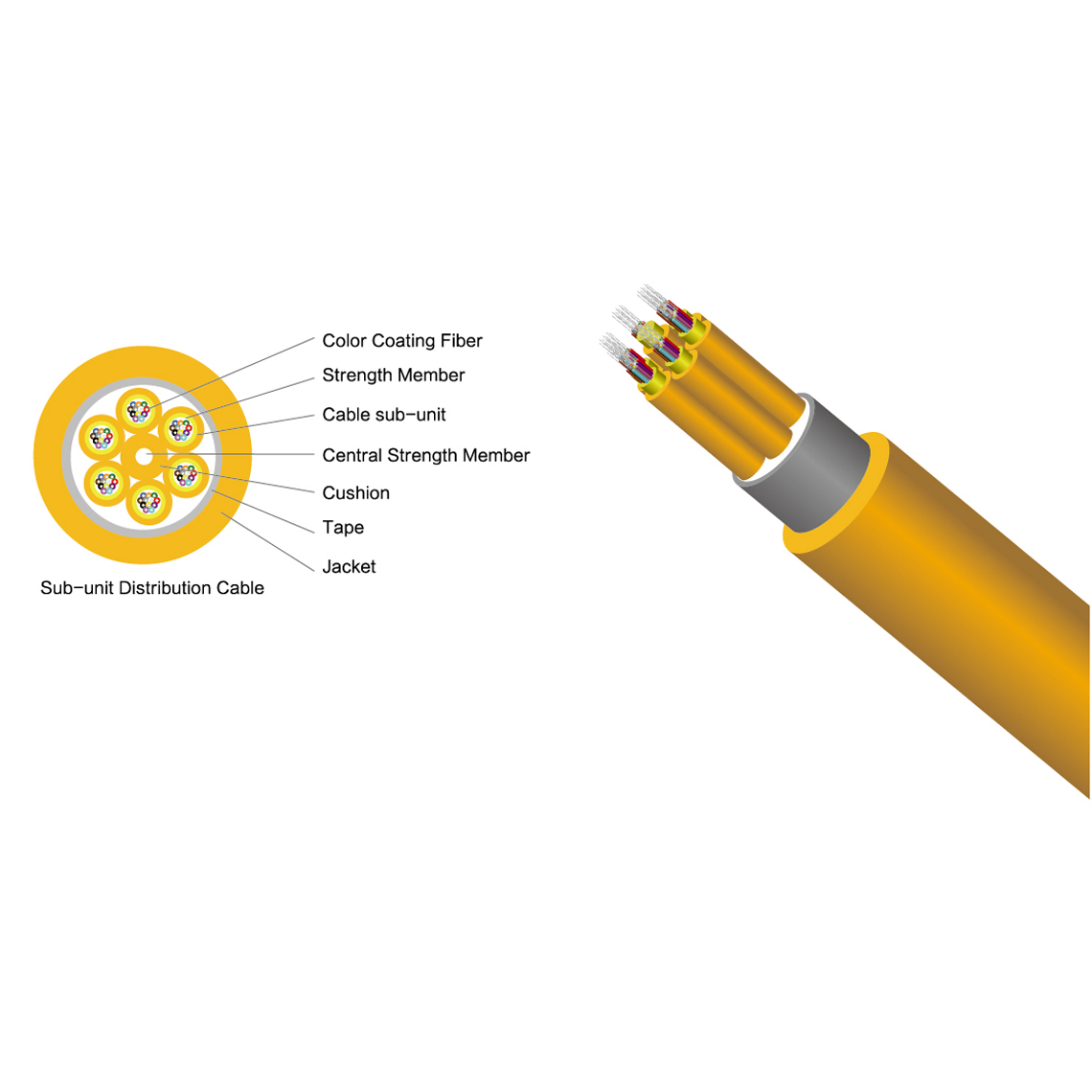

2-144F GJFJV Indoor fiber cable PVC/LSZH Jacket

Part code.: TM06SMGJFJV0024

Technical Parameters - Single mode fiber

Item	Technology parameter
Cable type	GJFJV
Product specification	6.3mm
The color of tight layer	blue、orange、green、brown、gray、white、red、black、yellow、violet、pink、aqua
The material of tight layer	PVC
The OD of tight fiber mm	0.85±0.05
Fiber specification( single -model)	9/125
Aramid yarns	1580dtex×14thread
The thick of sheath mm	0.90±0.1
The color the sheath	yellow
The material of sheath	PVC
The OD of sheath mm	6.3（±0.2）
The cable weight Kg/km	32.7
The minimum bending radius mm	10D
Attenuation dB/km	≦ 0.4at 1310nm，≦ 0.3 at 1550nm
Short tension N	400
Short crush N/100mm	1000
Using temperature ℃	-20~70

Technical Parameters - Multi mode fiber

Item	Technology parameter
Cable type	GJFJV
Product specification	6.3mm
The color of tight layer	blue、orange、green、brown、gray、white、red、black、yellow、violet、pink、aqua
The material of tight layer	PVC
The OD of tight fiber mm	0.85±0.05
Fiber specification( multi -model)	50/125
Aramid yarns	1580dtex×14thread
The thick of sheath (mm)	0.90±0.1
The color the sheath	orange
The material of sheath	PVC
The OD of sheath (mm)	6.3（±0.2）
The cable weight Kg/km	32.7
The minimum bending radius (mm)	10D
Attenuation dB/km	≦ 0.4at 850nm，≦ 0.3 at 1300nm
Short tension N	400
Short crush N/100mm	1000
Using temperature ℃	-20~70

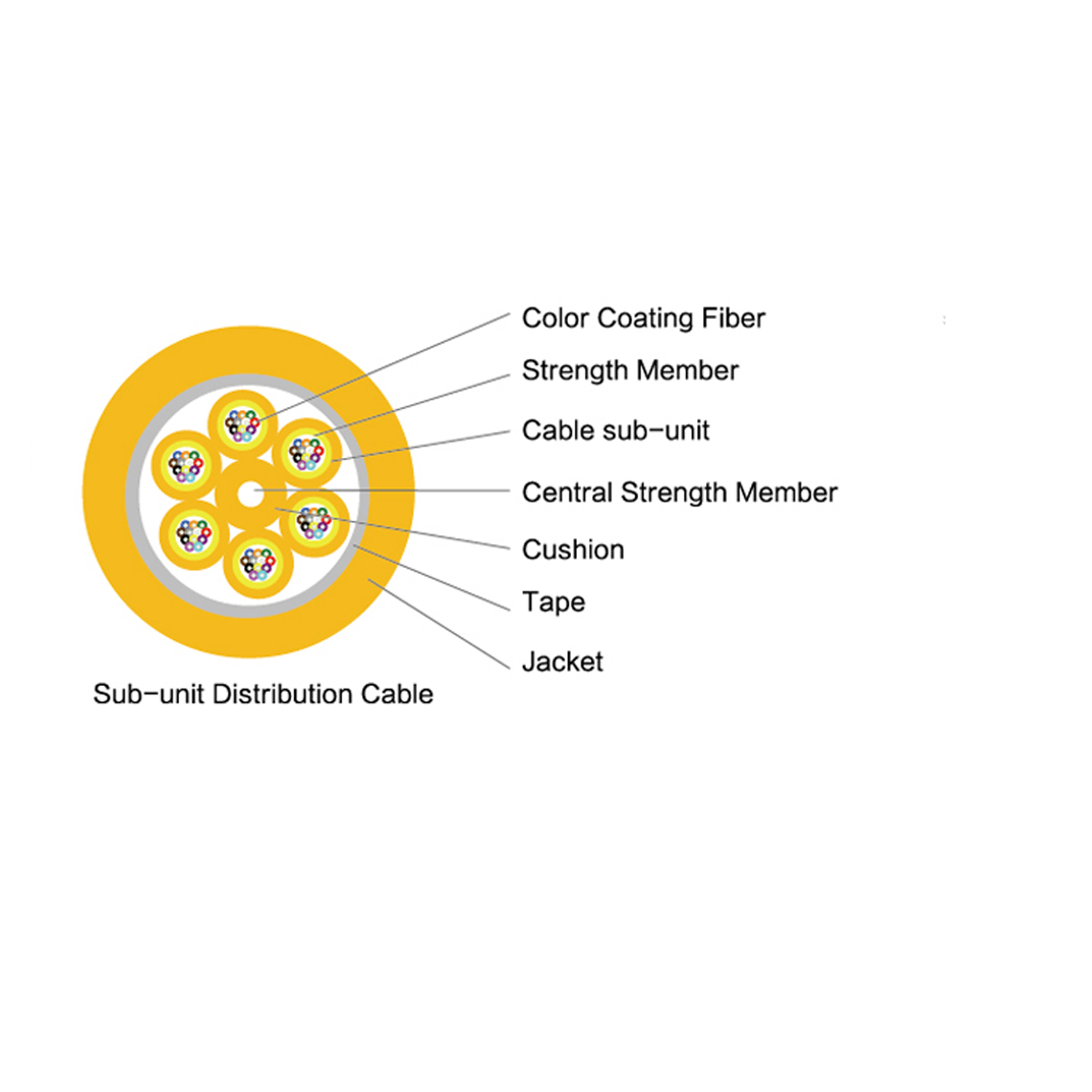

Each requirement

1). Fiber count------6/8/12/24/48 　　　　　　

2). Fiber characteristic------OD: 242±10um

3). Characteristic of tight buffered

-OD:0.87±0.05mm

4). Thickness of buffered jacket:0.31±0.02mm

- 24 CORE Buffered Color blue/orange/green/brown/grey/white/red/black/yellow/purple/pink/aqua;

With dashed: blue/orange/green/brown/grey/white/red/varied/yellow/purple/pink/aqua;

- 48 CORE Buffered Color blue/orange/green/brown/grey/white/red/black/yellow/purple/pink/aqua;

With dashed 1: blue/orange/green/brown/grey/white/red/ varied /yellow/purplepink/aqua;

With dashed 2:blue/orange/green/brown/grey/white/red/ varied /yellow/purplepink/aqua;

With dashed 3:blue/orange/green/brown/grey/white/red/varied/yellow/purplepink/aqua;

5). Armed yarn for round strength

6). Out jacket:PVC/LSZH

Package and shipping mark

Printing at out jacket of optical cable

White color printing words at each meter distance, standard printing content as following, also can match the customer require for the printing content

1). Meter mark

2). Style of optical cable and fiber account

3). Manufacturer name

4). Manufacturer date

5). Package of optical cable

- Standard length is 1KM, other length can negotiate

- Can be packed in wooden drum or plywood drum

Wooden drum

Label will be sticked at wooden drum, content as follow

1. Style of optical cable and fiber account

2. Length

3. Gross weight KGS

4. Total drums amount

5. Manufacturer date

6. The following information also will be exposed at the wooden drum

- Rolling direction

- Optical cable rolling tightly with the wooden drum, in order to prevent it will be broken during transportation process

Return to project list

Key Features

Product Details

Download

Cable type: GJFJV Indoor fiber cable

Fiber account: 2~144F

Fiber type: SM/OM2/OM3/OM4

Outer jacket: PVC or LSZH

Brand: Telemax or OEM

Application: FTTH FTTB FTTX Network
