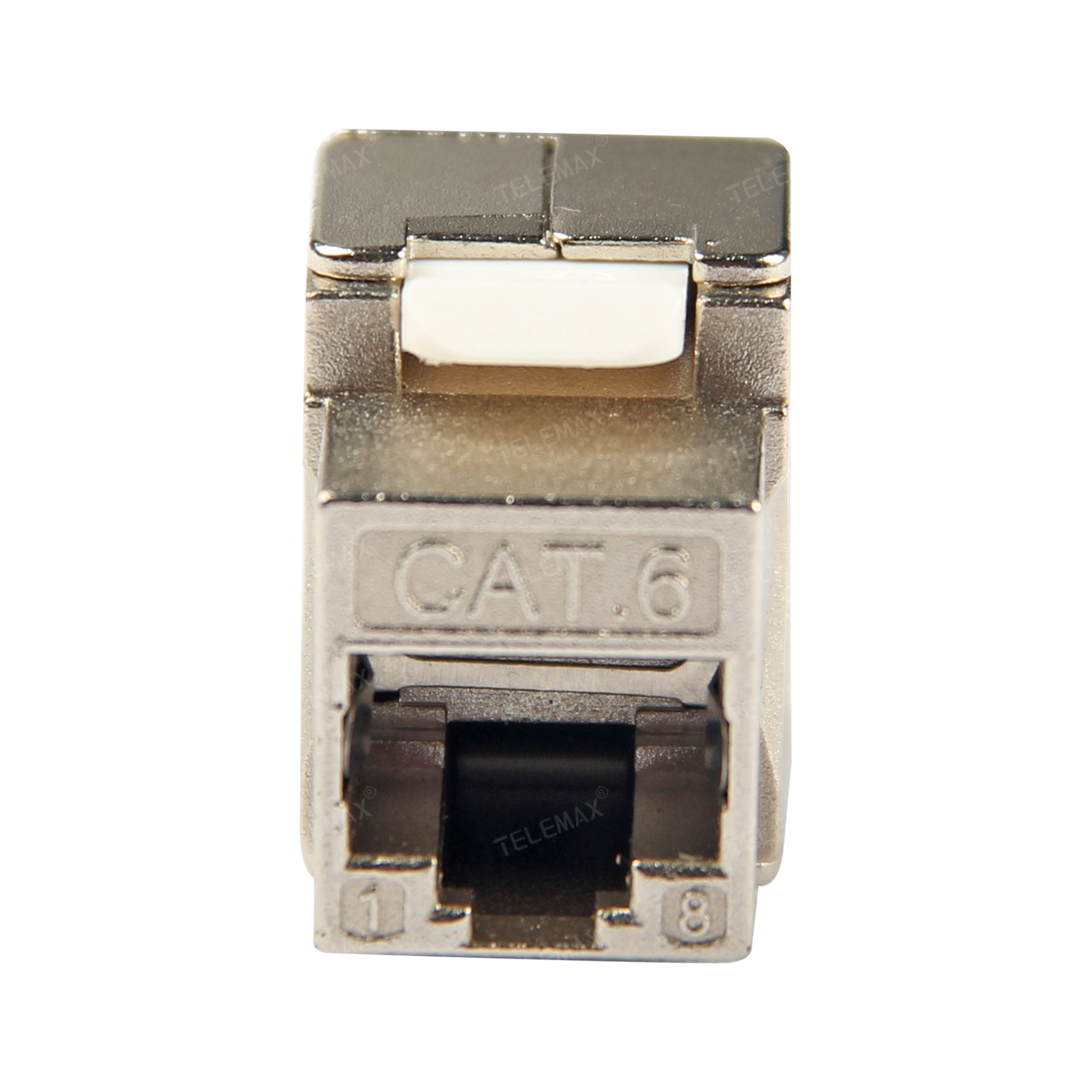

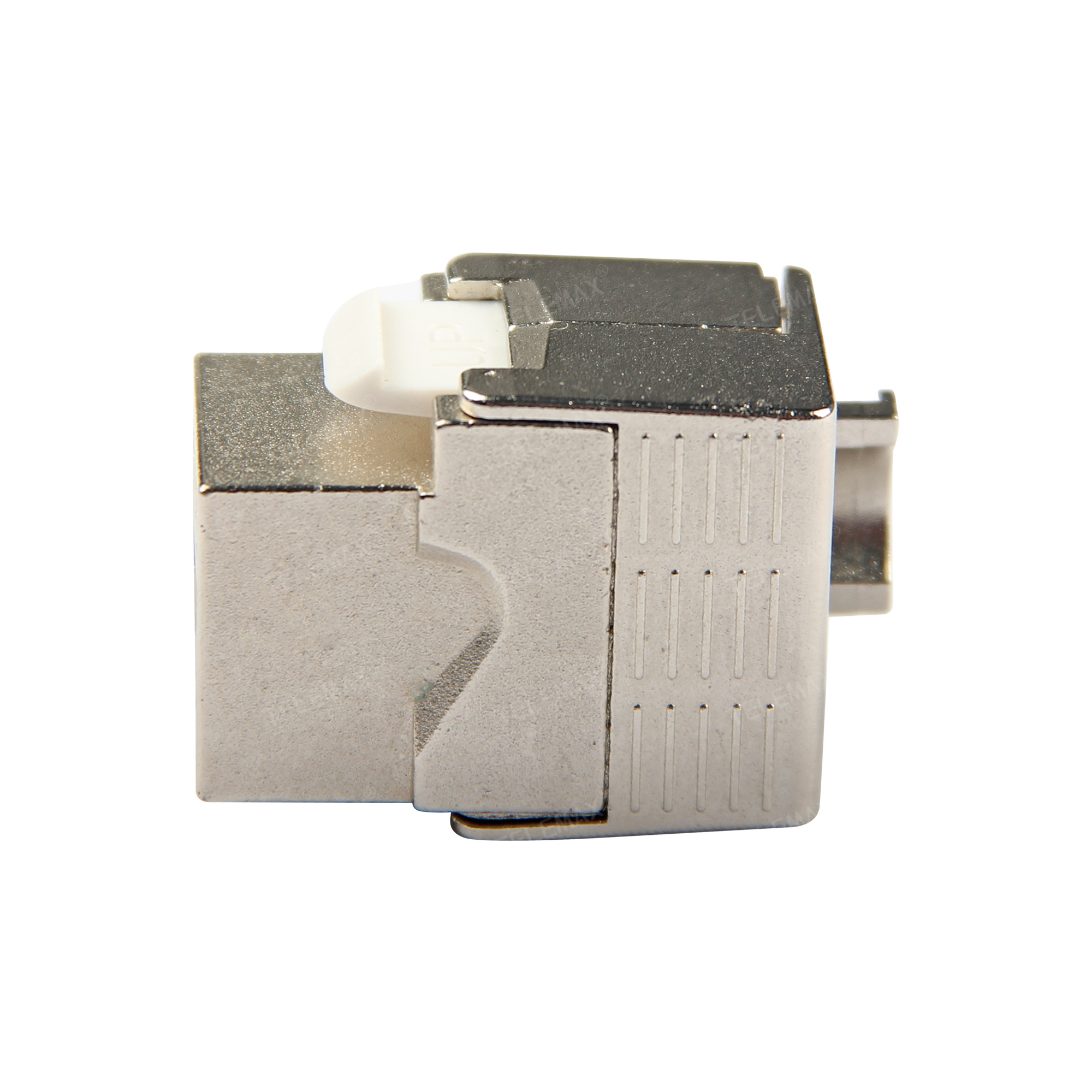

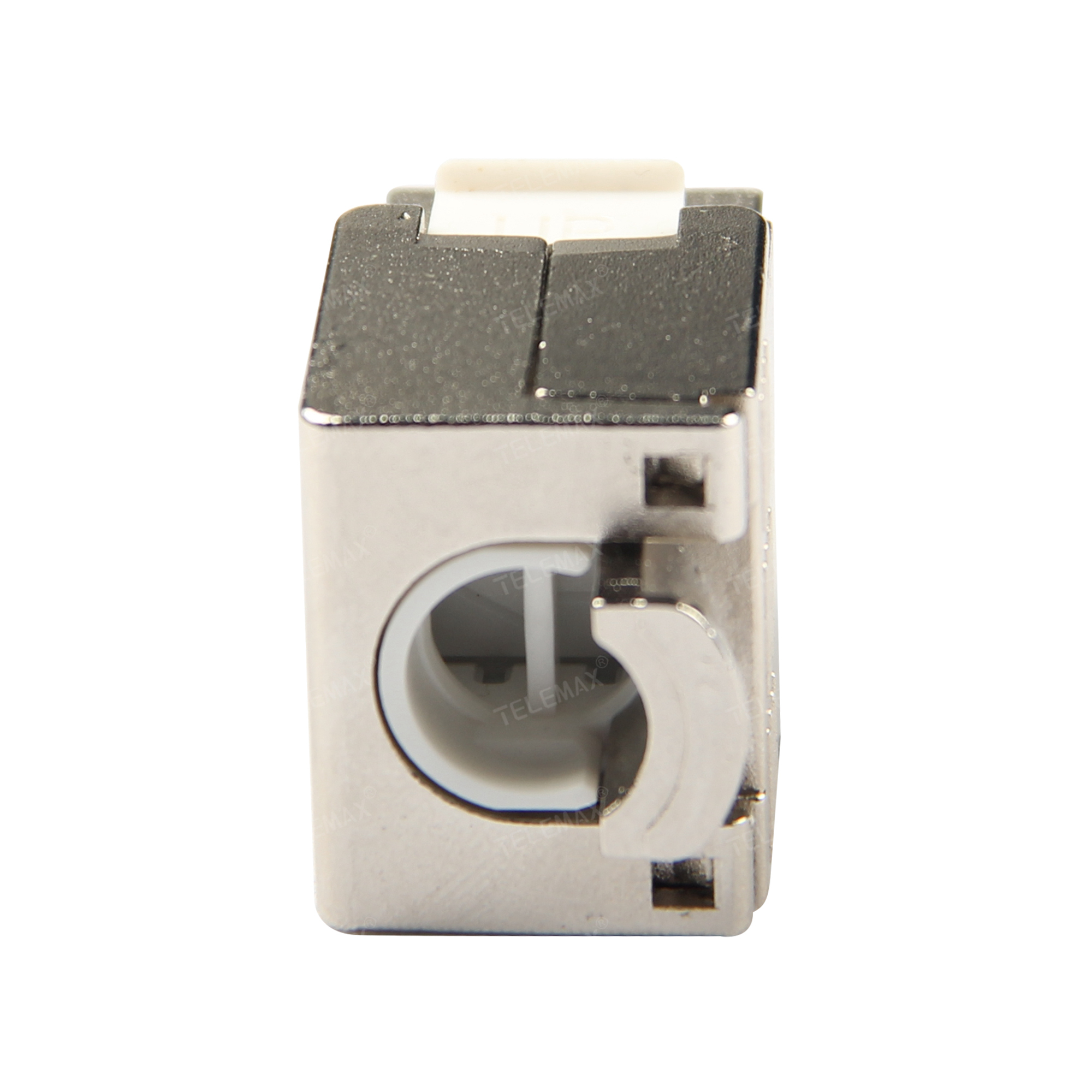

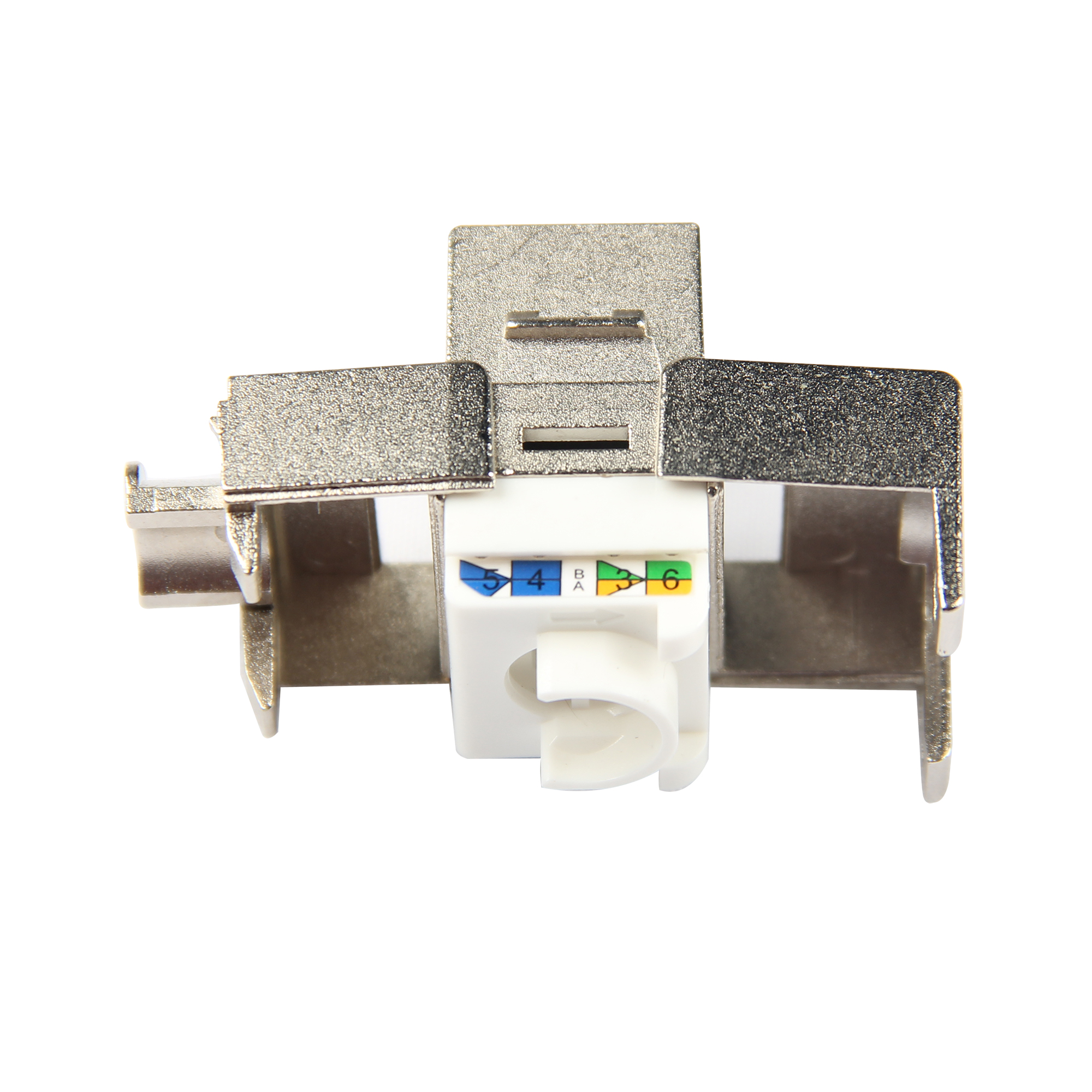

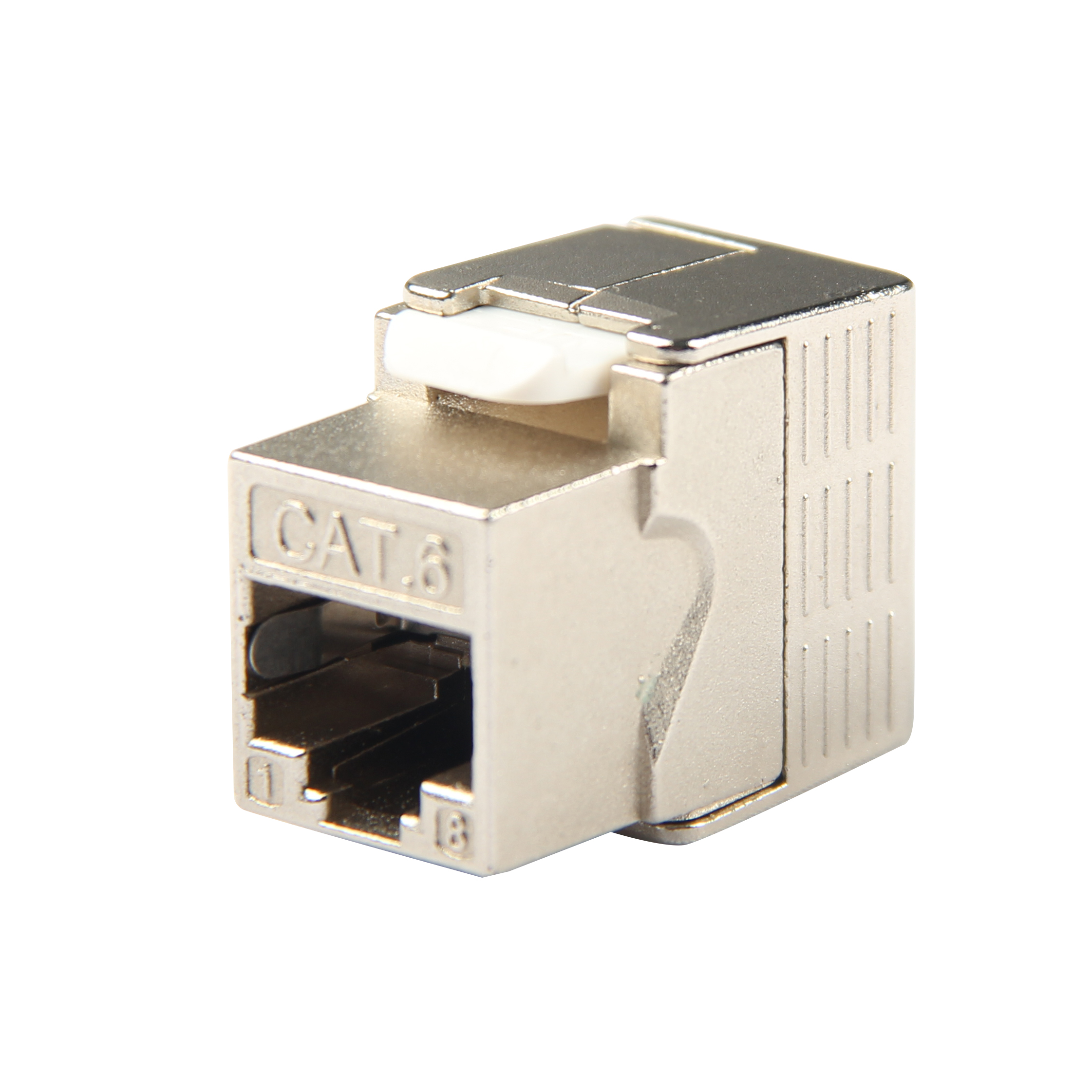

CAT6A Tool Free Keystone Jack FTP Crimping Direction Left-Right

Part Code: TM04C6AJKTL01+FTP180

Part Code:  TM04C6AJKTL01+FTP180

CAT6A Tool Free Keystone Jack FTP Crimping Direction Left-Right


ELECTRICAL:

1.  Voltage rating: 125 VAC RMS

2.  Current rating: 1.5 AMP

3.  Contact resistance: 20 Milliohms MAX

4.  Insulation resistance: 100 Megohms MIN @ 500 VDC

5.  Dielectric strength: 750 VAC RMS 60Hz, 1MIN

6. Mates with modular plug conforming to FCC part 68, Subpart F.



Environmental:

1.  Storage: -40°TO +70°

2.  Operation: -10°TO 60°



Mechanical:

1.  Housing material: ZINC ALLOY

2.  Insert material: FLAME RETARDANT PC

3. PCB material: FR-4T=1.2mm

4.  Contact material: Phosphor bronze stamp PIN T=0.35mm

5. IDC contact material: Phosphor bronze T=0.50mm WITH TIN PLATING

6.  RJ45 JACK LIFE: 750 TIMES MIN

7. IDC LIFE: 200 TIMES MIN

8. WIRE: AWG 22~24

9. TIA Cat 6A Perm. Link Test: Worst pair NEXT margin≥ 5.0dB

10. Retentiveness of insertion structure: 50N 60±5s

11. CrimpingDirection: Left-Right



Return to project list

Key Features

Product Details

Download

Category: 6a

Application: FTP or STP

Crimping: Tool Free

Crimping Direction: Left-Right

Test: Fluke Channel Test

Part Code:  TM04C6AJKTL01+FTP180

CAT6A Tool Free Keystone Jack FTP Crimping Direction Left-Right


ELECTRICAL:

1.  Voltage rating: 125 VAC RMS

2.  Current rating: 1.5 AMP

3.  Contact resistance: 20 Milliohms MAX

4.  Insulation resistance: 100 Megohms MIN @ 500 VDC

5.  Dielectric strength: 750 VAC RMS 60Hz, 1MIN

6. Mates with modular plug conforming to FCC part 68, Subpart F.



Environmental:

1.  Storage: -40° -- +70°

2.  Operation: -10°-- 60°



Mechanical:

1.  Housing material: ZINC ALLOY

2.  Insert material: FLAME RETARDANT PC

3. PCB material: FR-4T=1.2mm

4.  Contact material: Phosphor bronze stamp PIN T=0.35mm

5. IDC contact material: Phosphor bronze T=0.50mm WITH TIN PLATING

6.  RJ45 JACK LIFE: 750 TIMES MIN

7. IDC LIFE: 200 TIMES MIN

8. WIRE: AWG 22~24

9. TIA Cat 6A Perm. Link Test: Worst pair NEXT margin≥ 5.0dB

10. Retentiveness of insertion structure: 50N 60±5s

11. CrimpingDirection: Left-Right
