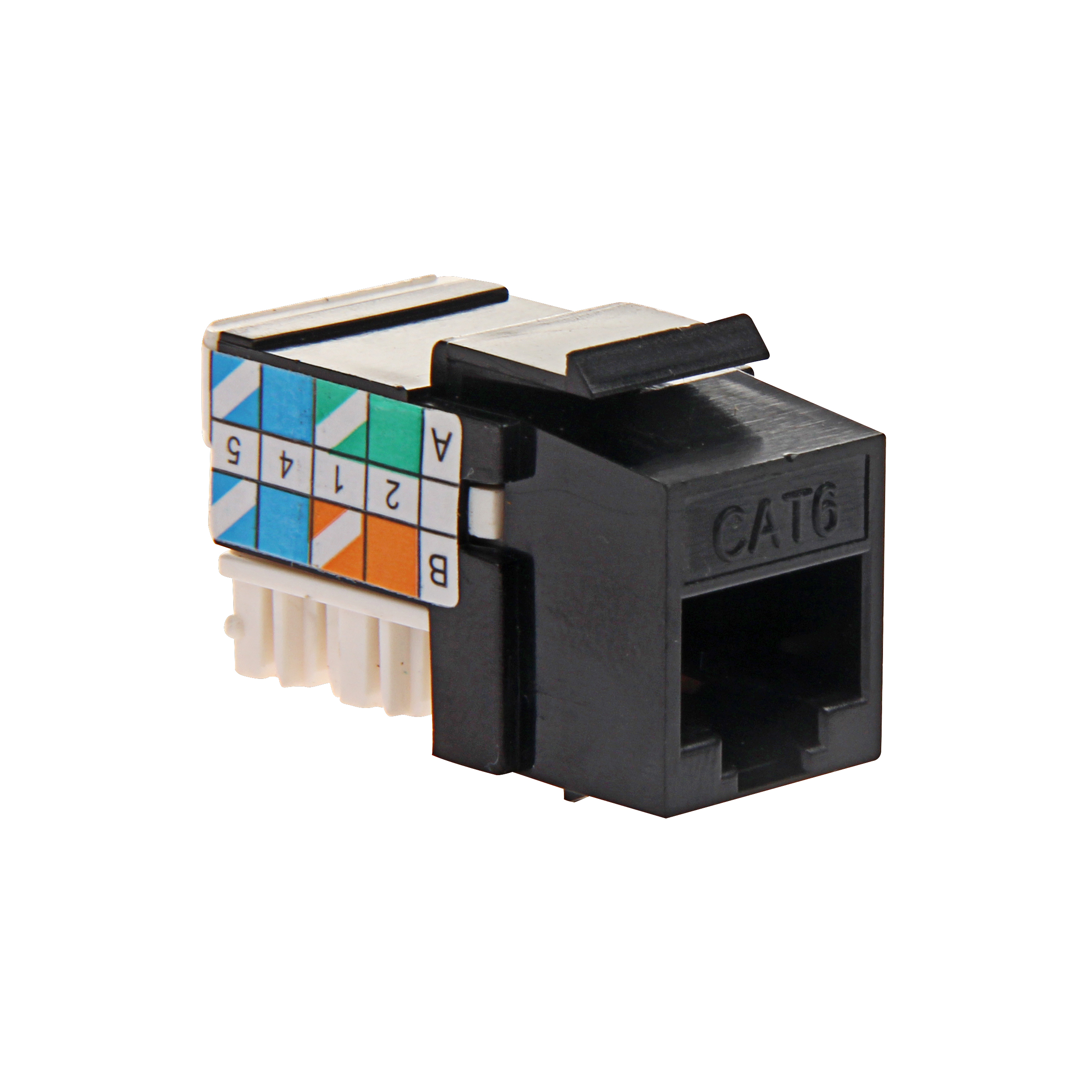

Cat 6 Keystone Jack 90 degree 110 IDC Narrow Body Golden plating 50u''

Part Code: TM04C6JK02+UTP90

  Cat.6 UTP Keystone Jack 90 degree Narrow Body


1.  Keystone Jack, Cat.6 Class E, UTP type, for connecting application of communication Ports in working area.

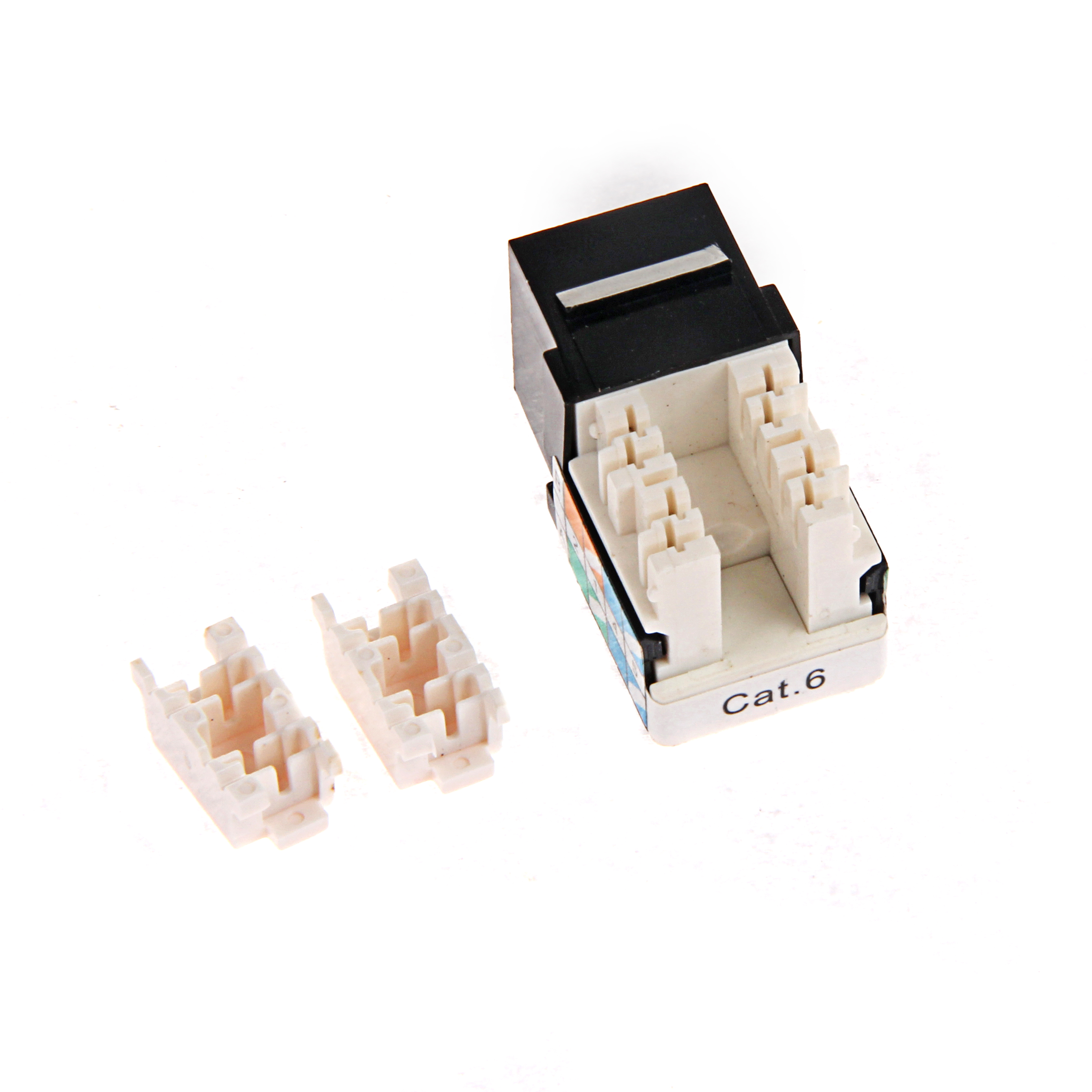

2.  A compact & ingenious designing, with the punching sequence direction marks on the punching cover of the keystone jack. That can provides a correct and quick guide for punching and connecting operation. And the fastener hats will make sure the cable can be fixed reliably in the IDC clips.

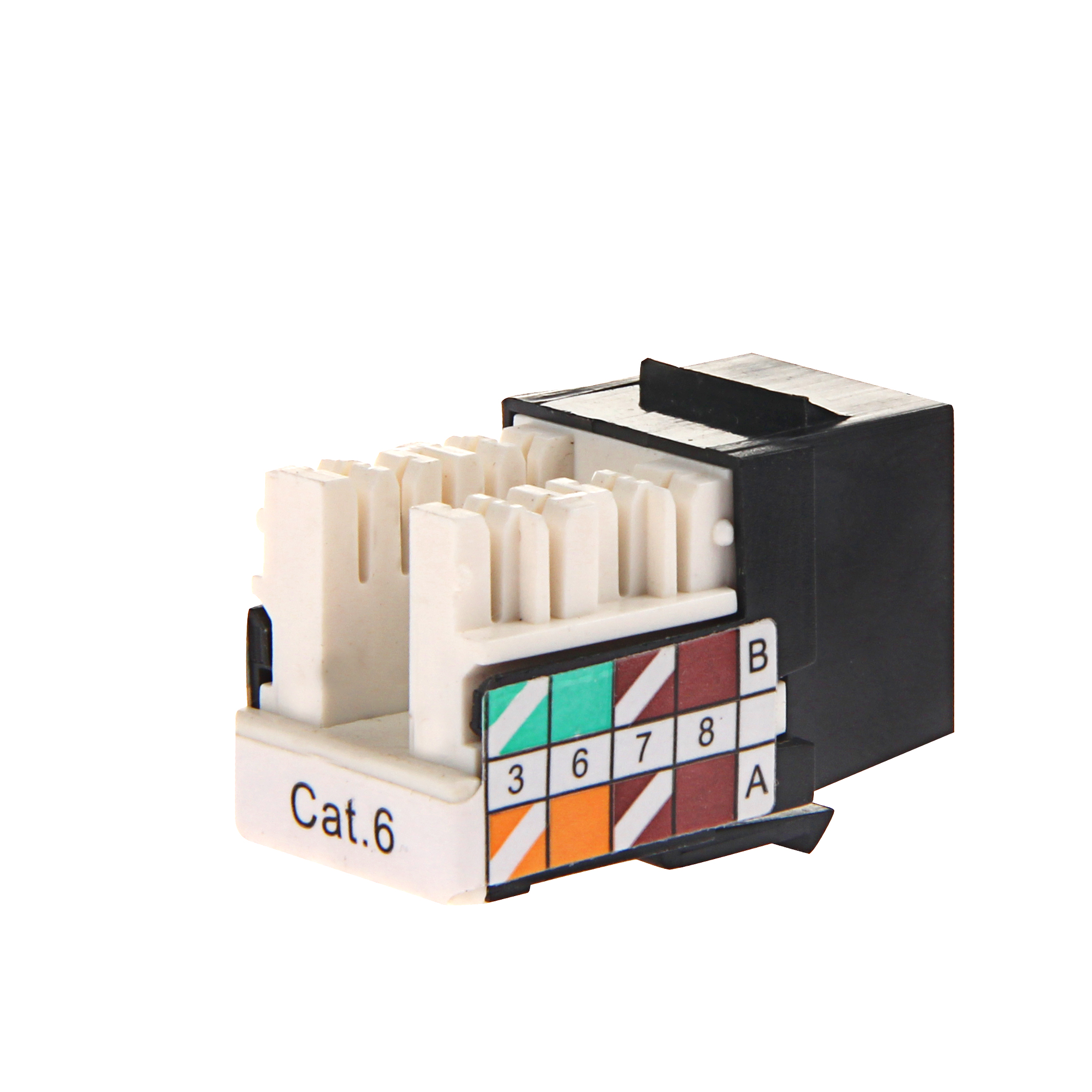

3.  According to the standard of ISO/IEC 11801:2002 Class E & ANSI/TIA/EIA 568-B.2-1 CAT.6, T568A punching sequence and T568B punching sequence are both compatible.

4.  Connection type: FCC connector for RJ45 patch cord and IDC for 4-pair Cat.6 cables.

5.  Fitting for the Cat.6 general cable distribution system. Compatible for Cat.5 and Cat.5e systems.



Technique Characteristics:

1.  Material of plastic parts: PC UL94V-0

2.  Material of the FCC connectors’ 8 pin: Phosphor bronze with golden plated 50u’’. Inserting duration: 750 times.

3.  Material of the IDC Clips: Tinned phosphor bronze pins. Fitting for 22AWG/23AWG/24AWG cables. Punching duration: 250 times.

4.  Standard 110 punching tool.

5.  Testing condition of transmitting capability: 250MHz


Return to project list

Key Features

Product Details

Download

Category: 6

Application: UTP

Size: Narrow Body

IDC: 110

Test: Fluke Channel Test

  Cat.6 UTP Keystone Jack 90 degree Narrow Body


1.  Keystone Jack, Cat.6 Class E, UTP type, for connecting application of communication Ports in working area.

2.  A compact & ingenious designing, with the punching sequence direction marks on the punching cover of the keystone jack. That can provides a correct and quick guide for punching and connecting operation. And the fastener hats will make sure the cable can be fixed reliably in the IDC clips.

3.  According to the standard of ISO/IEC 11801:2002 Class E & ANSI/TIA/EIA 568-B.2-1 CAT.6, T568A punching sequence and T568B punching sequence are both compatible.

4.  Connection type: FCC connector for RJ45 patch cord and IDC for 4-pair Cat.6 cables.

5.  Fitting for the Cat.6 general cable distribution system. Compatible for Cat.5 and Cat.5e systems.



Technique Characteristics:

1.  Material of plastic parts: PC UL94V-0

2.  Material of the FCC connectors’ 8 pin: Phosphor bronze with golden plated 50u’’. Inserting duration: 750 times.

3.  Material of the IDC Clips: Tinned phosphor bronze pins. Fitting for 22AWG/23AWG/24AWG cables. Punching duration: 250 times.

4.  Standard 110 punching tool.

5.  Testing condition of transmitting capability: 250MHz


Packing Information

DESCRIPTION

Packing

Size (CM)

Weightkgs)

Qty/Box

CAT5E/6/6A UTP KEYSTONE JACK 90 or 180 DEGREE or Tool Free

Carton Packing

42*30*54

13

1000 pcs
