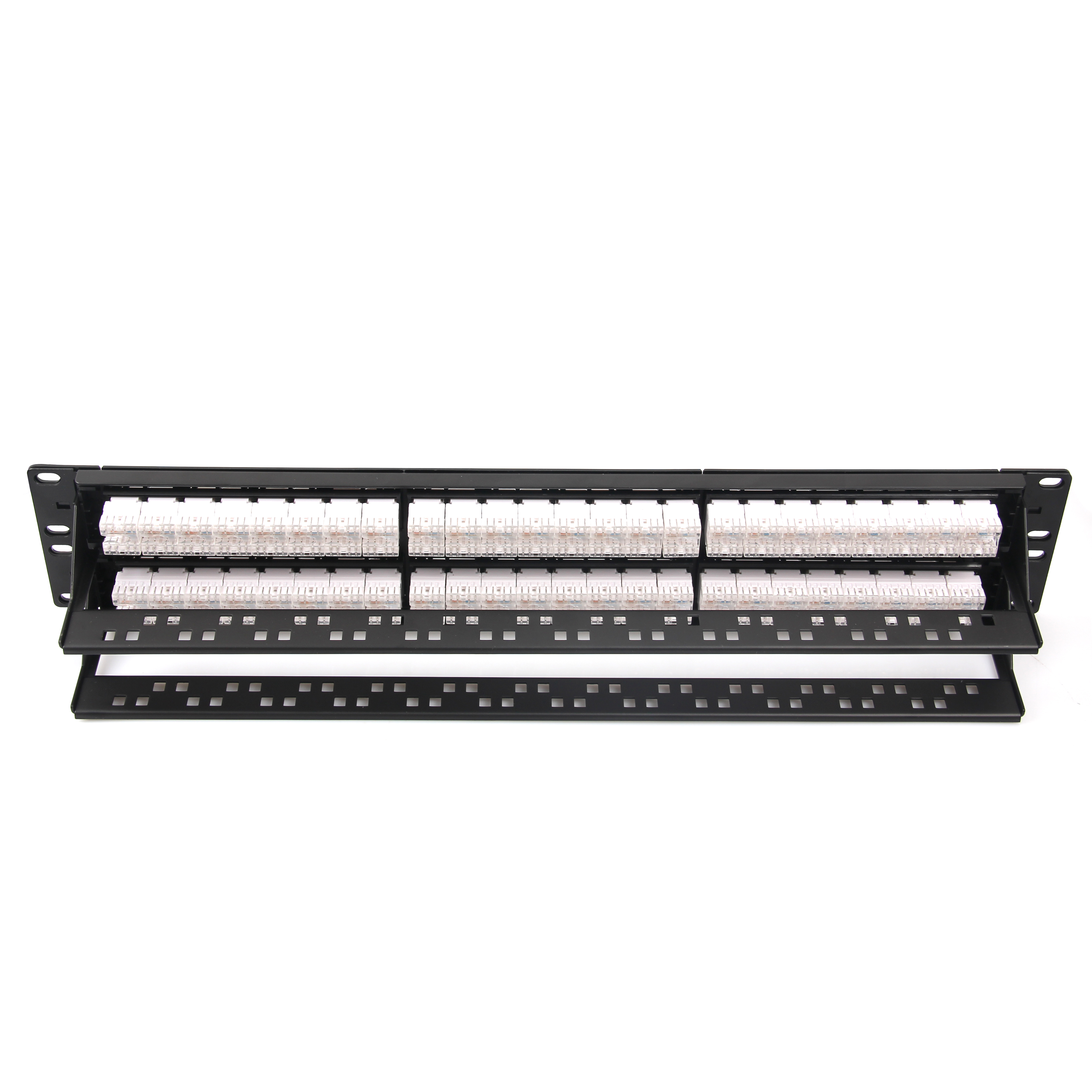

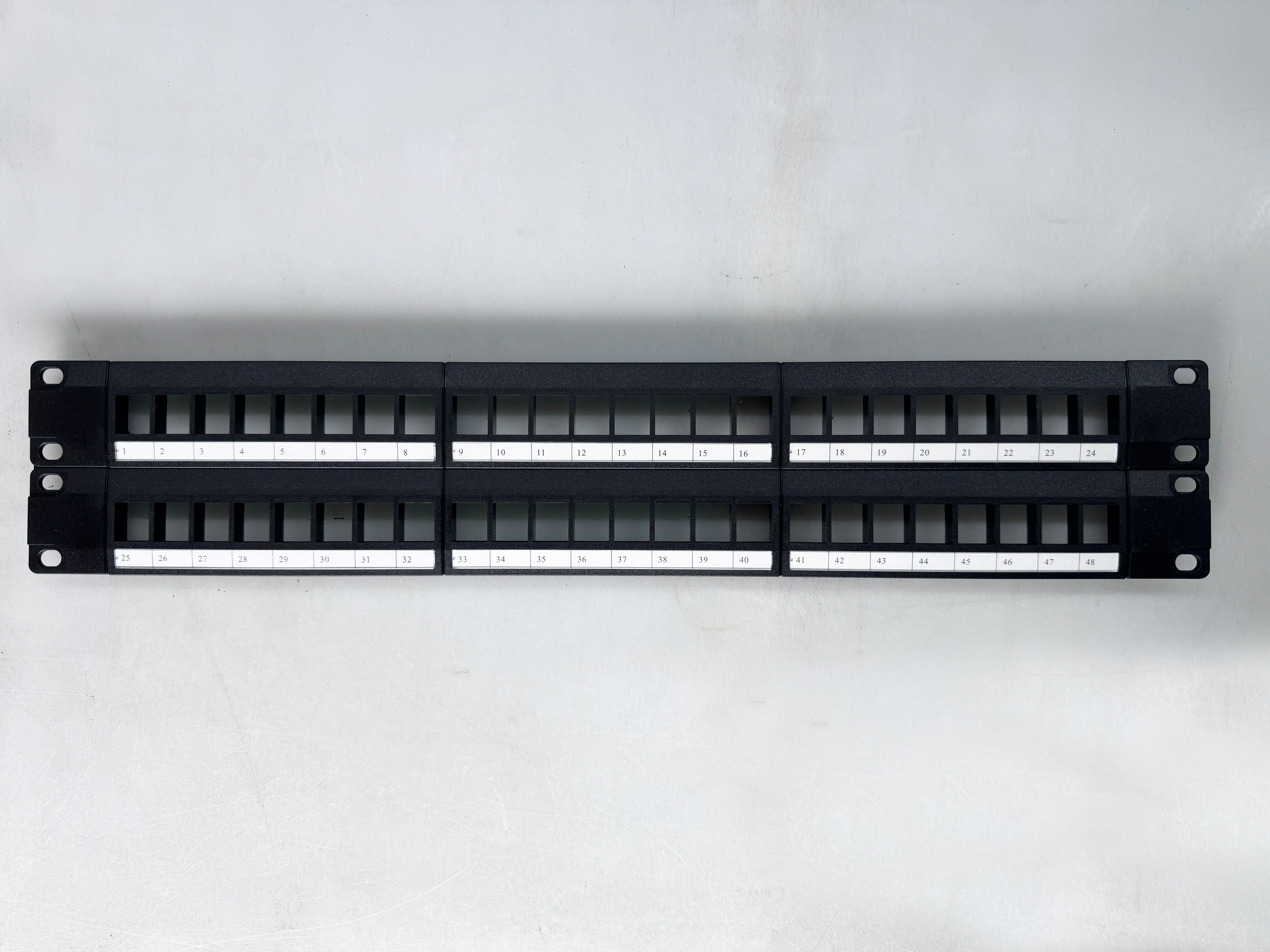

2U 19'' 48 Ports Cat 6 keystone Patch Panel with Back bar (Full loaded Keystone Jacks)

Part Code:TMCAT6KTJ+UTP48

TMCAT6KTJ+UTP48 / TMCAT6AKTJ+UTP48

2U 19'' 48 Ports Cat 6/6a  keystone Patch Panel with Back bar (Full loaded Keystone Jacks)


Patch Panel: Entire steel outer frame, with plastic powder clad.

UTP Keystone

Mini Keystone Jack

180 degree

Dual IDC

Material of Keystone jack housing: PC

The life of Jack: 750 times Min

The life of IDC: 200 Times Min

Wire: 22-24AWG


Cat.6 Perm link test: Worst pair Next margin> 7.0dB

Cat.6A Perm link test: Worst pair Next margin> 3.0dB


Return to project list

Key Features

Product Details

Download

Category: 6/6a

Type: Keystone Patch Panel

Height: 2U

Number of Ports: 48

Test: Fluke Channel Test

TMCAT6KTJ+UTP48 / TMCAT6AKTJ+UTP48

2U 19'' 48 Ports Cat 6/6a  keystone Patch Panel with Back bar (Full loaded Keystone Jacks)


Patch Panel: Entire steel outer frame, with plastic powder clad.

UTP Keystone

Mini Keystone Jack

180 degree

Dual IDC

Material of Keystone jack housing: PC

The life of Jack: 750 times Min

The life of IDC: 200 Times Min

Wire: 22-24AWG


Cat.6 Perm link test: Worst pair Next margin> 7.0dB

Cat.6A Perm link test: Worst pair Next margin> 3.0dB
