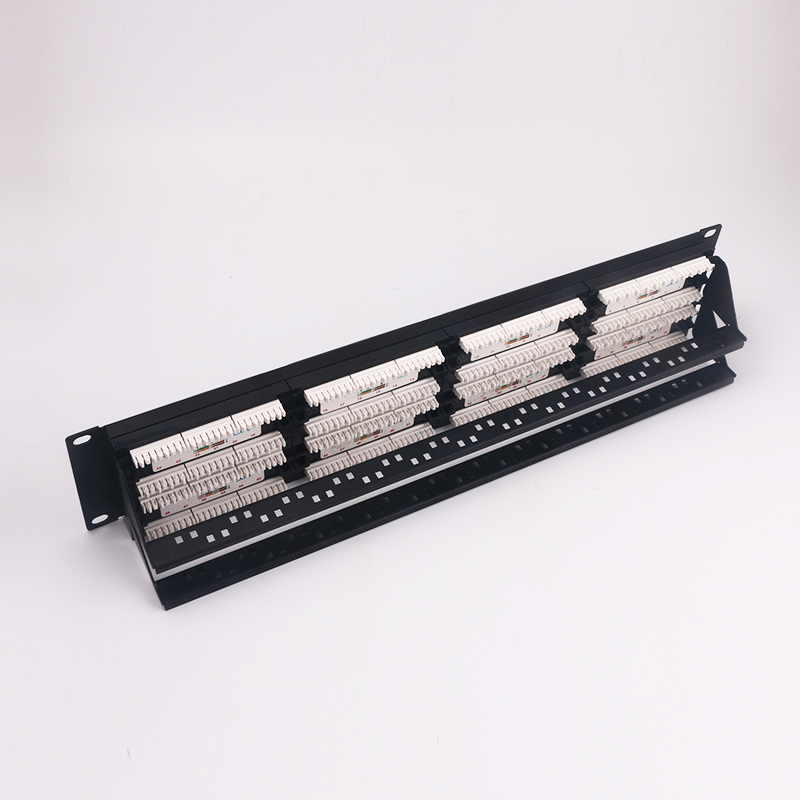

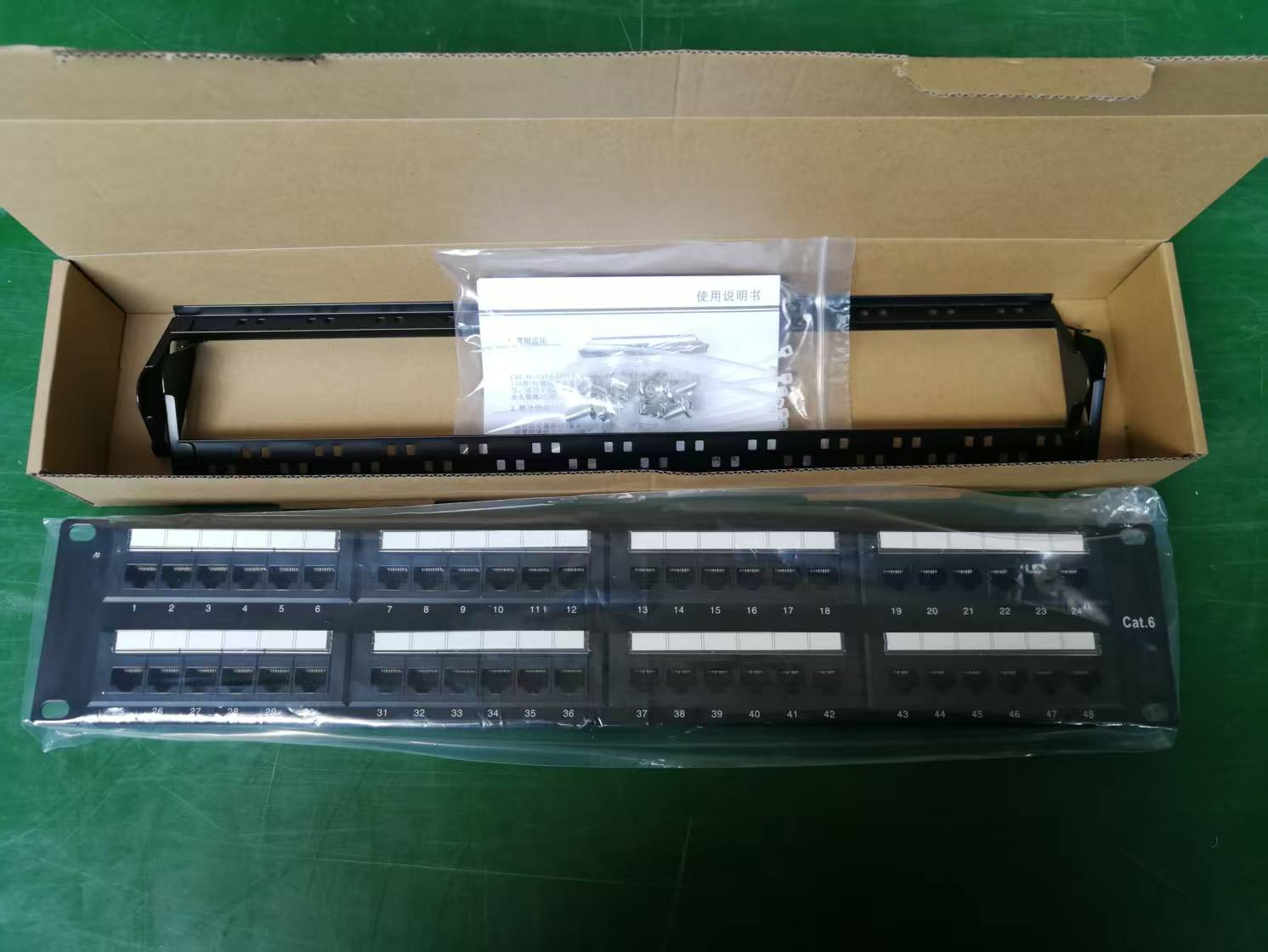

2U 19'' 48 Ports Cat 6 UTP PCB Patch Panel Dual IDC with Back Bar, Golden plating 50u''

Electrical:

Voltage rating: 125 VAC RMS;
Current rating: 1.5 AMP;
Contact resistance: 20 Million HMS max. ;
Insulation resistance: 100 MEGOHMS min. @ 500 VDC;
Dielectric strength: 750 VAC RMS 60 Hz, 1 min. ;
C6 permanent link: conform to AN- SI/TIA/EIA-568 b.2-1

Mechanical:  Housing Material: PBT+15% GF;
Panel frame: ST-12, powder coating in black color;

IDC material: PC, Contact: phosphor bronze, Tin plated;
RJ 45 Jack life: 750 cycles min.;
IDC life: 200 times min. ;
Wire: AWG 22-24;

TIA Cat. 5E fluke perm link test: worst pair next margin ≥ 8 dB;
TIA Cat. 6 fluke perm link test: worst pair next margin ≥ 6 dB;
TIA Cat. 6A fluke perm link test: worst pair next margin ≥ 5 dB;

Retentiveness of insertion structure: 50N 60±5 S.

•
