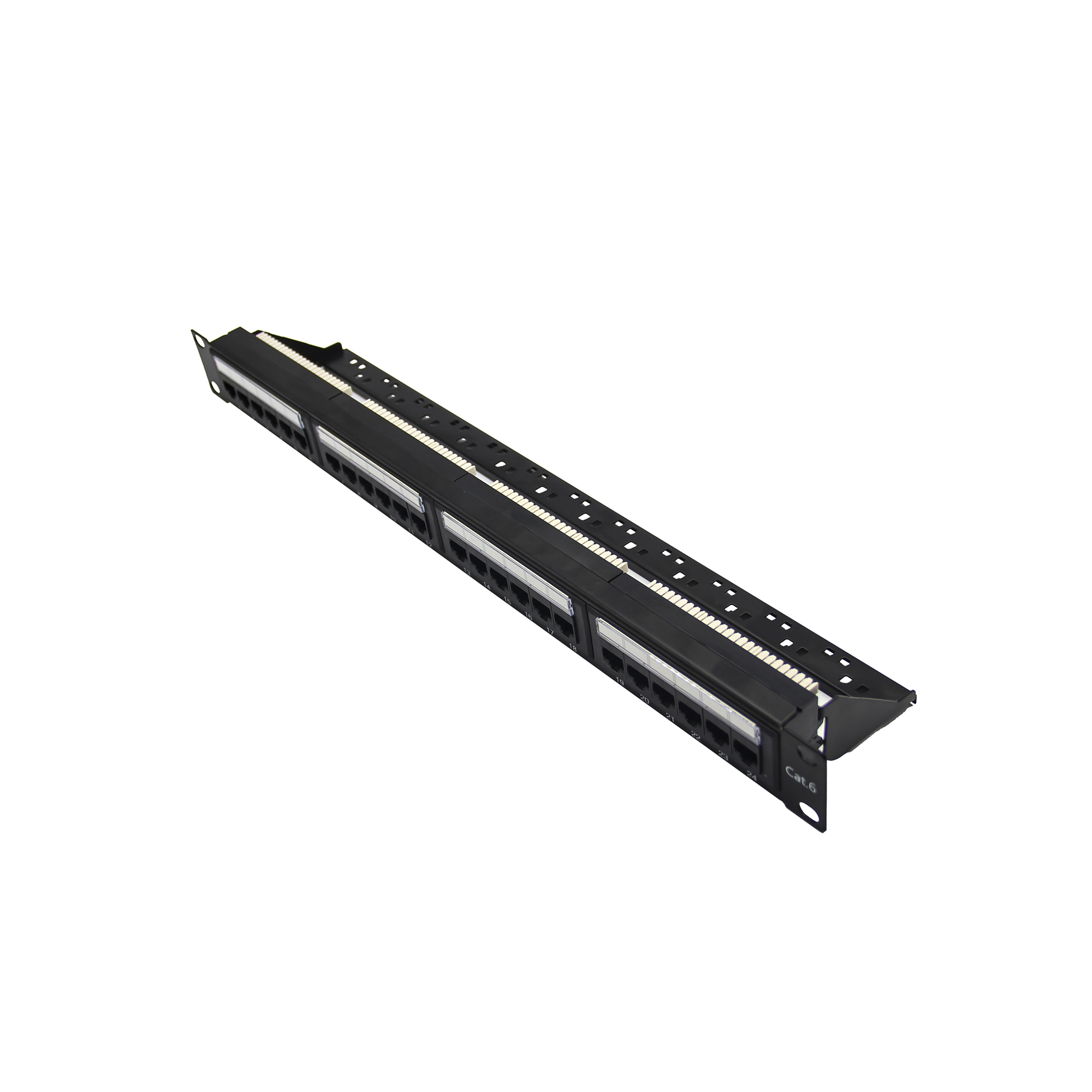

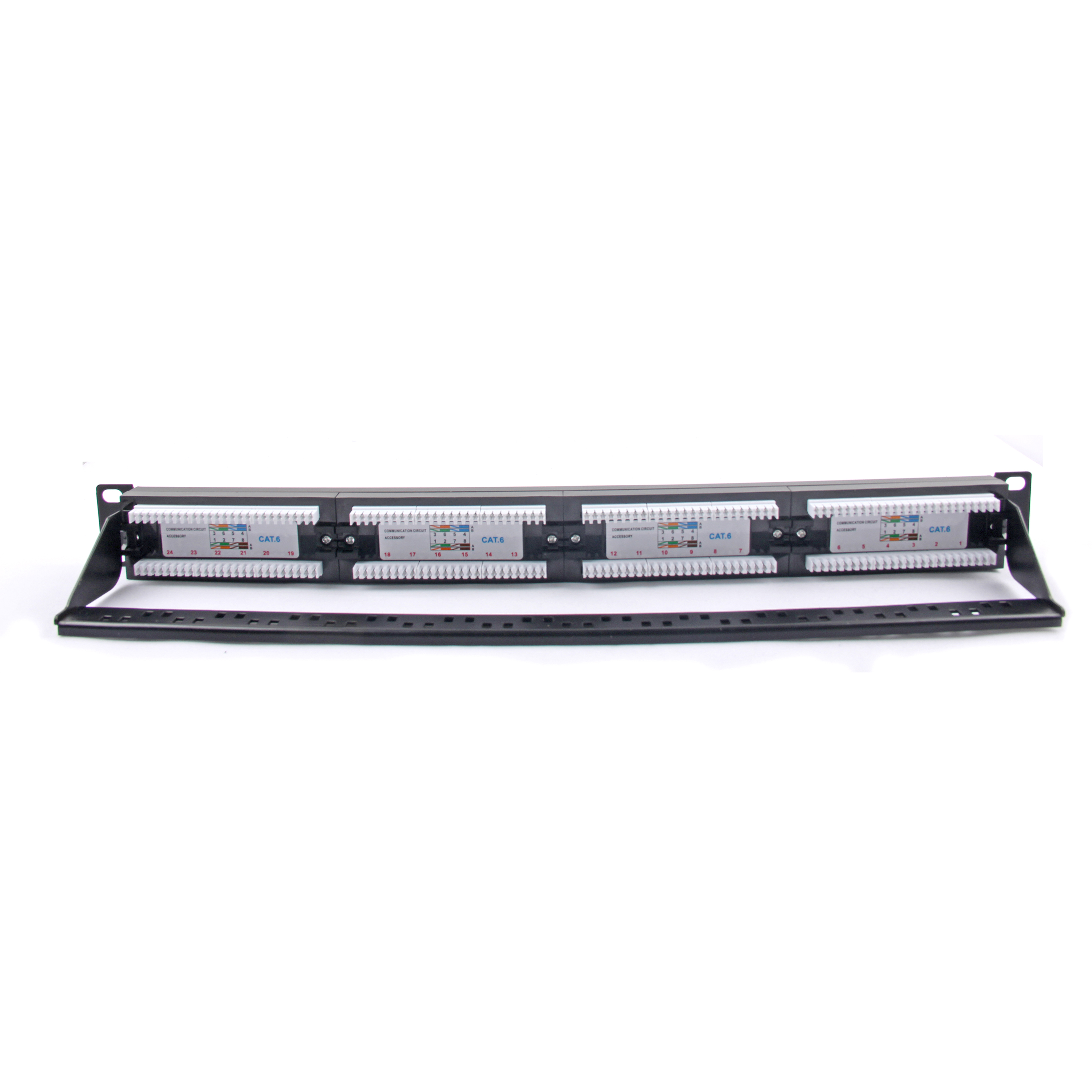

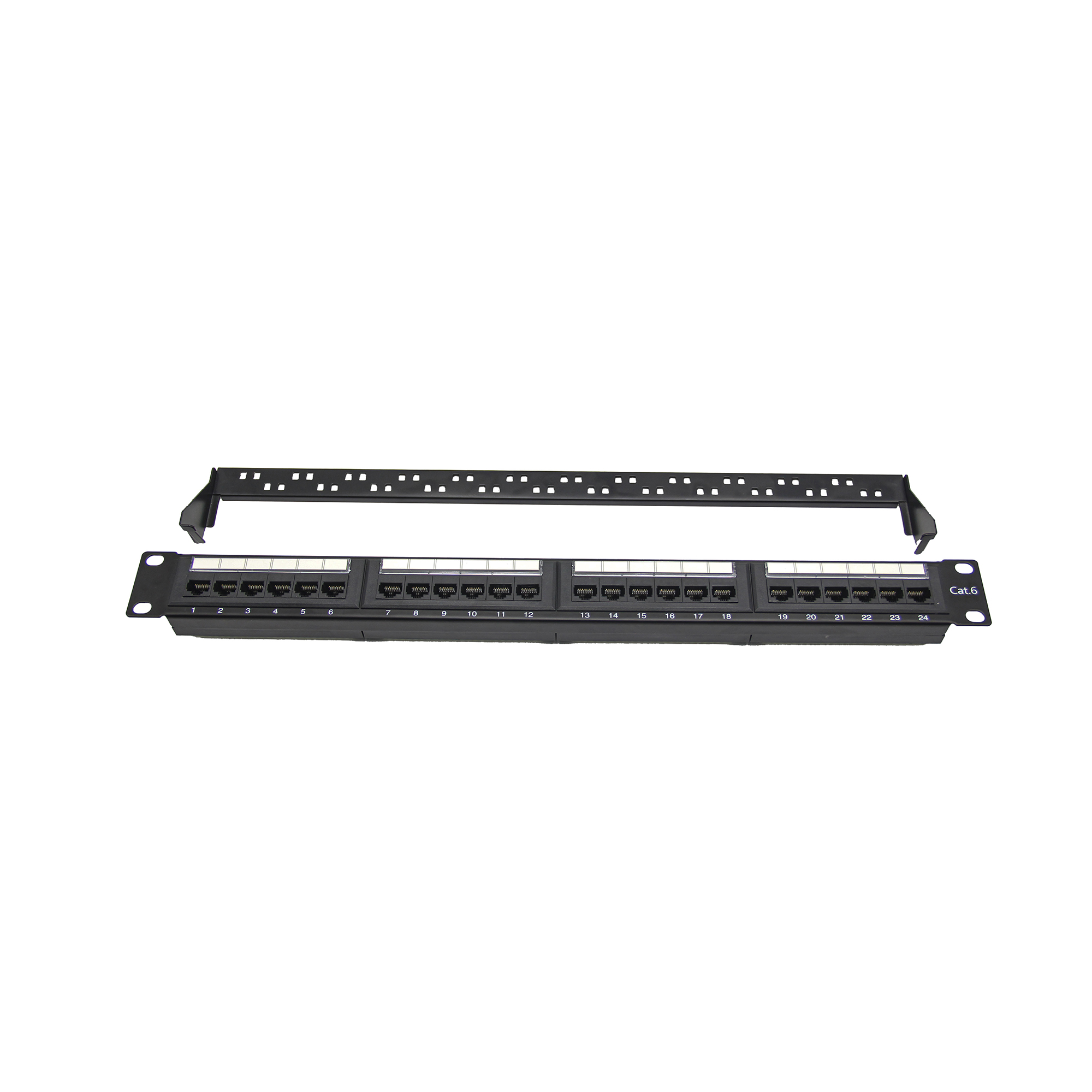

1U 19'' 24 Ports Cat 6 UTP PCB Patch Panel Dual IDC with Back Bar, Golden plating 50u''

Part Code: TM03C6PCB+UTP24

1U 19'' 24 Ports Cat 6 UTP PCB Patch Panel Dual IDC with Back Bar, Golden plating 50u''


Electrical:

Voltage rating: 125 VAC RMS;
Current rating: 1.5 AMP;
Contact resistance: 20 Million HMS max. ;
Insulation resistance: 100 MEGOHMS min. @ 500 VDC;
Dielectric strength: 750 VAC RMS 60 Hz, 1 min. ;
C6 permanent link: conform to AN- SI/TIA/EIA-568 b.2-1

Mechanical:  Housing Material: PBT+15% GF;
Panel frame: ST-12, powder coating in black color;


IDC material: PC, Contact: phosphor bronze, Tin plated;
RJ 45 Jack life: 750 cycles min.;
IDC life: 200 times min. ;
Wire: AWG 22-24;


TIA Cat. 5E fluke perm link test: worst pair next margin ≥ 8 dB;
TIA Cat. 6 fluke perm link test: worst pair next margin ≥ 6 dB;
TIA Cat. 6A fluke perm link test: worst pair next margin ≥ 5 dB;


Retentiveness of insertion structure: 50N 60±5 S.


Return to project list

Key Features

Product Details

Download

Category: 6

Height: 1U

Ports: 24

IDC: Dual IDC

Test: Fluke Channel Test

1U 19'' 24 Ports Cat 6 UTP PCB Patch Panel Dual IDC with Back Bar, Golden plating 50u''


Electrical:

Voltage rating: 125 VAC RMS;
Current rating: 1.5 AMP;
Contact resistance: 20 Million HMS max. ;
Insulation resistance: 100 MEGOHMS min. @ 500 VDC;
Dielectric strength: 750 VAC RMS 60 Hz, 1 min. ;
C6 permanent link: conform to AN- SI/TIA/EIA-568 b.2-1

Mechanical:  Housing Material: PBT+15% GF;
Panel frame: ST-12, powder coating in black color;


IDC material: PC, Contact: phosphor bronze, Tin plated;
RJ 45 Jack life: 750 cycles min.;
IDC life: 200 times min. ;
Wire: AWG 22-24;


TIA Cat. 5E fluke perm link test: worst pair next margin ≥ 8 dB;
TIA Cat. 6 fluke perm link test: worst pair next margin ≥ 6 dB;
TIA Cat. 6A fluke perm link test: worst pair next margin ≥ 5 dB;


Retentiveness of insertion structure: 50N 60±5 S.


DESCRIPTION

Packing

Size (CM)

Weightkgs)

Qty/Box

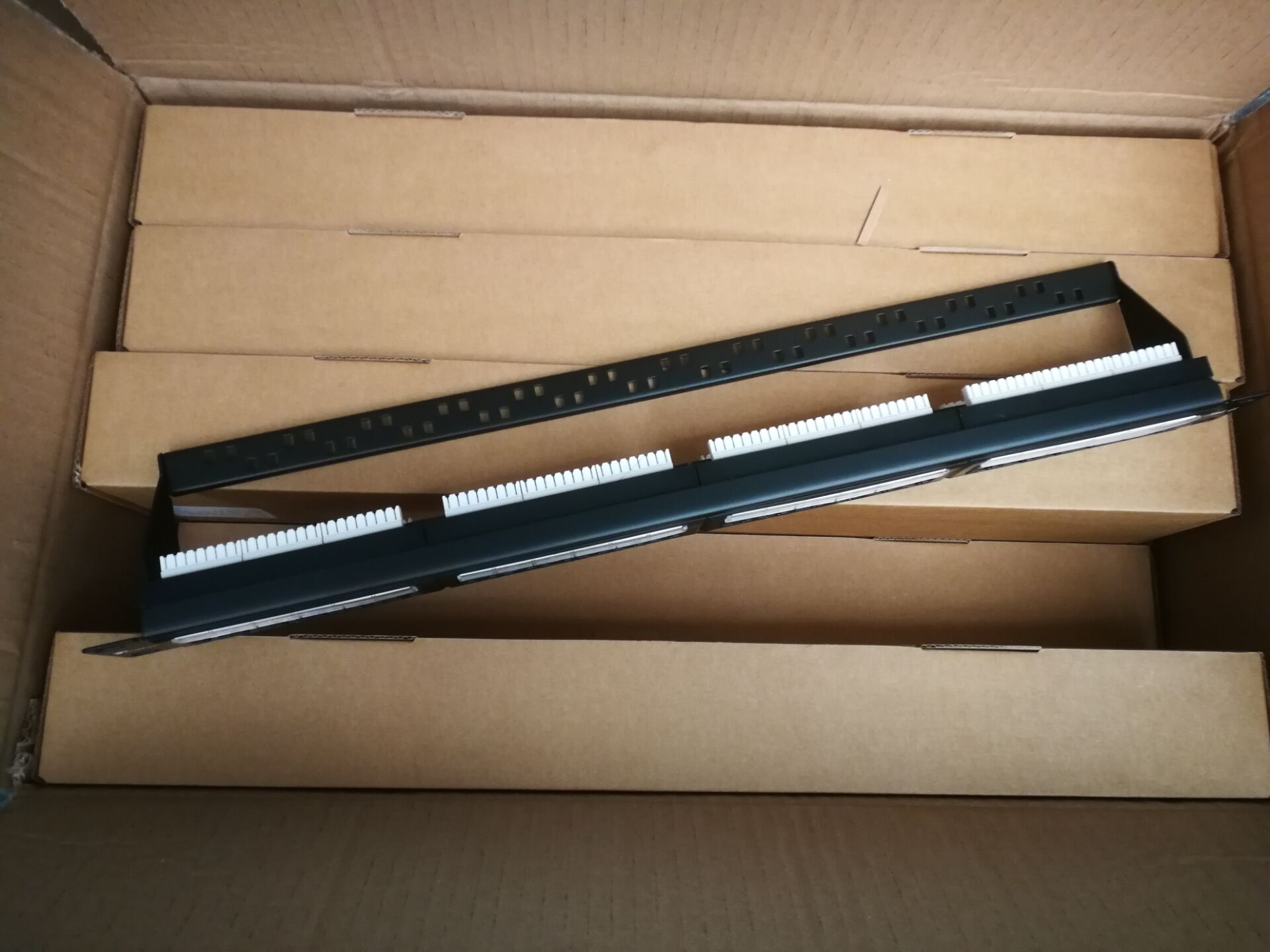

1U 19INCH UTP PATCH PANEL CAT5E/6/6A 24 PORTS DUAL IDC, WITH BACK BAR

Carton Packing

53*32*38

18.5

20 PCS
