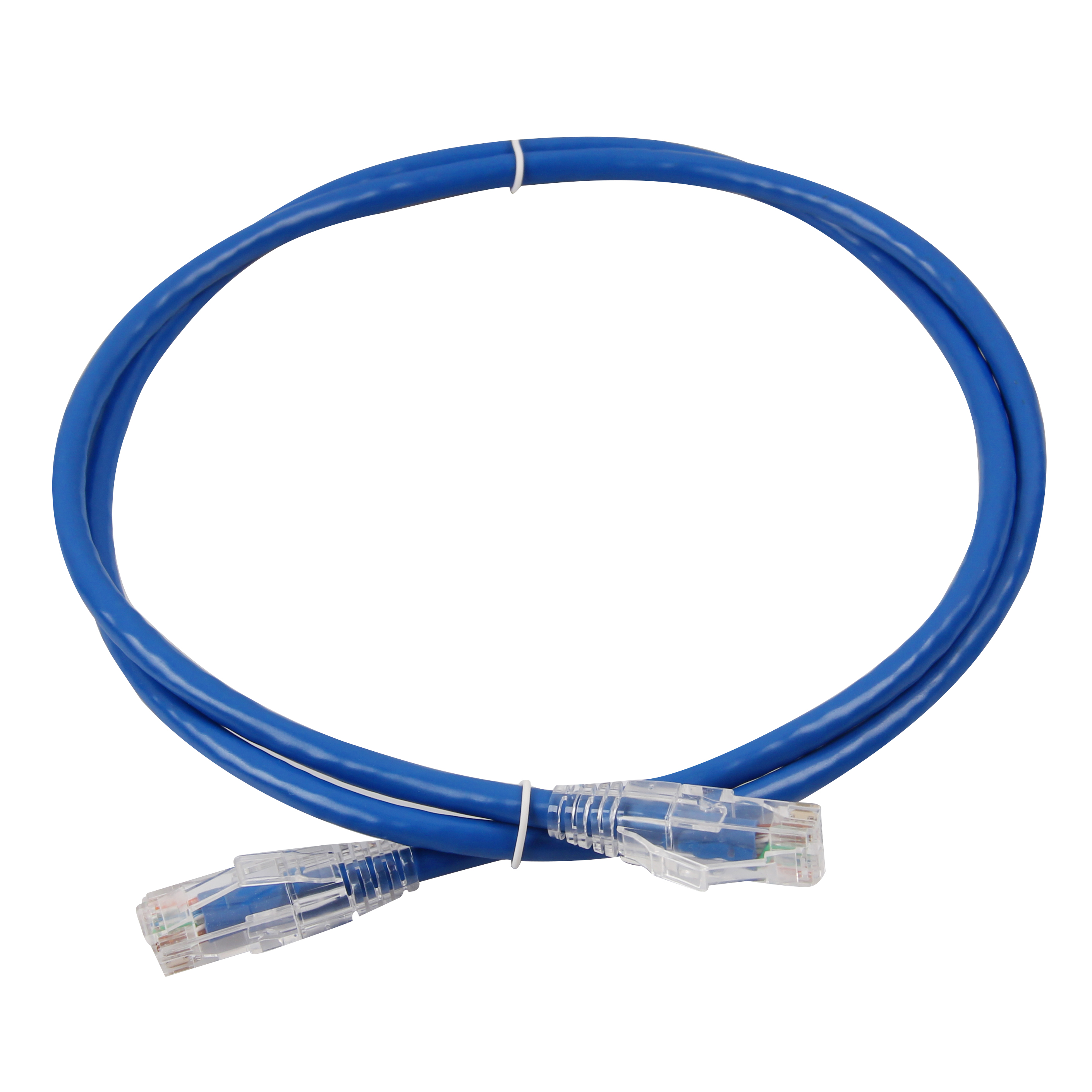

Cat 6a UTP Patch cord 24AWG Stranded Conductor BC PVC 1/2/3/5......Meters

Part Code: TM02UTP6ABL01-PVC

Cat 6a UTP Patch cord 24AWG Stranded Conductor BC PVC 1/2/3/5......Meters


All cable 100% channel testing, any open, missing wire, short and intermittent are not permitted.

After crimping the distance between the bottom of contact and the top surface of plug are 5.90-6.146mm.

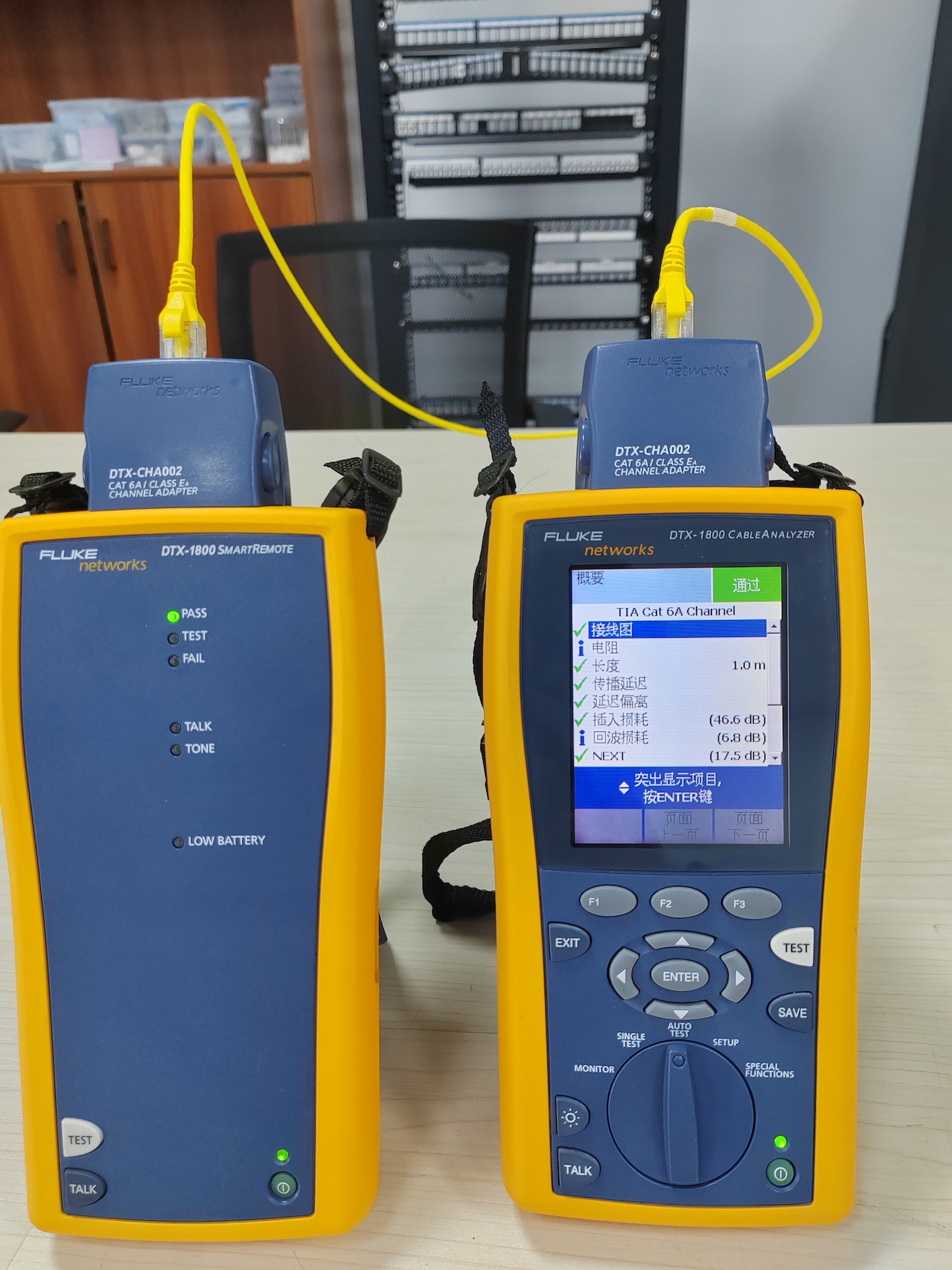

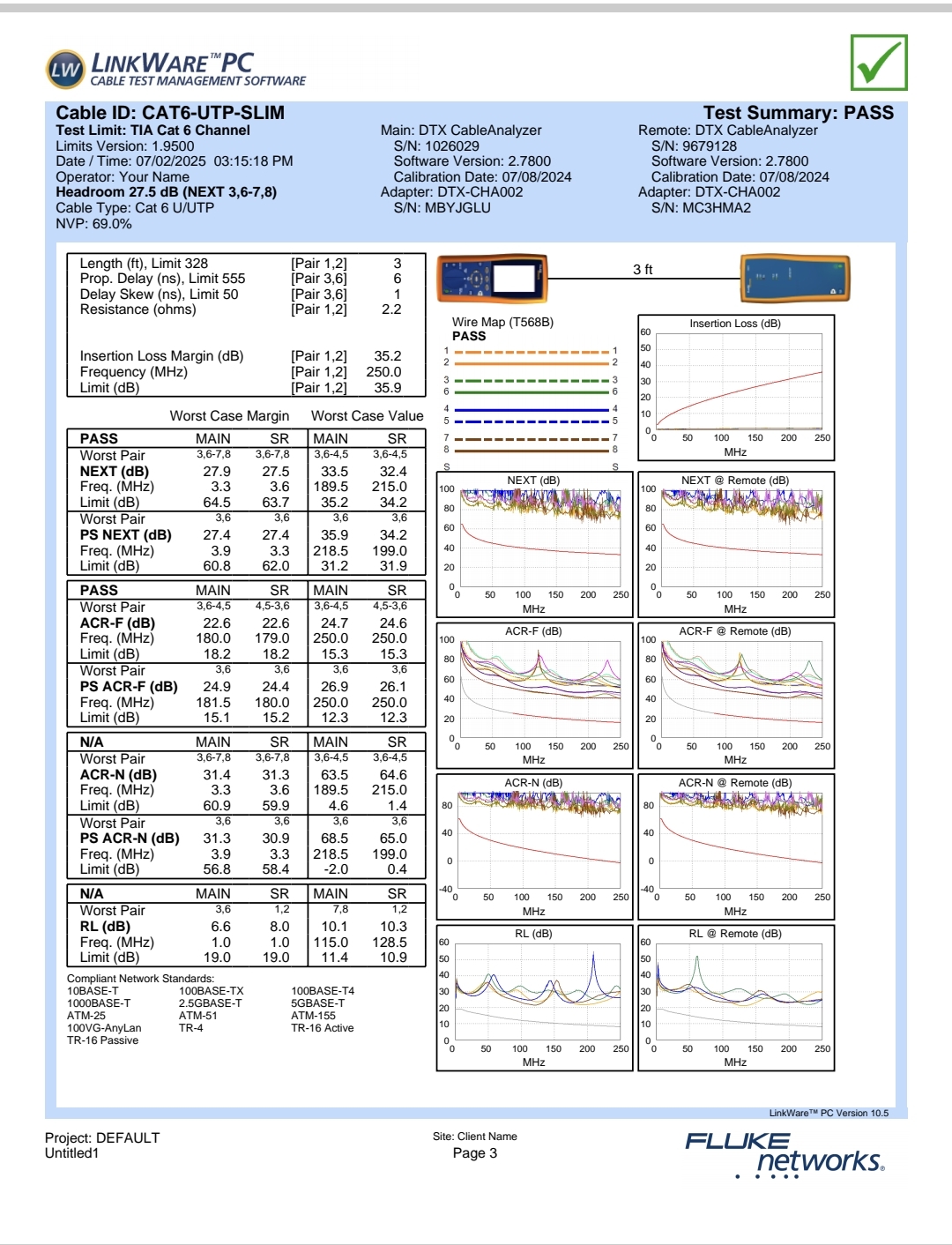

The cable must be tested and passed the channel test with Fluke DSX-8000.

Rohs compliant PVC or PE or LSZH Jacket.

Installation temperature: -30℃ to +50℃,minimum bending radius: 4D.

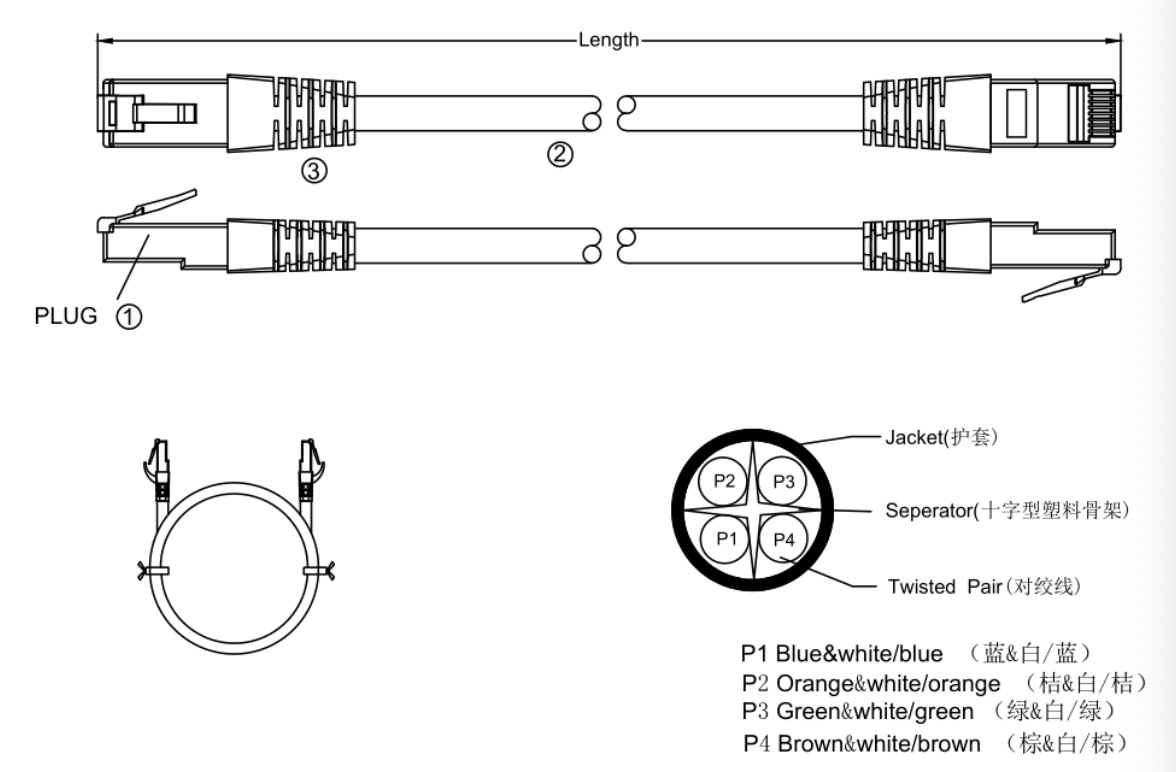

RJ45 PLUG   2 PCS     RJ45 8P8C Contact, phosphor Bronze 50u″, UL94V-0.

CABLE          1 PCS     CAT6A UTP 24AWG(7*0.18MM)*4P Stranded Cable Jacket, OD:  5.9±0.2MM

OVERMODE  48P PVC



Return to project list

Key Features

Product Details

Download

Category: 6a

Sheath: UTP

Conductor: Stranded BC

AWG: 24

Jacket: PVC

Test: Fluke Channel Test

Cat 6a UTP Patch cord 24AWG Stranded Conductor BC PVC 1/2/3/5......Meters


All cable 100% channel testing, any open, missing wire, short and intermittent are not permitted.

After crimping the distance between the bottom of contact and the top surface of plug are 5.90-6.146mm.

The cable must be tested and passed the channel test with Fluke DSX-8000.

Rohs compliant PVC or PE or LSZH Jacket.

Installation temperature: -30℃ to +50℃,minimum bending radius: 4D.


RJ45 PLUG   2 PCS     RJ45 8P8C Contact, phosphor Bronze 50u″, UL94V-0.

CABLE          1 PCS     CAT6A UTP 24AWG(7*0.18MM)*4P Stranded Cable Jacket, OD:  5.9±0.2MM

OVERMODE  48P PVC

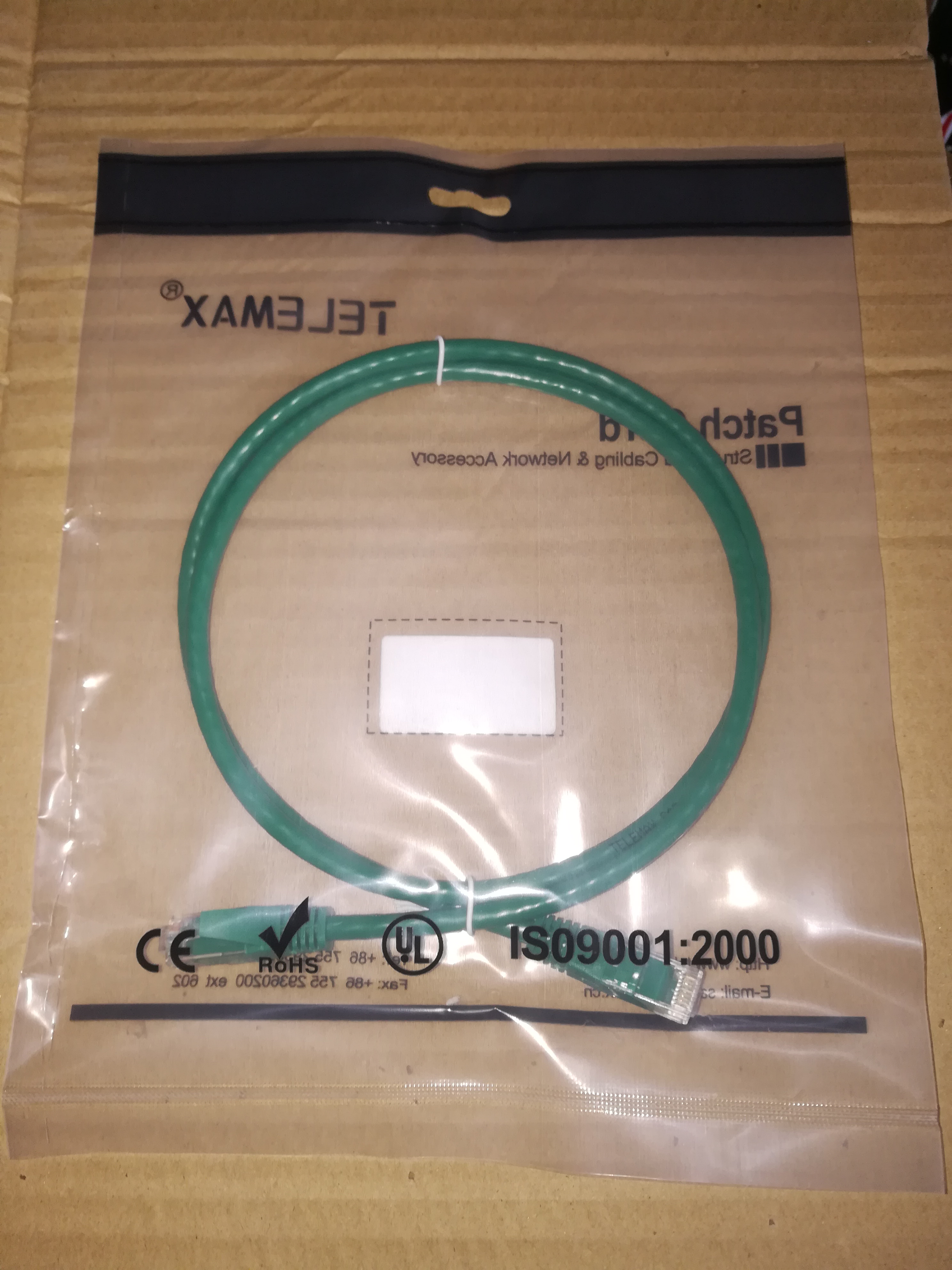

Packing Information

DESCRIPTION

Packing

Size (CM)

Weightkgs)

Qty/Box

CAT6a PATCH CORD UTP 24AWG STRANDED BC 1 METER

Carton Packing

40*38*29

11.8

200 pcs

CAT6a PATCH CORD UTP 24AWG STRANDED BC 2 METER

Carton Packing

40*38*29

9.6

100 pcs

CAT6a PATCH CORD UTP 24AWG STRANDED BC 3 METER

Carton Packing

40*38*29

13.5

100 pcs
