Cat 6 UTP Patch cord 24AWG Stranded Conductor BC PVC 1/2/3/5......Meters

All cable 100% channel testing, any open, missing wire, short and intermittent are not permitted.

After crimping the distance between the bottom of contact and the top surface of plug are 5.90-6.146mm.

The cable must be tested and passed the channel test with Fluke DSX-8000.

Rohs compliant PVC or PE or LSZH Jacket.

Installation temperature: -30℃ to +50℃,minimum bending radius: 4D.

RJ45 PLUG   2 PCS     RJ45 8P8C Contact, phosphor Bronze 50u″, UL94V-0.

CABLE          1 PCS     CAT6A UTP 24AWG(7*0.18MM)*4P Stranded Cable Jacket, OD:  5.9±0.2MM

OVERMODE  48P PVC

Fluke Channel Test 100%

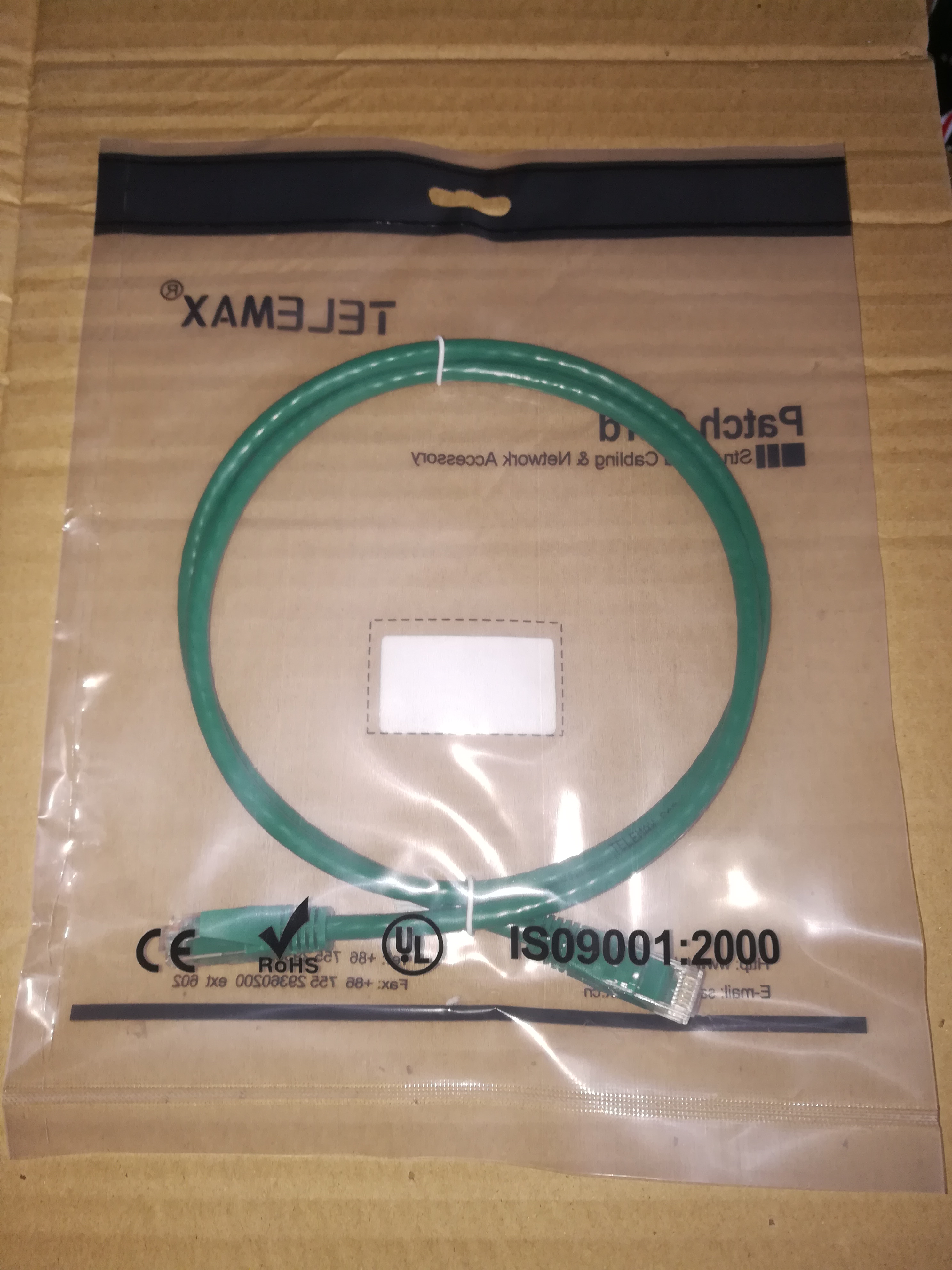

Packing Information

•
  data sheet - Patch cord- Cat.6 UTP Patch cord.pdf
