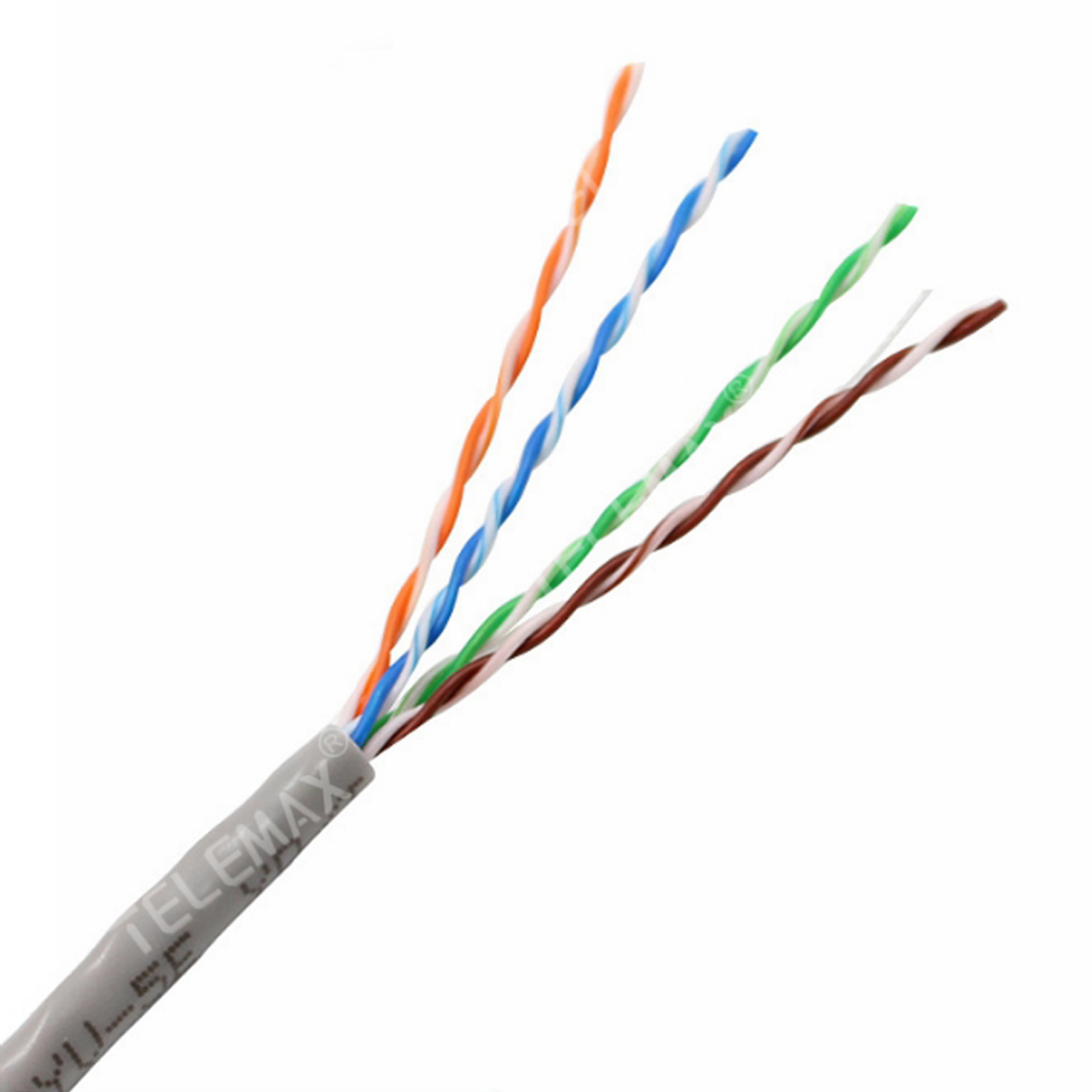

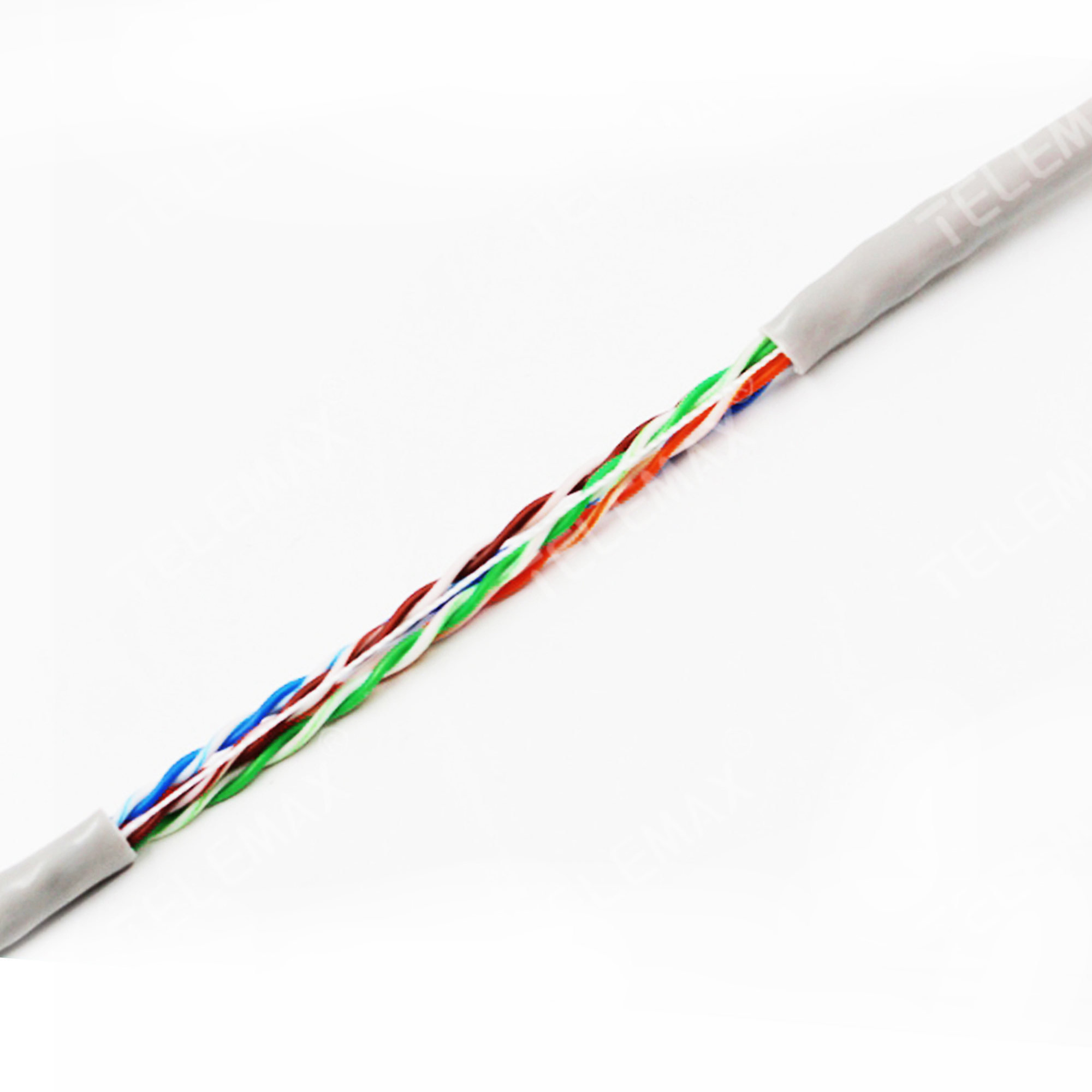

Cat 6A Lan Cable UTP 23AWG BC 0.57mm LSZH Jacket Fluke Test

Part Code: TM01UTP6A305LSZH

Cat 6a lan cable UTP 23AWG BC 0.57mm LSZH Jacket Fluke test


Standards

ANSI/TIA-568-C.2

IEC 61156-5

EN 50288-11-1

EN 50173

ISO/IEC 11801

EN 50575


Applications

10BASE-T (IEEE 802.3)

4/16 Mbps TOKEN RING (IEEE 802.5)

100BASE-VG-AnyLAN

100 Mbps TP-PMD (ANSI X3T9.5)

100BASE-T (IEEE 802.3)

55/155 Mbps ATM

1000BASE-T (Gigabit Ethernet)

1.2 Gbps ATM10G BASE-T


Color codes

Insulation Color:

P1: White & Blue / Blue

P2: White & Orange / Orange

P3: White & Green / Green

P4: White & Brown / Brown

Jacket Color: Optional


Packing:

1. Reel/ 305m

2. Reel/ 500m


Test Requirments

Pass fluke 90m permanent link testTIA-568-C.2

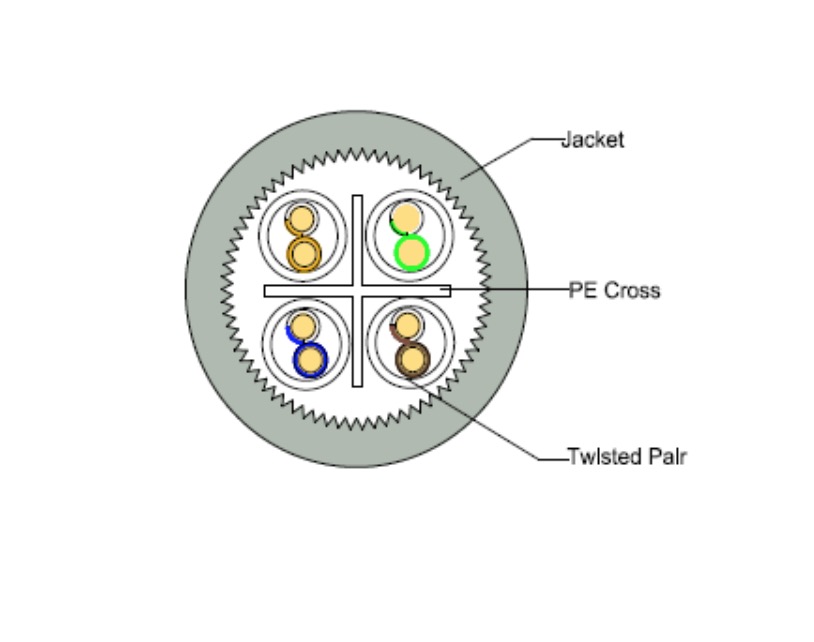

Cable  Parameters


Conductor Material 99.99% Solid Bare Copper

Conductor Number 8C(4 pairs)

Cable AWG 23

Construction(±0.01mm) 1/0.57

Separator PE CROSS

Rip Cord NO

Insulation Material PE

Nom. Thickness(mm) 0.22

Diameter(±0.08mm) 1.02

Jacket Material LSZH

Nom. Thickness(mm) 0.60

Diameter(±0.30mm) 7.30


Electrical Performance


Max. Conductor DC Resistance (Ω/km) 93

Min. Insulation Resistance (ΩM-KM) 500

Dielectric Strength DC-1KV/1 Min

1.0-250MHZ Characteristic Impedance(ohms) 100Ω±15Ω

1.0-250MHZ Delay Skew(ns/100m) ≤45

Pair to Ground Capacitance

Unbalance(Pf/100m) ≤330

Resistance Unbalance(%) ≤4

Max Mutual Capacitance 5.6nF/10

Max DC Loop Resistance 19.2Ω/100m

Before Aging Tensile Strength(Mpa) ≥13.5

Elongation(%) ≥100

After Aging

100℃*24h*7d Tensile Strength(Mpa) ≥75

Elongation(%) ≥50

Velocity of Propagation NVP 69%




Return to project list

Key Features

Product Details

Download

Category: 6a

Sheath: UTP

Conductor: BC

AWG: 23

Test: Fluke 90meters perm link test

Packing: 305meters/Box

Cat 6a lan cable UTP 23AWG BC 0.57mm LSZH Jacket Fluke test


Standards

ANSI/TIA-568-C.2

IEC 61156-5

EN 50288-11-1

EN 50173

ISO/IEC 11801

EN 50575


Applications

10BASE-T (IEEE 802.3)

4/16 Mbps TOKEN RING (IEEE 802.5)

100BASE-VG-AnyLAN

100 Mbps TP-PMD (ANSI X3T9.5)

100BASE-T (IEEE 802.3)

55/155 Mbps ATM

1000BASE-T (Gigabit Ethernet)

1.2 Gbps ATM10G BASE-T


Color codes

Insulation Color:

P1: White & Blue / Blue

P2: White & Orange / Orange

P3: White & Green / Green

P4: White & Brown / Brown

Jacket Color: Optional


Packing:

1. Reel/ 305m

2. Reel/ 500m


Test Requirments

Pass fluke 90m permanent link testTIA-568-C.2


Cable  Parameters


Conductor Material 99.99% Solid Bare Copper

Conductor Number 8C(4 pairs)

Cable AWG 23

Construction(±0.01mm) 1/0.57

Separator PE CROSS

Rip Cord NO

Insulation Material PE

Nom. Thickness(mm) 0.22

Diameter(±0.08mm) 1.02

Jacket Material LSZH

Nom. Thickness(mm) 0.60

Diameter(±0.30mm) 7.30


Electrical Performance


Max. Conductor DC Resistance (Ω/km) 93

Min. Insulation Resistance (ΩM-KM) 500

Dielectric Strength DC-1KV/1 Min

1.0-250MHZ Characteristic Impedance(ohms) 100Ω±15Ω

1.0-250MHZ Delay Skew(ns/100m) ≤45

Pair to Ground Capacitance

Unbalance(Pf/100m) ≤330

Resistance Unbalance(%) ≤4

Max Mutual Capacitance 5.6nF/10

Max DC Loop Resistance 19.2Ω/100m

Before Aging Tensile Strength(Mpa) ≥13.5

Elongation(%) ≥100

After Aging

100℃*24h*7d Tensile Strength(Mpa) ≥75

Elongation(%) ≥50

Velocity of Propagation NVP 69%


Packing Information

DESCRIPTION

Packing

Size (CM)

Weightkgs)

Qty/Box

CAT6A UTP LAN CABLE 23AWG SOLID BC 305M/BOX

Wooden Drum

外径400mm*内宽245mm*筒径165mm*板厚8mm*中心孔45mm

16

305 Meter/ Roll
