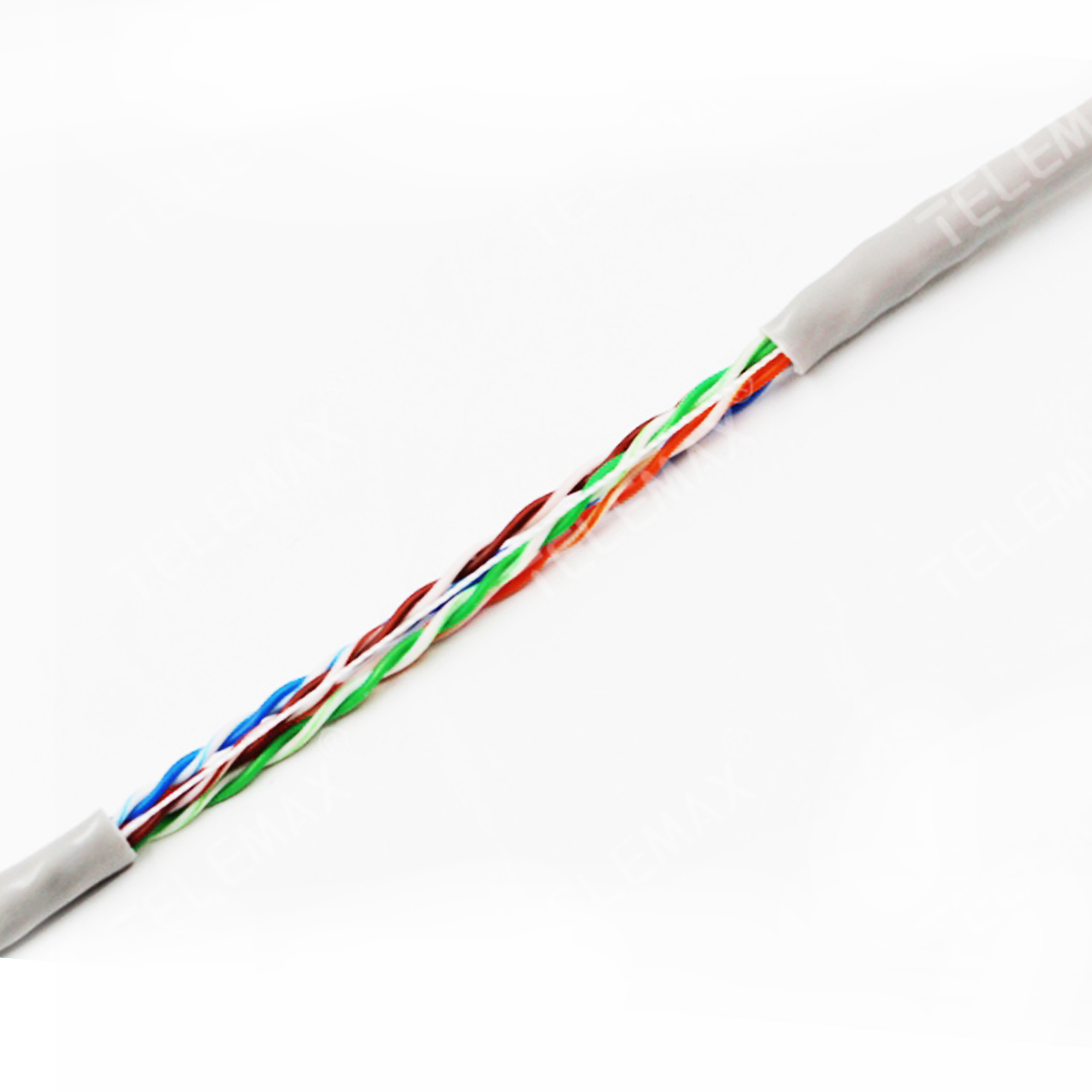

Cat 6a lan cable UTP 23AWG BC 0.57mm PVC Jacket Fluke test

Part Code: TM01UTP6A305PVC

Standards

ANSI/TIA-568-C.2 IEC 61156-5EN 50288-11-1EN 50173ISO/IEC 11801EN 50575

Applications

10BASE-T (IEEE 802.3)4/16 Mbps TOKEN RING (IEEE 802.5)100BASE-VG-AnyLAN100 Mbps TP-PMD (ANSI X3T9.5)100BASE-T (IEEE 802.3)55/155 Mbps ATM1000BASE-T (Gigabit Ethernet)1.2 Gbps ATM10G BASE-T

Color codes

Insulation Color:

P1: White & Blue / Blue

P2: White & Orange / Orange

P3: White & Green / Green

P4: White & Brown / Brown

Jacket Color: Optional


Packing:

1. Reel/ 305m

2. Reel/ 500m


Test Requirments

Pass fluke 90m permanent link testTIA-568-C.2


Cable  Parameters


Conductor Material 99.99% Solid Bare Copper

Conductor Number 8C(4 pairs)

Cable AWG 23

Construction(±0.01mm) 1/0.57

Separator PE CROSS

Rip Cord NO

Insulation Material PE

Nom. Thickness(mm) 0.22

Diameter(±0.08mm) 1.02

Jacket Material PVC

Nom. Thickness(mm) 0.60

Diameter(±0.30mm) 7.30


Electrical Performance


Max. Conductor DC Resistance (Ω/km) 93

Min. Insulation Resistance (ΩM-KM) 500

Dielectric Strength DC-1KV/1 Min

1.0-250MHZ Characteristic Impedance(ohms) 100Ω±15Ω

1.0-250MHZ Delay Skew(ns/100m) ≤45

Pair to Ground Capacitance

Unbalance(Pf/100m) ≤330

Resistance Unbalance(%) ≤4

Max Mutual Capacitance 5.6nF/10

Max DC Loop Resistance 19.2Ω/100m

Before Aging Tensile Strength(Mpa) ≥13.5

Elongation(%) ≥100

After Aging

100℃*24h*7d Tensile Strength(Mpa) ≥75

Elongation(%) ≥50

Velocity of Propagation NVP 69%
