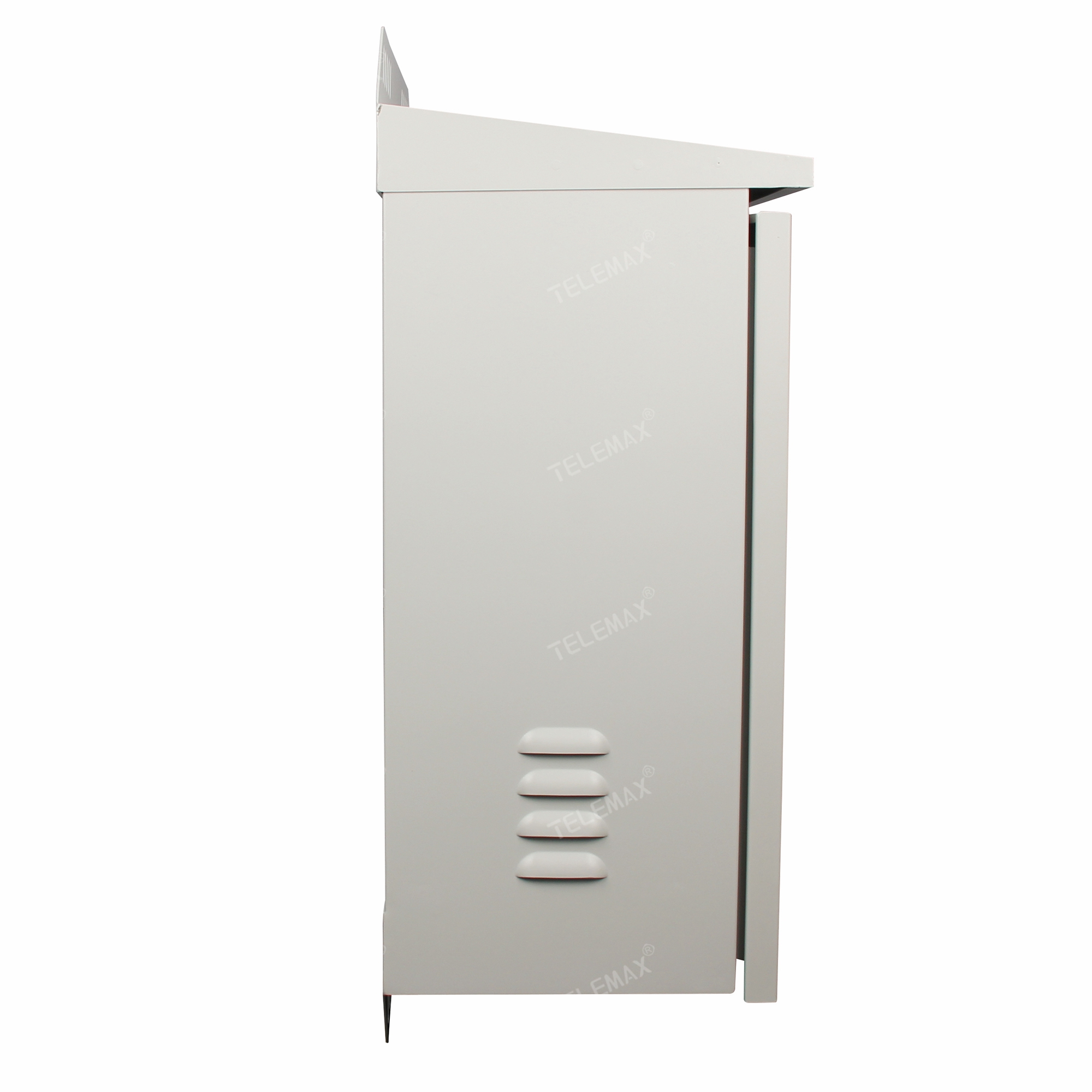

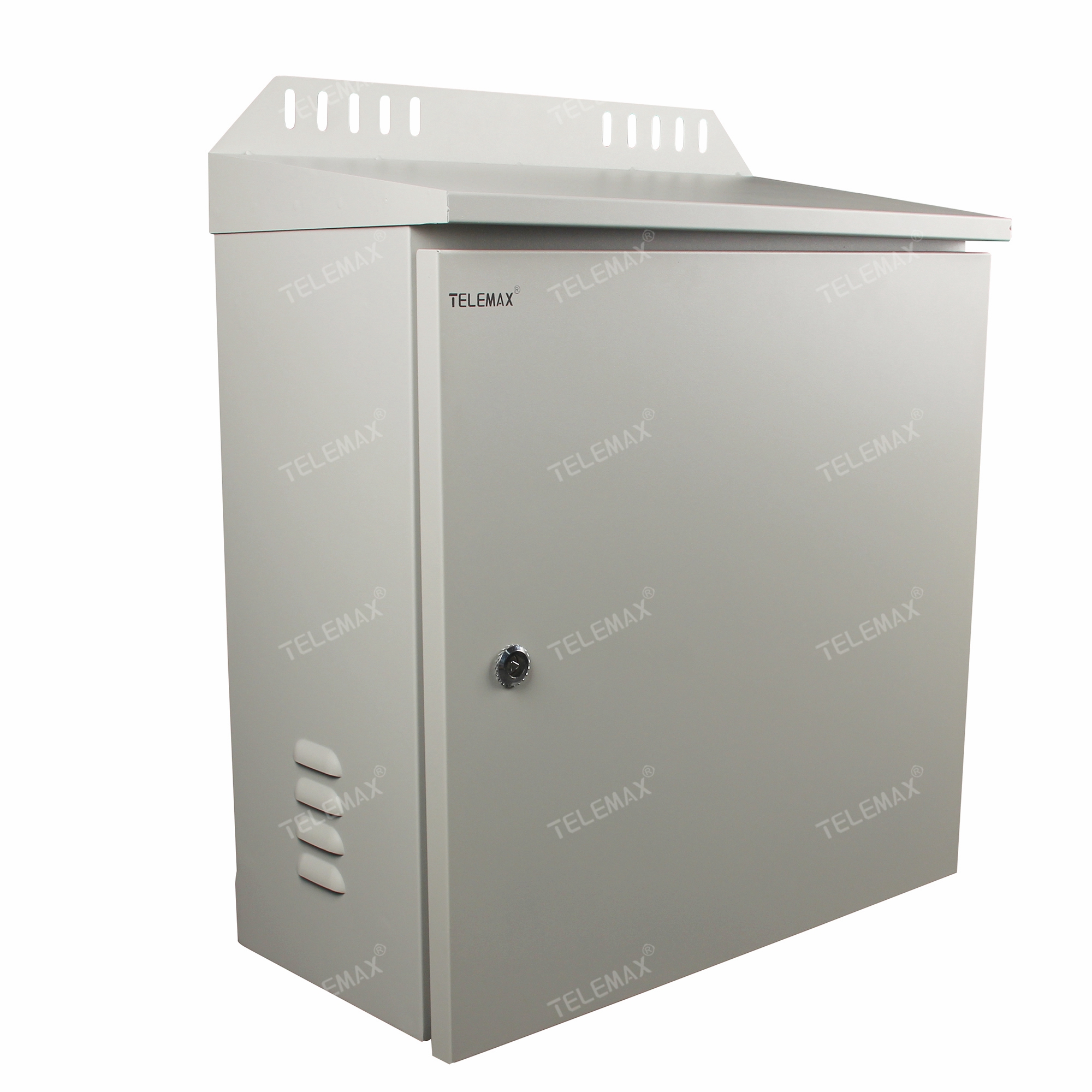

19 Inch Outdoor Wall mount / Pole Mount Network Cabinet 12U Grey Color

Part Code: TM07SWC12UOD

Standard:

Comply with ANS/EIA RS-310-D, IEC 297-2, DIN41497 Part 1, DIN41494 Part 7, GB/T3047.2-92 Standard.

Features:

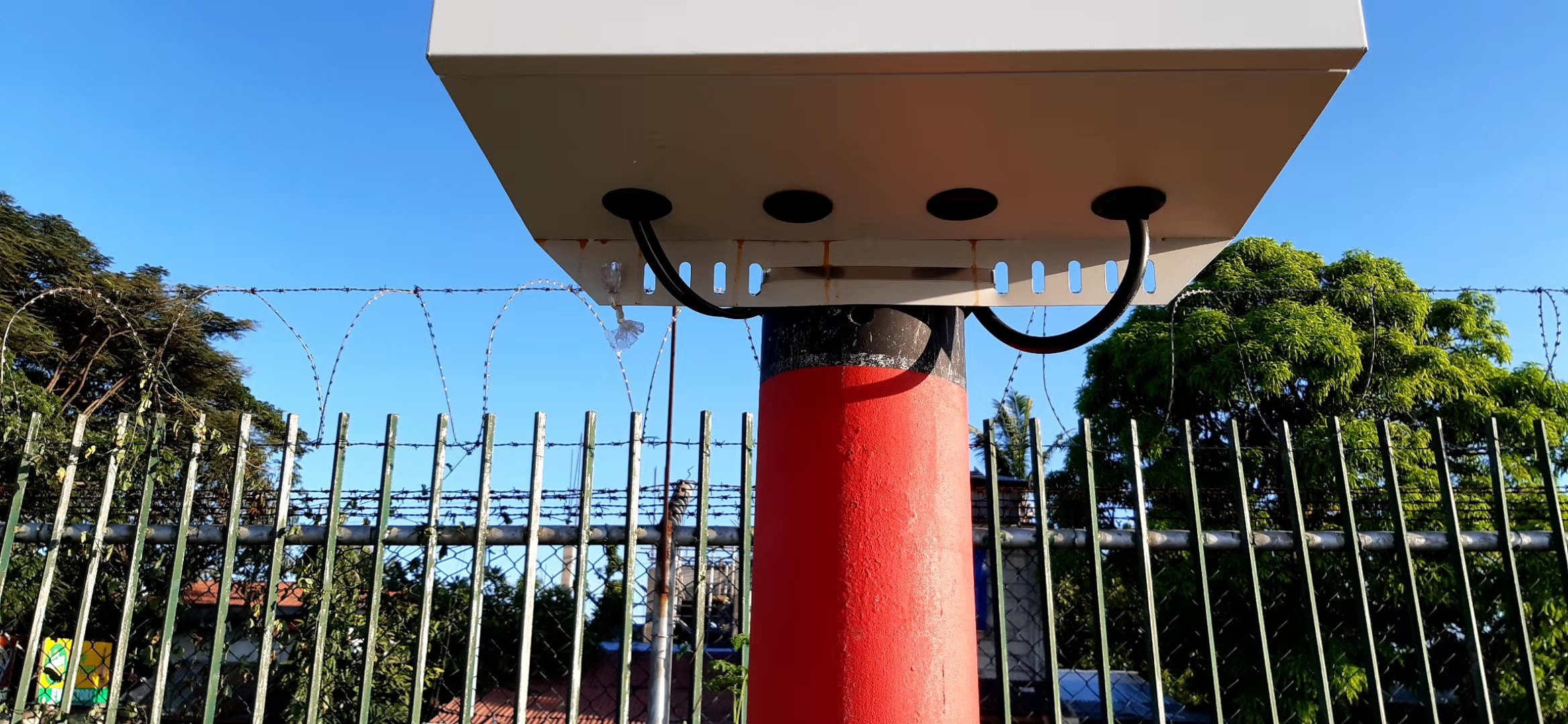

Support Pole mount;Waterproof Type;Grey color RAL7035;4 cable enter hole from bottom;2 fans, 2 shelves, 1 back plate, 1 anchoring clamp with OD 28-35CM;Steel frame, simply assembled structure with precise craftsmanship;Single section, compatible with 19″ standard equipments;Special design of air outlet on side panel;10 installing holes on the rear panel, easy to fix on the wall;Back plate inside is easy for small equipment hanging.

Material:SPCC quality cold rolled steel;

Thickness: 1.5mm.

Loading Capacity:Static loading: 80kgs

Degree of Protection:IP20

Surface Finish:Degreasing, picking, phosphating, Powder Coated


Return to project list

Key Features

Product Details

Download

Type: Wall/Pole Mount

Height: 12U

Width: 600mm

Depth: 300mm

Door: Metal

Material: SPCC

Color: Grey

Standard:

Comply with ANS/EIA RS-310-D, IEC 297-2, DIN41497 Part 1, DIN41494 Part 7, GB/T3047.2-92 Standard.

Features:

Support Pole mount;Waterproof Type;Grey color RAL7035;4 cable enter hole from bottom;2 fans, 2 shelves, 1 back plate, 1 anchoring clamp with OD 28-35CM;Steel frame, simply assembled structure with precise craftsmanship;Single section, compatible with 19″ standard equipments;Special design of air outlet on side panel;10 installing holes on the rear panel, easy to fix on the wall;Back plate inside is easy for small equipment hanging.

Material:SPCC quality cold rolled steel;

Thickness: 1.5mm.

Loading Capacity:Static loading: 80kgs

Degree of Protection:IP20

Surface Finish:Degreasing, picking, phosphating, Powder Coated
