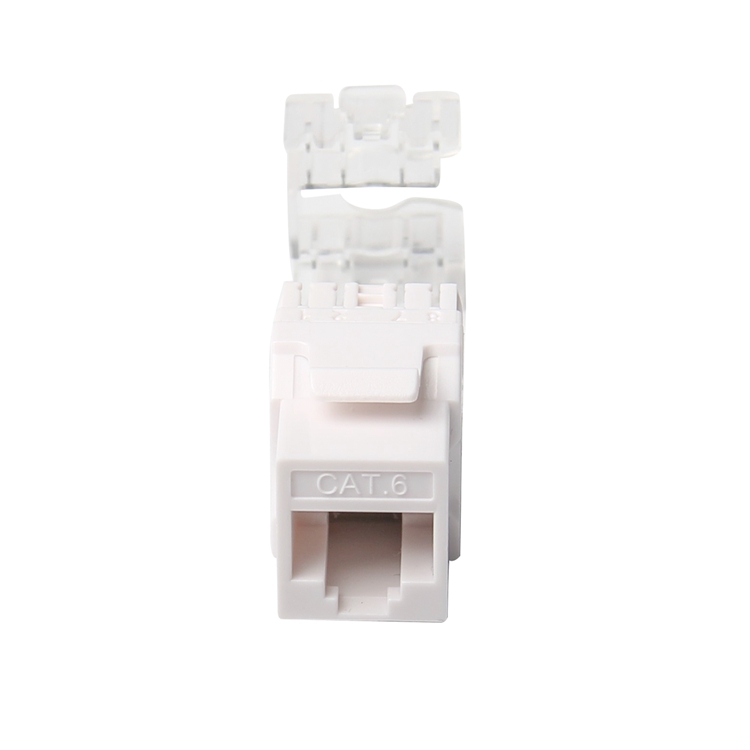

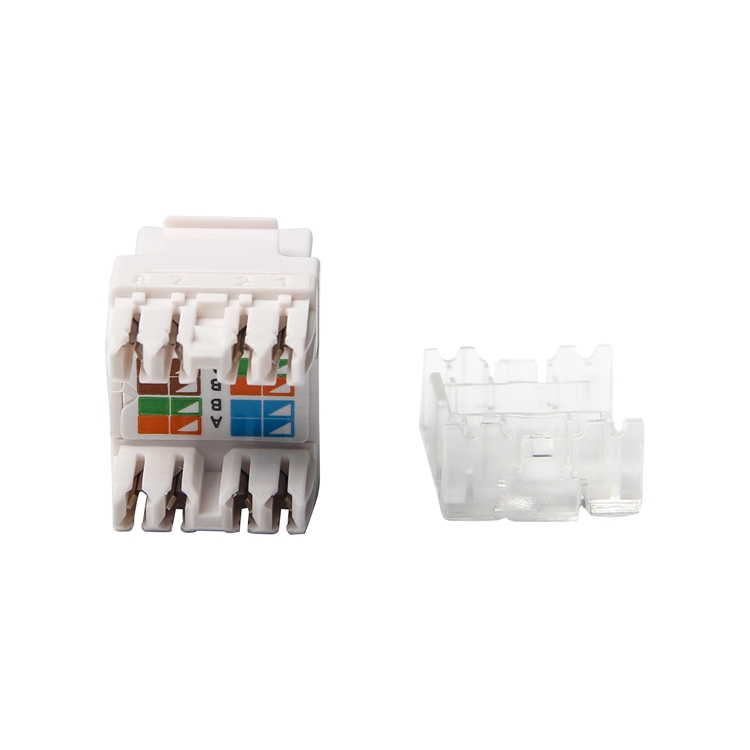

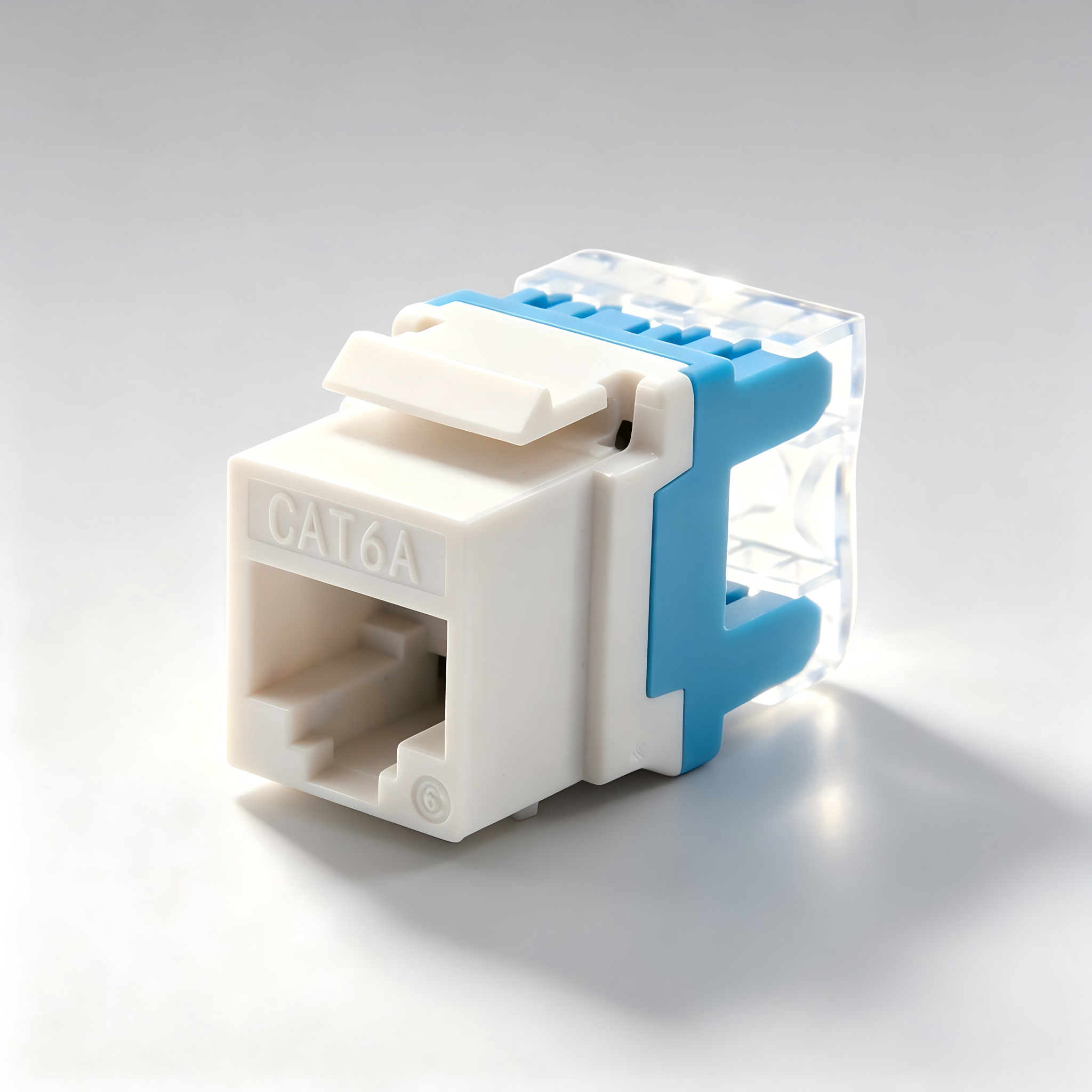

Cat 5e/6/6a UTP Keystone Jack 180 degree Mini Body White/Black/Blue/ Red/ Yellow/ Orange

Part Code: TM04C6JK+UTP180

Description: Cat.6/6a UTP Keystone Jack 180 degree Mini Type


Standard:

ISO/IEC 1801

TIA/EIA-568-B.2-1

EN50173

UL94V-0


Application:

Used in transmission of digital, voice and data, video signal.

Suitable for all application of Category 6 or Class E Channel

Suitable for system application in work area, equipment room, and central points.


ELECTRICAL:


1.  Voltage rating: 125 VAC RMS

2.  Current rating: 1.5 AMP

3.  Contact resistance: 20 Milliohms MAX

4.  Insulation resistance: 100 Megohms MIN @ 500 VDC

5.  Dielectric strength: 750 VAC RMS 60Hz, 1MIN

ENVIRONMENTAL

1.  Storage: -40°TO +70°

2.  Operation: -10°TO +60°

  Conform to TIA/EIA 568B CATEGORY 6A

    Mates with modular plug conforming to FCC part 68, Subpart F.

MECHANICAL

1.  Housing material: QIMEI PC110 UL94-V0

2.  Insert material: PBT+30%GF

3. PCB material: FR-4 T=1.6mm

4.  Contact material: Phosphor bronze stamp PIN T=0.3mm

5. IDC Contact material: Phosphor bronze T=0.50mm WITH TIN PLATING

6.   RJ45 JACK LIFE: 750 TIMES MIN

7.  IDC LIFE: 200 TIMES MIN

8.  WIRE: AWG 22~24

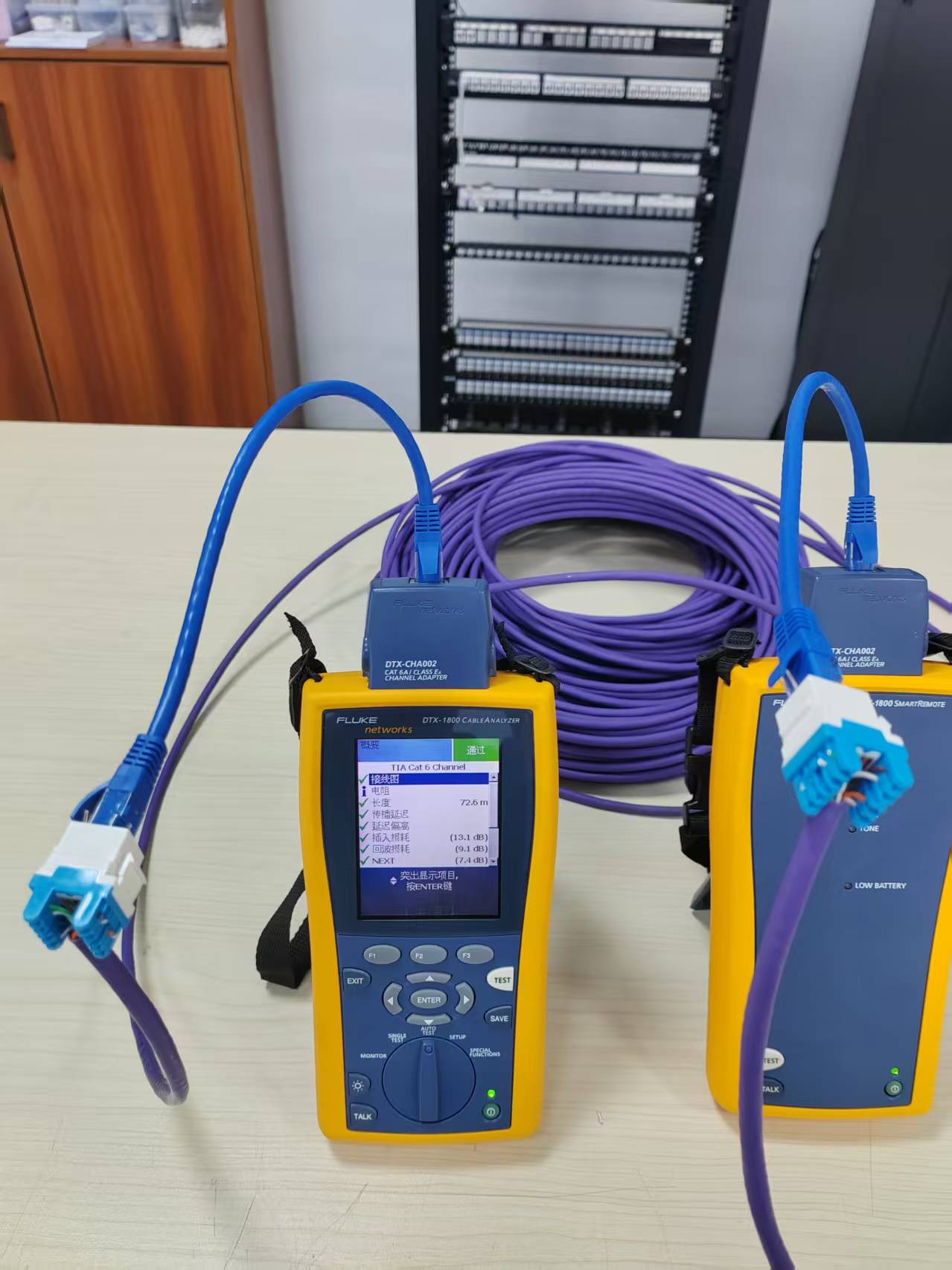

9.  TIA CAT 6 PERM.LINK TEST: WORST PAIR NEXT MARGIN ≥3.0dB

10. Retentiveness of insertion structure: 50N 60±5s


Remark:

6U'', 15U'', 30U'', 50U'' is available

Different color is available

Cat.6a is available


Return to project list

Key Features

Product Details

Download

Category: Cat 6/6a

Angle: 180 degree

Golden plating: 50u''

IDC: Dual IDC

Housing: UTP

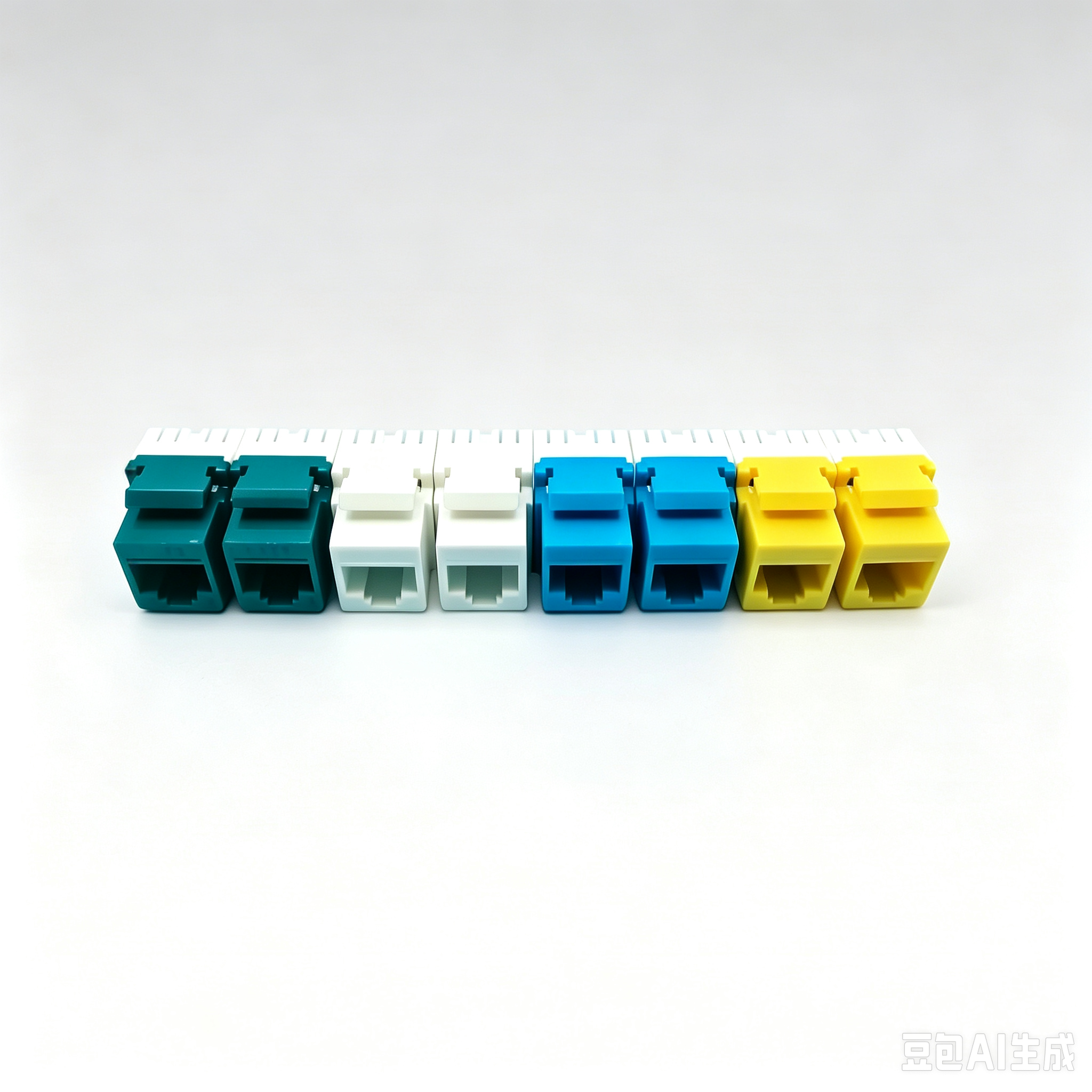

Color: White/Black/Red

Description: Cat.6/6a UTP Keystone Jack 180 degree Mini Type


Standard:

  • ISO/IEC 1801

  • TIA/EIA-568-B.2-1

  • EN50173

  • UL94V-0


Application:

Used in transmission of digital, voice and data, video signal.

Suitable for all application of Category 6 or Class E Channel

Suitable for system application in work area, equipment room, and central points.


ELECTRICAL:


1.  Voltage rating: 125 VAC RMS

2.  Current rating: 1.5 AMP

3.  Contact resistance: 20 Milliohms MAX

4.  Insulation resistance: 100 Megohms MIN @ 500 VDC

5.  Dielectric strength: 750 VAC RMS 60Hz, 1MIN

ENVIRONMENTAL

1.  Storage: -40° -  +70°

2.  Operation: -10° -  +60°

  Conform to TIA/EIA 568B CATEGORY 6A

  Mates with modular plug conforming to FCC part 68, Subpart F.

MECHANICAL

1.  Housing material: QIMEI PC110 UL94-V0

2.  Insert material: PBT+30%GF

3. PCB material: FR-4 T=1.6mm

4.  Contact material: Phosphor bronze stamp PIN T=0.3mm

5. IDC Contact material: Phosphor bronze T=0.50mm WITH TIN PLATING

6.   RJ45 JACK LIFE: 750 TIMES MIN

7.  IDC LIFE: 200 TIMES MIN

8.  WIRE: AWG 22~24

9.  TIA CAT 6 PERM.LINK TEST: WORST PAIR NEXT MARGIN ≥8.0dB

10. Retentiveness of insertion structure: 50N 60±5s


Remark:

6U'', 15U'', 30U'', 50U'' is available

Different color is available

Cat.6a is available


Packing Information

DESCRIPTION

Packing

Size (CM)

Weightkgs)

Qty/Box

CAT5E/6/6A UTP KEYSTONE JACK 90 or 180 DEGREE or Tool Free

Carton Packing

42*30*54

13

1000 pcs
