TM01UFTP6A305LSZH

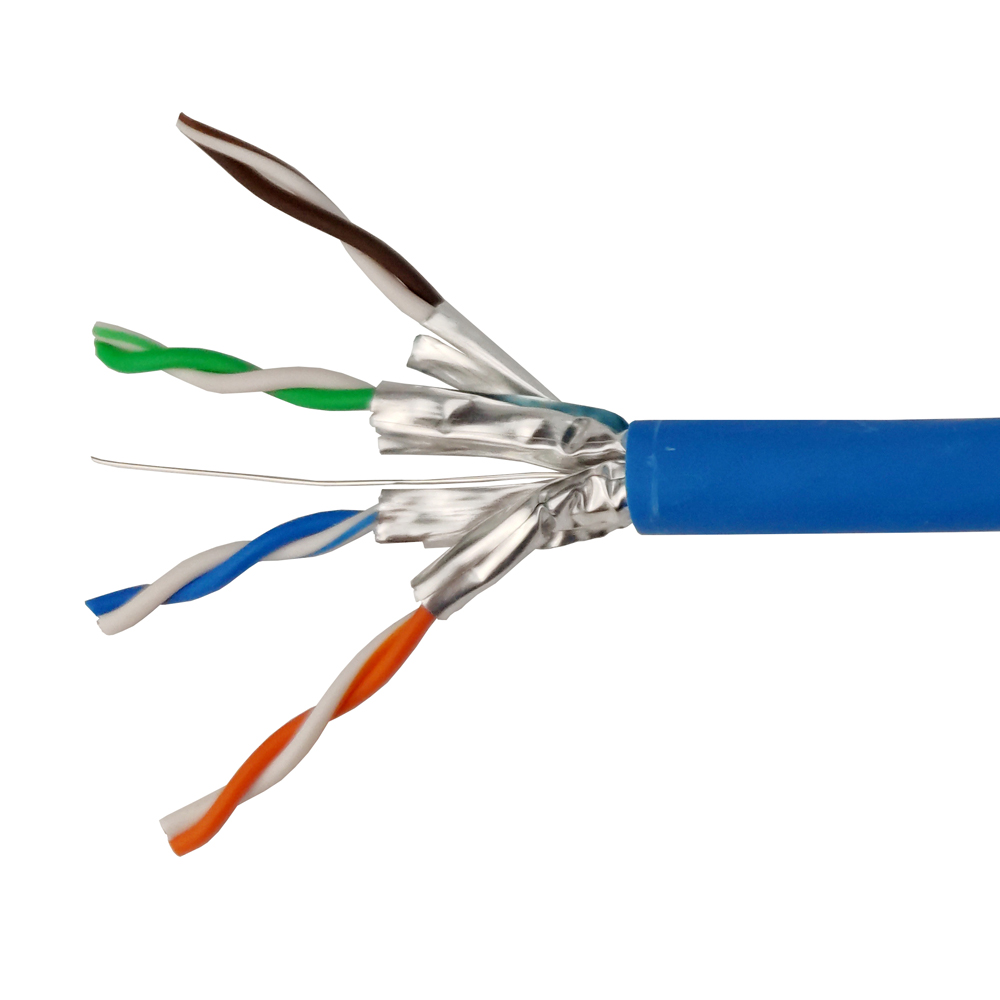

CAT.6A U/FTP LAN CABLE 23AWG Bare Copper Conductor 99.99% 305m/Roll

Standards

ANSI/TIA-568-C.2 / IEC 61156-5 / EN 50288-10-1/ EN 50173 / ISO/IEC 11801

Applications

10BASE-T (IEEE 802.3)
4/16 Mbps TOKEN RING (IEEE 802.5)

100BASE-VG-AnyLAN

100 Mbps TP-PMD (ANSI X3T9.5)
100BASE-T (IEEE 802.3)
55/155 Mbps ATM
1000BASE-T (Gigabit Ethernet)
1.2 Gbps ATM
10G BASE-T

Color Code

Insulation Color:

P1: White & Blue / Blue

P2: White & Orange / Orange

P3: White & Green / Green

P4: White & Brown / Brown

Jacket Color: Optional

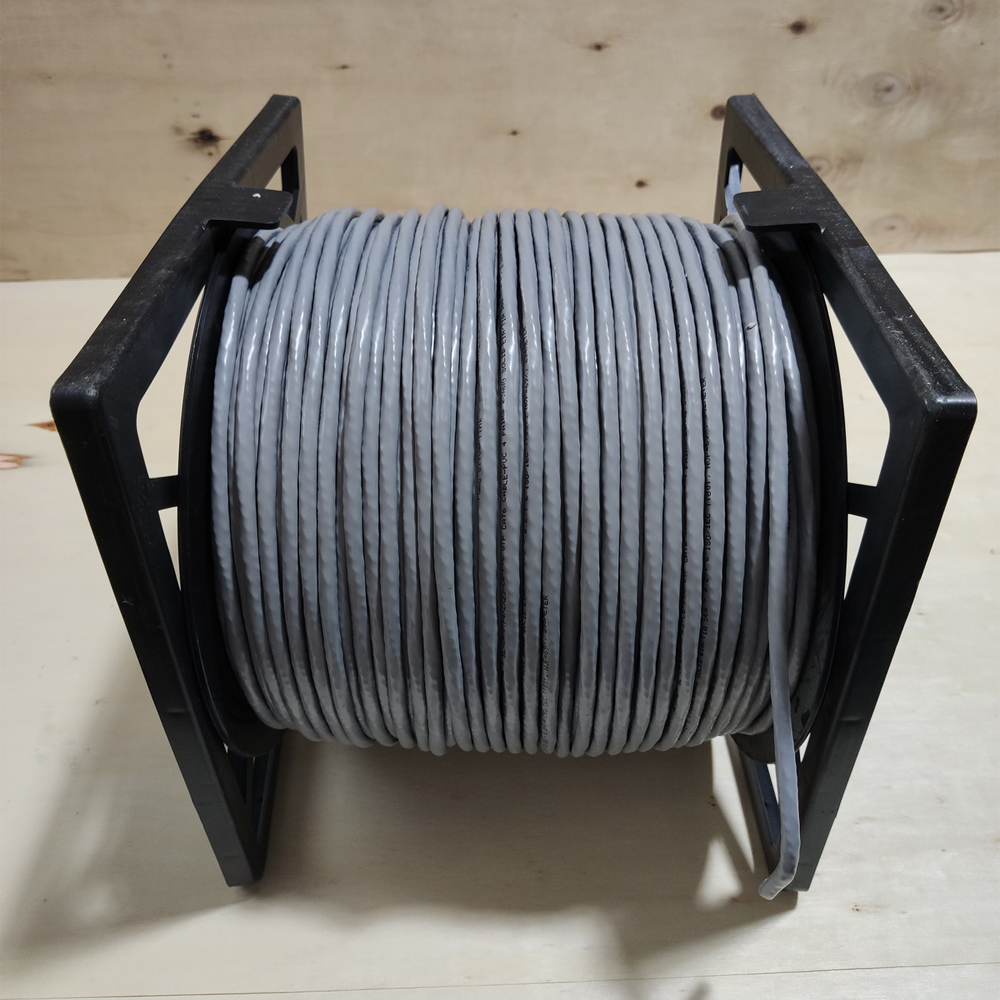

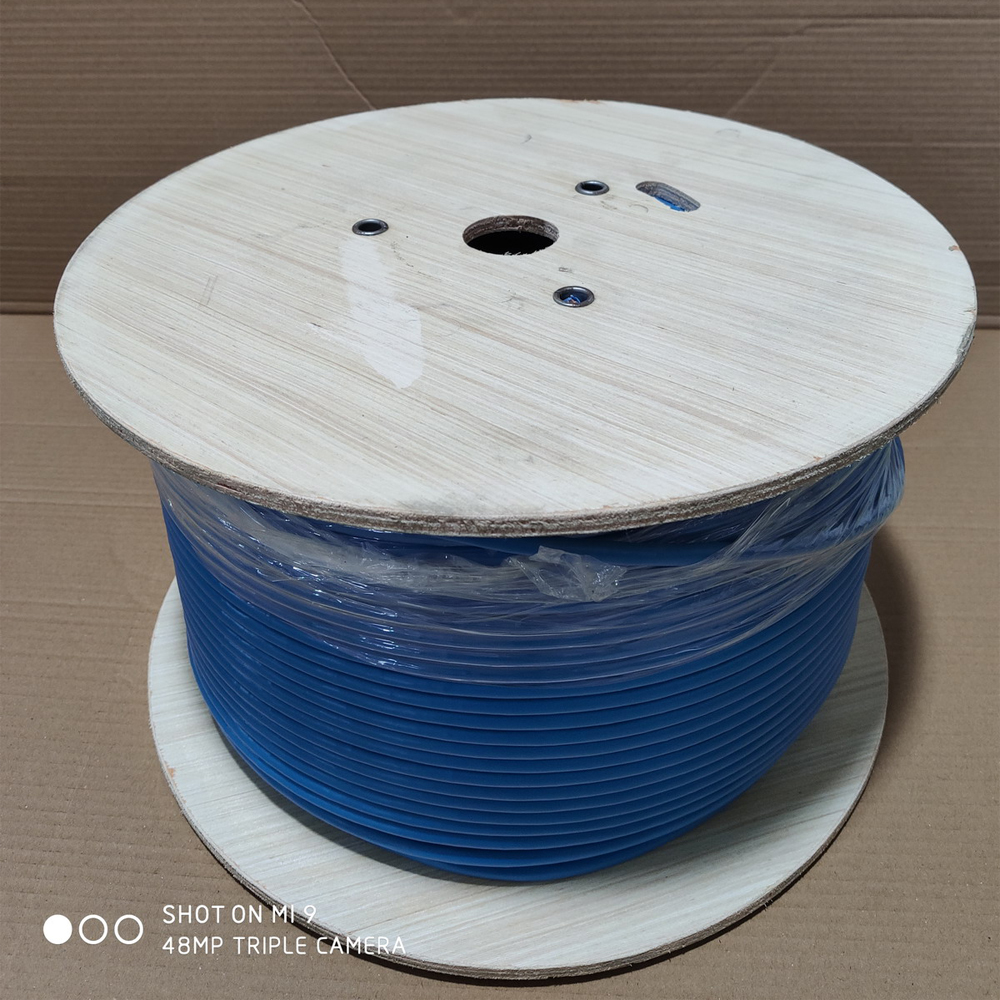

Packing: 1. Reel/ 305m. 2. Reel/ 500m

Test:

Pass fluke 90m permanent link test

TIA-568-C.2

Conductor Material: 99.99% Solid Bare Copper

Conductor Number: 8C(4 pairs)

Cable AWG23

Construction: (±0.01mm) 1/0.57

Separator: PE CROSS

Wrapping tapeOverlapPolyester Tape ≥25%

Drain Wire (1/0.40) Solid Tinned copper

Shield

Overlap aluminum/polyester ≥25%

Insulation

Material: SKIN-FOAM- SKIN

Nom. Thickness(mm)0.37

Diameter(±0.08mm)1.38

Jacket:

Material: PVC/LSZH

Nom. Thickness(mm) 0.50

Diameter(±0.30mm) 7.50

Electrical Performance

Max. Conductor DC Resistance (Ω/km)93

Min. Insulation Resistance (ΩM-KM)5000

Dielectric Strength DC-1KV/1 Min

1.0-500MHZ Delay Skew(ns/100m)≤45

Pair to Ground Capacitance

Unbalance(Pf/100m)≤330

Resistance Unbalance(%) ≤4

Max Mutual Capacitance 5.6nF/10

Max DC Loop Resistance 19.2Ω/100m

Velocity of Propagation NVP 78%

•
  data sheet - Lan cable- 0.57 CAT6A U-FTP 23AWG 4PAIR LSZH.pdf
