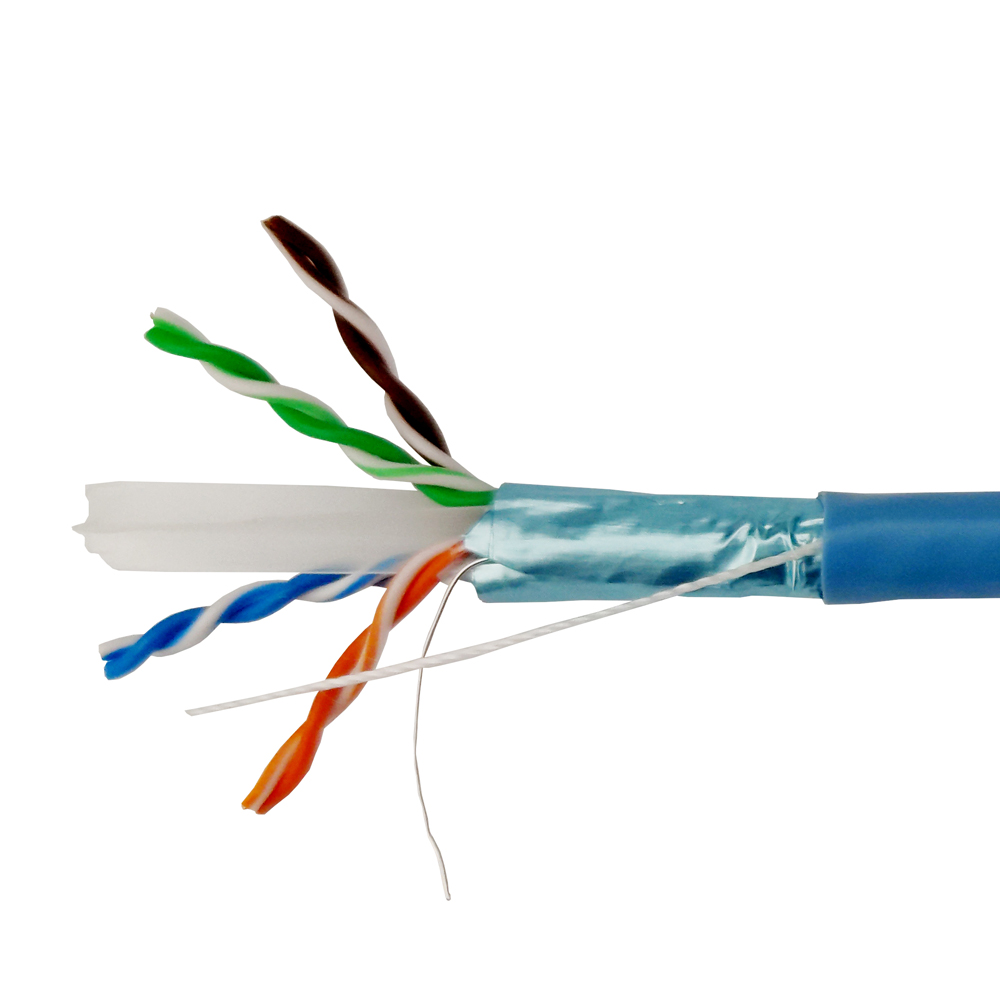

Cat.6 F/UTP Solid 24AWG Lan Cable LSZH Jacket -305m/Roll

Standards

ANSI/TIA-568-C.2 IEC 61156-5

EN 50288-6-1

EN 50173

ISO/IEC 11801

EN 50575

Applications

10BASE-T (IEEE 802.3)

4/16 Mbps TOKEN RING (IEEE 802.5)

100BASE-VG-AnyLAN

100 Mbps TP-PMD (ANSI X3T9.5)

100BASE-T (IEEE 802.3)

55/155 Mbps ATM

1000BASE-T (Gigabit Ethernet)

Color Code

Insulation Color:

P1: White & Blue / Blue

P2: White & Orange / Orange

P3: White & Green / Green

P4: White & Brown / Brown

Jacket Color: Optional

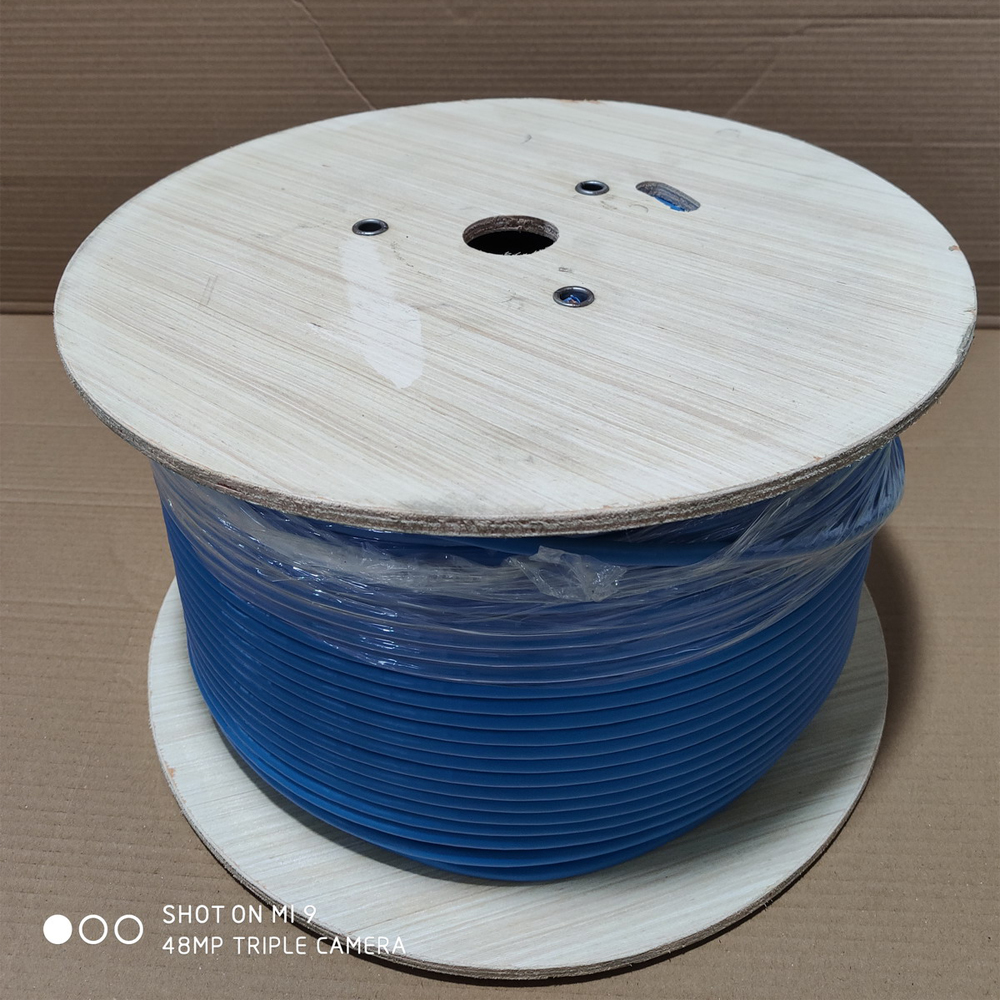

Packing: 1. Reel/ 305m. 2. Reel/ 500m

Test:Pass fluke 90m permanent link test / TIA-568-C.2

Conductor Material: 99.99% Solid Bare Copper

Conductor Number: 8C(4 pairs)

Cable AWG23

Construction: (±0.01mm) 1/0.57

Separator: PE CROSS

Wrapping tapeOverlap Polyester Tape ≥25%

Drain Wire (1/0.40) Solid Tinned copper

Shield

Overlap aluminum/polyester ≥25%

Insulation

Material: PE

Nom. Thickness(mm) 0.26

Diameter(±0.08mm) 1.15

Jacket:

Material: PVC/LSZH

Nom. Thickness(mm) 0.50

Diameter(±0.30mm) 7.50

Electrical Performance

Max. Conductor DC Resistance (Ω/km) 93

Min. Insulation Resistance (ΩM-KM) 500

Dielectric Strength DC-1KV/1 Min

1.0-250MHZ Characteristic Impedance(ohms) 100Ω±15Ω

1.0-250MHZ Delay Skew(ns/100m) ≤45

Pair to Ground Capacitance

Unbalance(Pf/100m) ≤330

Resistance Unbalance(%) ≤5

Max Mutual Capacitance 5.6nF/10

Max DC Loop Resistance 19.2Ω/100m

Before Aging Tensile Strength(Mpa) ≥13.5

Elongation(%) ≥100

After Aging: 100℃*24h*7d

Tensile Strength(Mpa) ≥75

Elongation(%) ≥50

Velocity of Propagation NVP 69%

•
  data sheet - Lan cable- 0.57 CAT6 FTP 23AWG 4P LSZH.pdf
