S/N: TM01FUTP5E305LSZH

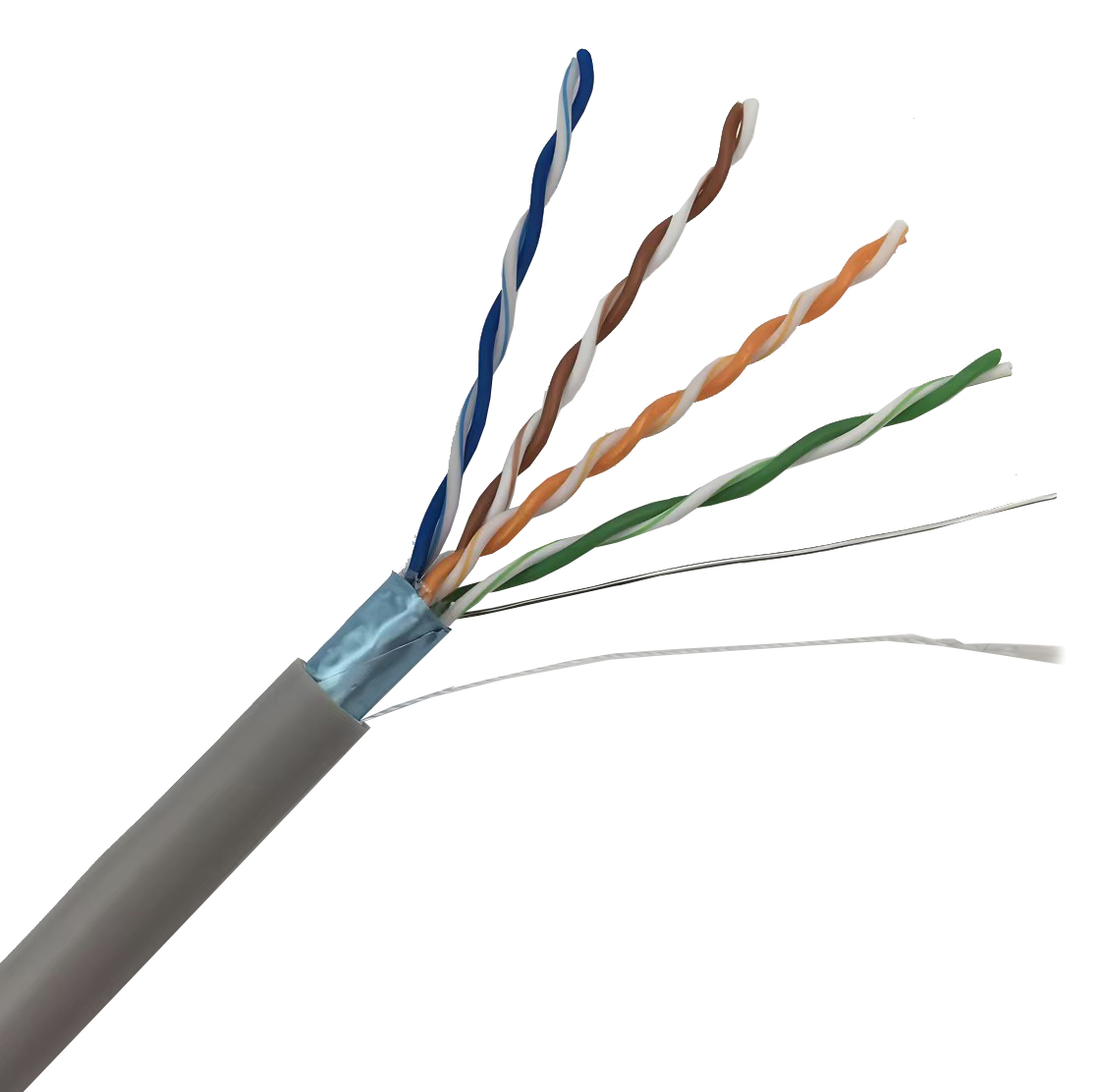

Description: Cat.5e FUTP Solid 24AWG Lan Cable LSZH Jacket -305m/Roll

PRODUCT  DESCRIPTION
1. This kind of cable use bare copper to be the center conduction with the specification is 24AWG and PE to be the dielectric. The jacket is made of fireproof material, which is so meaningful to the Cat.5e communication.
2. This Cat.5e FTP cable is conform to the SIO/IEC, TIA/EIA and EN standards and the electrical characteristics are exceed the fastest Cat.5e

Standards.
3. LSZH: means “Low smoke zero halogen”, which is the symbol of environmental protection.

Standards

ANSI/TIA-568-C.2, IEC 61156-5, EN 50288-2-1
, EN 50173,
ISO/IEC 11801,EN 50575

Applications

10BASE-T (IEEE 802.3)


4/16 Mbps TOKEN RING (IEEE 802.5)

100BASE-VG-AnyLAN


100 Mbps TP-PMD (ANSI X3T9.5)


100BASE-T (IEEE 802.3)


55/155 Mbps ATM


1000BASE-T (Gigabit Ethernet)

Color Codes

Insulation Color:

P1: White / Blue & Blue


P2: White / Orange & Orange

P3: White / Green & Green

P4: White / Brown & Brown

Jacket Color: Optional.

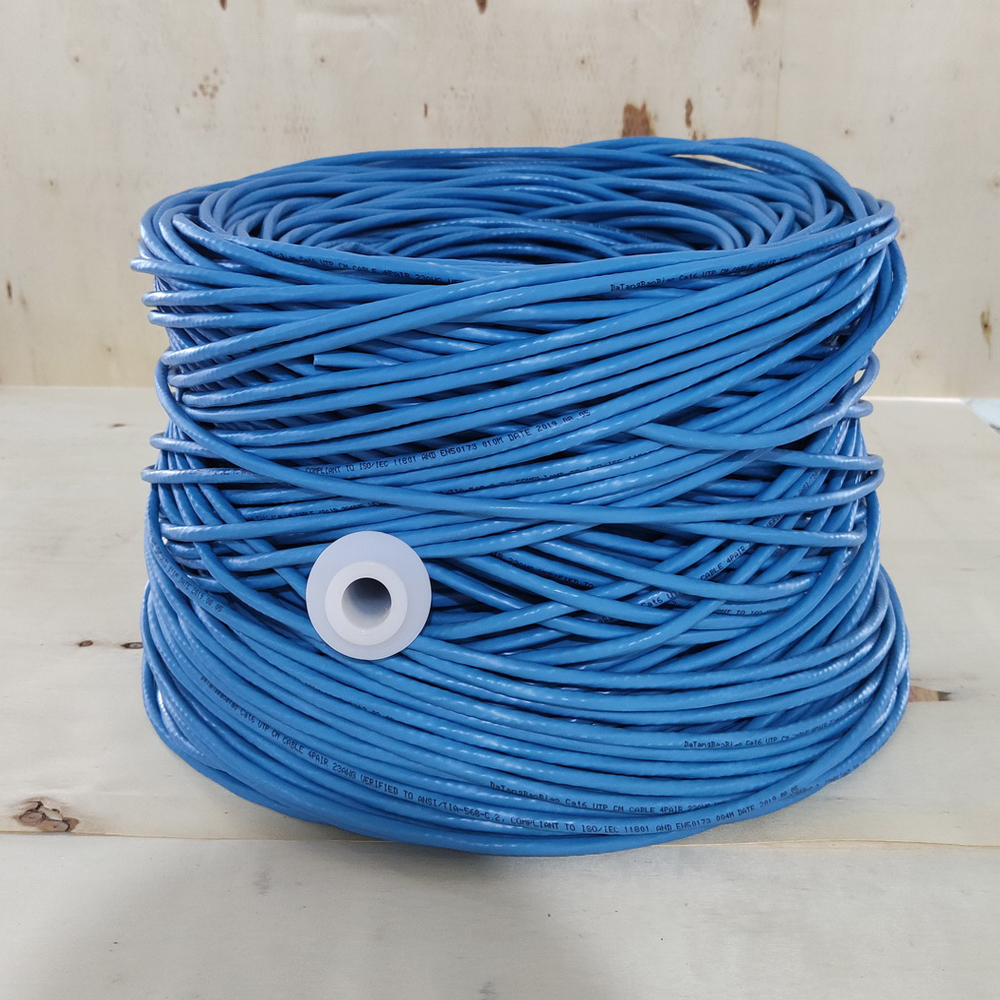

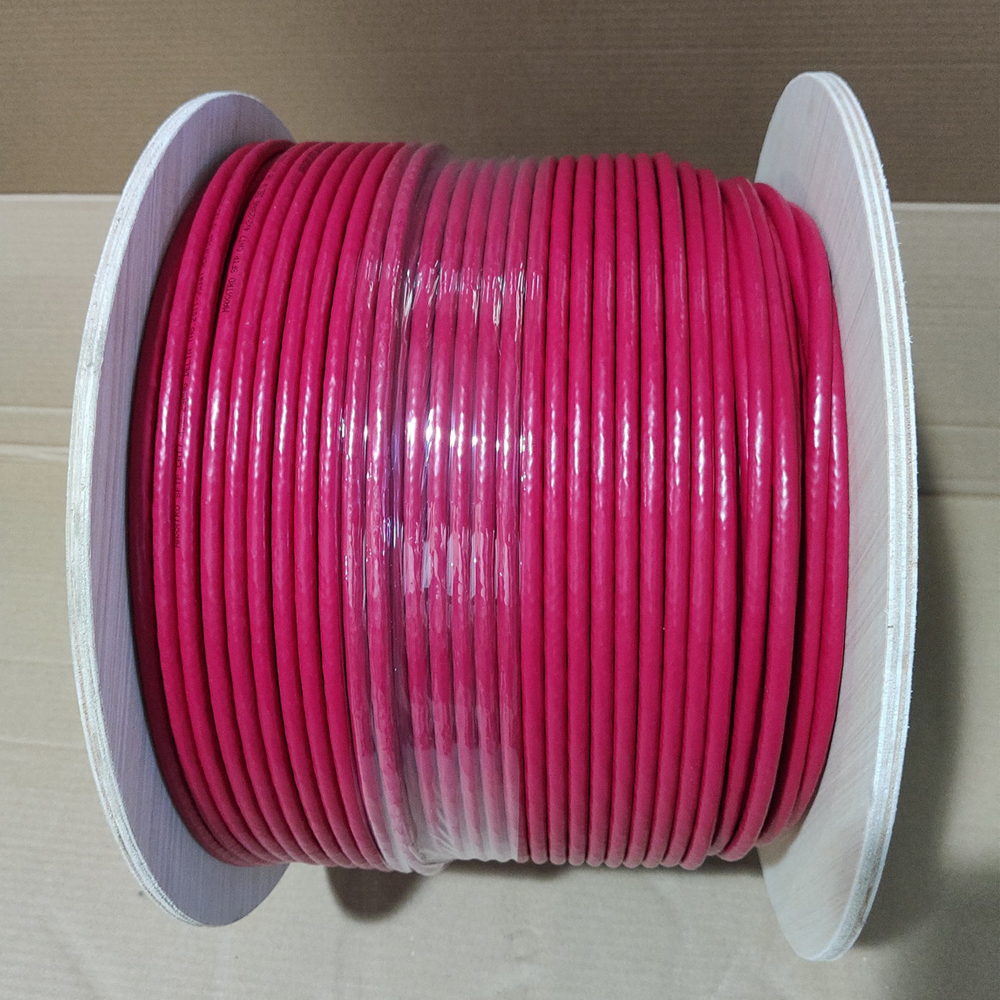

Packaging

1. Reel/ 305m

2. Reel/ 500m

Test: Pass fluke 90m permanent link test / TIA-568-C.2

Cable Parameters

Conductor Material : 99.99% Solid Bare Copper

Conductor Number :8C(4 pairs)

Cable AWG: 24

Wrapping tape : Polyester Tape

Overlap : ≥25%

Shield Overlap : Aluminum Magnesium Alloy wire ≥40%

Insulation

Material : PE

Nom. Thickness(mm) : 0.27

Diameter(±0.08mm) : 1.05

Jacket:

Material:PVC/LSZH

Thickness:0.5mm

OD:6.3MM

•
  data sheet - Lan cable- CAT5E F UTP 24AWG 4PAIR PVC.pdf
