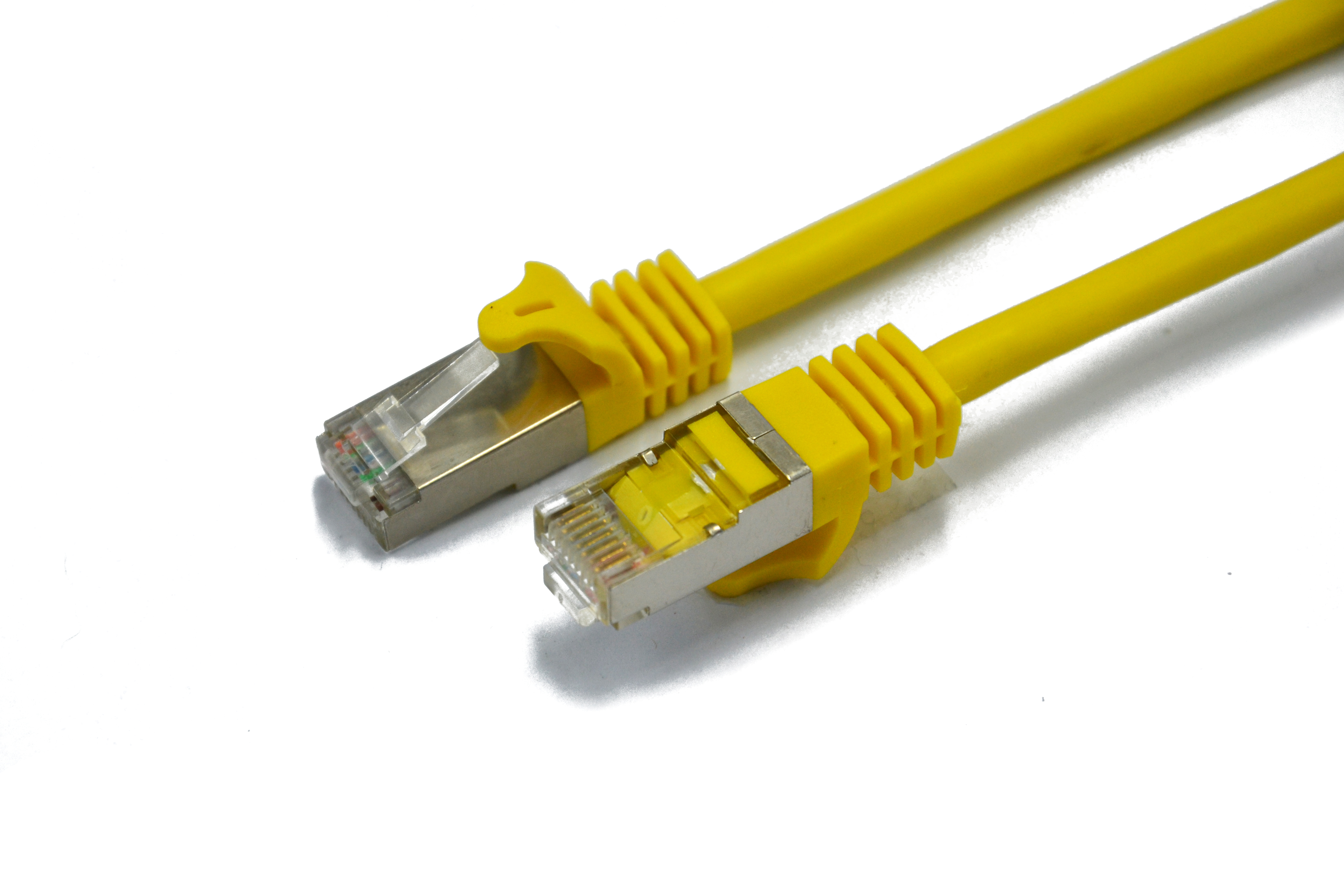

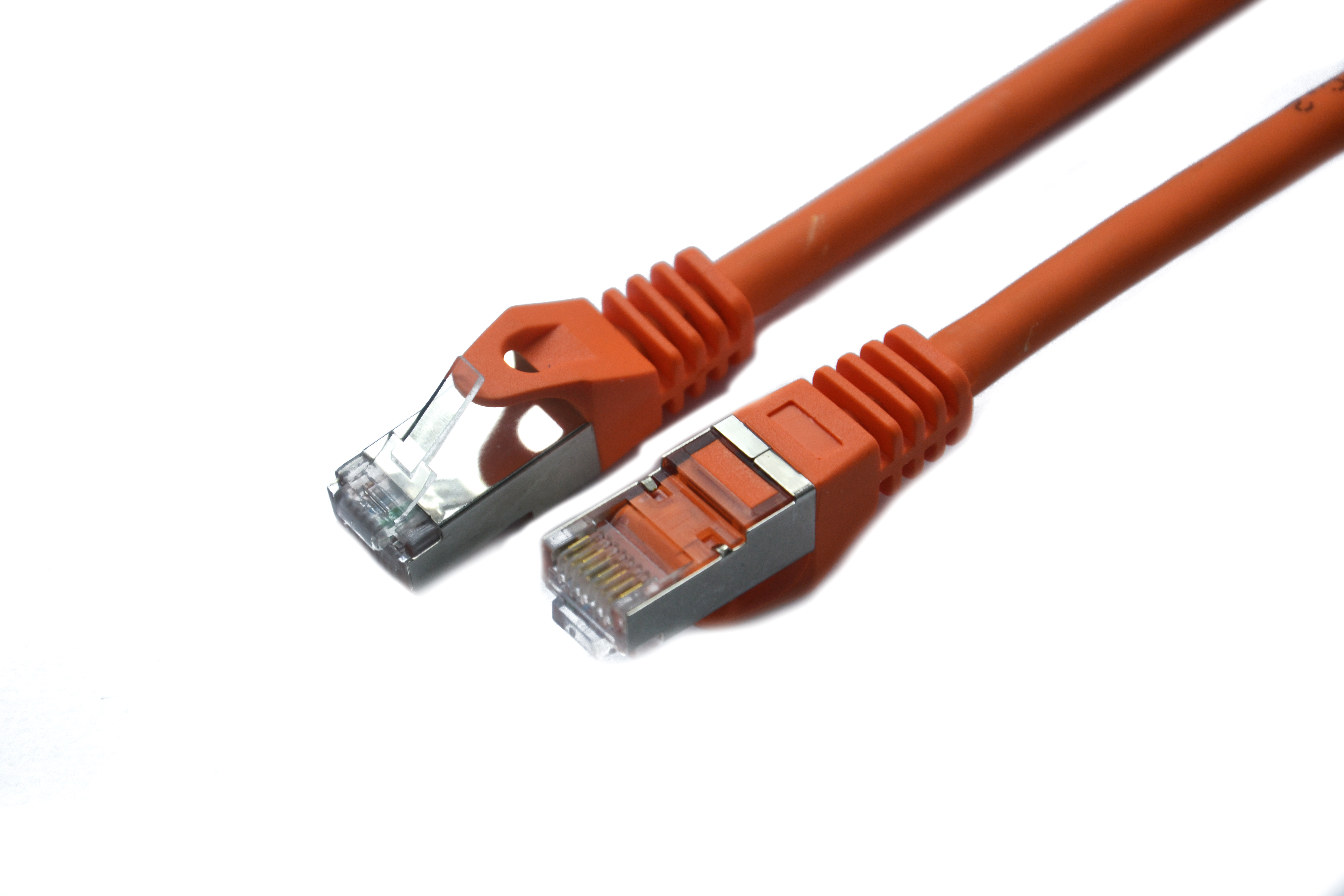

CAT 8 SFTP Patch Cord Stranded BC 26AWG PVC/LSZH Jacket, 1m/2m...30meters

TM02SFTP8GY01-LSZH

TM02SFTP8GY01-LSZH

CAT 8 SFTP Patch Cord Stranded BC 26AWG PVC/LSZH Jacket, 1m/2m...30meters


  • All cable 100% channel testing, point-to-point Fluke test, ISO 11801 channel class1, any open, miswiring, short and intermittent are not permitted.

  • After crimping the distance between the bottom of contact and the top surface of plug are 5.90-6.14mm.

  • Rohs compliant PVC or PE or LSZH Jacket.

  • Installation temperature: -20 to +75

  • minimum bending radius: 8D


Return to project list

Key Features

Product Details

Download

TM02SFTP8GY01-LSZH

CAT 8 SFTP Patch Cord Stranded BC 26AWG PVC/LSZH Jacket, 1m/2m...30meters



Conductor Material

Stranded Bare Copper

Conductor Number

8C(4 pairs)

Cable AWG

26

Construction(±0.01mm)

7/0.16

Shield Overlap

aluminum/polyester

≥25%

Braid Shield   16/5/0.12 Coverage

Aluminum Magnesium Alloy wire ≥40%

Insulation

Material

SKIN-FOAM- SKIN

Nom. Thickness(mm)

0.26

Diameter(±0.05mm)

1.0

Jacket

Material

LSZH/PVC

Nom. Thickness(mm)

0.50

Diameter(±0.30mm)

6.2


  • All cable 100% channel testing, point-to-point Fluke test, ISO 11801 channel class1, any open, miswiring, short and intermittent are not permitted.

  • After crimping the distance between the bottom of contact and the top surface of plug are 5.90-6.14mm.

  • Rohs compliant PVC or PE or LSZH Jacket.

  • Installation temperature: -20 to +75

  • minimum bending radius: 8D
