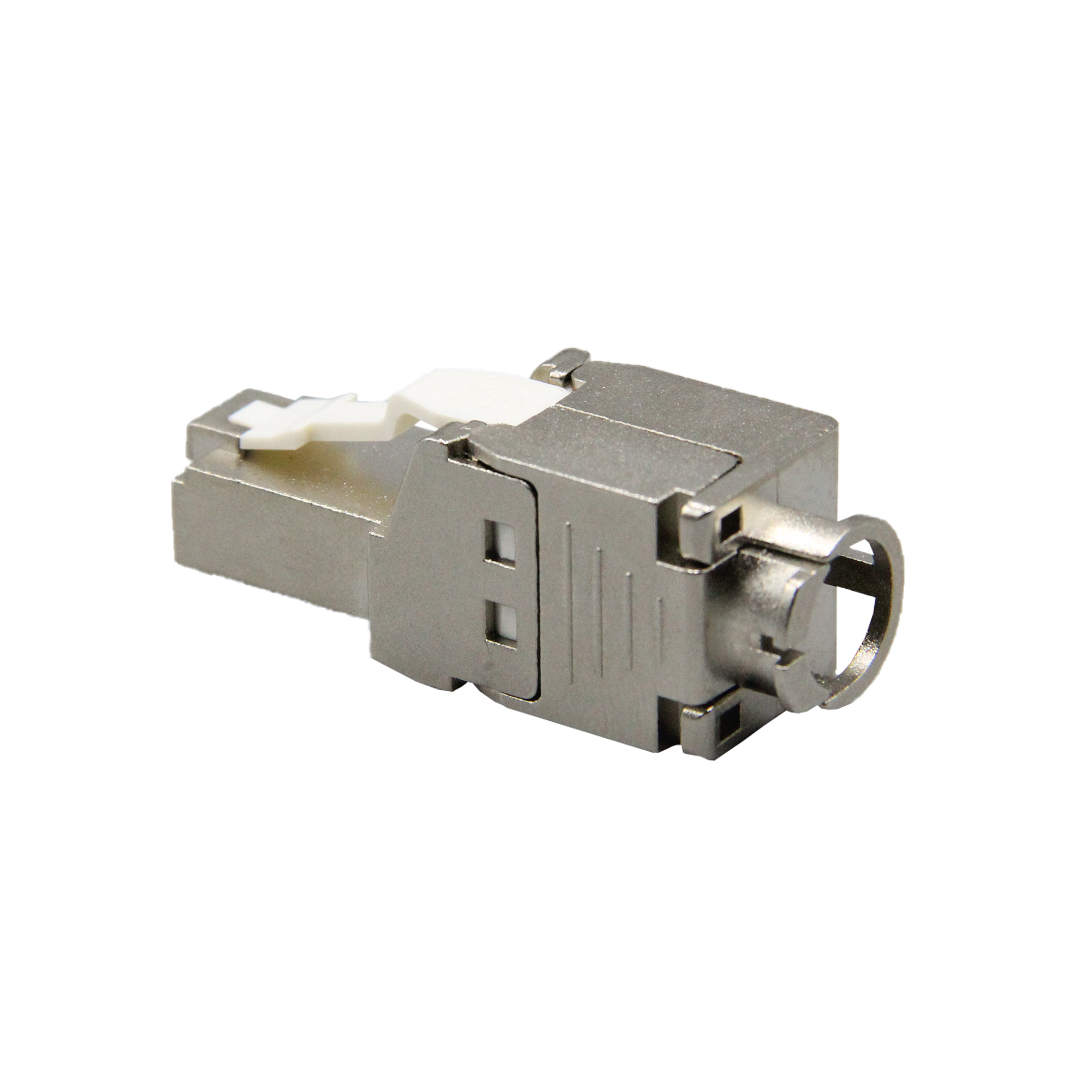

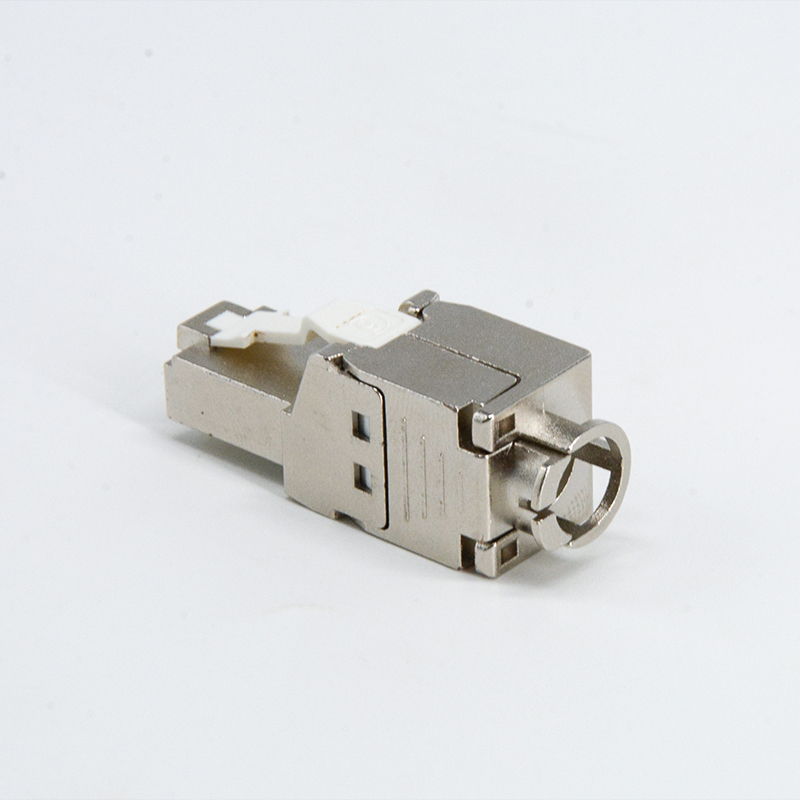

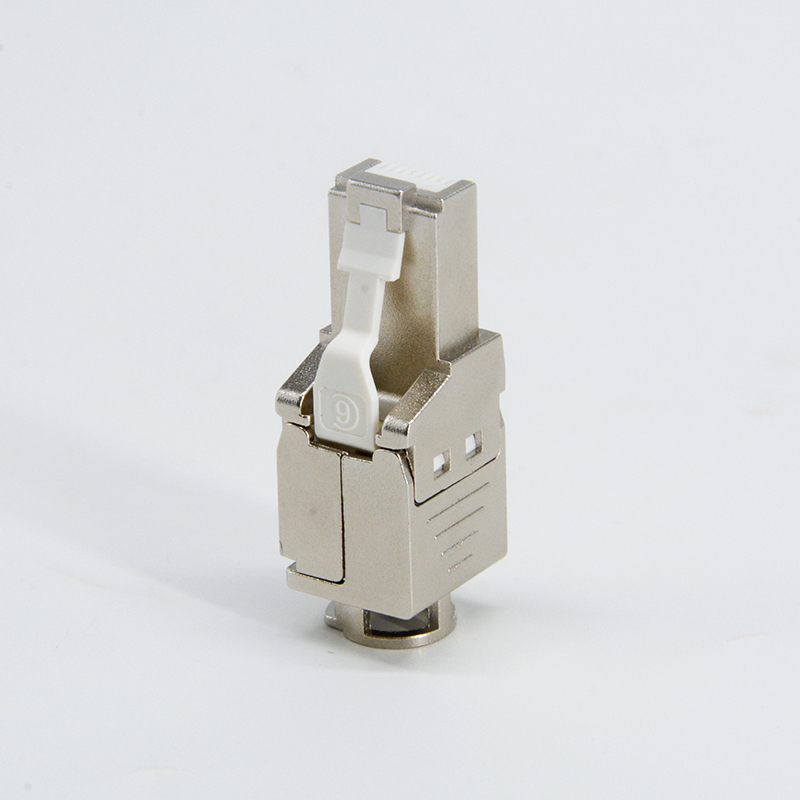

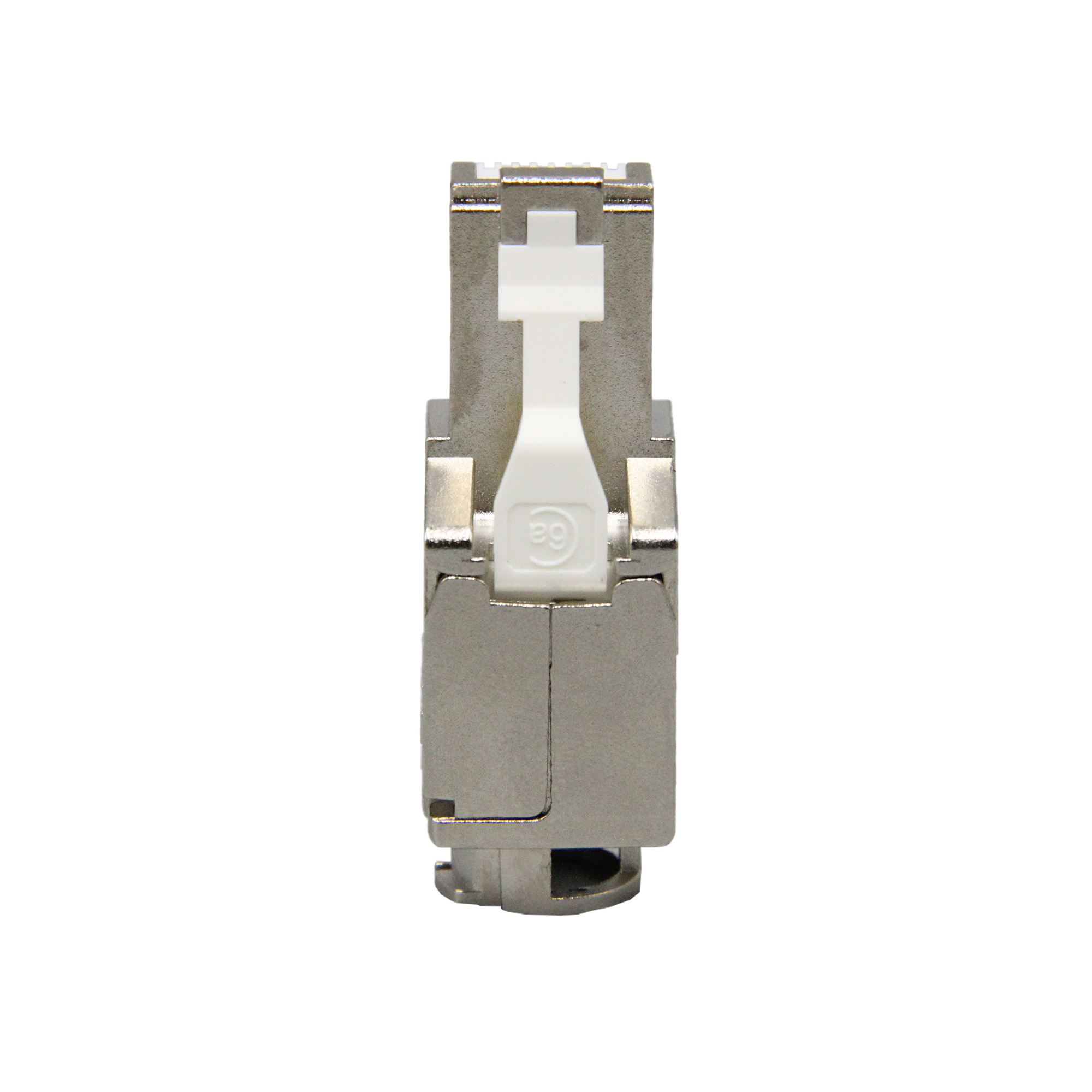

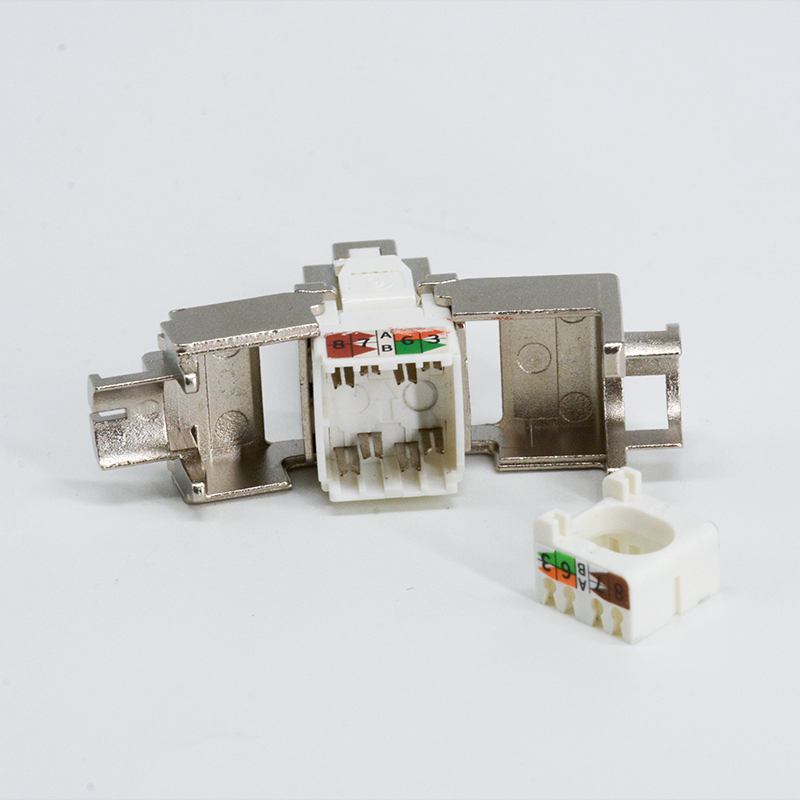

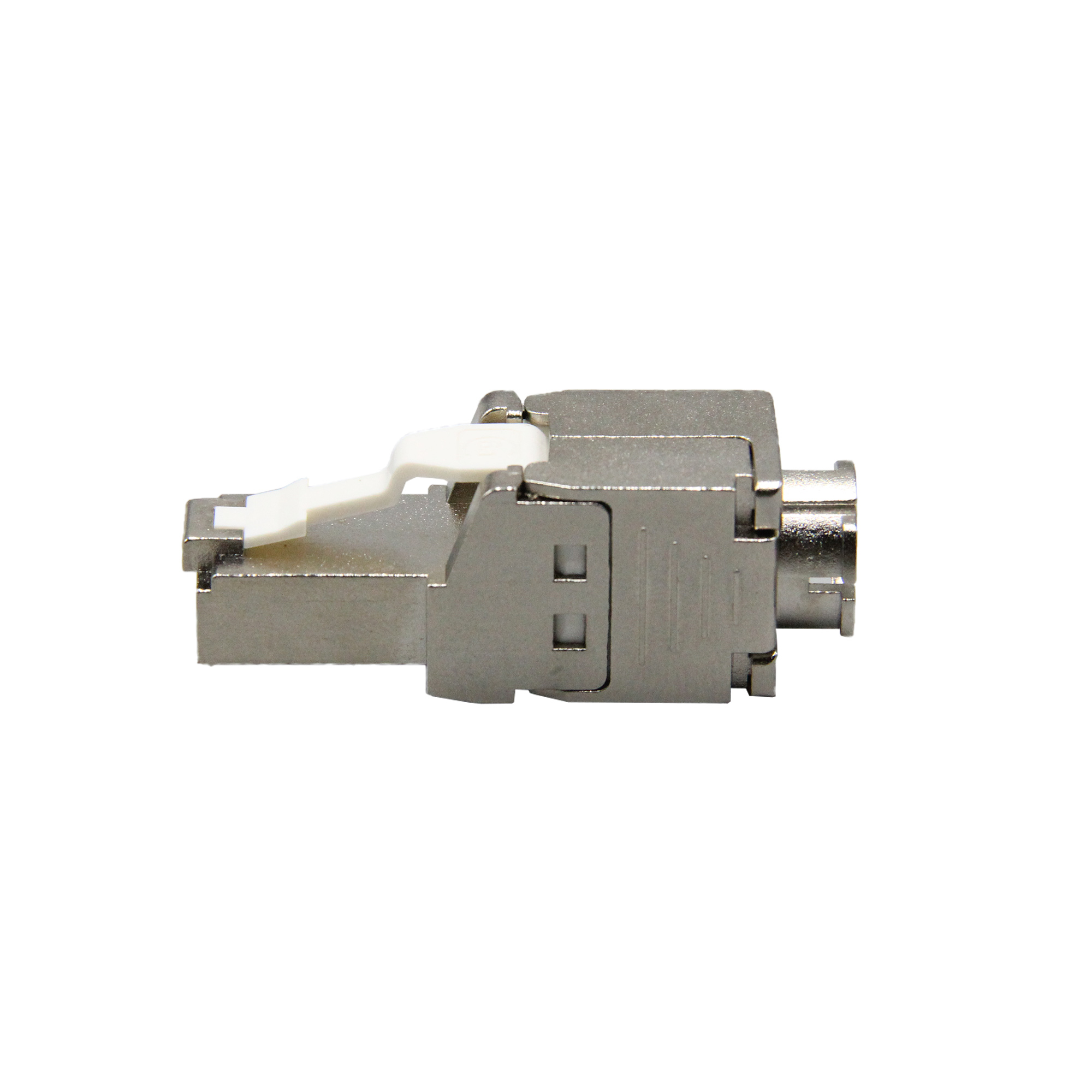

Telemax Cat 6/6A/7/8 FTP Toolless RJ45 Connector

TM04C6ATCFTPHY
  • TM04C6ATCFTPHY

  • Telemax Cat 6/6A/7/8 FTP Toolless RJ45 Connector

  • Shell Material: Zinc Alloy Plating Nickel

  • Pin Phosphor bronze gold over nickel palting

  • PCB: FR-4 UL94V-0

  • IDC Housing: PC UL94V-0

  • IDC Conductor: Phosphor Bronze C5191 over nickel plating

  • Plug insertion life: 750 times Min

  • Durability: 200 termination Cycles Min

  • Plug insertion force:<20N

  • Plug retention force:>20N

  • Wire contact compatibility: 22AWG - 24AWG Solid


Return to project list

Key Features

Product Details

Download

  • TM04C6ATCFTPHY

  • Telemax Cat 6/6A/7/8 FTP Toolless RJ45 Connector

  • Shell Material: Zinc Alloy Plating Nickel

  • Pin Phosphor bronze gold over nickel palting

  • PCB: FR-4 UL94V-0

  • IDC Housing: PC UL94V-0

  • IDC Conductor: Phosphor Bronze C5191 over nickel plating

  • Plug insertion life: 750 times Min

  • Durability: 200 termination Cycles Min

  • Plug insertion force:

  • Plug retention force:>20N

  • Wire contact compatibility: 22AWG - 24AWG Solid

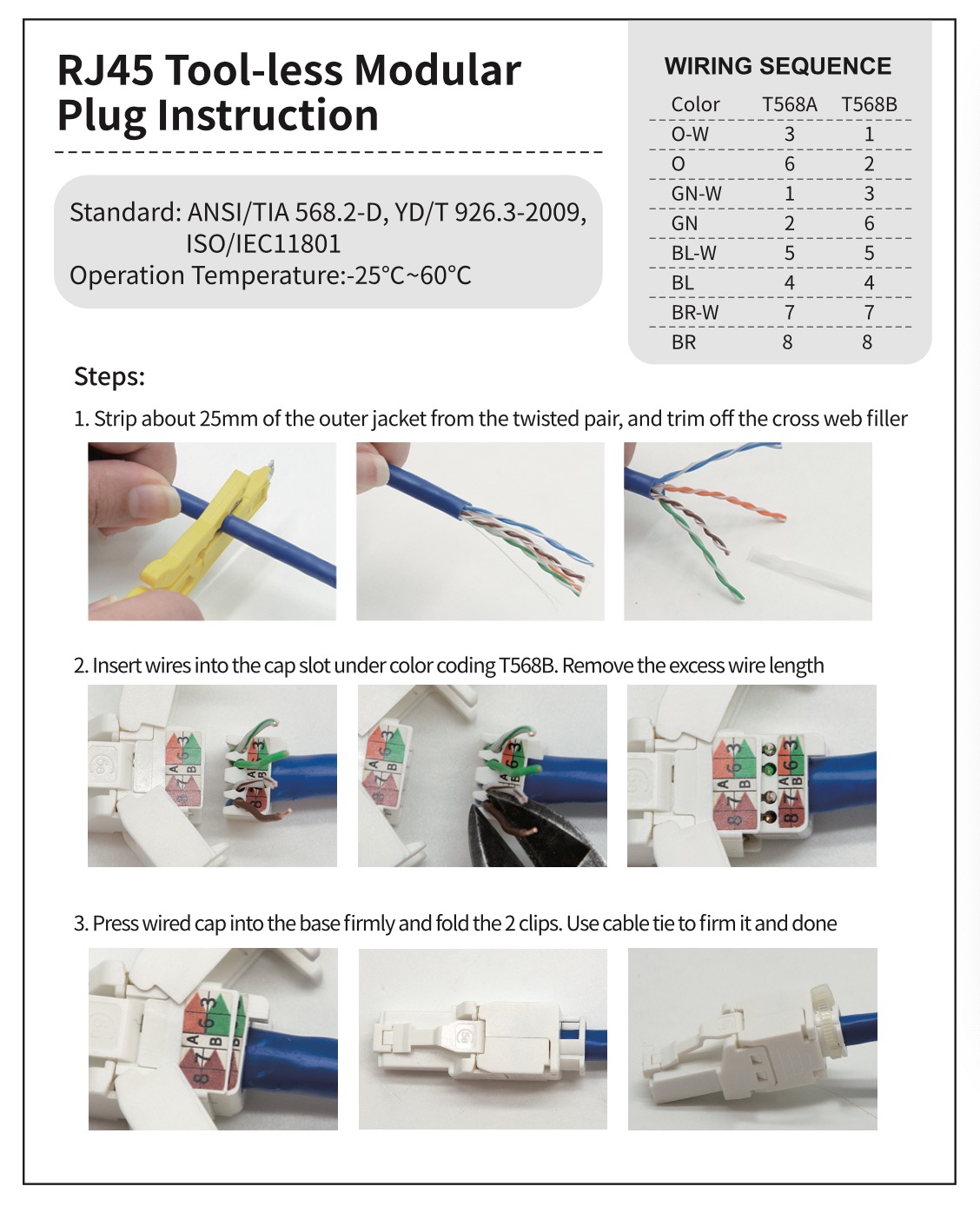

  • User Manuel.jpeg
