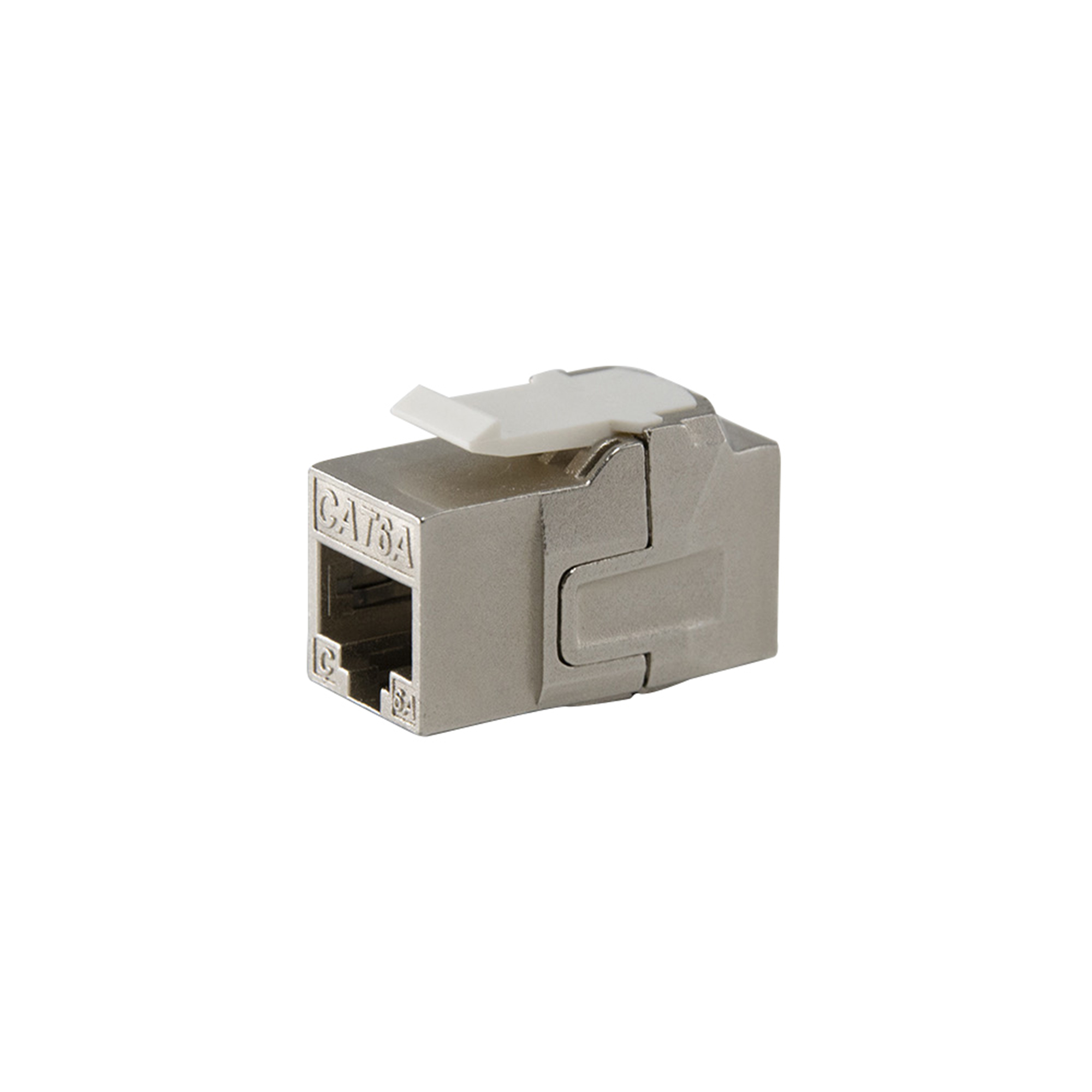

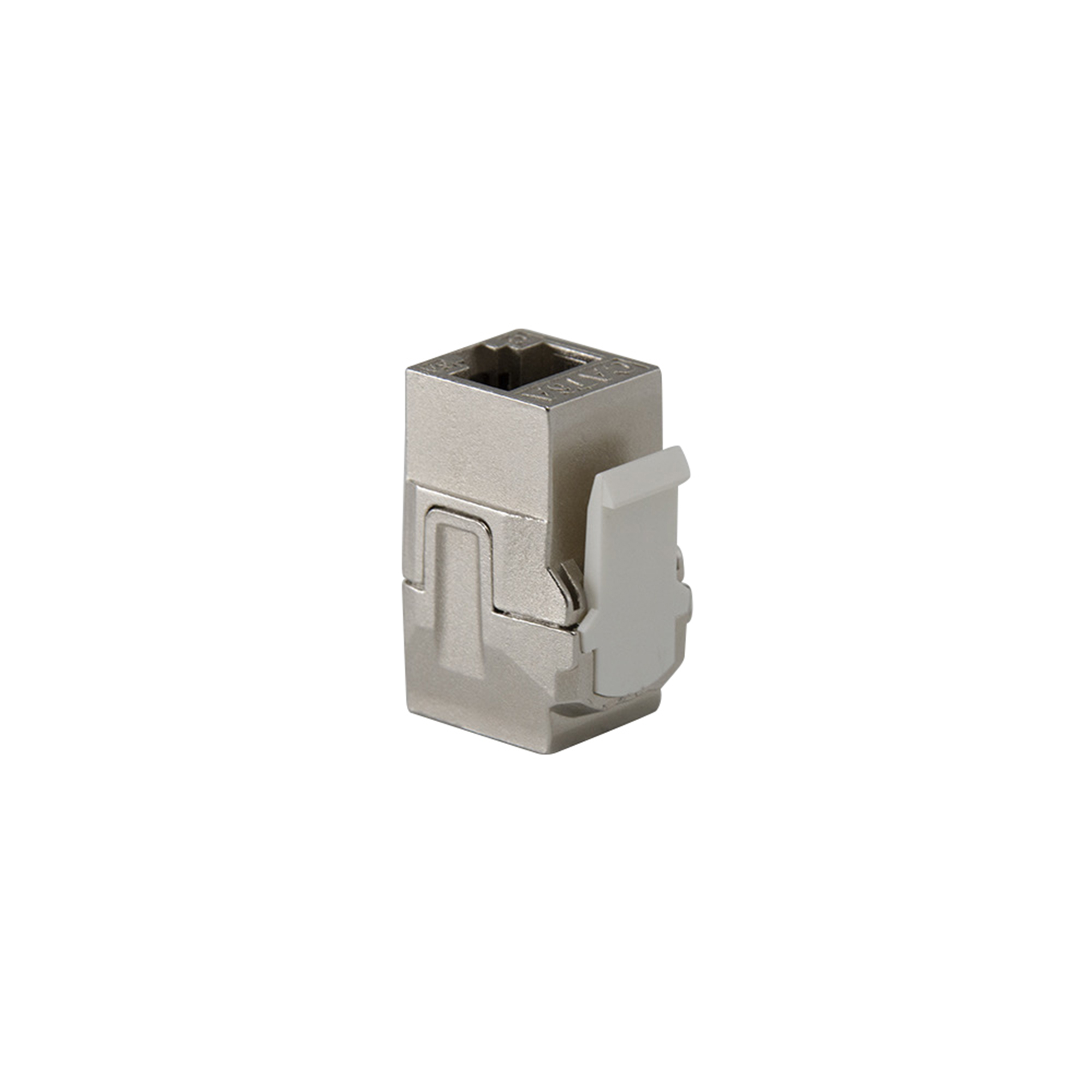

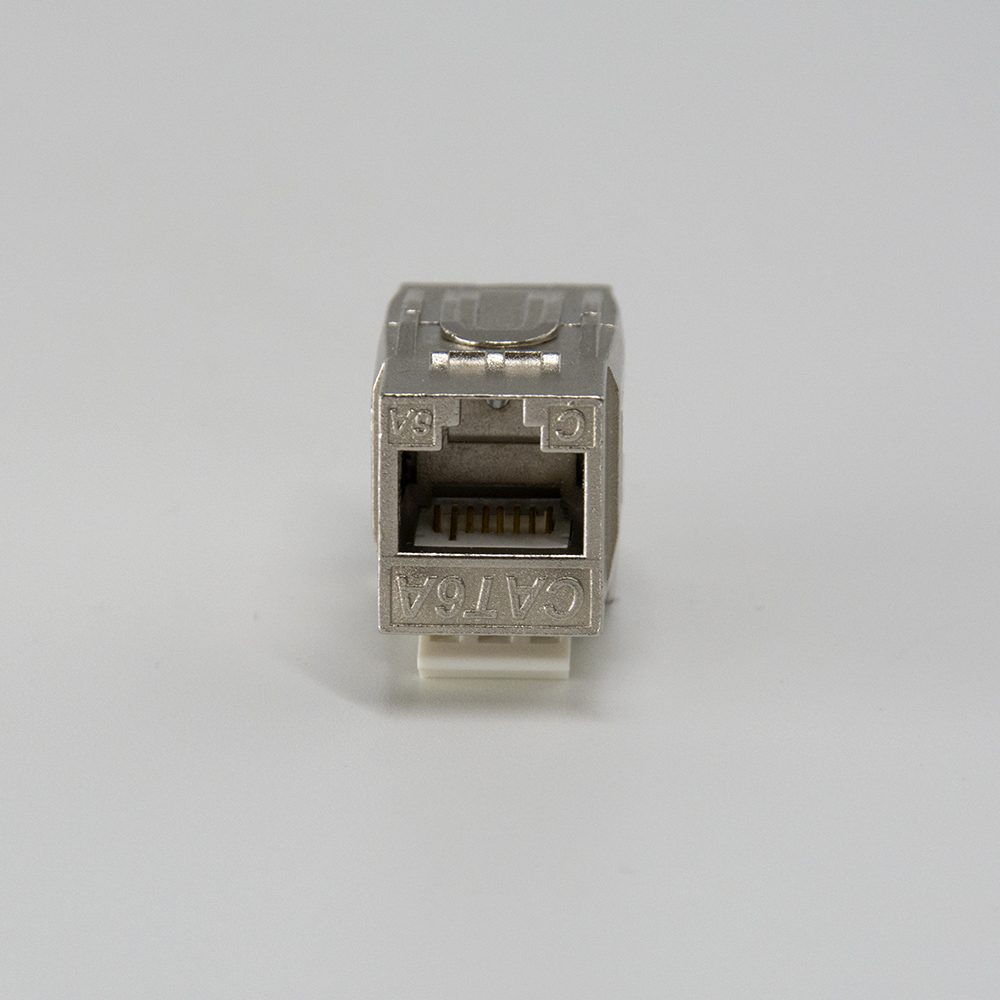

CAT6A/6 STP RJ45 - RJ45 Keystone Coupler

TM04ILCSTP6A01

Standard:

ANSI/TIA568.2-D, YD/T 926.3-2009, ISO/IEC11801


Electrical:

Insulation Resistance: 500 MΩ 100V/DC/1Min

Contact Resistance:≤20 mΩ

Current Rating: 1.5 Amps

DC Resistance: 0.1 Ω

DC/AC Volt Endurance: 1000V/AC 750V 1 min


Mechanical:

Plug Insertion Life ≥750 Cycles

Plug Insertion Force: ≤20N

Plug Retention Force: ≥20N

RETENTIVENESS OF INSERTION STRUCTURE: : 50N 60±5S

MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68, SUBPART F


Physicals:

Shell material: Zinc alloy plating nickel

Pin: Phosphor bronze gold over nickel plating, golden plated 3μ-50μ

PCB: FR-4 UL94V-0


Environment of Adaptations:

Storage temperature: -40℃ ~  75℃

Operation temperature: -20℃ ~  75℃

Operating humidity:10%-90%RH



Return to project list

Key Features

Product Details

Download

Category: 6 & 6a

Design: Keystone Coupler

Application: FTP

Golden plating: 3um/30um/50um

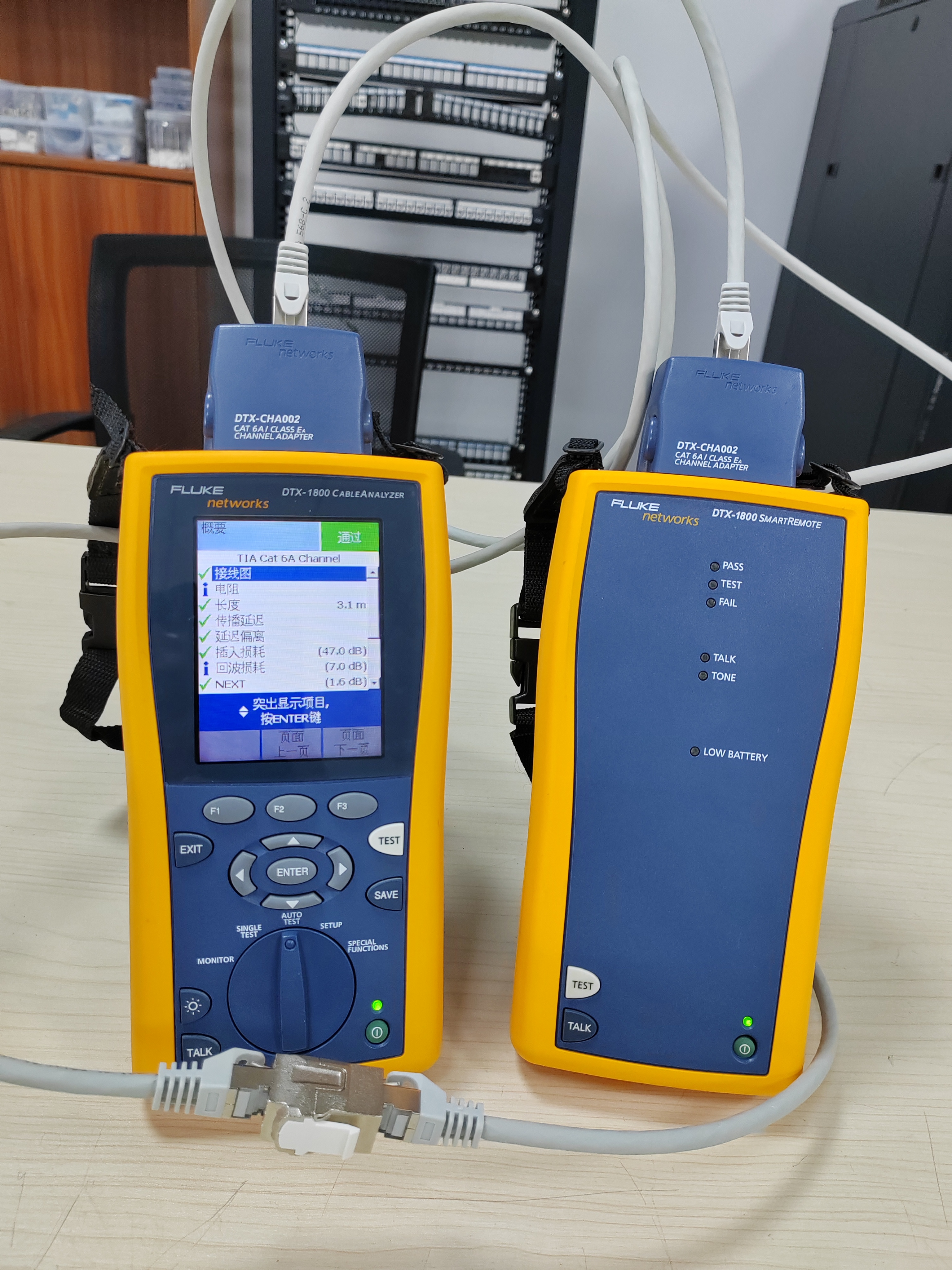

Test: Fluke Chanel & Perm link

Standard:

ANSI/TIA568.2-D, YD/T 926.3-2009, ISO/IEC11801


Electrical:

Insulation Resistance: 500 MΩ 100V/DC/1Min

Contact Resistance:≤20 mΩ

Current Rating: 1.5 Amps

DC Resistance: 0.1 Ω

DC/AC Volt Endurance: 1000V/AC 750V 1 min


Mechanical:

Plug Insertion Life ≥750 Cycles

Plug Insertion Force: ≤20N

Plug Retention Force: ≥20N

RETENTIVENESS OF INSERTION STRUCTURE: : 50N 60±5S

MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68, SUBPART F


Physicals:

Shell material: Zinc alloy plating nickel

Pin: Phosphor bronze gold over nickel plating, golden plated 3μ-50μ

PCB: FR-4 UL94V-0


Environment of Adaptations:

Storage temperature: -40℃ ~  75℃

Operation temperature: -20℃ ~  75℃

Operating humidity:10%-90%RH
