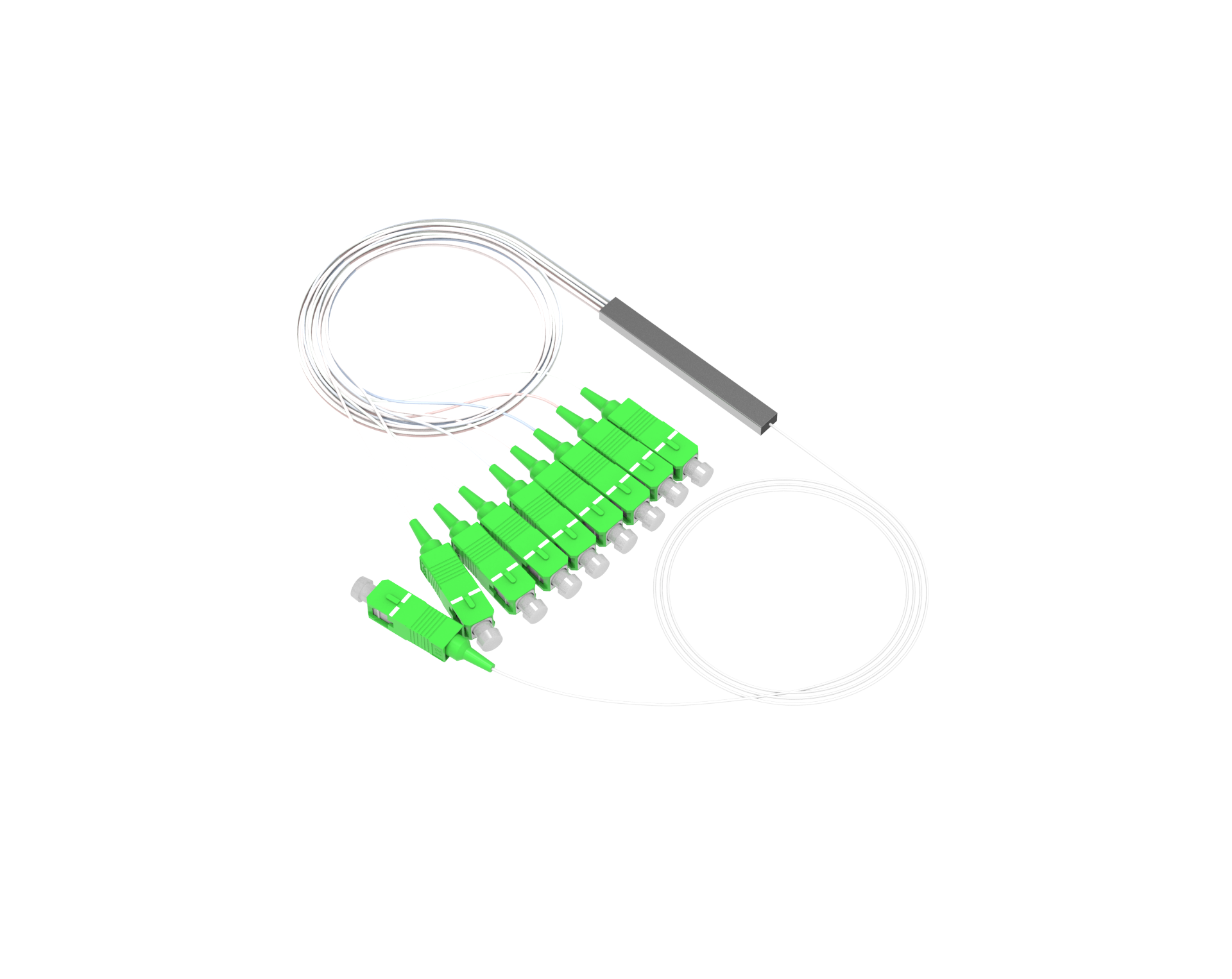

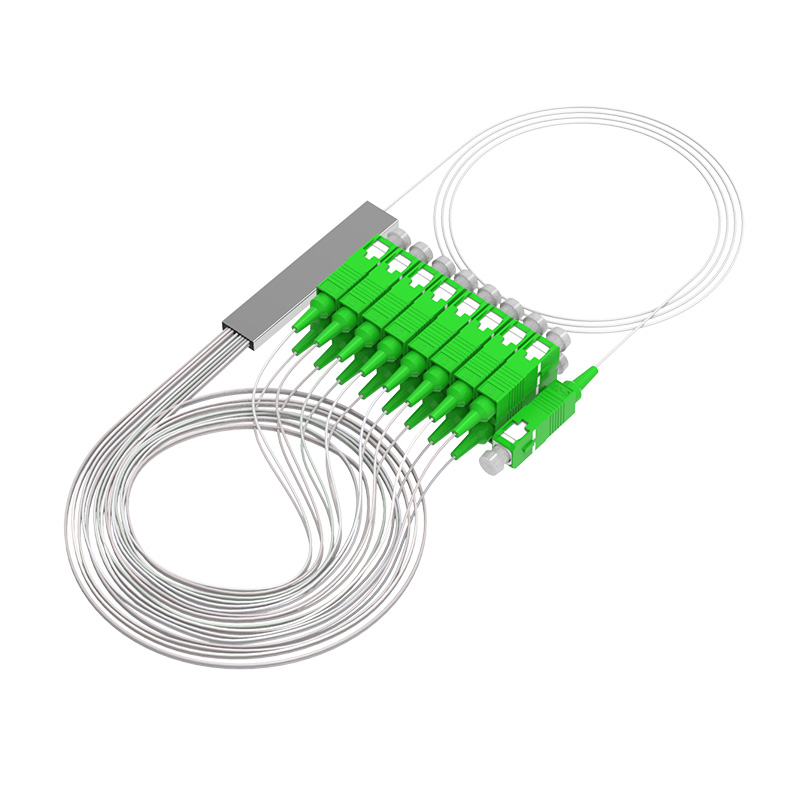

Optical Fiber Splitter Mini Type SC/APC 1:8

TM14PLC0108SC02

Description

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabri- cated using
Silica optical waveguide technology. It features small size, high reliability, wide operating wave- length range and good channel-to-channel uni- formity, and is widely used in PON networks to realize optical signal power splitting. Provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR- 1221-CORE-1999 requirements systems.

Features:

  • Low Insertion loss

  • Low PDL

  • Compact Design

  • Good channel-to-channel uniformity

  • Wide Operating Wavelength:From 1260nm to 1650nm

  • Wide Operating Temperature:From -40°C to 85°C

  • High Reliability and Stability

Application:

  • FTTX Systems

  • PON Networks

  • CATV Links

  • Optical Signal Distribution
