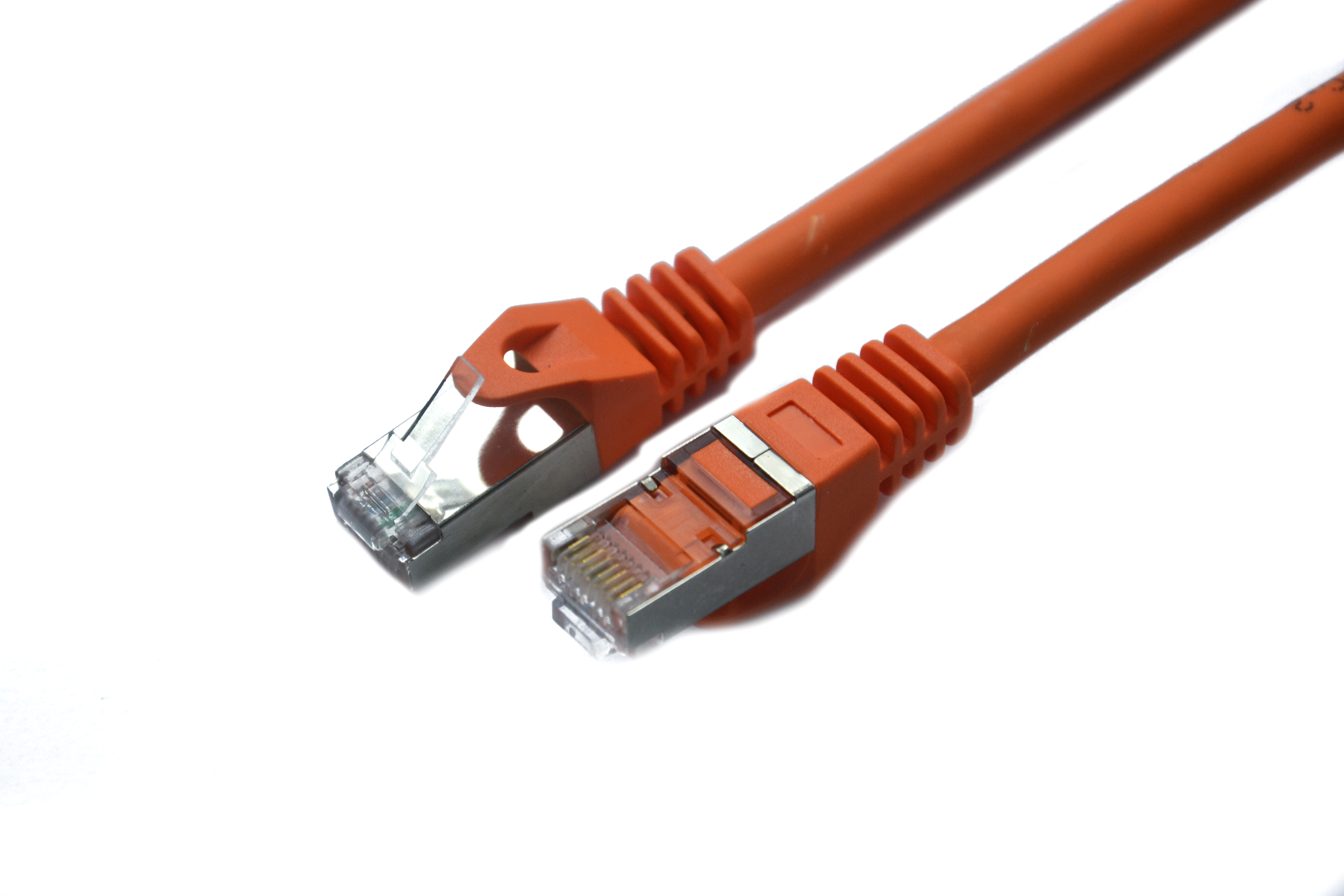

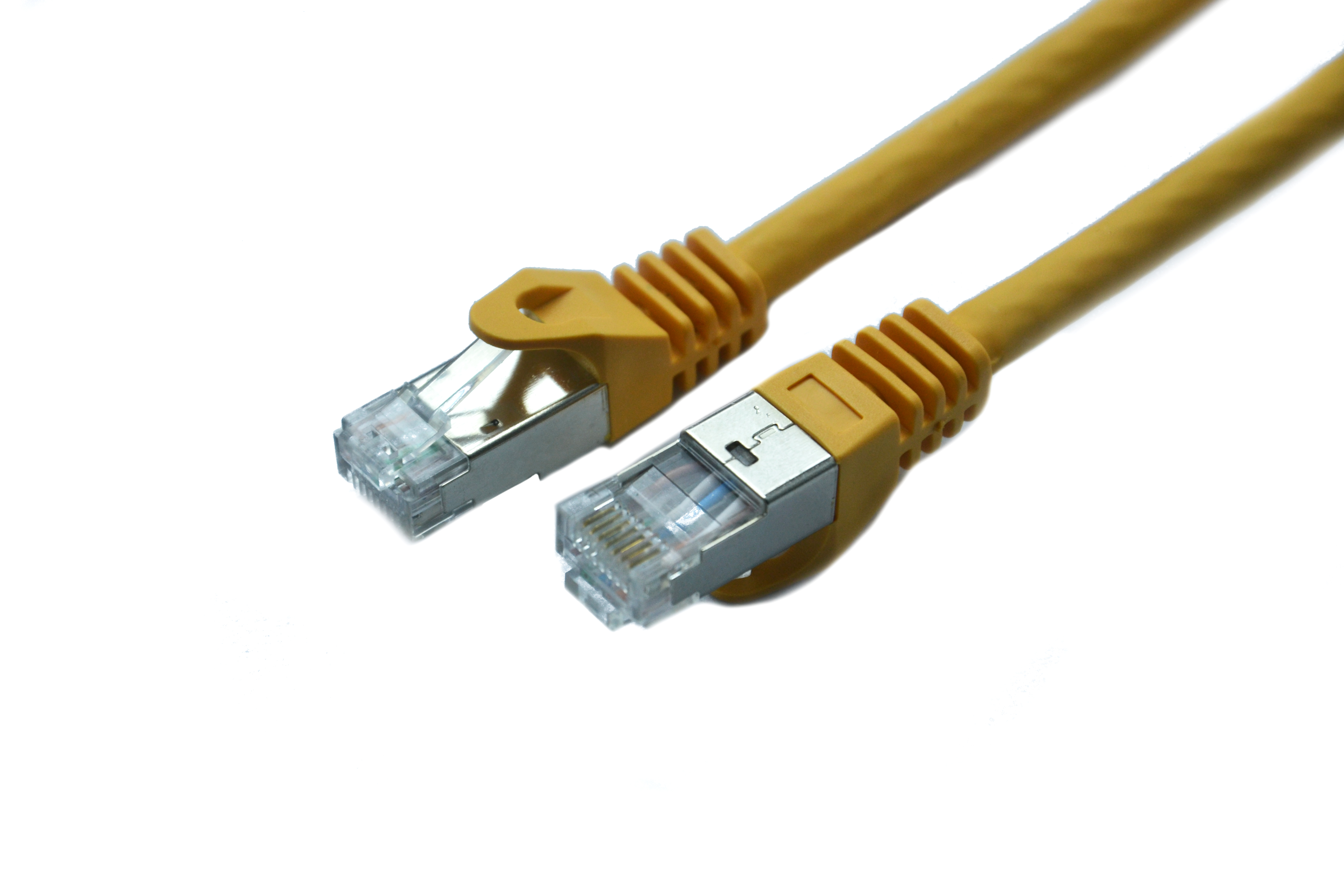

Cat 6 FTP Patch cord 26AWG Stranded Conductor BC LSZH 1/2/3/5......Meters

TM02FTP6GY01-LSZH

Cat 6 FTP Patch cord 26AWG Stranded Conductor BC LSZH 1/2/3/5......Meters


All cable 100% channel testing, any open, missing wire, short and intermittent are not permitted.

After crimping the distance between the bottom of contact and the top surface of plug are 5.90-6.146mm.

The cable must be tested and passed the channel test with Fluke DSX-8000.

Rohs compliant PVC or PE or LSZH Jacket.

Installation temperature: -30℃ to +50℃,minimum bending radius: 4D.


RJ45 PLUG   2 PCS     RJ45 8P8C Contact, phosphor Bronze 50u″, UL94V-0.

CABLE          1 PCS     CAT6 FTP 26AWG(7*0.16MM)*4P Stranded Cable Jacket, OD:  5.9±0.2MM

OVERMODE  48P



Return to project list

Key Features

Product Details

Download

Cat 6 FTP Patch cord 26AWG Stranded Conductor BC LSZH 1/2/3/5......Meters


All cable 100% channel testing, any open, missing wire, short and intermittent are not permitted.

After crimping the distance between the bottom of contact and the top surface of plug are 5.90-6.146mm.

The cable must be tested and passed the channel test with Fluke DSX-8000.

Rohs compliant PVC or PE or LSZH Jacket.

Installation temperature: -30℃ to +50℃,minimum bending radius: 4D.


RJ45 PLUG   2 PCS     RJ45 8P8C Contact, phosphor Bronze 50u″, UL94V-0.

CABLE          1 PCS     CAT6 FTP 26AWG(7*0.16MM)*4P Stranded Cable Jacket, OD:  5.9±0.2MM

OVERMODE  48P
