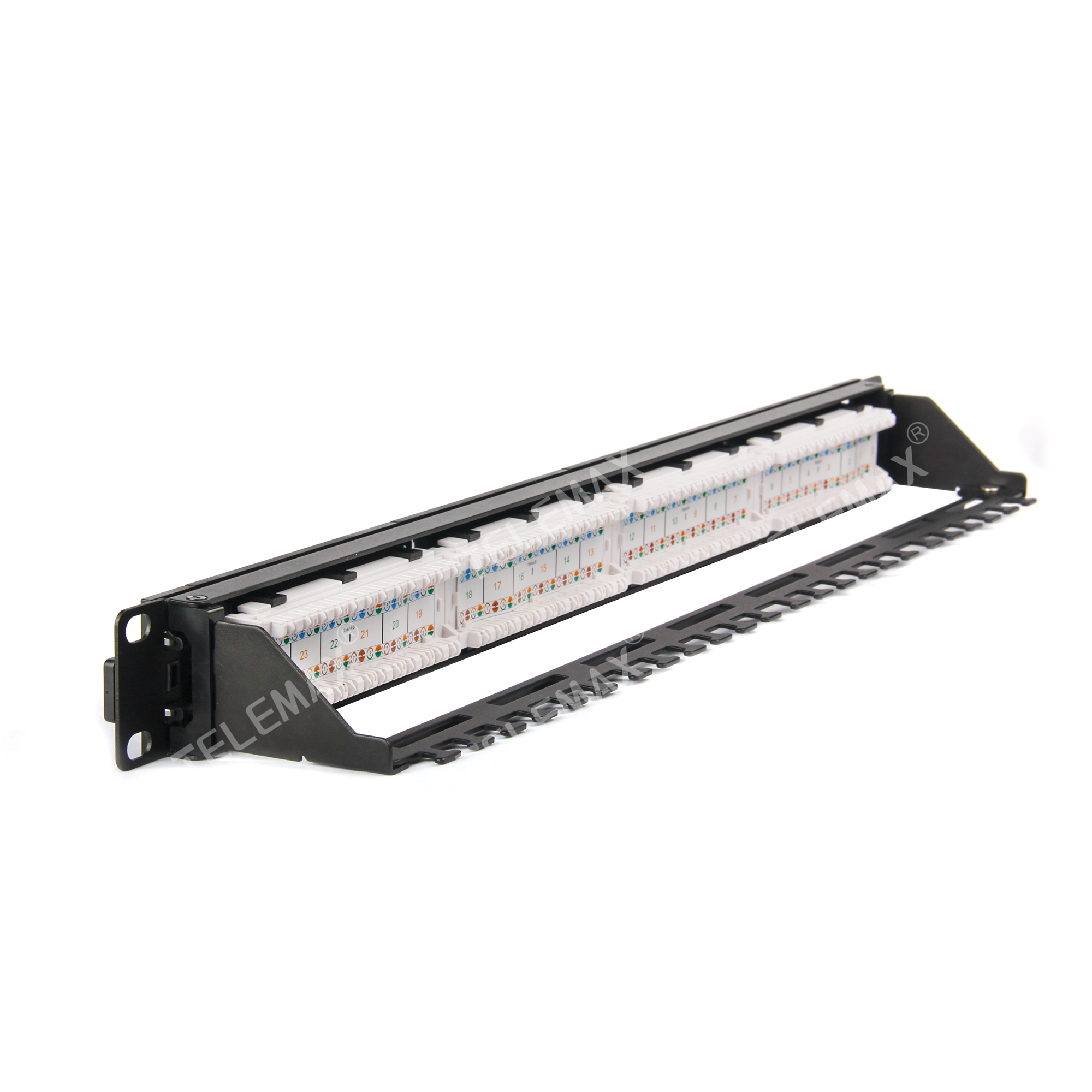

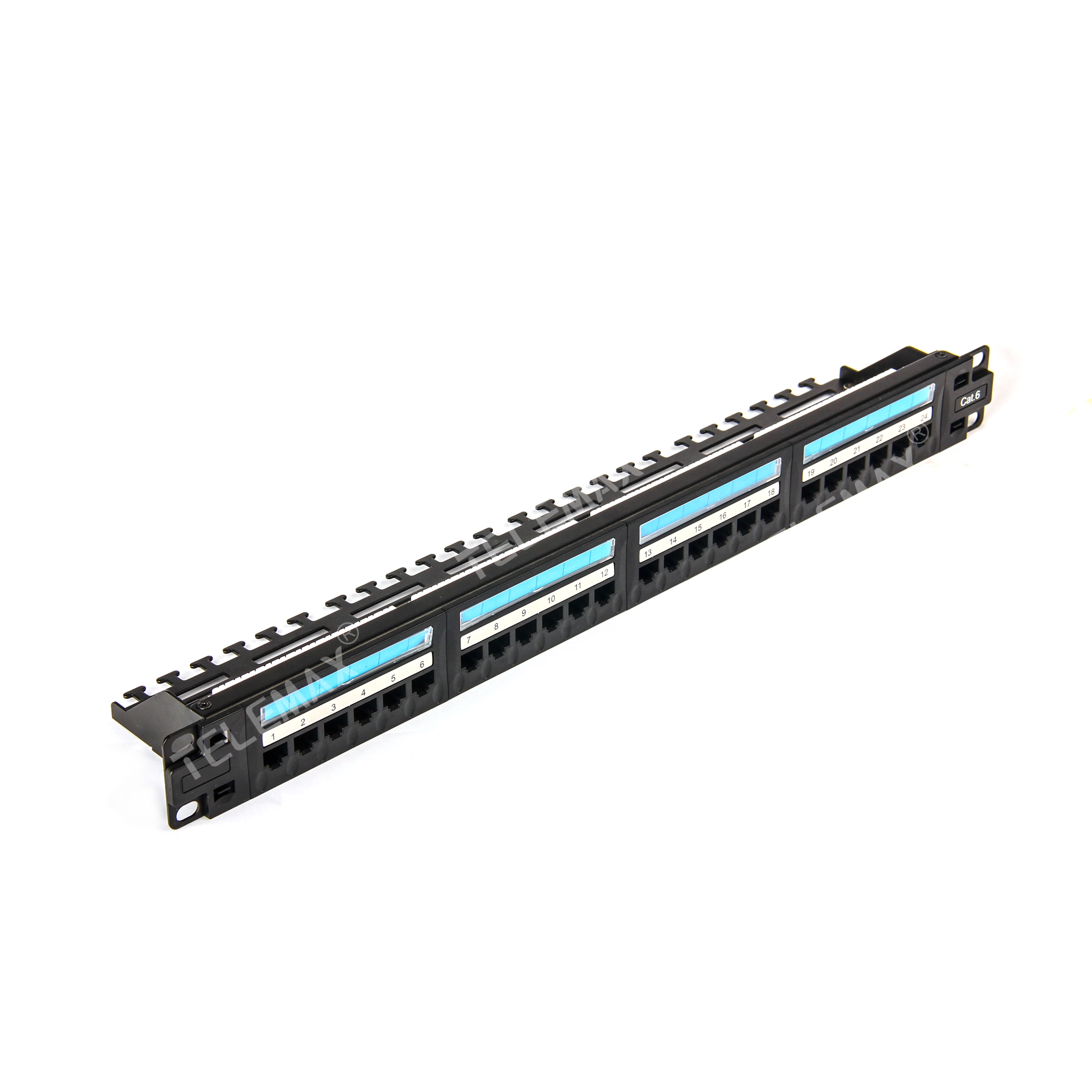

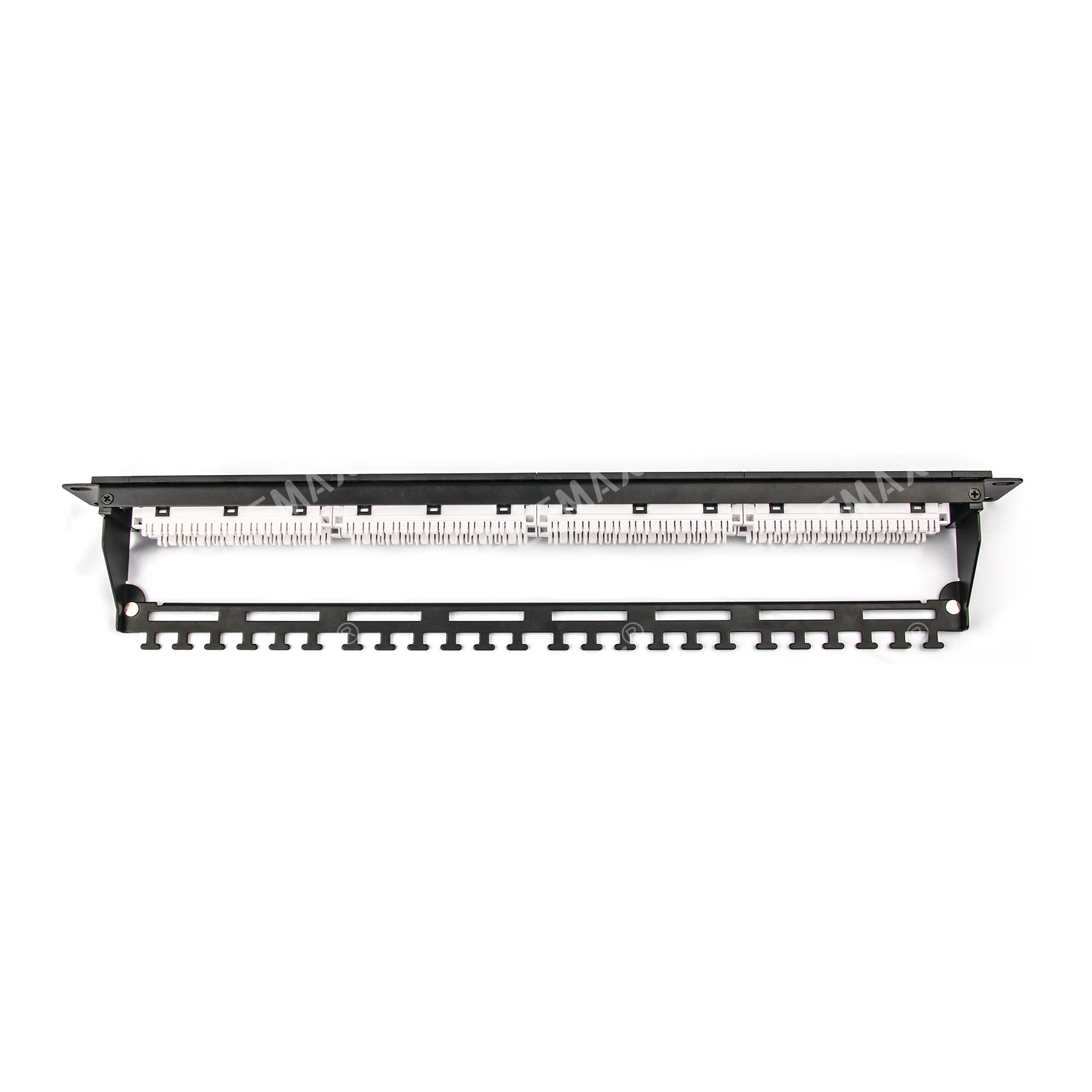

Cat 6 / Cat 6a UTP Patch Panel 24 Ports, front disassemble design

TM03C6PCB03+UTP24

TM03C6PCB03+UTP24

Cat 6 / Cat 6a UTP Patch Panel 24 Ports, front disassemble design

Electrical

Voltage rating: 125 VAC RMS;

Current rating: 1.5 AMP;

Contact resistance: 100 Million HMS max;

Insulation resistance: 1000 MEGOHMS min. @ 500 VDC;

Dielectric strength: 750 VAC RMS 60 Hz, 1 min.;

C6 Permanent Link: Conform to ANSI/ TIA/EIA-568 B.2-1.

Mechanical

Housing Material: PBT;

Panel Frame: ST12, powder conforming in
black color

IDC Material: PC, terminal; phosphor bronze, Tin plating;

RJ 45 Jack life: 750 times Min.;

IDC life: 200 times min.;

Wire: AWG 22-24;

TIA Cat. 6 Perm. Link Test: Worst pair next margin ≥6.0dB;

TIA Cat. 6A perm Link test: worst pair next margin ≥5.0dB;

Retentiveness of insertion structure: 50N 60±5s.
