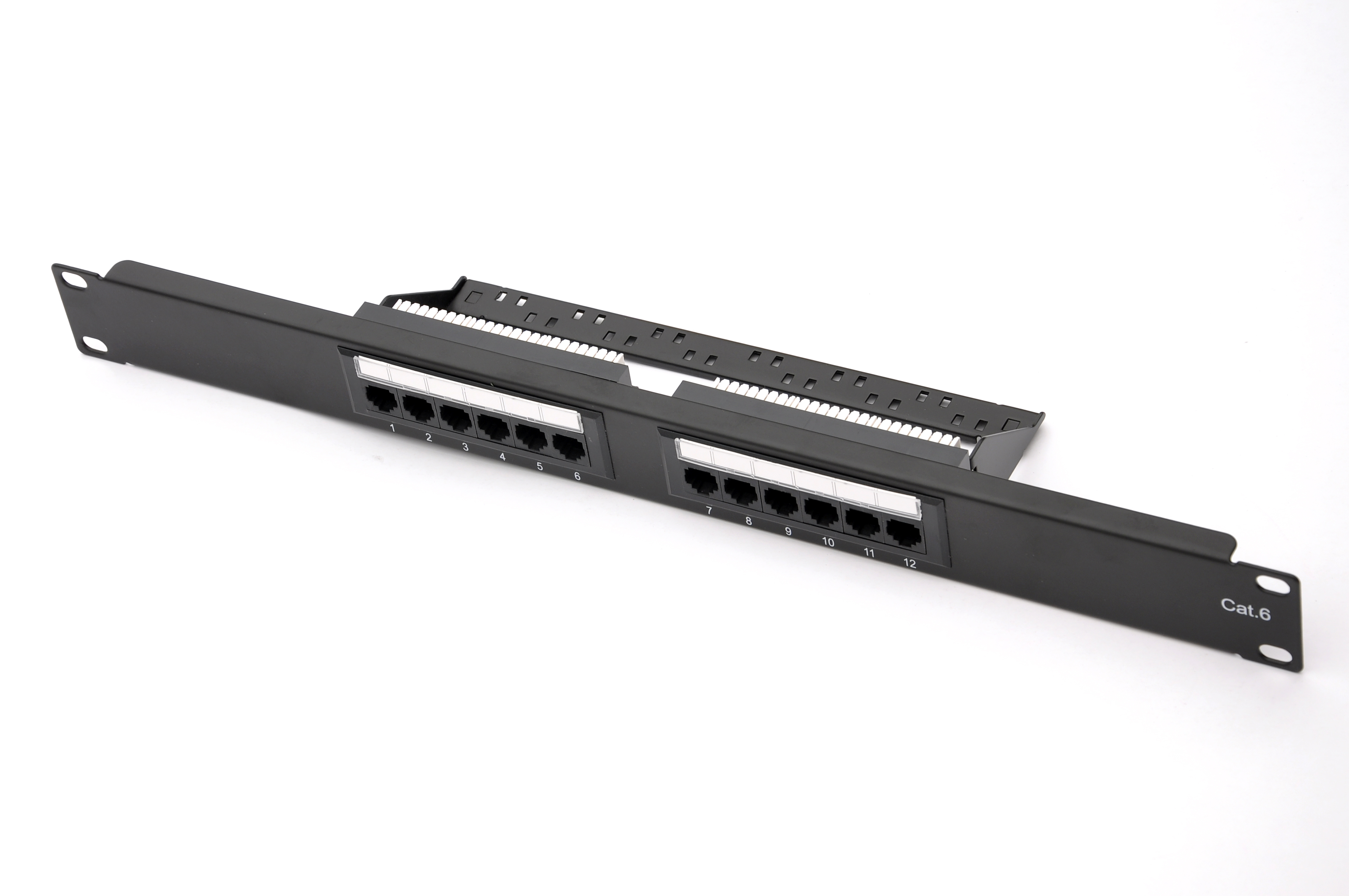

1U 19'' 12 Ports Cat 5E/6/6A UTP PCB Patch Panel Dual IDC with Back Bar, Golden plating 50u''

Electrical:

Voltage rating: 125 VAC RMS;

Current rating: 1.5 AMP;

Contact resistance: 20 Million HMS max. ;

Insulation resistance: 100 MEGOHMS min. @ 500 VDC;

Dielectric strength: 750 VAC RMS 60 Hz, 1 min. ;

C6 permanent link: conform to AN- SI/TIA/EIA-568 b.2-1

Panel frame: ST-12, powder coating in black color;

IDC material: PC, Contact: phosphor bronze, Tin plated;

RJ 45 Jack life: 750 cycles min.;

IDC life: 200 times min. ;

Wire: AWG 22-24;

TIA Cat. 5E fluke perm link test: worst pair next margin ≥ 8 dB;

TIA Cat. 6 fluke perm link test: worst pair next margin ≥ 6 dB;

TIA Cat. 6A fluke perm link test: worst pair next margin ≥ 5 dB;
