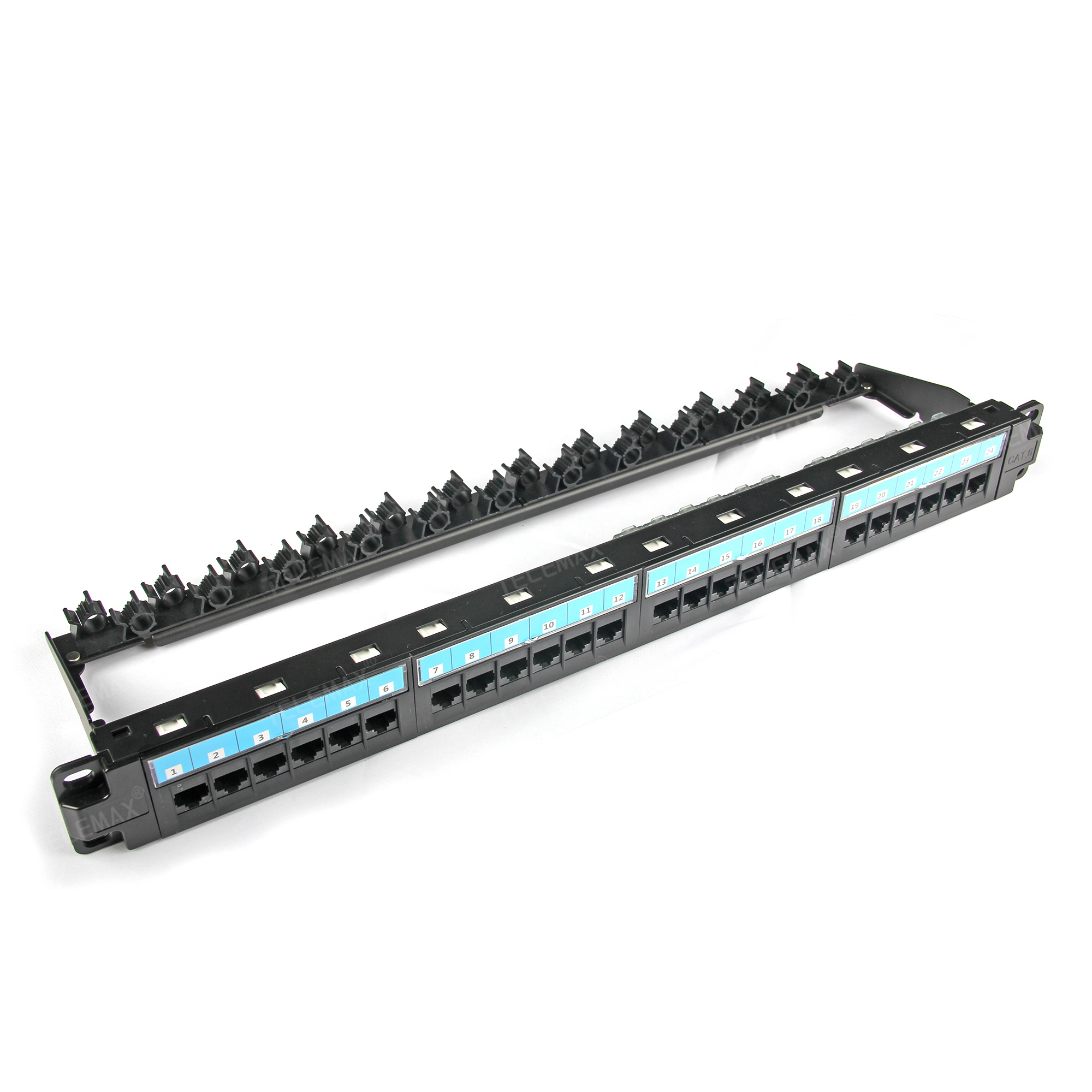

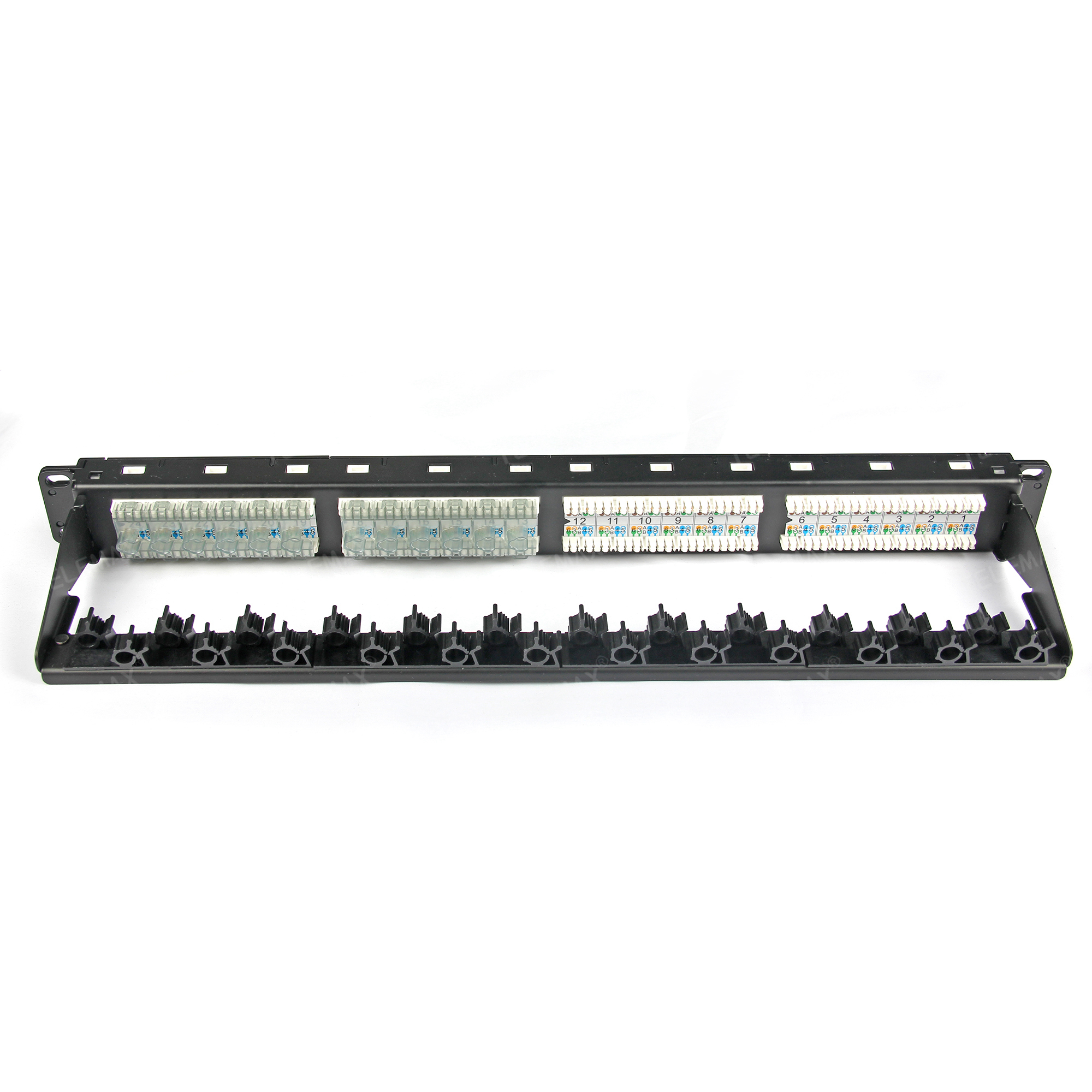

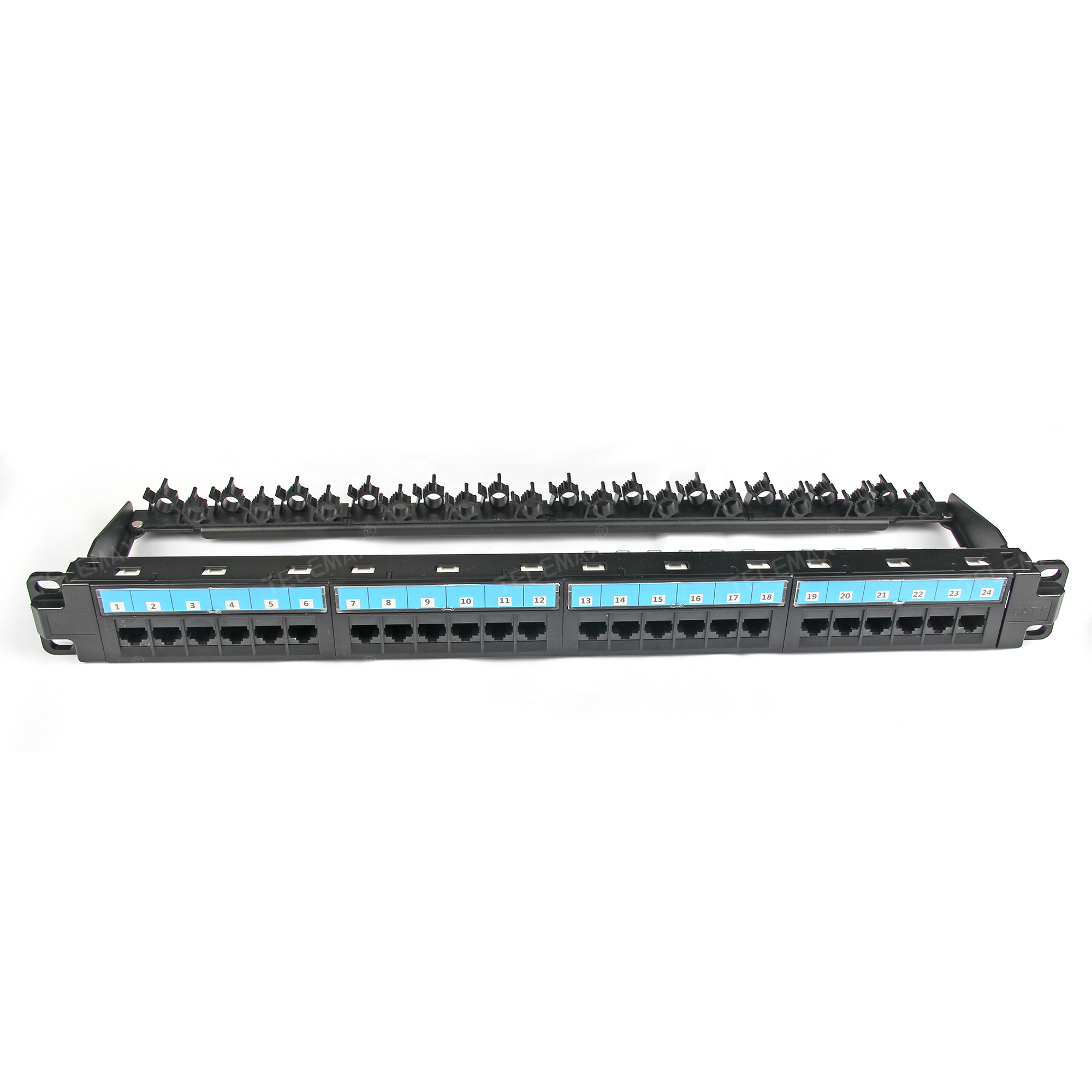

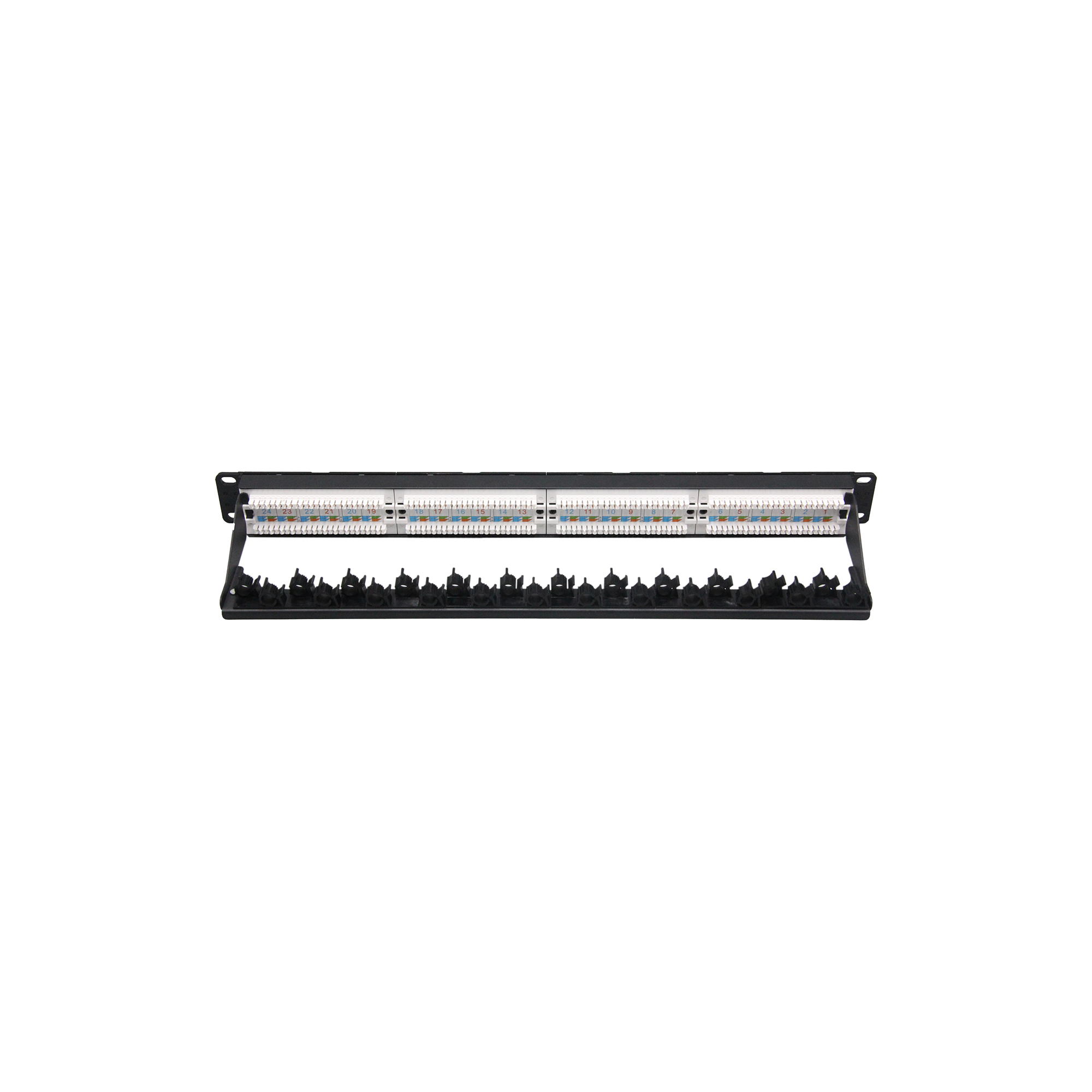

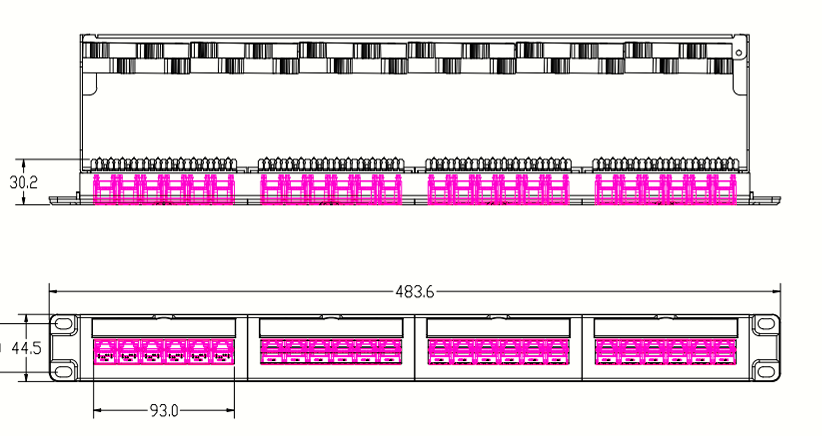

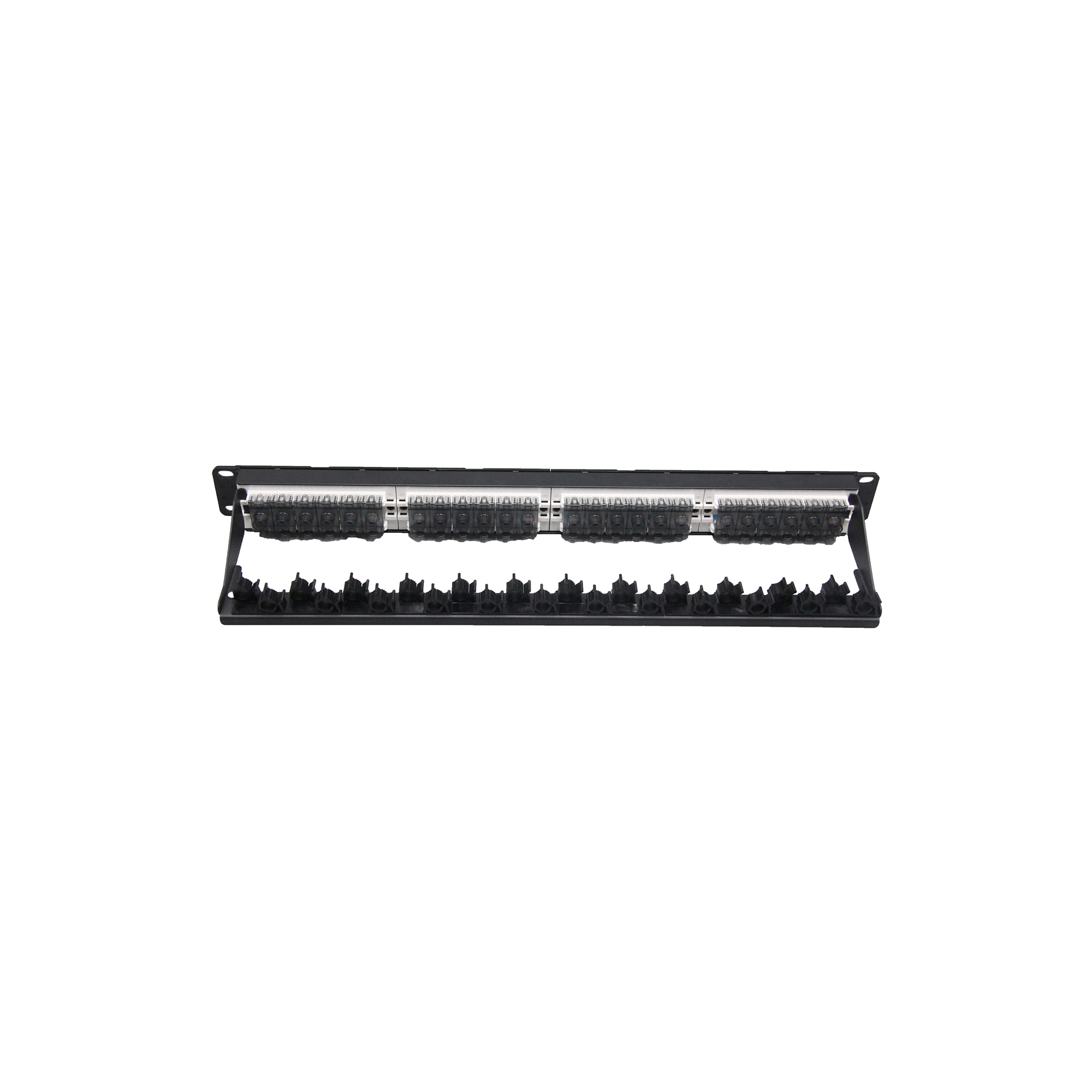

1U 19'' 24 Ports Cat 6 UTP PCB Patch Panel Dual IDC with Plastic Cable Holder, anti fall-off design

Part Code TM03C6PCB02+UTP24

TM03C6PCB02+UTP24

1U 19'' 24 Ports Cat 6 UTP PCB Patch Panel Dual IDC with Plastic Cable Holder, anti fall-off design

Special Characeter:

  • Anti wire fall-off design

  • foled back bar with plastic cable hoders

  • smart desgin of label holder.

Electrical

  • Voltage rating: 125 VAC RMS;

  • Current rating: 1.5 AMP;

  • Contact resistance: 100 Million HMS max;

  • Insulation resistance: 1000 MEGOHMS min. @ 500 VDC;

  • Dielectric strength: 750 VAC RMS 60 Hz, 1 min.;

  • C6 Permanent Link: Conform to ANSI/ TIA/EIA-568 B.2-1.

Mechanical

  • Housing Material: PBT;

  • Panel Frame: ST12, powder conforming in

    black color

  • IDC Material: PC, terminal; phosphor bronze, Tin plating;

  • RJ 45 Jack life: 750 times Min.;

  • IDC life: 200 times min.;

  • Wire: AWG 22-24;

  • Retentiveness of insertion structure: 50N 60±5s.



Return to product list

Key Features

Product Details

Download

Category: 6/6a

Size: 1U 19inch

Ports: 24

Type: UTP

Cable manage: Plastic Cable Holder

Special: Transparent label Position

TM03C6PCB02+UTP24

1U 19'' 24 Ports Cat 6 UTP PCB Patch Panel Dual IDC with Plastic Cable Holder, anti fall-off design

Electrical

  • Voltage rating: 125 VAC RMS;

  • Current rating: 1.5 AMP;

  • Contact resistance: 100 Million HMS max;

  • Insulation resistance: 1000 MEGOHMS min. @ 500 VDC;

  • Dielectric strength: 750 VAC RMS 60 Hz, 1 min.;

  • C6 Permanent Link: Conform to ANSI/ TIA/EIA-568 B.2-1.

Mechanical

  • Housing Material: PBT;

  • Panel Frame: ST12, powder conforming in

    black color

  • IDC Material: PC, terminal; phosphor bronze, Tin plating;

  • RJ 45 Jack life: 750 times Min.;

  • IDC life: 200 times min.;

  • Wire: AWG 22-24;

  • TIA Cat. 6 Perm. Link Test: Worst pair next margin ≥3.0dB;

  • TIA Cat. 6A perm Link test: worst pair next margin ≥5.0dB;

  • Retentiveness of insertion structure: 50N 60±5s.


Packing :

DESCRIPTION

Packing

Size (CM)

Weight（kgs)

Qty/Box

1U 19 INCH UTP BLANK PATCH PANEL 24 PORTS WITH BACK BAR

Carton Packing

52*30*54

23

25 pcs
