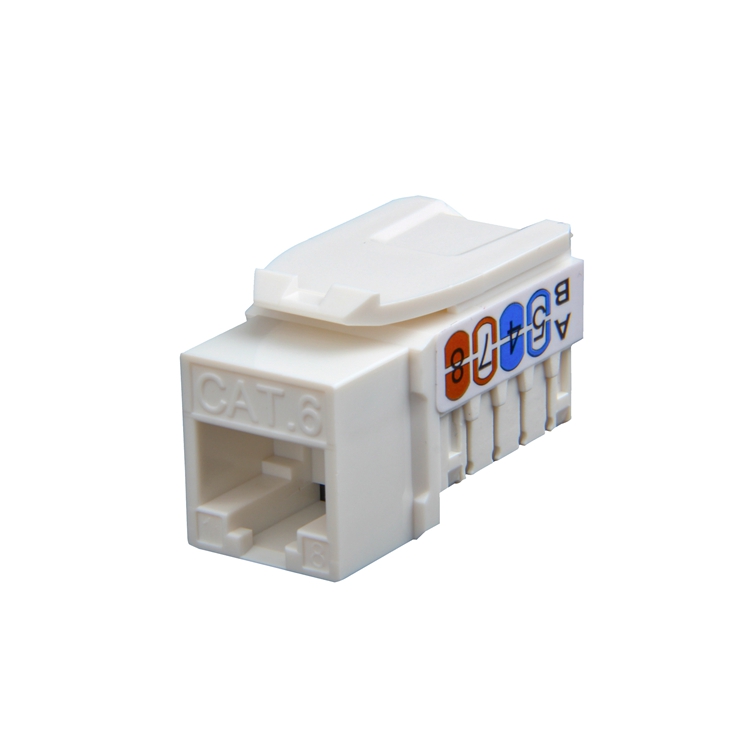

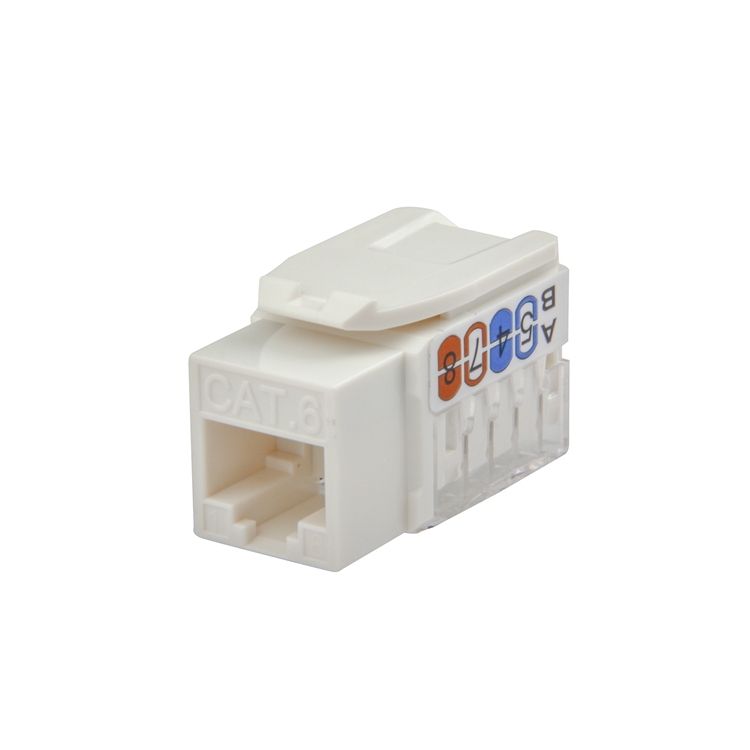

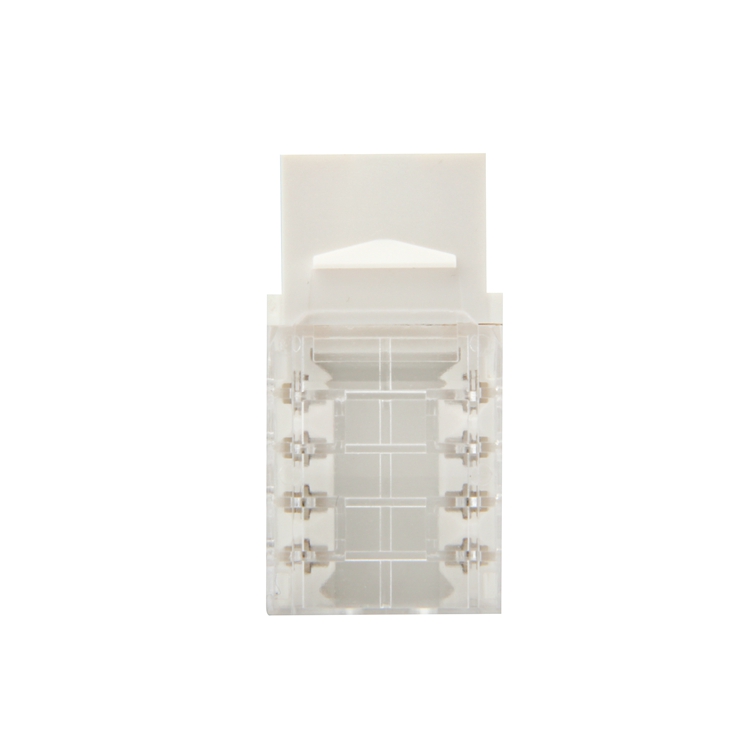

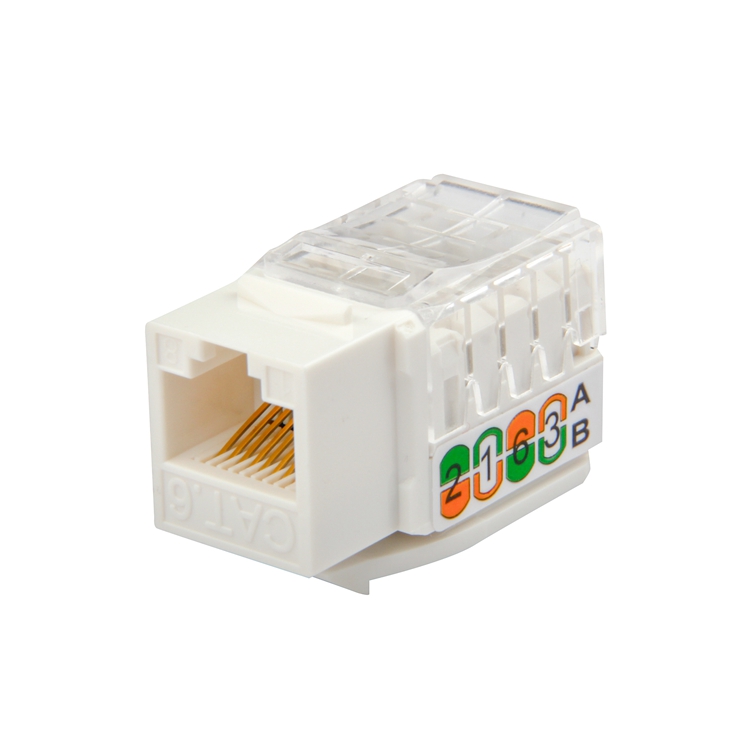

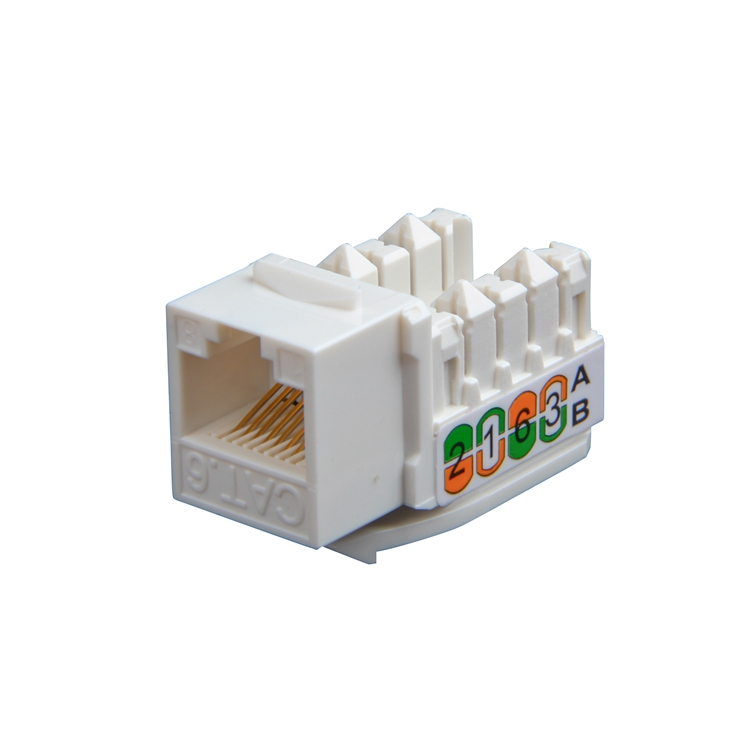

CAT6 UTP Keystone Jack 90 Degree White Color Krone IDC/Dual IDC

TM04C6KJ03+UTP90

TM04C6KJ03+UTP90

CAT6 UTP Keystone Jack 90 Degree White Color  Krone IDC/Dual IDC


Electrical:

  • Voltage rating: 125 VAC RMS;

  • Current rating: 1.5 AMP;

  • Contact resistance: 100 Million HMS max;

  • Insulation resistance: 1000 MEGOHMS min. @ 500 VDC;

  • Dielectric strength: 750 VAC RMS 60 Hz, 1 min.;

  • Contact Resistance: 20MΩ

  • C6 Permanent Link: Conform to ANSI/ TIA/EIA-568 B.2-1.

Mechanical

  • Housing Material: PC;

  • Insert Material: PBT;

  • PCB Material: FR-4;

  • Contact Material: phosphor bronze;

  • IDC Contact Material: phosphor bronze;

  • RJ 45 Jack life: 750 mating cycles with FCC compliant 8P plug;

  • IDC life: 200 times min.;

  • Contact force: 100 grams with FCC compliant 8P plug;

  • Wire contact compatibility: accommodates AWG 22-24;

  • TIA Cat. 6 Perm. Link Test: Worst pair next margin ≥7.0dB;

  • Retentiveness of insertion structure: 50N 60±5s.


Return to project list

Key Features

Product Details

Download

Category: 6 & 6A

Design: Slim design

Application: UTP

IDC: Dual IDC

Goden Plating: 3um/30um/50um

Test: Fluke Channel Test & Perm link Test

TM04C6KJ03+UTP90

CAT6 UTP Keystone Jack 90 Degree White Color  Krone IDC/Dual IDC


Electrical:

  • Voltage rating: 125 VAC RMS;

  • Current rating: 1.5 AMP;

  • Contact resistance: 100 Million HMS max;

  • Insulation resistance: 1000 MEGOHMS min. @ 500 VDC;

  • Dielectric strength: 750 VAC RMS 60 Hz, 1 min.;

  • Contact Resistance: 20MΩ

  • C6 Permanent Link: Conform to ANSI/ TIA/EIA-568 B.2-1.

Mechanical

  • Housing Material: PC;

  • Insert Material: PBT;

  • PCB Material: FR-4;

  • Contact Material: phosphor bronze;

  • IDC Contact Material: phosphor bronze;

  • RJ 45 Jack life: 750 mating cycles with FCC compliant 8P plug;

  • IDC life: 200 times min.;

  • Contact force: 100 grams with FCC compliant 8P plug;

  • Wire contact compatibility: accommodates AWG 22-24;

  • TIA Cat. 6 Perm. Link Test: Worst pair next margin ≥7.0dB;

  • Retentiveness of insertion structure: 50N 60±5s.

Packing Information

DESCRIPTION

Packing

Size (CM)

Weightkgs)

Qty/Box

CAT5E/6/6A UTP KEYSTONE JACK 90 OR 180 DEGREE

Carton Packing

42*30*54

13

1000 pcs
