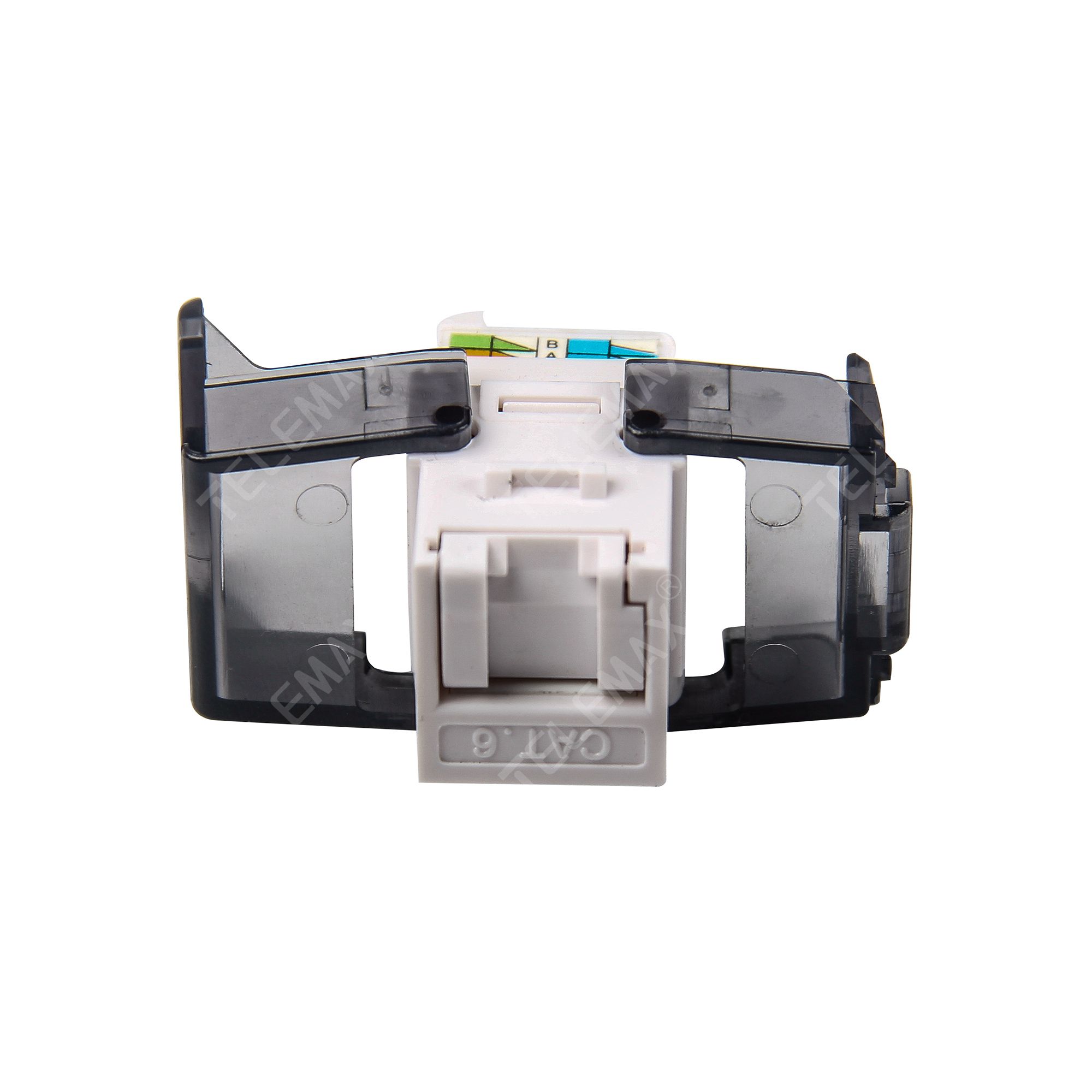

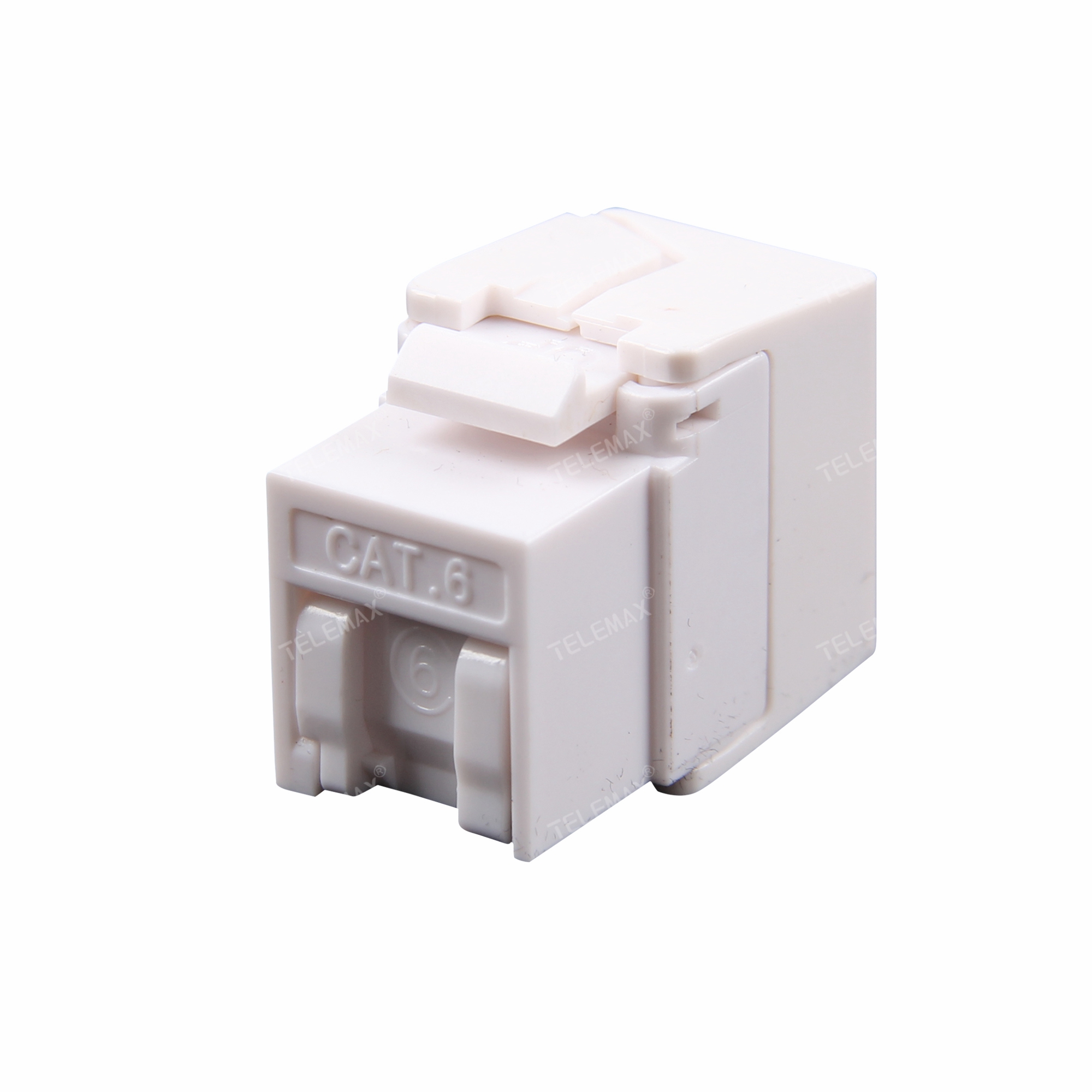

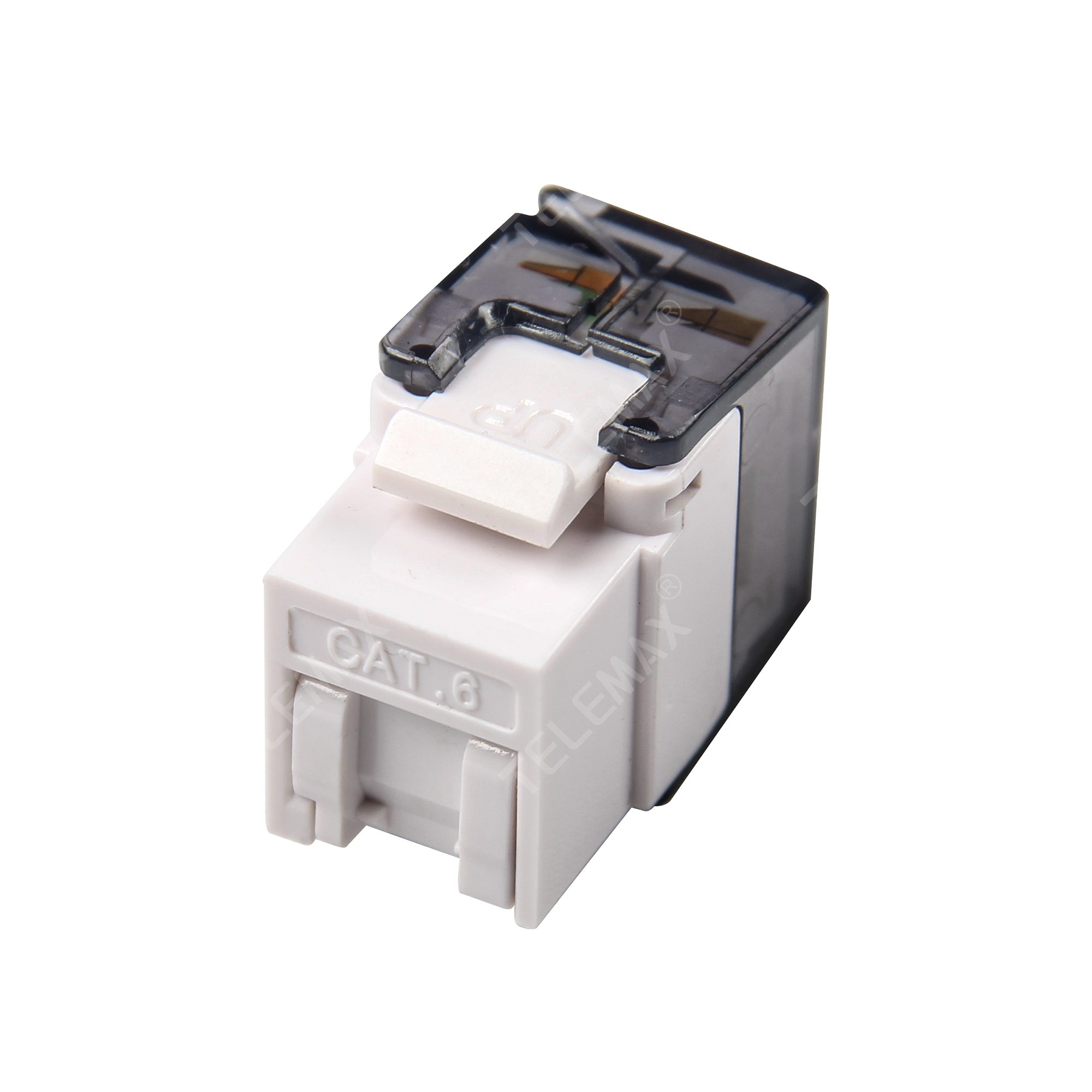

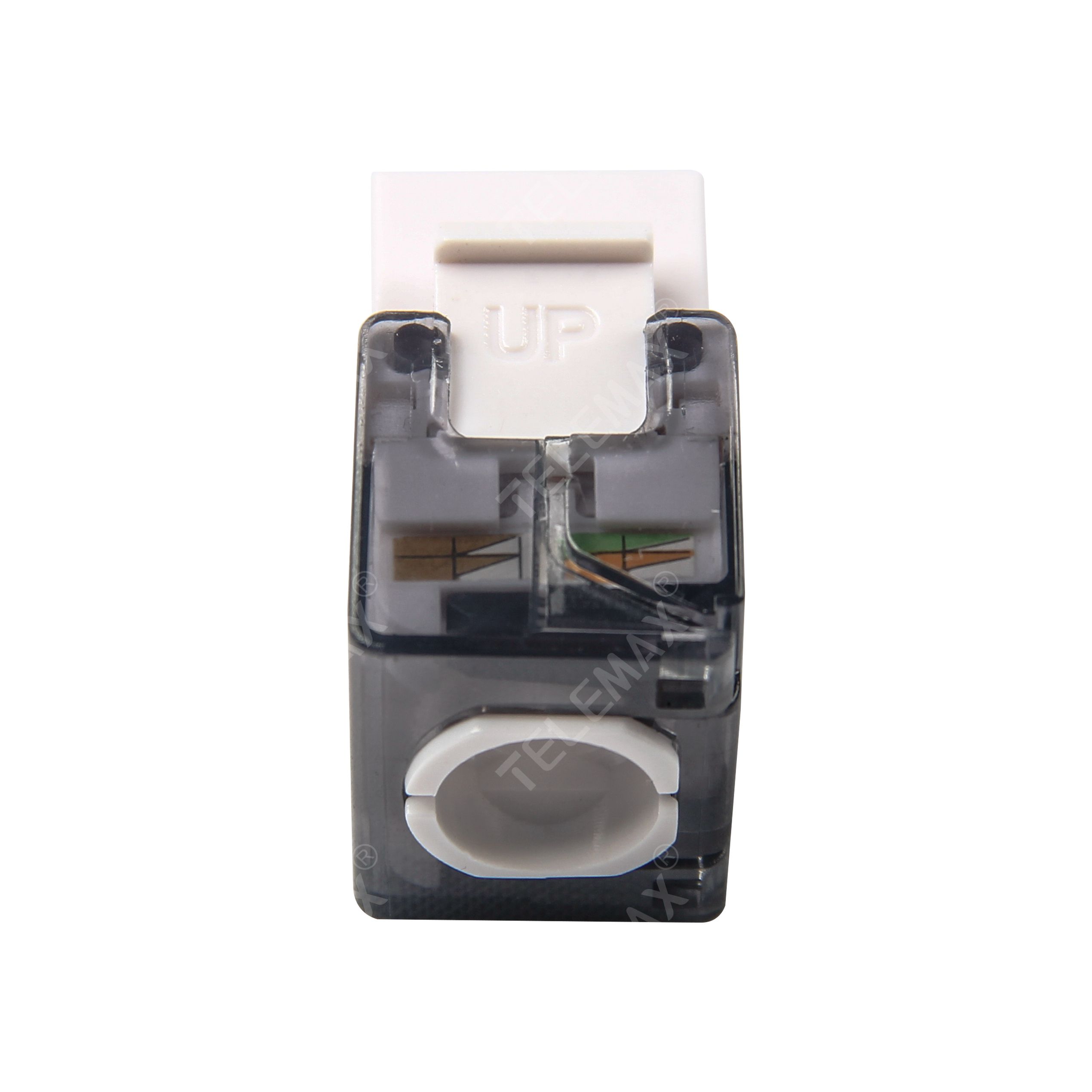

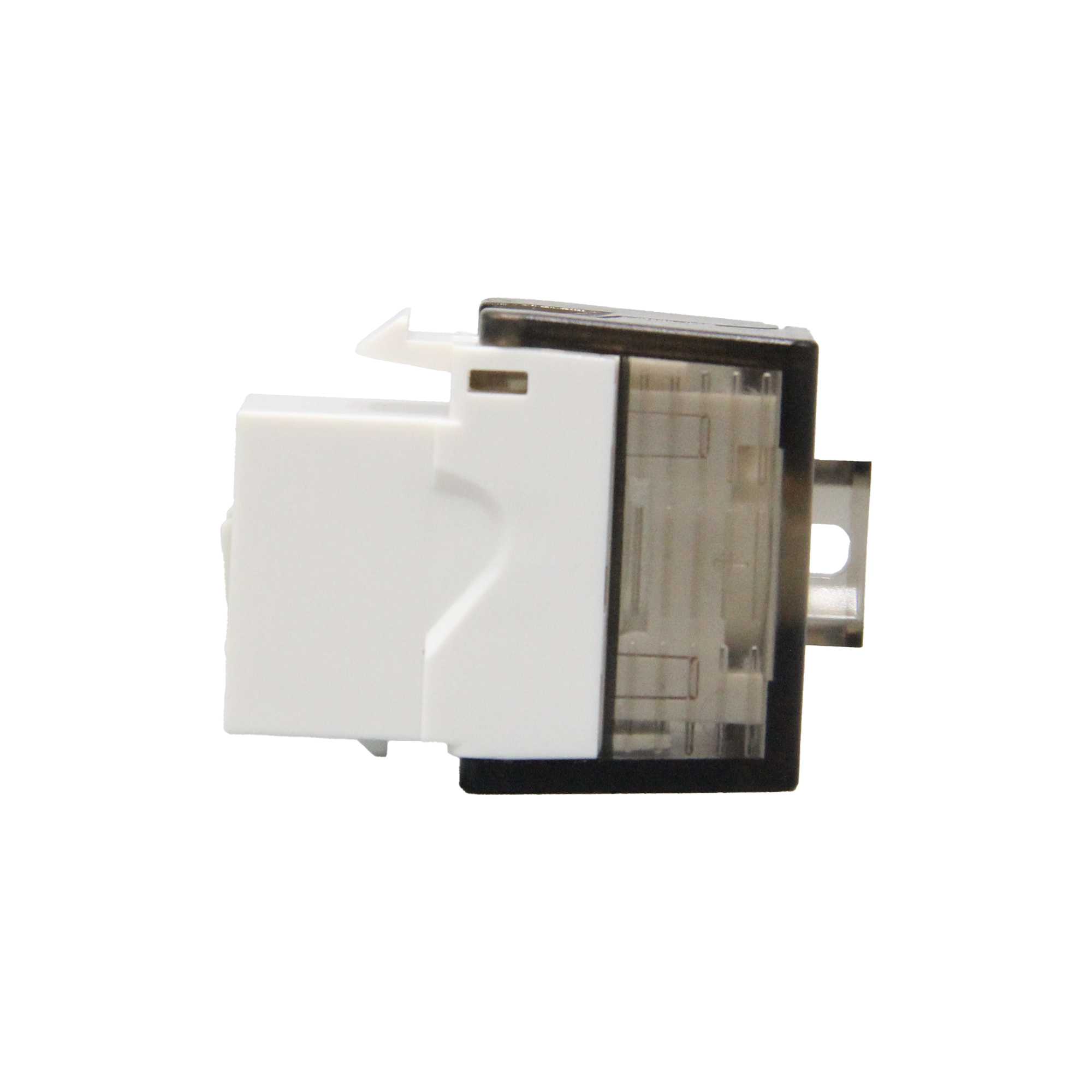

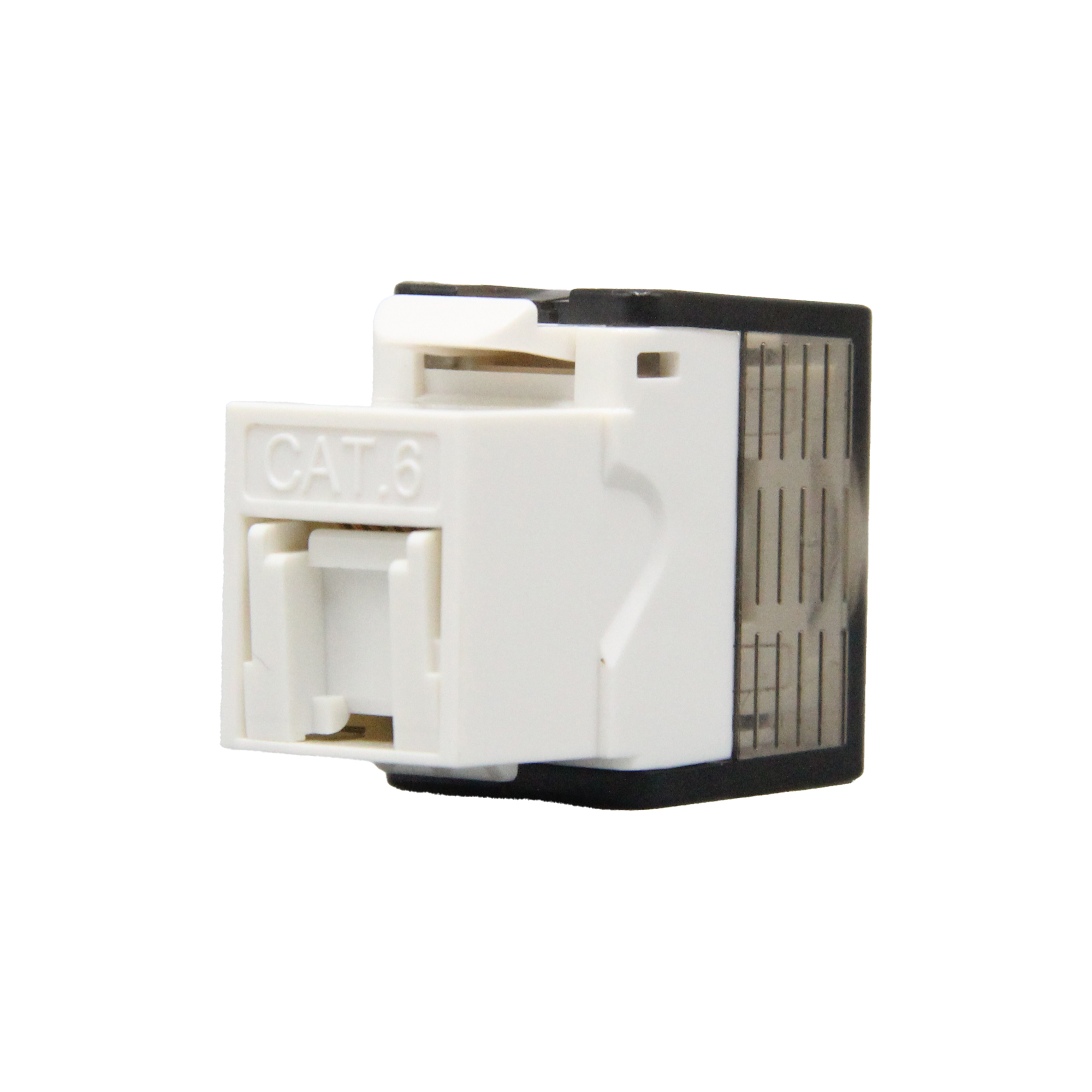

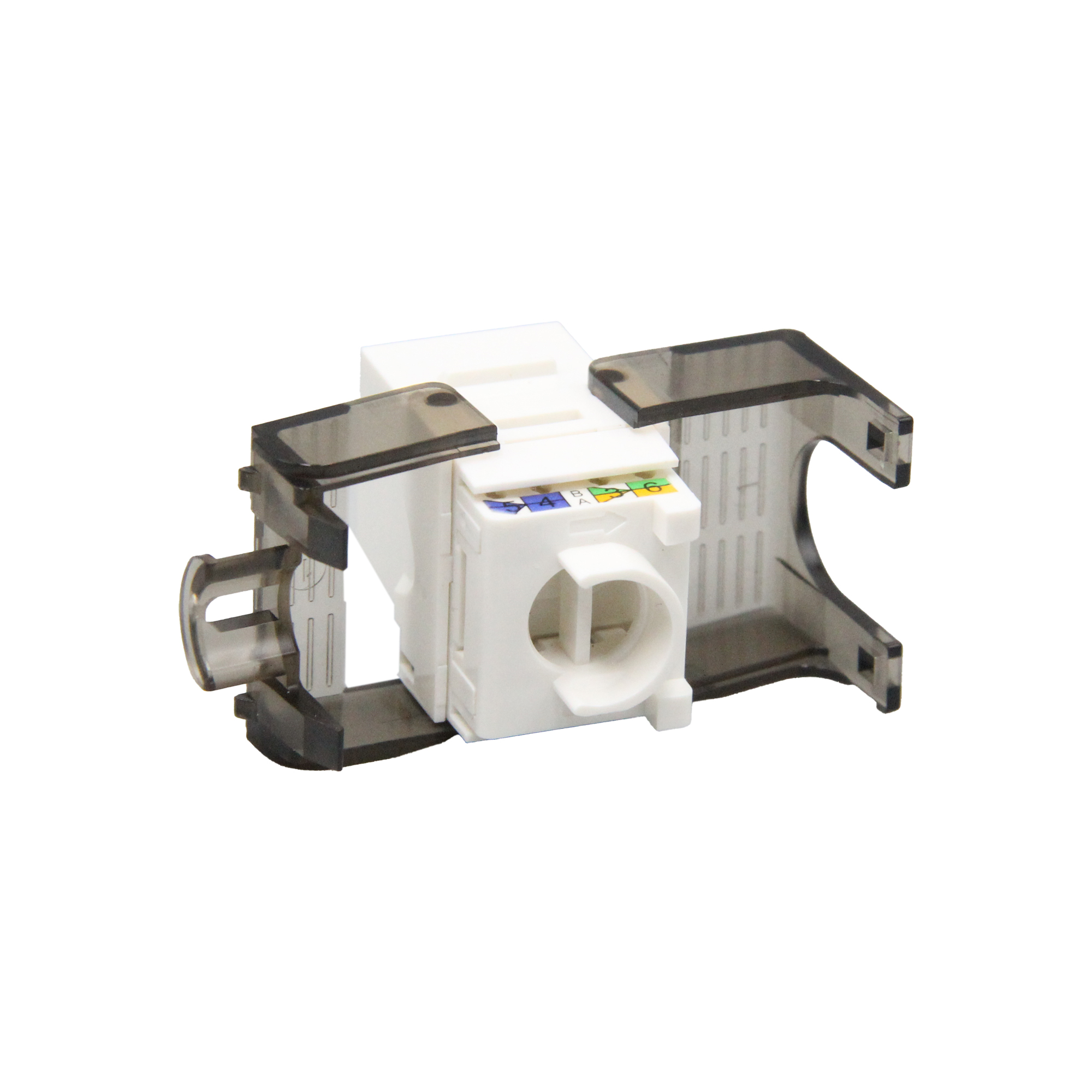

Cat5E/6/6A UTP Tool free Mini Tool Free keystone Jack with dust shutter left-right Crimping

Part Code: TM04C6JKTL03+UTP180

Part Code: TM04C6JKTL03+UTP180

Cat5E/6/6A UTP Tool free Mini Tool Free keystone Jack with dust shutter left-right Crimping


ELECTRICAL:


1.  Voltage rating: 125 VAC RMS

2.  Current rating: 1.5 AMP

3.  Contact resistance: 20 Milliohms MAX

4.  Insulation resistance: 100 Megohms MIN @ 500 VDC

5.  Dielectric strength: 750 VAC RMS 60Hz, 1MIN

ENVIRONMENTAL:

1.  Storage: -40° to +70°

2.  Operation: -10° to +60°

Conform to TIA/EIA 568B CATEGORY 6A

Mates with modular plug conforming to FCC part 68, Subpart F.

MECHANICAL:

1.  Housing material: QIMEI PC110 UL94-V0

2.  Insert material: PBT+30%GF

3. PCB material: FR-4 T=1.6mm

4.  Contact material: Phosphor bronze stamp PIN T=0.3mm

5. IDC Contact material: Phosphor bronze T=0.50mm WITH TIN PLATING

6.   RJ45 JACK LIFE: 750 TIMES MIN

7.  IDC LIFE: 200 TIMES MIN

8.  WIRE: AWG 22~24

9.  TIA CAT 6aPERM.LINK TEST: WORST PAIR NEXT MARGIN ≥5.0dB

10.TIA CAT 6 PERM.LINK TEST: WORST PAIR NEXT MARGIN ≥8.0dB

10. Retentiveness of insertion structure: 50N 60±5s


Return to project list

Key Features

Product Details

Download

Category: 6 & 6A

Type: Tool Free

Dust shutter: Yes

Application: UTP

Part Code: TM04C6JKTL03+UTP180

Cat5E/6/6A UTP Tool free Mini Tool Free keystone Jack with dust shutter left-right Crimping


ELECTRICAL:


1.  Voltage rating: 125 VAC RMS

2.  Current rating: 1.5 AMP

3.  Contact resistance: 20 Milliohms MAX

4.  Insulation resistance: 100 Megohms MIN @ 500 VDC

5.  Dielectric strength: 750 VAC RMS 60Hz, 1MIN

ENVIRONMENTAL:

1.  Storage: -40° to +70°

2.  Operation: -10° to +60°

Conform to TIA/EIA 568B CATEGORY 6A

Mates with modular plug conforming to FCC part 68, Subpart F.

MECHANICAL:

1.  Housing material: QIMEI PC110 UL94-V0

2.  Insert material: PBT+30%GF

3. PCB material: FR-4 T=1.6mm

4.  Contact material: Phosphor bronze stamp PIN T=0.3mm

5. IDC Contact material: Phosphor bronze T=0.50mm WITH TIN PLATING

6.   RJ45 JACK LIFE: 750 TIMES MIN

7.  IDC LIFE: 200 TIMES MIN

8.  WIRE: AWG 22~24

9.  TIA CAT 6aPERM.LINK TEST: WORST PAIR NEXT MARGIN ≥5.0dB

10.TIA CAT 6 PERM.LINK TEST: WORST PAIR NEXT MARGIN ≥8.0dB

10. Retentiveness of insertion structure: 50N 60±5s


Packing Information

DESCRIPTION

Packing

Size (CM)

Weightkgs)

Qty/Box

CAT5E/6/6A UTP KEYSTONE JACK 90 or 180 DEGREE or Tool Free

Carton Packing

42*30*54

13

1000 pcs
