Part Code: TM-1G1E-F

10/100/1000Mbps Adaptive gigabit Ethernet Media Converter, 1 RJ45 / 1 1.25Gbps Fiber Port

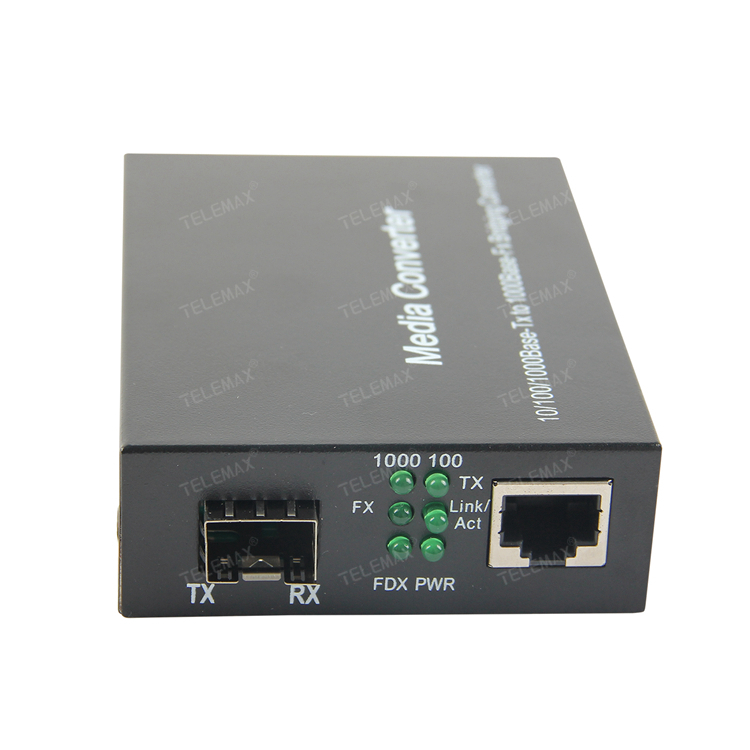

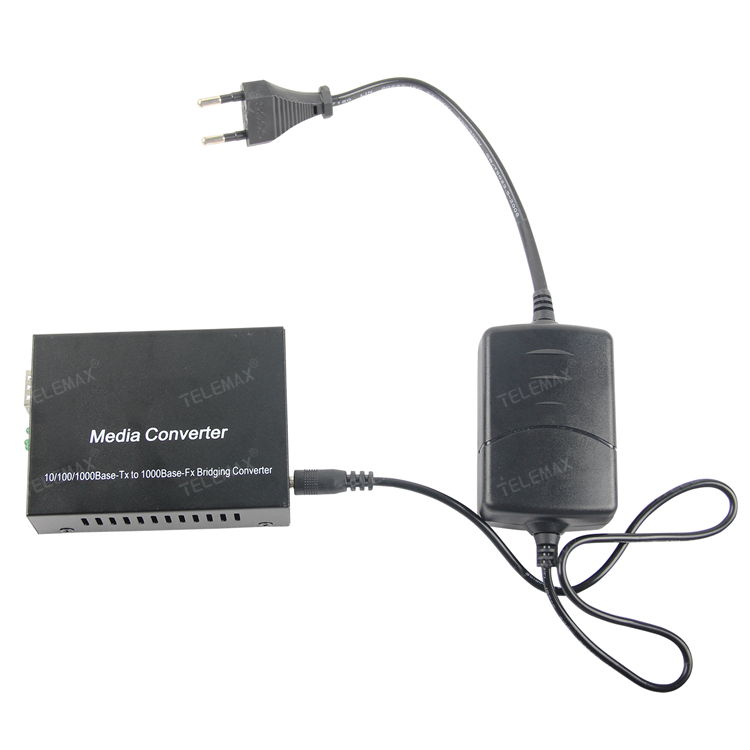

The Media Converter is a 10/100/1000Mbps adaptive gigabit Ethernet Media Converter. It has one 10/100/1000Mbps UTP port and one 1.25Gbps fiber ports. It extends the transmission distance of a network from 100m via copper cables to 120km.It can extend the transmission distance, and also with many other advantages such as isolation protection, good data security, working stable and easy to maintain.

• 1×1000Base-SFP to 1×10/100/1000Base- RJ45 Port;

• RJ45 support auto MDI/MDI-X function;

• Auto-negotiation speed, half/full-duplex;

• Each port has the complete LED Indicator light;

• Support IEEE802.1d Spanning Tree;

• Supports high performance QoS function on each port;

• Flow control fully supported;

• Support broadcast storm protection;

• Wide-range redundant power design (DC 5~12V);

• 1×9 fixed fiber module or SFP slot optional;

• Support max forwarding packet length 9K bytes option;

• Requires no configuration and will instantly operate as soon as you power it up;

• Small volume;

• Low power consumption.

Order Information

1×1000Base-X to 1×10/100/1000Base-T, SFP slot

1×1000Base- X to 1×10/100/1000Base-T,SMF,1310nm,SC,20km

1×1000Base-X to 1×10/100/1000Base-T, Bi-Di TX1310/RX1550nm,SC,20km

1×1000Base-X to 1×10/100/1000Base-T, Bi-Di TX1550/RX1310nm,SC,20km

1×1000Base-X to 1×10/100/1000Base-T,SMF,1310nm,SC,40km

1×1000Base-X to 1×10/100/1000Base-T, Bi-Di TX1310/RX1550nm,SC,40km

1×1000Base-X to 1×10/100/1000Base-T, Bi-Di TX1550/RX1310nm,SC,40km

•
  data sheet - Media Converter- 1G1E-F Series Media Converter.pdf
