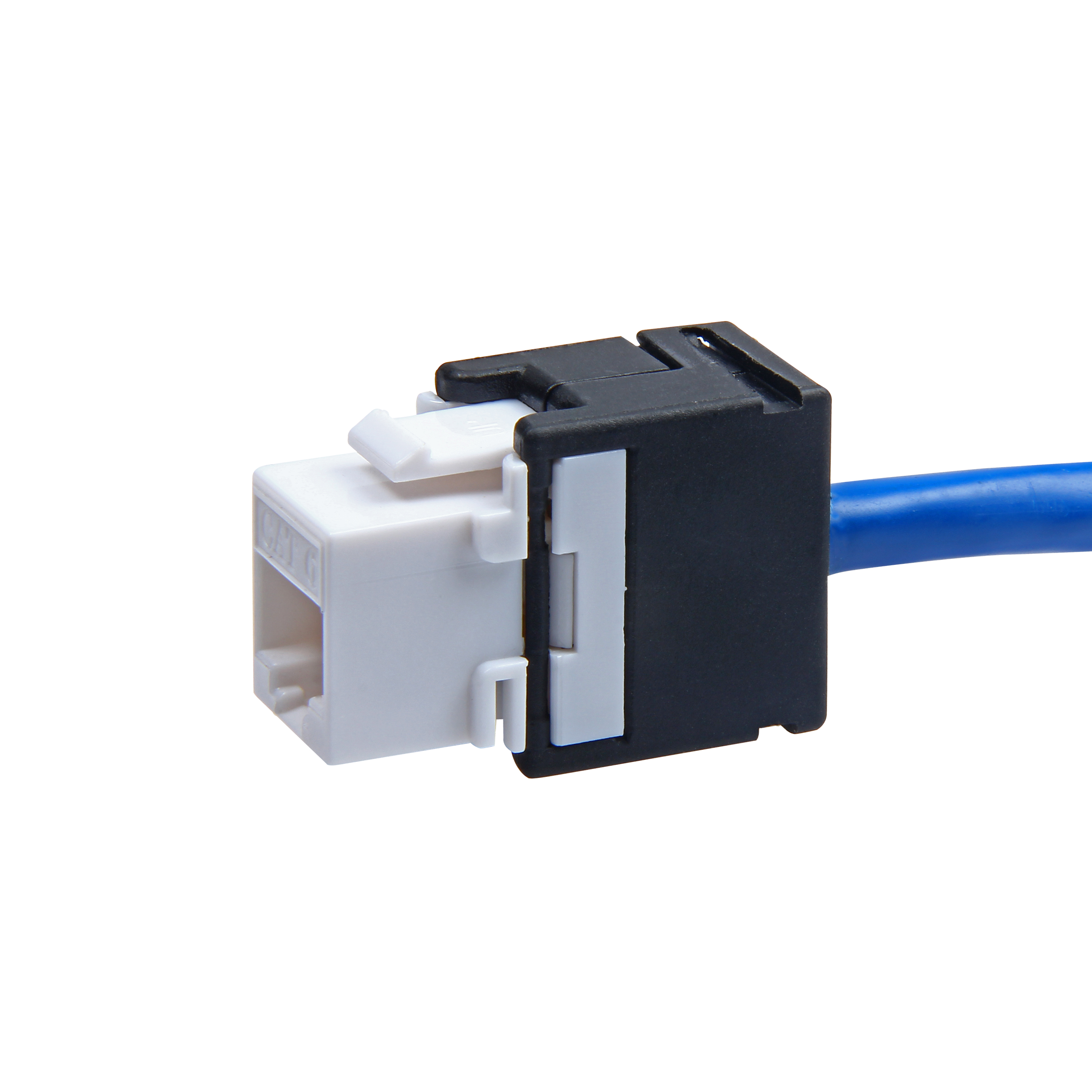

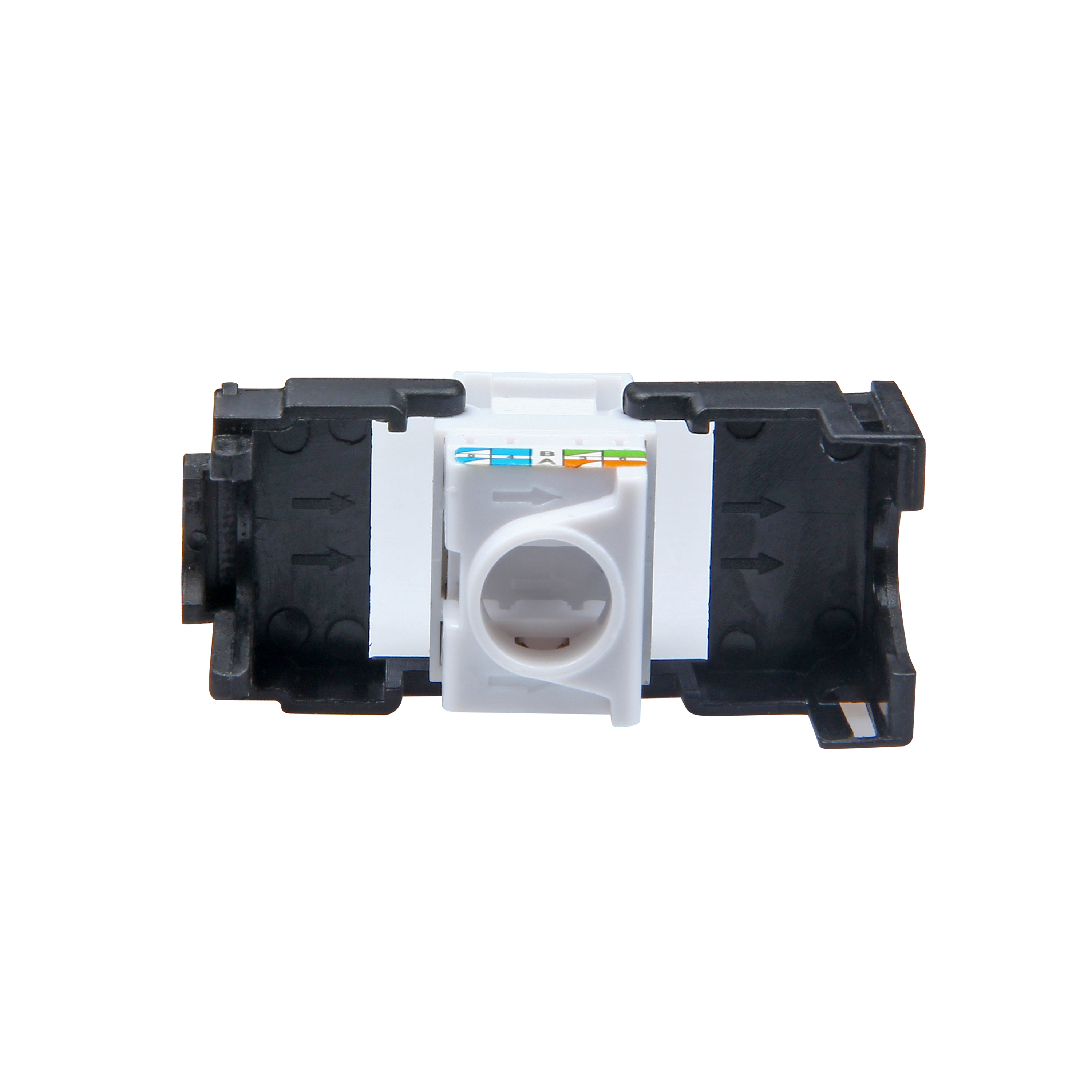

Cat.6 UTP 180 Degree Keystone Jack Tooless

Part Code: TM04CAT6JKTL01+UTP180

TM04CAT6JKTL01+UTP180

Cat.6/6A UTP 180 Degree Keystone Jack Tooless


ELECTRICAL:

1.  Voltage rating: 125 VAC RMS

2.  Current rating: 1.5 AMP

3.  Contact resistance: 20 Milliohms MAX

4.  Insulation resistance: 100 Megohms MIN @ 500 VDC

5.  Dielectric strength: 750 VAC RMS 60Hz, 1MIN

ENVIRONMENTAL:

1.  Storage: -40° -  +70°

2.  Operation: -10° -  +60°

Conform to TIA/EIA 568B CATEGORY 6

Mates with modular plug conforming to FCC part 68, Subpart F.

MECHANICAL:

1.  Housing material: QIMEI PC110 UL94-V0

2.  Insert material: PBT+30%GF

3. PCB material: FR-4 T=1.6mm

4.  Contact material: Phosphor bronze stamp PIN T=0.3mm

5. IDC Contact material: Phosphor bronze T=0.50mm WITH TIN PLATING

6.   RJ45 JACK LIFE: 750 TIMES MIN

7.  IDC LIFE: 200 TIMES MIN

8.  WIRE: AWG 22~24

9.  TIA CAT 6 PERM.LINK TEST: WORST PAIR NEXT MARGIN ≥7.0dB

10. Retentiveness of insertion structure: 50N 60±5s


Remark:

6U'', 15U'', 30U'', 50U'' is avaliable

Cat.6a is available
