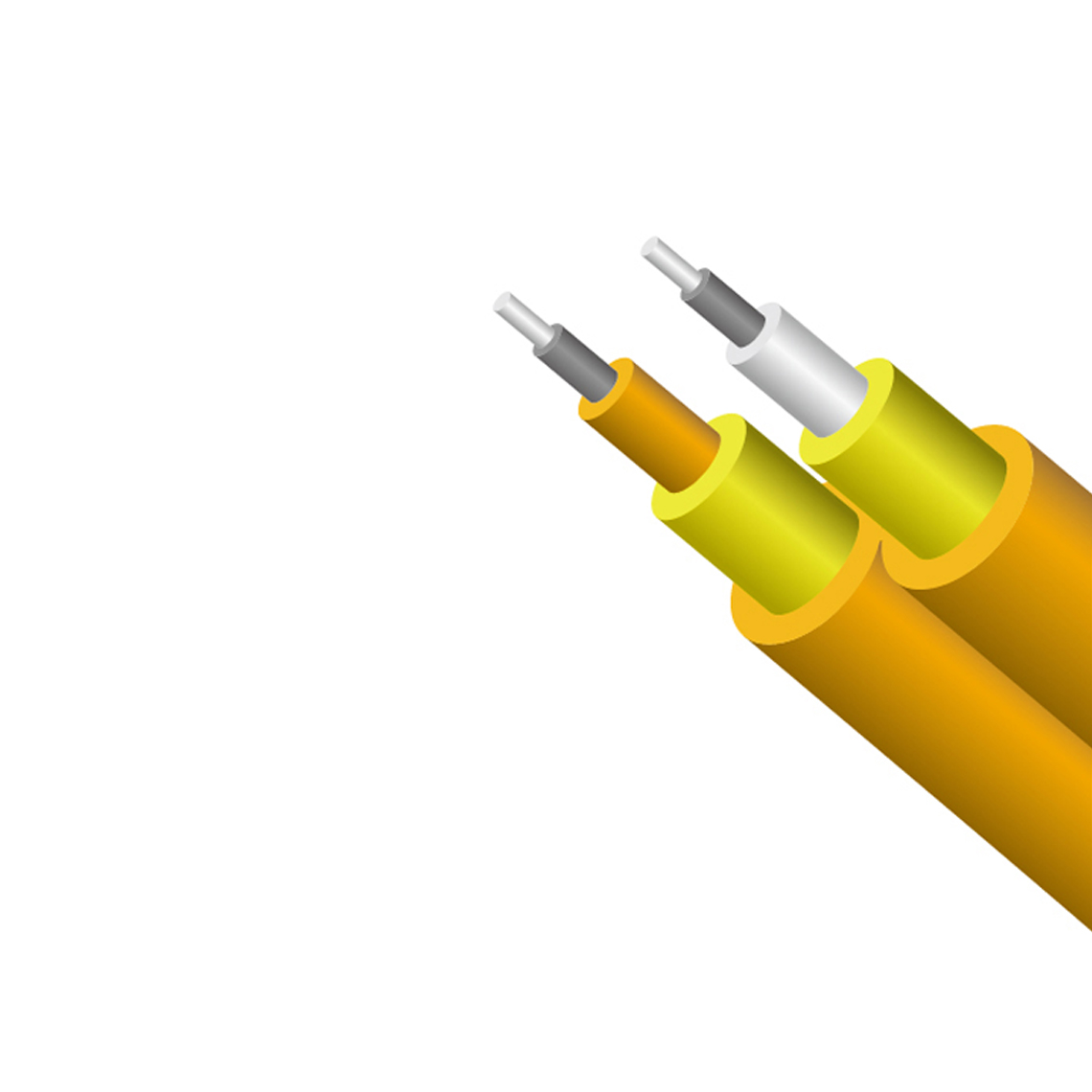

Duplex Flat Indoor Cable SM/OM2/OM3/OM4 PVC/LSZH Jacket

TMGJFJVSM02
  • TMGJFJVSM02

  • Duplex Flat Indoor Cable SM/OM2/OM3/OM4 PVC/LSZH Jacket

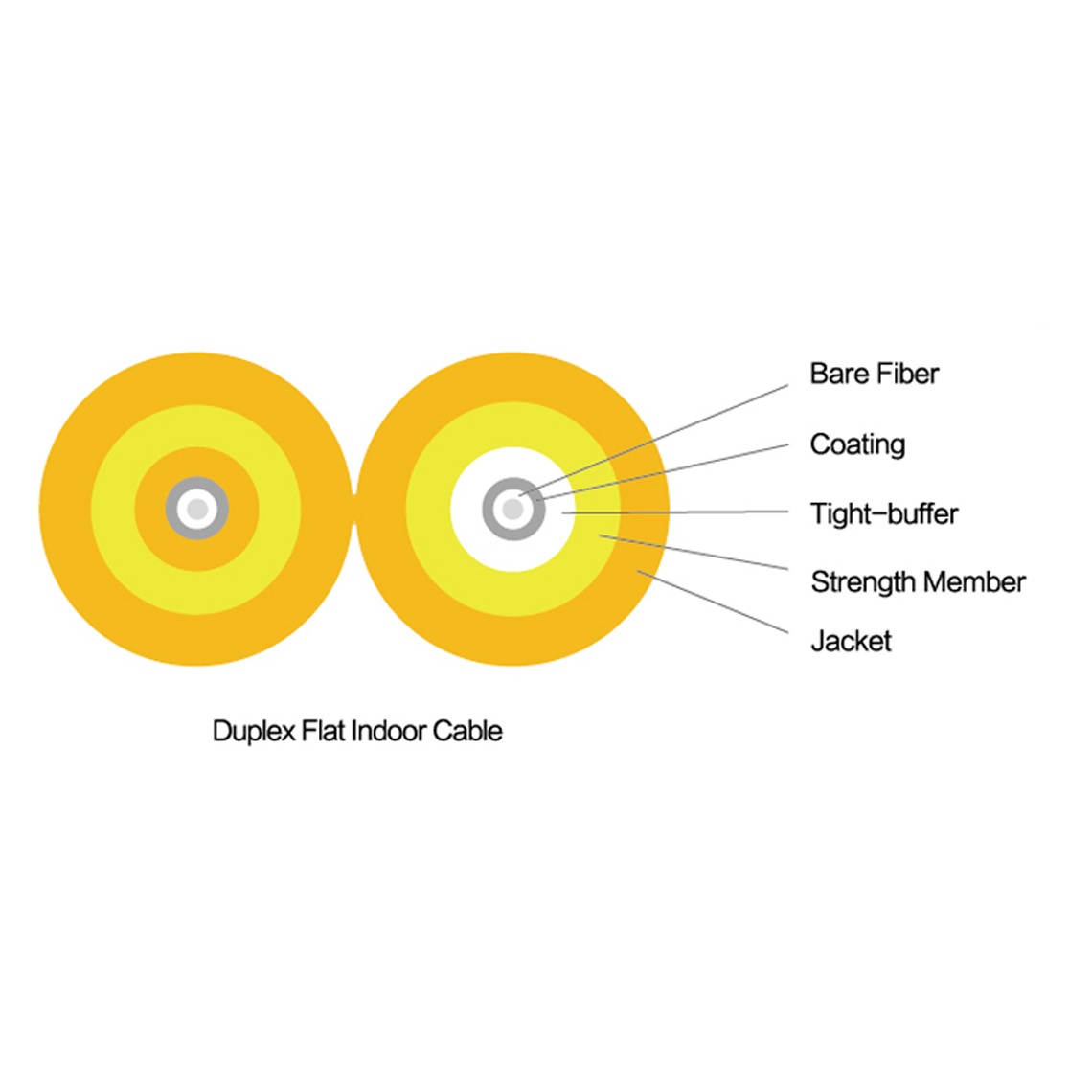

  • Description: Bare Fiber, Coating, Tight- Buffer, Strength member, Jacket

  • Fiber: SM: G652D,G655,G657 or other single mode fiber.MM: A1a, A1b or other multi-mode fibers

  • Tight-Buffer: 0.6mm,0.7mm,0.9mm

  • Strength Member: Aramid Yarn or other high strength Yarn

  • Jacket: PVC, LSZH, PE

  • Color: Color as specified by standard or other color

  • Application: Used as pigtails and patch cord. Used in optional communication equipment rooms. Optical connection of optical distribution frame, Used indoor cabling.

  • Characteristic: soft, flexible, easy splice, and with big capacity data transmission.

  • Temperature: -20 +60 degree

  • Fiber: 2

  • Cable dimension: 1.6x3.3, 1.85x3.8 , 2.0x4.1, 2.8x5.7, 3.0x6.1

  • Delivery Length: 1.0km or 2.0km/Roll

  • OEM and ODM


Return to project list

Key Features

Product Details

Download

Mode: SM

Number of Fiber: 2

Jacket: PVC/LSZH

Application: FTTH System

  • TMGJFJVSM02

  • Duplex Flat Indoor Cable SM/OM2/OM3/OM4 PVC/LSZH Jacket

  • Description: Bare Fiber, Coating, Tight- Buffer, Strength member, Jacket

  • Fiber: SM: G652D,G655,G657 or other single mode fiber.MM: A1a, A1b or other multi-mode fibers

  • Tight-Buffer: 0.6mm,0.7mm,0.9mm

  • Strength Member: Aramid Yarn or other high strength Yarn

  • Jacket: PVC, LSZH, PE

  • Color: Color as specified by standard or other color

  • Application: Used as pigtails and patch cord. Used in optional communication equipment rooms. Optical connection of optical distribution frame, Used indoor cabling.

  • Characteristic: soft, flexible, easy splice, and with big capacity data transmission.

  • Temperature: -20 +60 degree

  • Fiber: 2

  • Cable dimension: 1.6x3.3, 1.85x3.8 , 2.0x4.1, 2.8x5.7, 3.0x6.1

  • Delivery Length: 1.0km or 2.0km/Roll

  • OEM and ODM
