Smart Home Cabinet series are designed for operation in households

Part Code: TM07SHC

Part Code: TM07SHC

19” Smart Home Cabinet H530mmxW530mmxD140mm



Smart Home Cabinet series are designed for operation in households, they are installed on the wall directly, they are 19” width (with an option to make it with 10” width (254mm) with all other accessories are available upon order).


Description

Model Number: TM07SHC

- Product name: 19” Smart Home Cabinet H530mmxW530mmxD140mm

- Height: 550mm

- Width: 530mm

- Depth: 140mm


Construction:

Box of  1.25, 1.5 and 2.0mm cold rolled steel.



Color:

Standard RAL 7035 (Other colors are available upon order.)

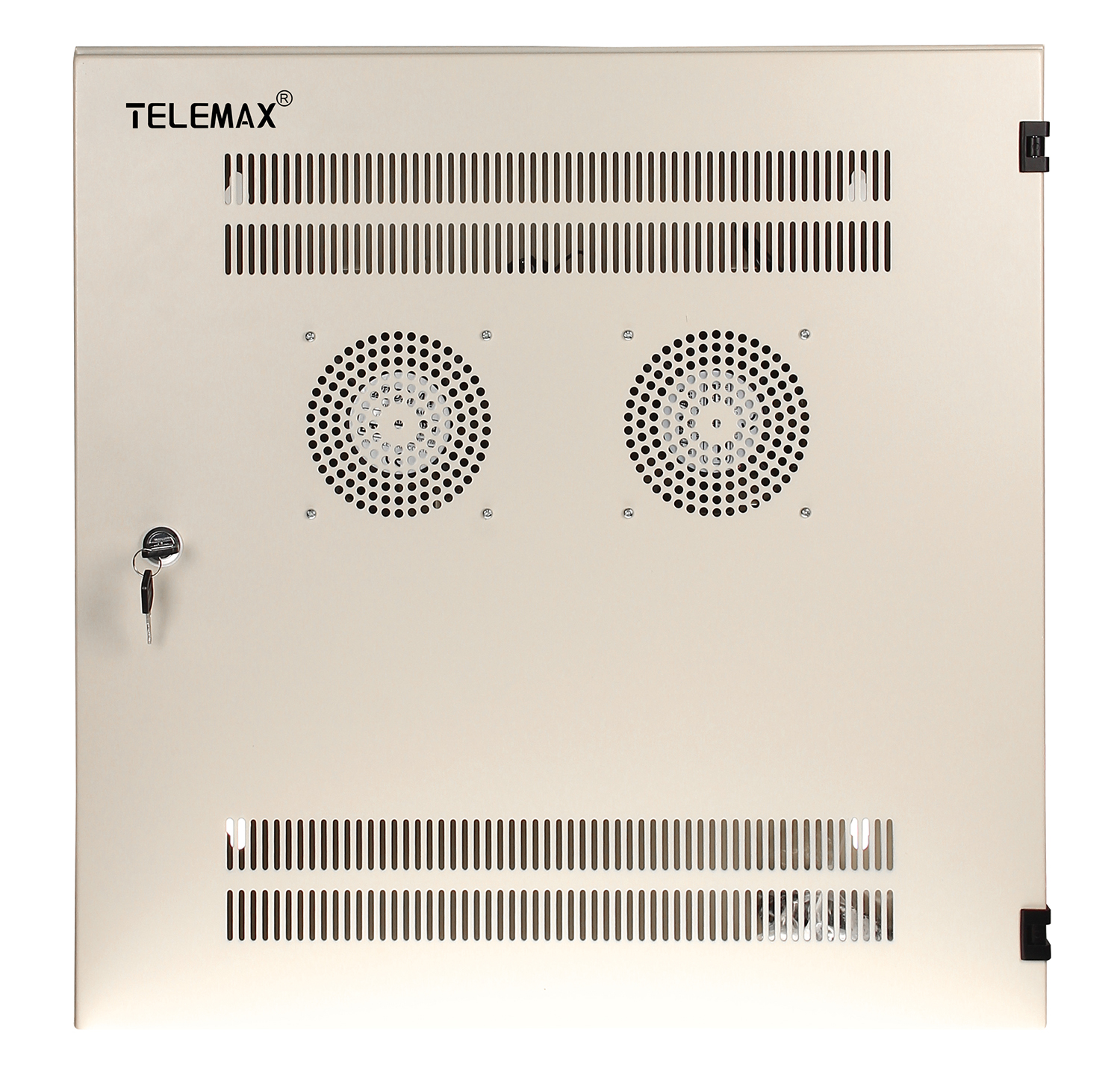

Front door:

Perforated door for effective ventilation with lock (180 degree opening door).

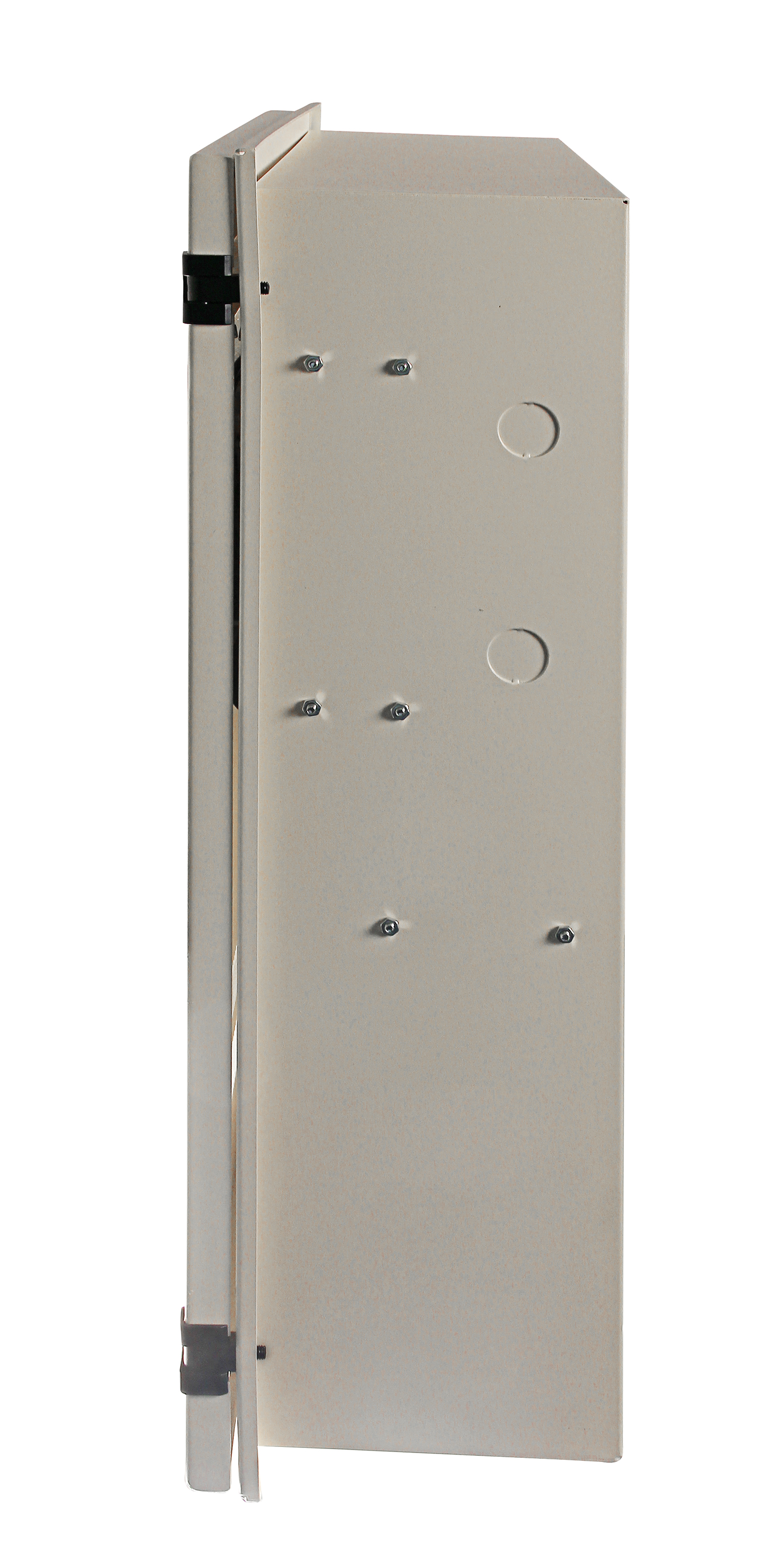

Cable entry:

1. Knock-out at the bottom for an internal electrical outlet.

2. Multiple 22.6mm conduit knock-out on all sides of the box.

1.Cable ties bump outs on rear side of the Box.



Accessories:

PDU 1PCS

Fans 2 PCS

Vertical cable manager 1PCS

Cable manager 1PCS
