Part Code: KFL-10P

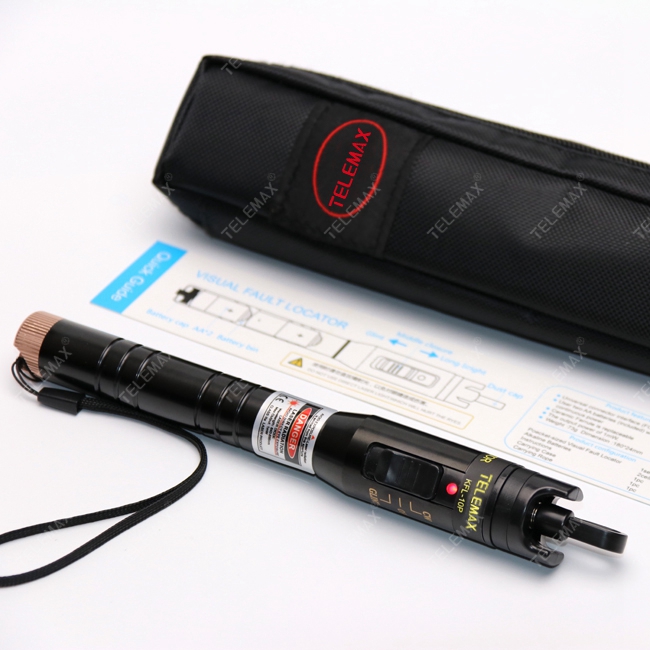

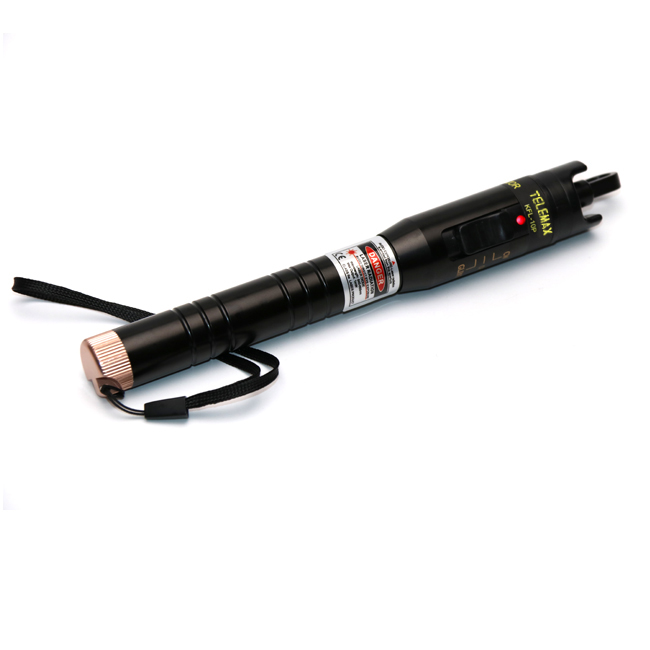

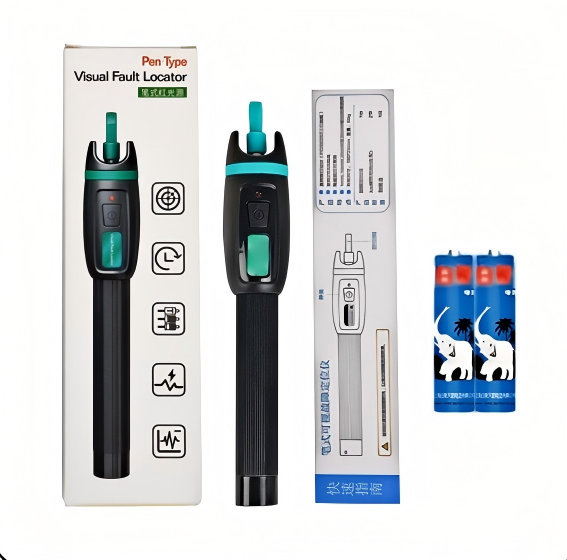

Pen-type Fiber Optic Visual Fault Locator KFL-10P

● Bright red laser at 650nm
● Pulsed and CW operation
● Outpower: 1mw,10mw,20mw
● 2.5mm universal connector
● 60 hours of operation(1mW)

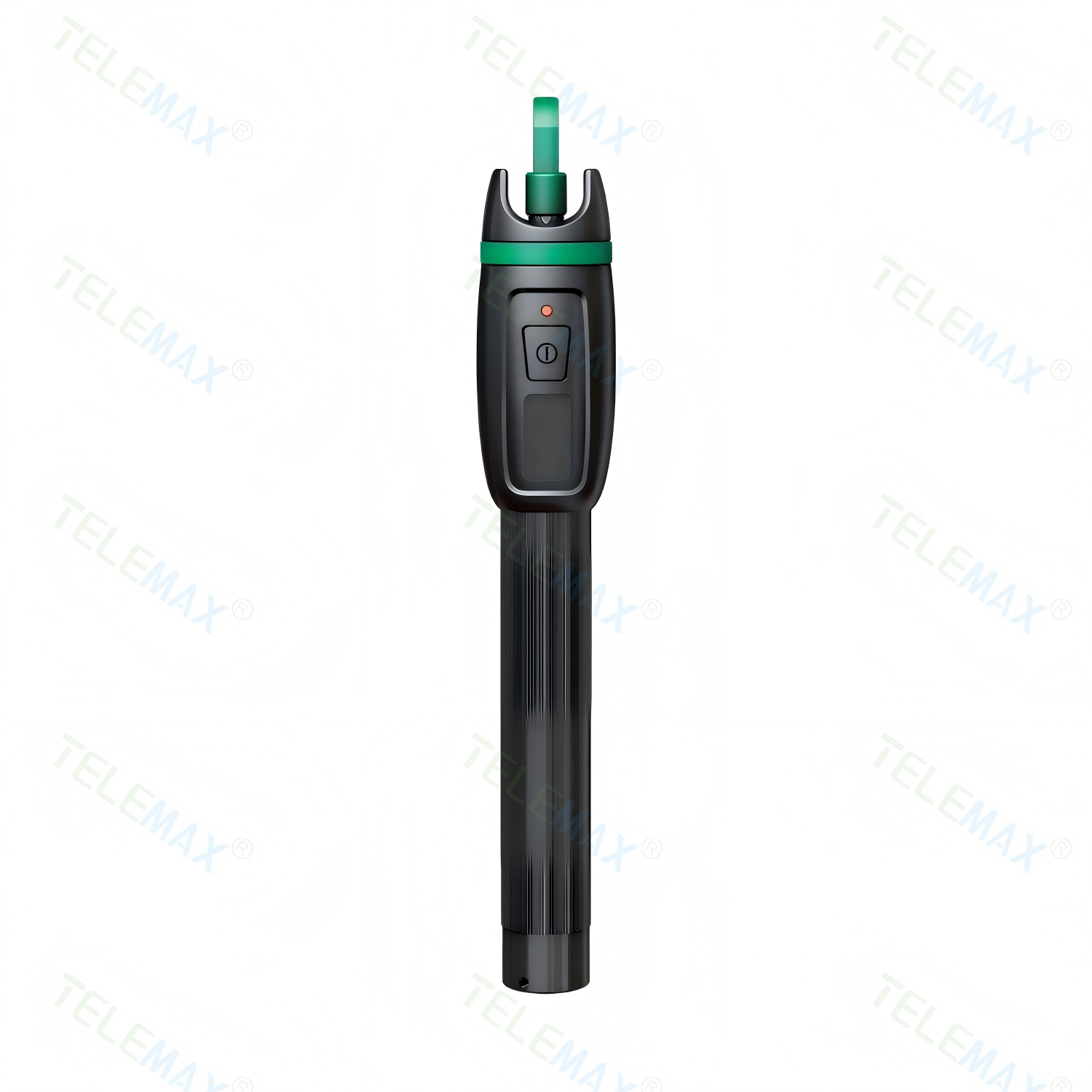

● Pen type design
● 1.25 mm adapter for LC (optional)

The KFL-10P is new, powerful, pen-type visual laser source for fiber fault
locating. It has attractive design and small size and it is easy to operate.
Visual fault locator is typically used to inspectdamaged or broken point of
an optical fiber, cable or patch cord. The leaking red light from thedamage
reveals the faulty spot. Another way of using KFL-10P is to identify
individual fibers from other fibers for example at ODF.

Specifications
Fiber Types All fiber types
Output power 1mW / 10mW / 20mW
Operating range 5KM / 8~10KM / 15~18KM
Laser Class Class IIIA
Laser type Laser Diode

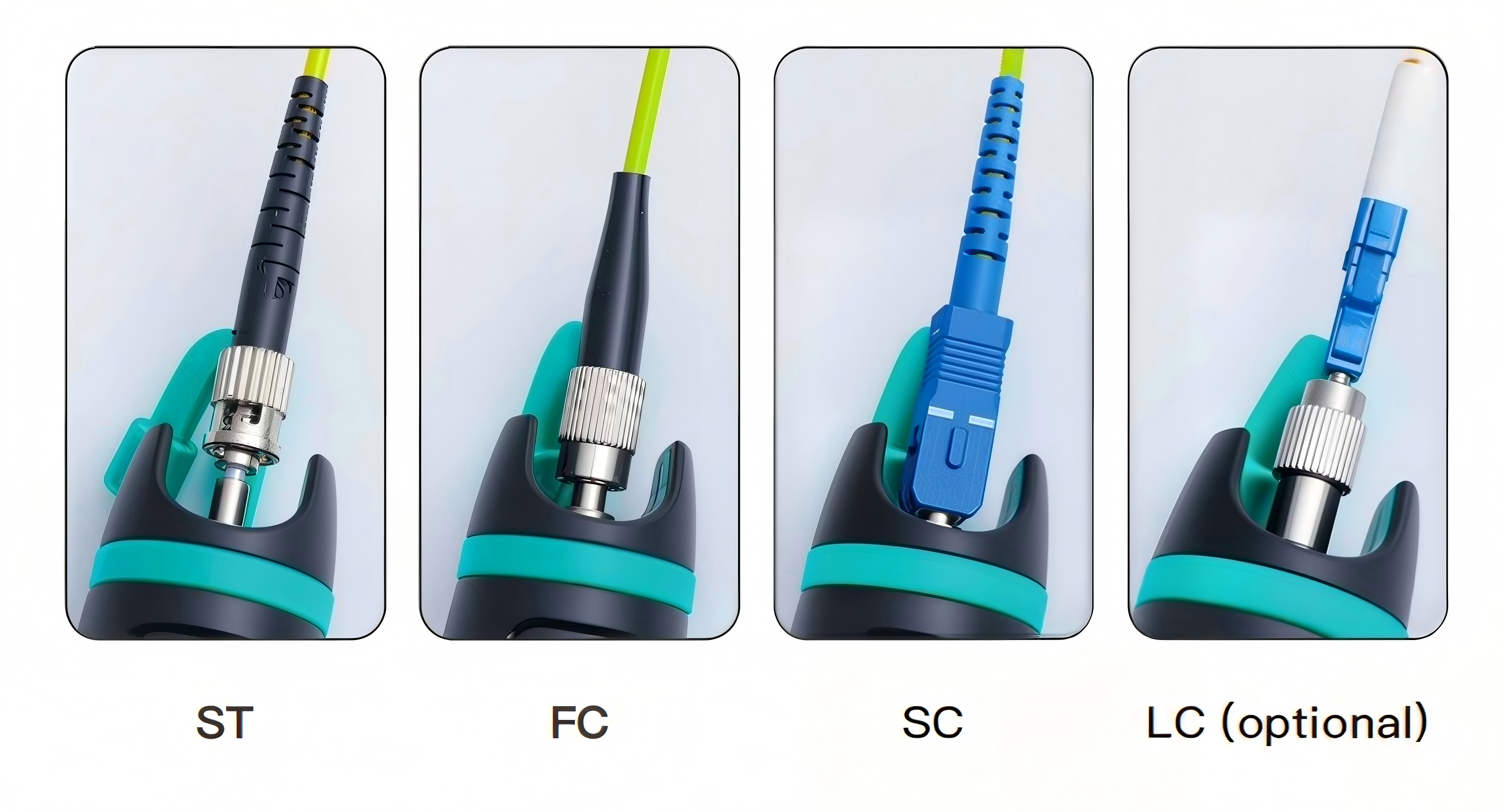

Optical connector 2.5mm Universal connector for FC,SC,ST; (1.25mm for LC sold seperately)
Dimensions 175×25×25 mm
Weight 90g

•
