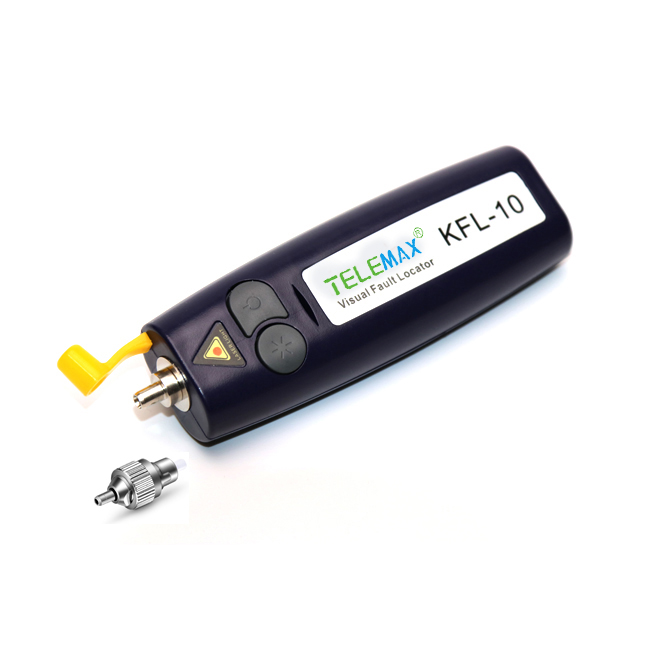

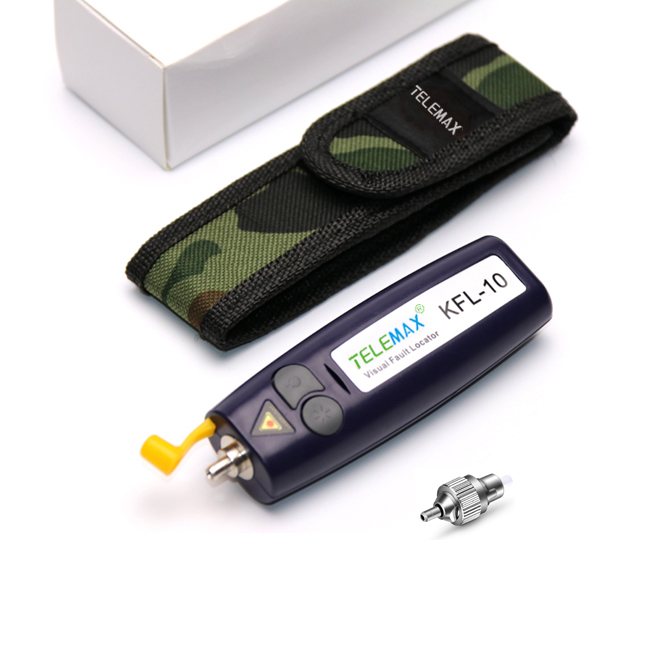

Fiber Optic Visual Fault Locator KFL-10

● Bright red laser at 650nm
● Pulsed and CW operation
● Outpower: 1mw,10mw,20mw
● 2.5mm universal connector
● 40 hours of operation(1mW)
● Pocket size design
● 1.25 mm adapter for LC (optional)

The KFL-10 is new, powerful, mini visual laser source for fiber fault locating. It has attractive
design and small size and it is easy to operate. Visual fault locator is typically used to inspect
damaged or broken point of an optical fiber, cable or patch cord. The leaking red light from the
damage reveals the faulty spot. Another way of using KFL-10 is to identify individual fibers
from other fibers for example at ODF.

Specifications
Fiber Types All fiber types
Output power 1mW / 10mW / 20mW
Operating range 5KM / 8~10KM / 15~18KM
Laser Class Class IIIA
Laser type Laser Diode
Optical connector 2.5mm Universal connector for FC,SC,ST; (1.25mm for LC sold seperately)
Dimensions 120W×33D×30H mm
Weight 60 g
