Part Code: TM14PLC0132SCAB

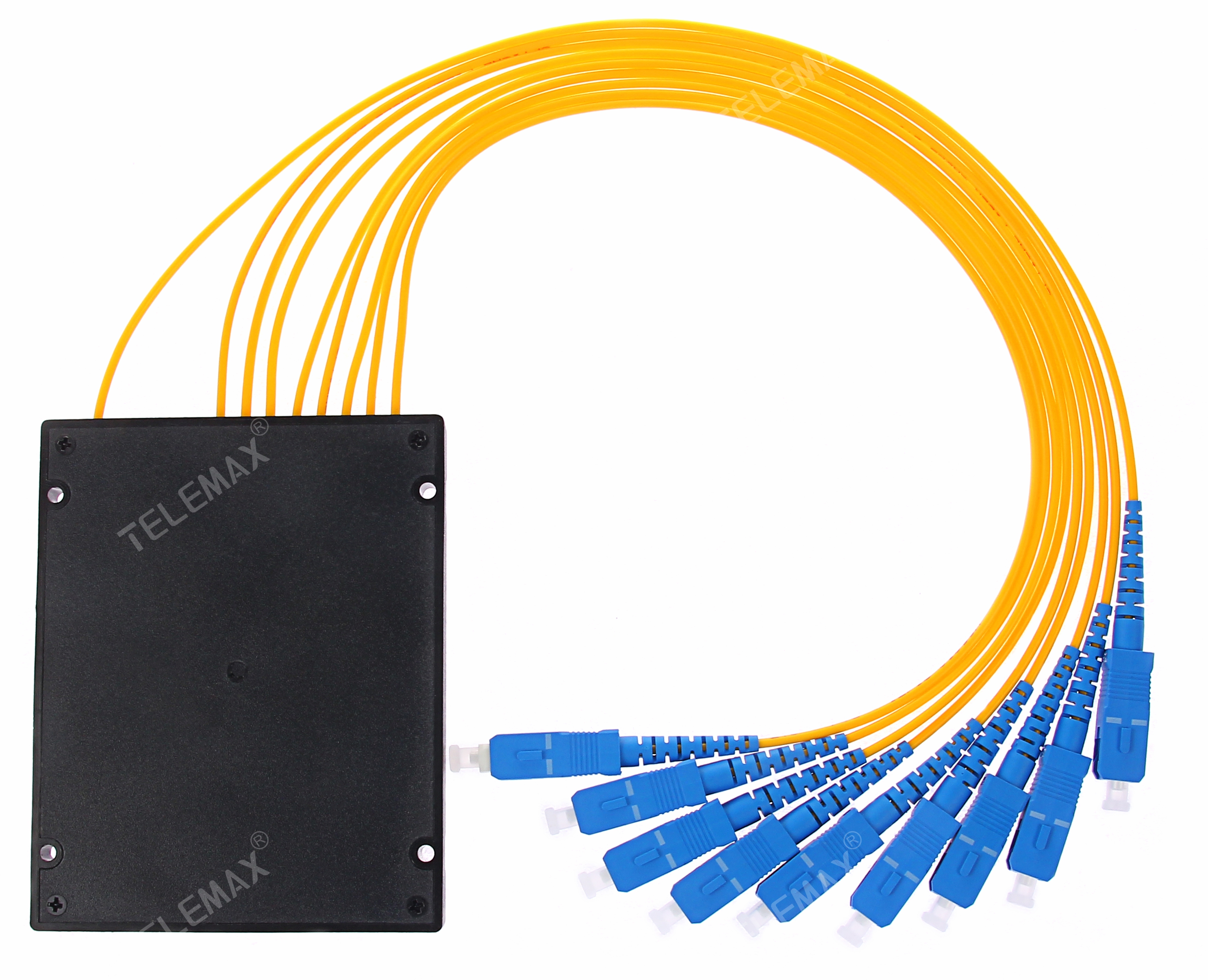

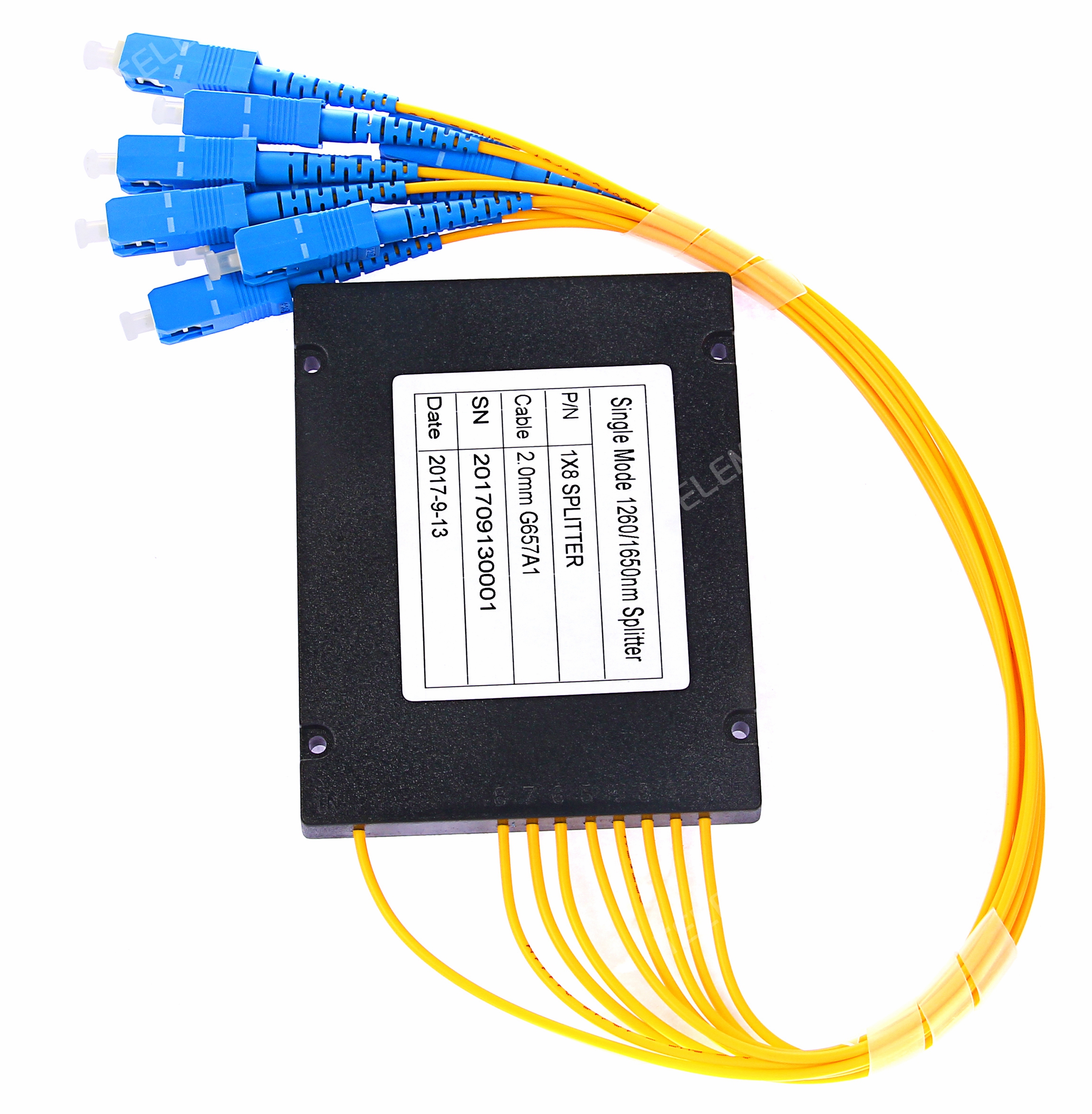

1:4/1:8/1:16/1:32 PLC splitter with SC/PC, ABS Box

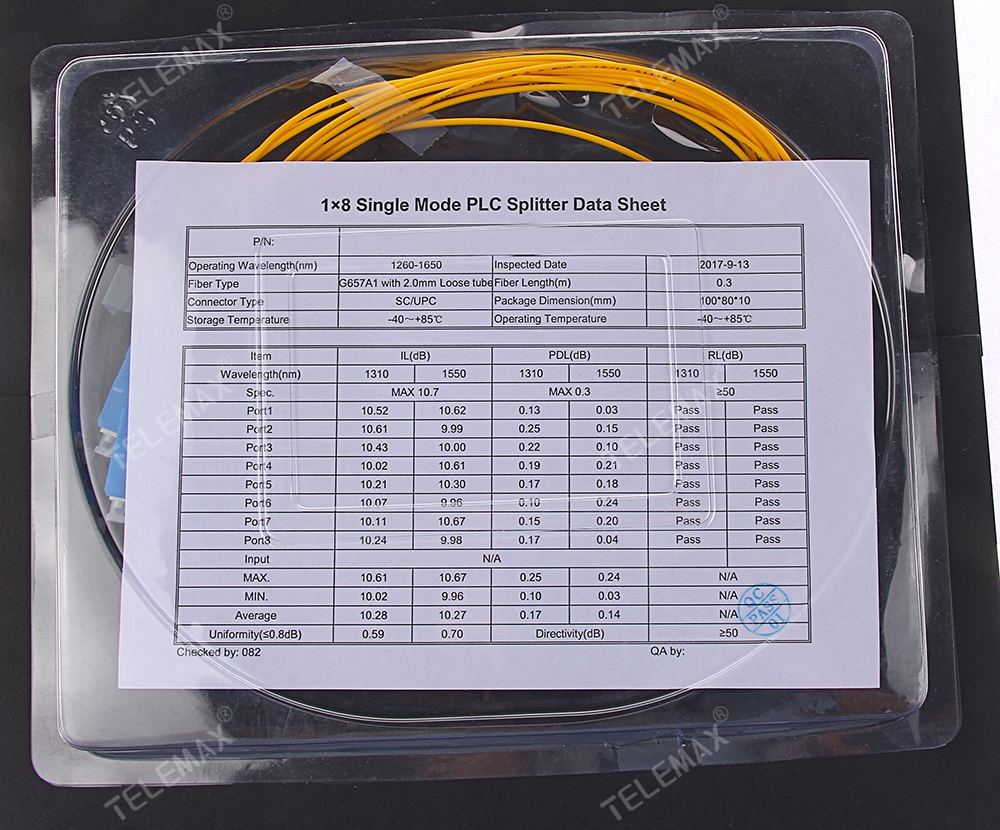

Operating Wavelength(nm) |
1260-1650 |
Inspected Date |
6/2/20 |
||||
P/N: |
1x8-PLC-0.9-SC/APC |
S/N |
200602001 |
||||
Fiber Type |
G.657A1 with LSZH tube |
Fiber Length(m) |
≥1.5 |
||||
Connector Type |
SC/APC |
Package Dimension(mm) |
100x80x10 |
||||
Storage Temperature |
-40～+85℃ |
Operating Temperature |
-40～+85℃ |
||||
Item |
IL(dB) |
PDL(dB) |
RL(dB) |
||||
Wavelength(nm) |
1310 |
1550 |
1310 |
1550 |
1310 |
1550 |
|
Spec. |
MAX 10.5 |
MAX 0.2 |
＞55 |
||||
Port1 |
10.36 |
10.18 |
0.03 |
0.04 |
Pass |
Pass |
|
Port2 |
10.22 |
10.01 |
0.03 |
0.03 |
Pass |
Pass |
|
Port3 |
10.11 |
10.16 |
0.04 |
0.03 |
Pass |
Pass |
|
Port4 |
10.34 |
10.30 |
0.03 |
0.02 |
Pass |
Pass |
|
Port5 |
10.18 |
10.21 |
0.03 |
0.04 |
Pass |
Pass |
|
Port6 |
10.40 |
10.23 |
0.02 |
0.02 |
Pass |
Pass |
|
Port7 |
10.35 |
10.13 |
0.02 |
0.04 |
Pass |
Pass |
|
Port8 |
10.28 |
10.37 |
0.02 |
0.02 |
Pass |
Pass |
|
Input |
|||||||
MAX. |
10.40 |
10.37 |
0.04 |
0.04 |
N/A |
||
MIN. |
10.11 |
10.01 |
0.02 |
0.02 |
N/A |
||
Average |
10.28 |
10.20 |
0.03 |
0.03 |
N/A |
||
Uniformity(≤0.8dB) |
0.29 |
0.35 |
Directivity(dB) |
＞55 |
|||
