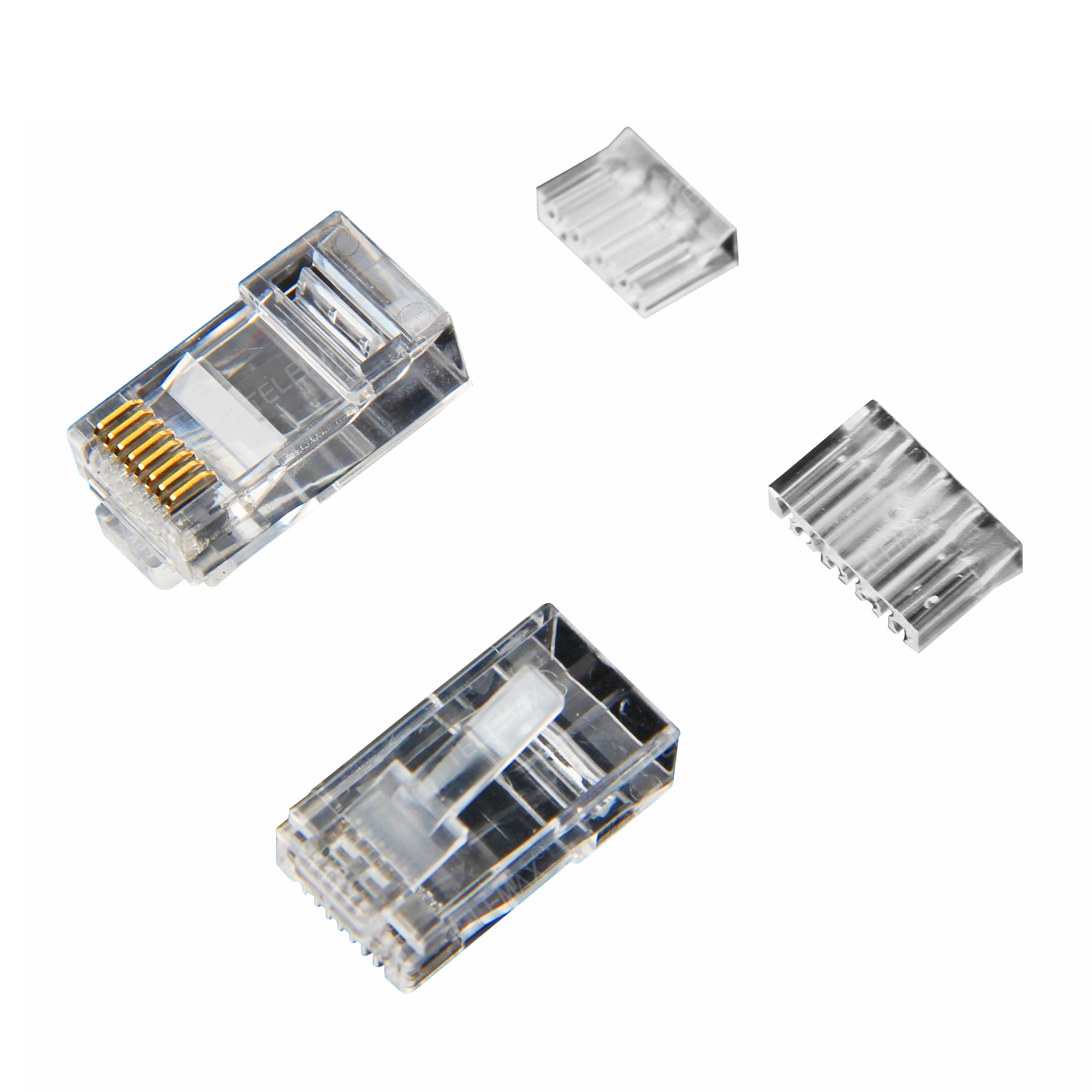

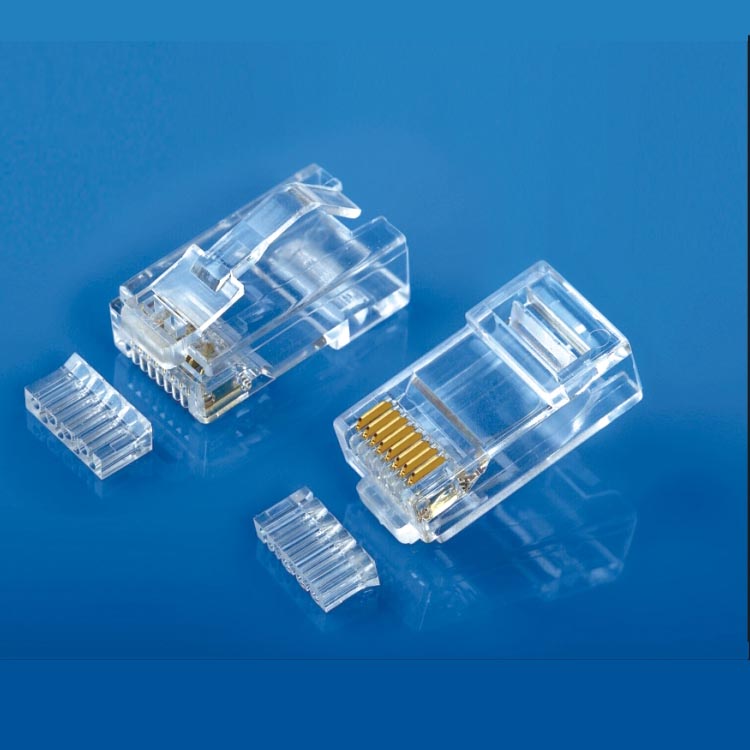

CAT6A UTP RJ45 Plug 8P8C, Golden plating 3/15/30/50u''

Part Code: TMPLUGC6AUTP

Part Code: TMPLUGC6AUTP

CAT6A UTP RJ45 Plug 8P8C, Golden plating 3/15/30/50u'',Copper Pin,Two Parts


Features:


Electric test


Safety voltage/current rating 150V, at 1.5A

Dielectric with standing 1000V/DC/min,<0.5A.

Insulation resistance:>500Ω, 1000V./min

Contact resistance:<20MΩ

Mechanical :

Cable-to-Plug tensile strength - 20LBs(89N)min

Durability: 750mating cycles.


Operation Temperature: - 40℃ - +85 ℃


Environmental Compliance

The products are compliant with the RoHs, and REACH ETC.


Safety standards: UL



Return to project list

Key Features

Product Details

Download

Part Code: TMPLUGC6AUTP

CAT6A UTP RJ45 Plug 8P8C, Golden plating 3/15/30/50u'',Copper Pin,Two Parts


Features:


Electric test


Safety voltage/current rating 150V, at 1.5A

Dielectric with standing 1000V/DC/min,

Insulation resistance:>500Ω, 1000V./min

Contact resistance:

Mechanical :

Cable-to-Plug tensile strength - 20LBs(89N)min

Durability: 750mating cycles.


Operation Temperature: - 40℃ - +85 ℃


Environmental Compliance

The products are compliant with the RoHs, and REACH ETC.


Safety standards: UL
