Part Code: TMPLUGC6UTP

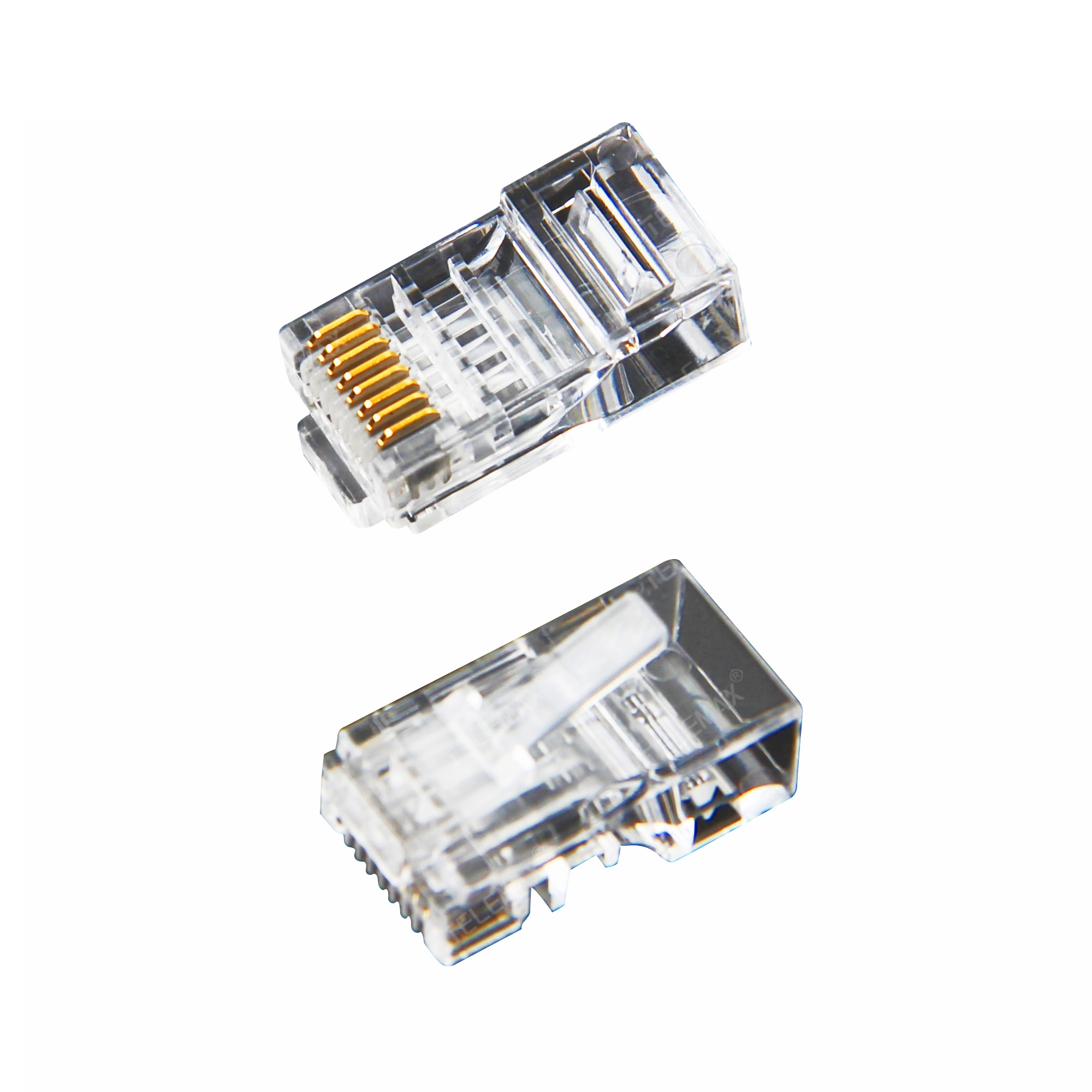

CAT6 UTP RJ45 Plug 8P8C, Golden plating 3/15/30/50u''

Features:

Electric test

Safety voltage/current rating 150V, at 1.5A

Dielectric with standing 1000V/DC/min,<0.5A.

Insulation resistance:>500Ω, 1000V./min

Contact resistance:<20MΩ

Mechanical :

Cable-to-Plug tensile strength - 20LBs(89N)min

Durability: 750mating cycles.

Operation Temperature: - 40℃ - +85 ℃

Environmental Compliance

The products are compliant with the RoHs, and REACH ETC.

Safety standards: UL

•
  CAT6-UTP.pdf
